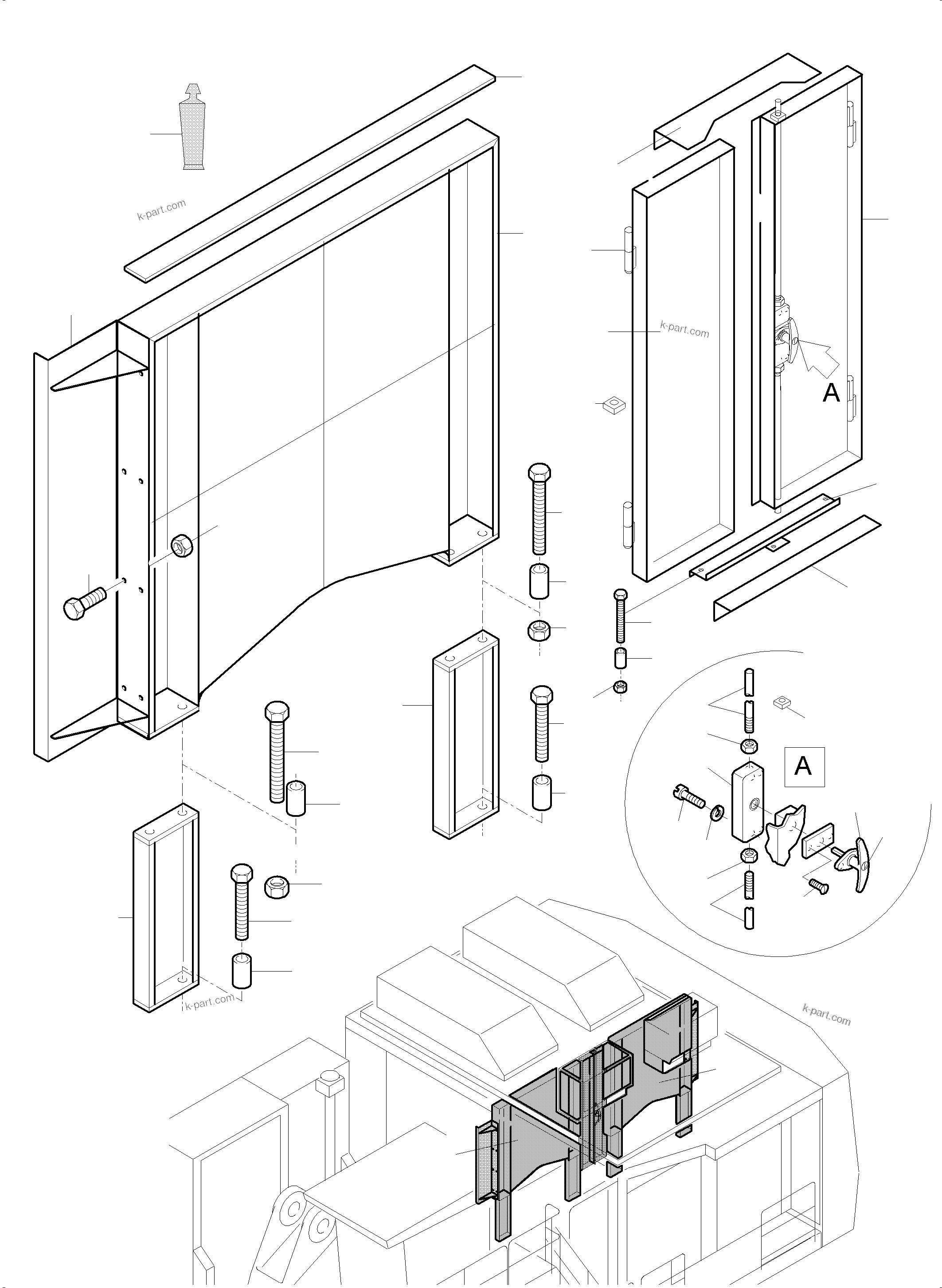

FIRE PRECAUTION WALL WITH DOORS | PC5500-6 S/N 15056

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC5500-6 S/N 15056

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	934 280 40	Wall	2	InternKon: 930 141 40 / 1
?	675 598 40	Wall	4	InternKon: 930 141 40 / 2
?	933 917 40	Wall	2	InternKon: 930 141 40 / 3
?	510 733 98	Resilient sleeve	16	InternKon: 930 141 40 / 4
?	308 424 99	Bolt	8	InternBDB: M16x110 \| InternKon: 930 141 40 / 5
?	308 321 99	Bolt	8	InternBDB: M16x90 \| InternKon: 930 141 40 / 6
?	332 355 99	Nut	8	InternBDB: M 16 \| InternKon: 930 141 40 / 7
?	661 607 40	Profiled joint	2	InternBDB: Z 125 10x100x1340 \| InternKon: 930 141 40 / 8
?	256 952 40	Adhesive 0,2 Kg	-2	InternKon: 930 141 40 / 9
?	928 732 40	Door Assy consist of fig. nos. 21-29,50	1	InternBDB: PC 5500-6 \| InternKon: 930 141 40 / 10
?	928 733 40	Door	1	InternBDB: SK \| InternKon: 928 732 40 / 1
?	323 635 40	Edge	1	InternBDB: 7-113 ohne Spezialnuss Wss-1011 \| InternKon: 928 732 40 / 2
?	323 661 40	Handle	1	InternBDB: 13-228 \| InternKon: 928 732 40 / 3
?	321 009 99	Srew	4	InternBDB: M5x16 / 4.8 / DIN 84 \| InternKon: 928 732 40 / 4
?	346 509 99	Lock washer	4	InternBDB: A 5 DIN 128 \| InternKon: 928 732 40 / 5
?	318 576 99	Srew	4	InternBDB: M5x10 / 4,8 / DIN 964 \| InternKon: 928 732 40 / 6
?	928 738 40	Fixing rod	2	InternBDB: ST50-2K 655 \| InternKon: 928 732 40 / 7
?	928 739 40	Plate	2	InternBDB: 8x24x24 ST52-3N \| InternKon: 928 732 40 / 8
?	332 114 99	Nut	2	InternBDB: M10 DIN 934 \| InternKon: 928 732 40 / 9
?	928 740 40	Door	1	InternBDB: PC 5500-6 \| InternKon: 930 141 40 / 11
?	928 744 40	Door catch	1	InternBDB: PC 5500-6 \| InternKon: 930 141 40 / 12
?	928 774 40	Strip	1	InternKon: 930 141 40 / 13
?	621 983 40	Band roller with grease nippel	4	InternBDB: 1033 U7/20K 100 mm \| InternKon: 930 141 40 / 14
?	928 749 40	Plate	1	InternBDB: 8x24x24 \| InternKon: 930 141 40 / 15
?	928 748 40	Angle	2	InternBDB: 50x5x40 \| InternKon: 930 141 40 / 16
?	308 608 99	Srew	2	InternBDB: M12x70 8.8 / DIN 931 \| InternKon: 930 141 40 / 17
?	512 958 98	Resilent Sleeve	2	InternBDB: 13 / 25x45 \| InternKon: 930 141 40 / 18
?	332 334 99	Nut	2	InternBDB: M12 / DIN 934 \| InternKon: 930 141 40 / 19
?	307 775 99	Screw	16	InternBDB: M10x20 /933 \| InternKon: 930 141 40 / 20
?	507 037 98	Nut	16	InternBDB: M10 /985 \| InternKon: 930 141 40 / 21
?	324 576 40	Handle	1	InternBDB: Happich 580 0176 \| InternKon: 928 732 40 / 10
