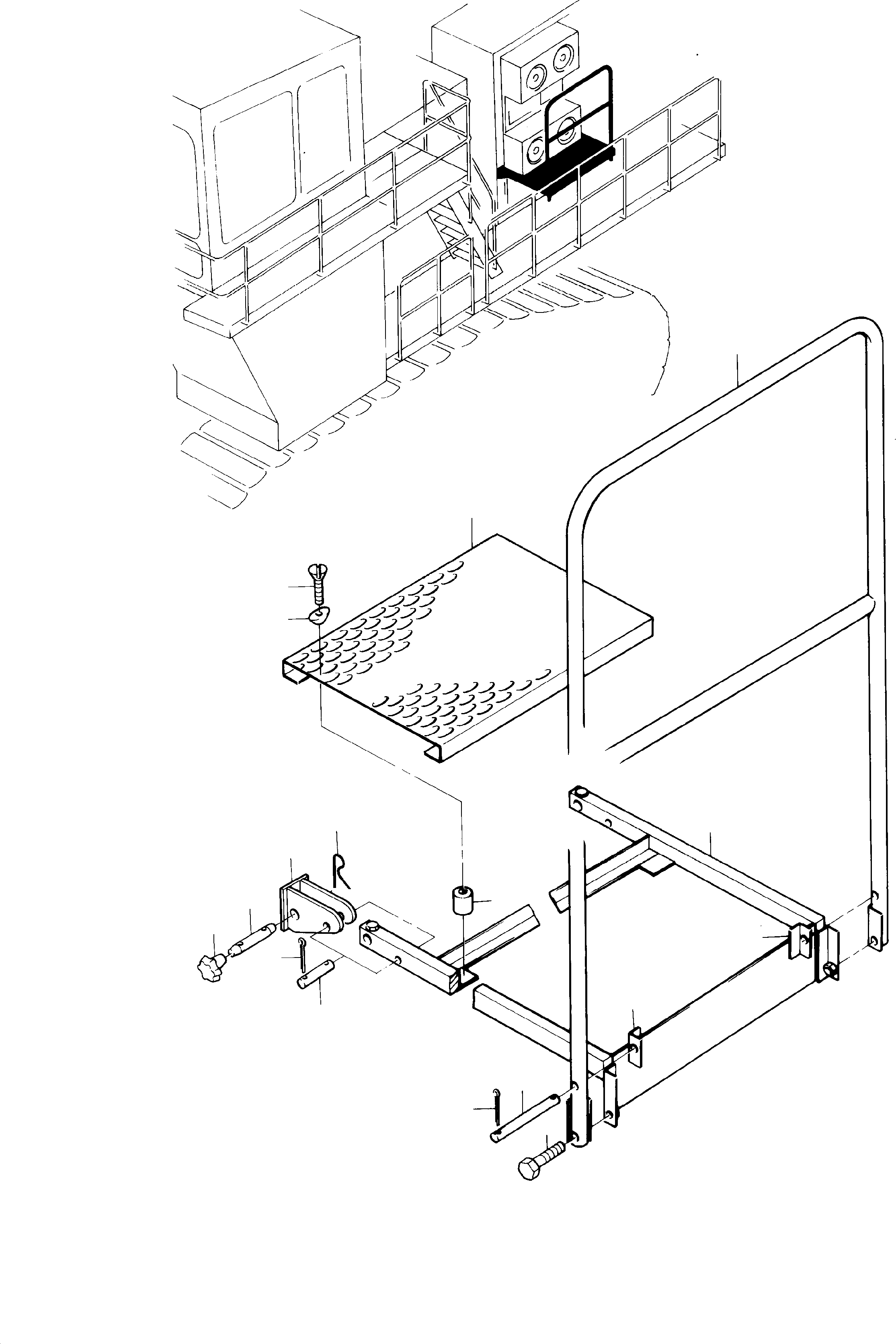

Komatsu parts book diagram for H285 S/N 78099: AIR CLEANER PLATFORM

01 02 03 04 05 06 07 08 09 10 11 12 13 14 14 15 16

	#	Part Number	Partname	Quantity	Options	Reference
	01	389 924 40	Platform	1	InternKon: 390 425 40 / 1
	02	390 417 40	Retainer	2	InternKon: 390 425 40 / 2
	03	389 925 40	Rail	1	InternKon: 390 425 40 / 3
	04	390 409 40	Angle	1	InternKon: 390 425 40 / 4
	05	390 408 40	Angle	1	InternKon: 390 425 40 / 5
	06	324 433 40	Grating 480x1200	1	InternBDB: Graepel \| InternKon: 390 425 40 / 6
	07	317 318 40	Wing nut	4	InternBDB: Graepel 366.001 \| InternKon: 390 425 40 / 7
	08	502 354 98	Bolt	4	InternBDB: M8x40 /963 \| InternKon: 390 425 40 / 8
	09	317 319 40	Threaded block	4	InternBDB: TL \| InternKon: 390 425 40 / 9
	10	390 416 40	Pin	2	InternKon: 390 425 40 / 10
	11	308 633 99	Bolt	2	InternBDB: M16x65 /931 \| InternKon: 390 425 40 / 11
	12	390 410 40	Pin	2	InternKon: 390 425 40 / 12
	13	001 645 98	Locking spring	2	InternBDB: 5Bx170 010 736 99 \| InternKon: 390 425 40 / 13
	14	342 061 99	Cotter pin	8	InternBDB: 4x32 /94 \| InternKon: 390 425 40 / 14
	15	356 118 99	Star grip	2	InternBDB: K 63 /6336 \| InternKon: 390 425 40 / 15
	16	390 411 40	Pin	2	InternKon: 390 425 40 / 16

Komatsu H285 S/N 78099 parts catalog PDF

AIR CLEANER PLATFORM (114-1966) in H285 S/N 78099. Diagram image and parts list.
