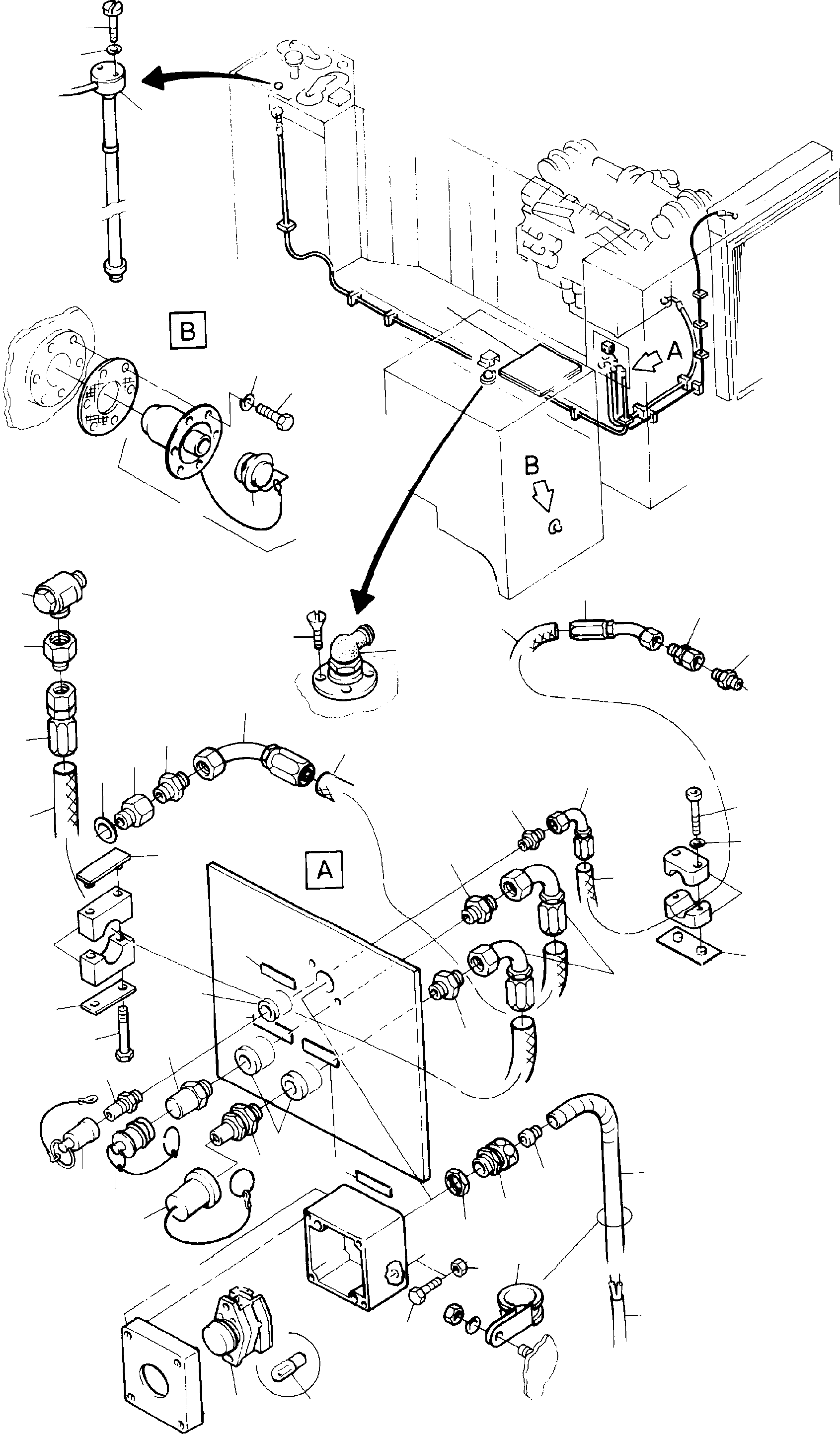

REFUELING SYSTEM, CU-ENGINE | H285S S/N 78129 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	323 906 40	Coolant receiver	1	InternBDB: Doedijns EC 285 A 8 \| InternKon: 389 800 40 / 7
02	324 438 40	Cap	1	InternBDB: Doedijns 1208-8 \| InternKon: 389 800 40 / 8
03	332 944 40	Plug	1	InternKon: 389 800 40 / 4
04	373 001 99	Union	1	InternBDB: GE 12-L / 1/2" NPT \| InternKon: 389 800 40 / 22
05	256 870 40	Hose fittings	1	InternBDB: Aeroquip 07.031-10-8 \| InternKon: 389 800 40 / 23
06	256 784 40	Hose DN 10x4000 mm Bulk ware, state length required	1	InternBDB: Aeroquip 1503-8 \| InternKon: 389 800 40 / 24
07	269 420 40	Hose fittings	1	InternBDB: Aeroquip 07.030-10-8 \| InternKon: 389 800 40 / 25
08	373 004 99	Union	1	InternBDB: GR 12/10 L \| InternKon: 389 800 40 / 26
09	371 944 99	Socket	1	InternBDB: evGE10 LM-ed \| InternKon: 389 800 40 / 21
10	533 992 99	Plate	5	InternBDB: 011 839 99 E 3 \| InternKon: 389 800 40 / 39
11	504 780 98	Half clamp	10	InternBDB: 011 839 99 C 3/20 \| InternKon: 389 800 40 / 38
12	319 133 99	Screw	10	InternBDB: M6x50 /912 \| InternKon: 389 800 40 / 39
13	340 405 99	Washer	10	InternBDB: 6,4 /433 \| InternKon: 389 800 40 / 41
14	323 905 40	Crankcase receiver	1	InternBDB: Deodijns ON-2 \| InternKon: 389 800 40 / 5
15	324 437 40	Cap	1	InternBDB: Doedijns OC-12 E \| InternKon: 389 800 40 / 6
16	332 946 40	Plug	2	InternKon: 389 800 40 / 3
17	372 476 99	Union	3	InternBDB: GE 22 L /3/4 NPT \| InternKon: 389 800 40 / 13
18	269 418 40	Hose fittings	3	InternBDB: Aeroquip 07.031-22-16 \| InternKon: 389 800 40 / 14
19	269 333 40	Hose DN 20x4000 mm Bulk ware, state length required	1	InternBDB: Aeroquip 1503-16 \| InternKon: 389 800 40 / 15
20	324 571 40	Adapter	1	InternBDB: Cummins 196 155 \| InternKon: 389 800 40 / 16
21	324 572 40	Washer	1	InternBDB: Cummins 67 946 \| InternKon: 389 800 40 / 17
22	270 861 40	Hydr. receiver	1	InternBDB: Doedijns 6005 A 12 \| InternKon: 389 800 40 / 9
23	270 862 40	Cap	1	InternBDB: 6008-12 \| InternKon: 389 800 40 / 10
24	269 333 40	Hose DN 20x7000 mm Bulk ware, state length required	1	InternBDB: Aeroquip 1503-16 \| InternKon: 389 800 40 / 15
25	269 416 40	Hose fittings	1	InternBDB: Aeroquip 07.002-22-16 \| InternKon: 389 800 40 / 18
26	372 917 99	Union	1	InternBDB: KOR 28/22-L \| InternKon: 389 800 40 / 19
27	007 135 98	Union	1	InternBDB: Voss 28-LM \| InternKon: 389 800 40 / 20
28	534 005 99	Plate	9	InternBDB: 011 839 99 E S 5 \| InternKon: 389 800 40 / 36
29	502 143 98	Half clamp	18	InternBDB: HCS 5/31,5 011 839 99 \| InternKon: 389 800 40 / 53
30	534 004 99	Plate	9	InternBDB: D S 5
31	308 581 99	Bolt	18	InternBDB: M10x70 /931 8.8 \| InternKon: 389 800 40 / 37
32	289 291 40	Bleeder valve	1	InternBDB: Doedijns ZV 10 B \| InternKon: 389 800 40 / 30
33	318 385 99	Bolt	4	InternBDB: M8x16 /963 \| InternKon: 389 800 40 / 31
34	389 811 40	Float switch	1	InternBDB: ASA S 12 B 5 \| InternKon: 389 800 40 / 27
35	321 010 99	Screw	4	InternBDB: AM 5x25 /84 \| InternKon: 389 800 40 / 28
36	343 852 99	Lock washer	4	InternBDB: 5 /7980 \| InternKon: 389 800 40 / 29
37	255 034 40	Box	1	InternBDB: Bopla A 105 \| InternKon: 317 059 40 / 1
38	323 675 40	Signal light, red	1	InternBDB: Lumitas 04.000.2 \| InternKon: 317 059 40 / 2
39	507 382 99	Bulb 2W	1	InternBDB: BA 9S/24V 2W
40	320 932 99	Screw	2	InternBDB: AM 4x20 /84 8 B 2 E
41	332 442 99	Nut	2	InternBDB: M 4 /934 6 B 2 E
42		Counter nut	1	InternBDB: PG 9 /46258
43	323 950 40	Cable union	1	InternBDB: Sievert 5010.100.009
44	356 246 40	Plug-in sleeve	1	InternBDB: Sievert 5020.030.009
45	356 238 40	Conduit Bulk ware, state length required	1	InternBDB: Sievert 0220.101.010
46	502 609 98	Cable 1 qmm, bl Bulk ware, state length required	1	InternBDB: H05v-K1 blau
47	006 302 98	Pipe clamp	20	InternBDB: RSGU 1100.15/ 15
48	304 840 40	Cover	1	InternKon: 317 059 40 / 2
49	289 293 40	Fuel receiver	1	InternBDB: Doedijns ZNC 3 \| InternKon: 317 059 40 / 1
50		Cap	1	InternBDB: Doedijns ZC-20B \| InternKon: 317 059 40 / 1
51	258 311 40	Gasket	1
52	307 754 99	Screw	6	InternBDB: M8x25 /99 8.8
53	346 510 99	Lock washer	6	InternBDB: 8 /128
54	332 936 40	Plate (engine oil)	1	InternKon: 317 059 40 / 32
55	332 937 40	Plate (hydraulic)	2	InternKon: 317 059 40 / 33
56	389 814 40	Plate (water)	1	InternKon: 317 059 40 / 34
