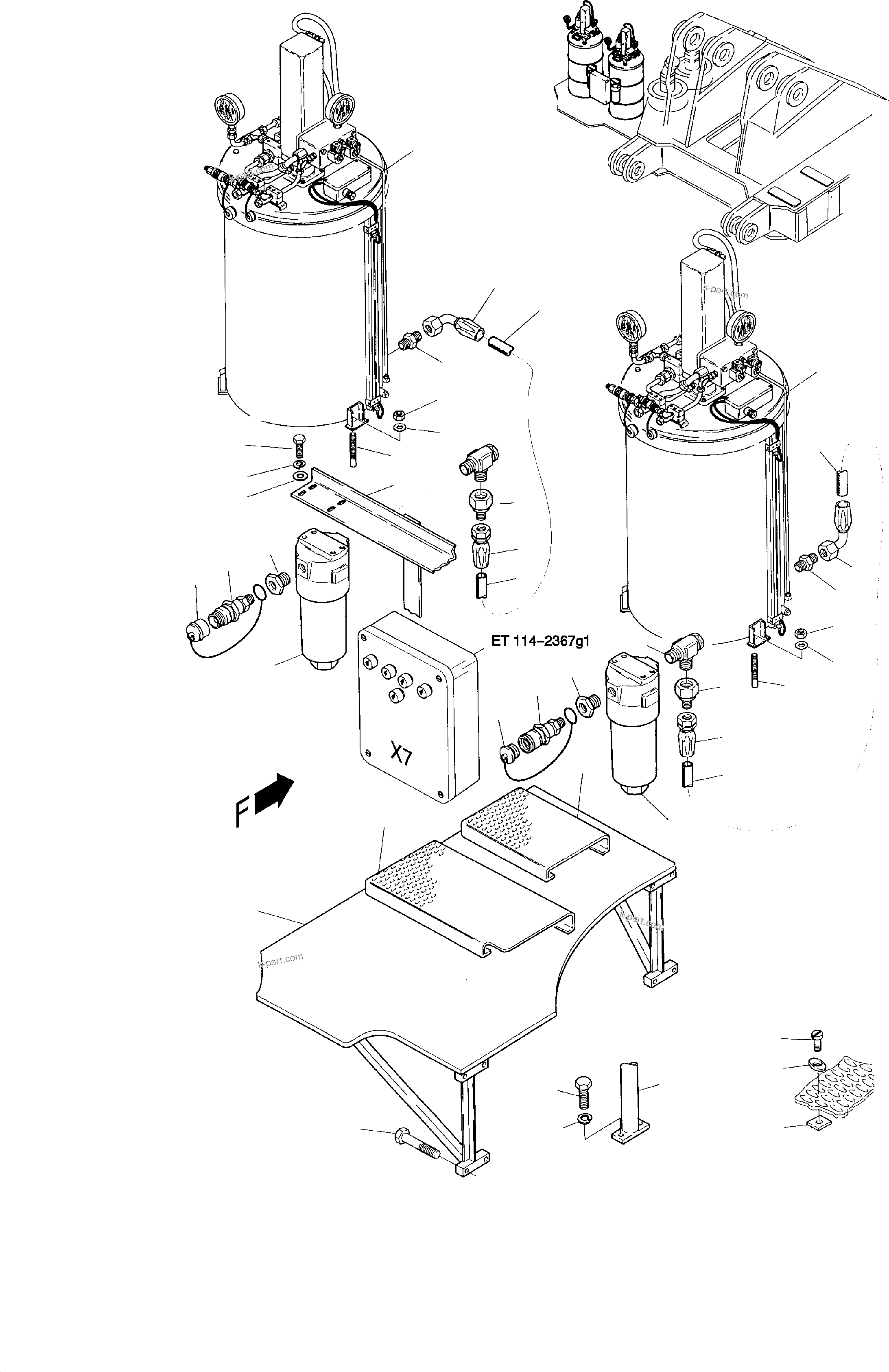

LUBE PUMP ARRANGEMENT | H285S S/N 78129 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

H285S S/N 78129

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?		Lube station	1	InternBDB: 634 600 40	090-0872a
?		Drip and pinion lube station	1	InternBDB: 634 600 40	090-0872a
?	509 857 98	Thread pin	6	InternBDB: PM 12x35 / 32500
?	340 467 99	Washer	6	InternBDB: B 13 /125
?	358 757 40	Rail	1	InternKon: 358 780 40 / 2
?	519 330 40	Platform	1	InternKon: 519 300 40 / 1
?	308 885 99	Bolt	8	InternBDB: M20x110 /931 \| InternKon: 519 300 40 / 2
?	324 541 40	Grid 40x360x840	1	InternKon: 358 780 40 / 3
?	371 493 40	Grid 40x360x930	1	InternKon: 358 780 40 / 4
?	317 318 40	Wing nut, plastic	4	InternKon: 358 780 40 / 5
?	317 319 40	Threaded block	4	InternKon: 358 780 40 / 7
?	502 354 98	Bolt	4	InternBDB: M8x40 /963 \| InternKon: 358 780 40 / 6
?	346 498 99	Lock washer	4	InternBDB: 12 /128 \| InternKon: 358 757 40 / 7
?	334 600 99	Nut	6	InternBDB: M 12 /985
?	307 802 99	Bolt	4	InternBDB: M12x25 /933 \| InternKon: 358 757 40 / 6
?	374 438 99	Socket	1	InternBDB: L 22 R /3901
?	256 583 40	Hose DN 20x1000 Bulk ware, state length required	2	InternBDB: 1503-16 2651-16
?	269 418 40	Hose fittings	2	InternBDB: 07.031-22-16
?	269 416 40	Hose fittings	2	InternBDB: Aeroquip 07.002-22-16
?		Pressure filter	2	InternBDB: 634 602 40	090-3139
?	006 896 98	Union	2	InternBDB: Voss 35-LR
?	341 711 40	Filler neck	1	InternBDB: 6000 B 12
?	341 710 40	Filler neck	1	InternBDB: OSP 2
?	360 856 40	Protection cap	1	InternBDB: 6009-12
?	307 775 99	Bolt	8	InternBDB: M10x20 /933
?	343 095 99	Lock washer	8	InternBDB: 10 /127
?	372 924 99	Union	2	InternBDB: KOR 35/22-PL
?	372 884 99	Socket	2	InternBDB: ri 1/4x3/4
?	340 465 99	Washer	8	InternBDB: 10,5 /125
?	675 380 40	Retainer	1
