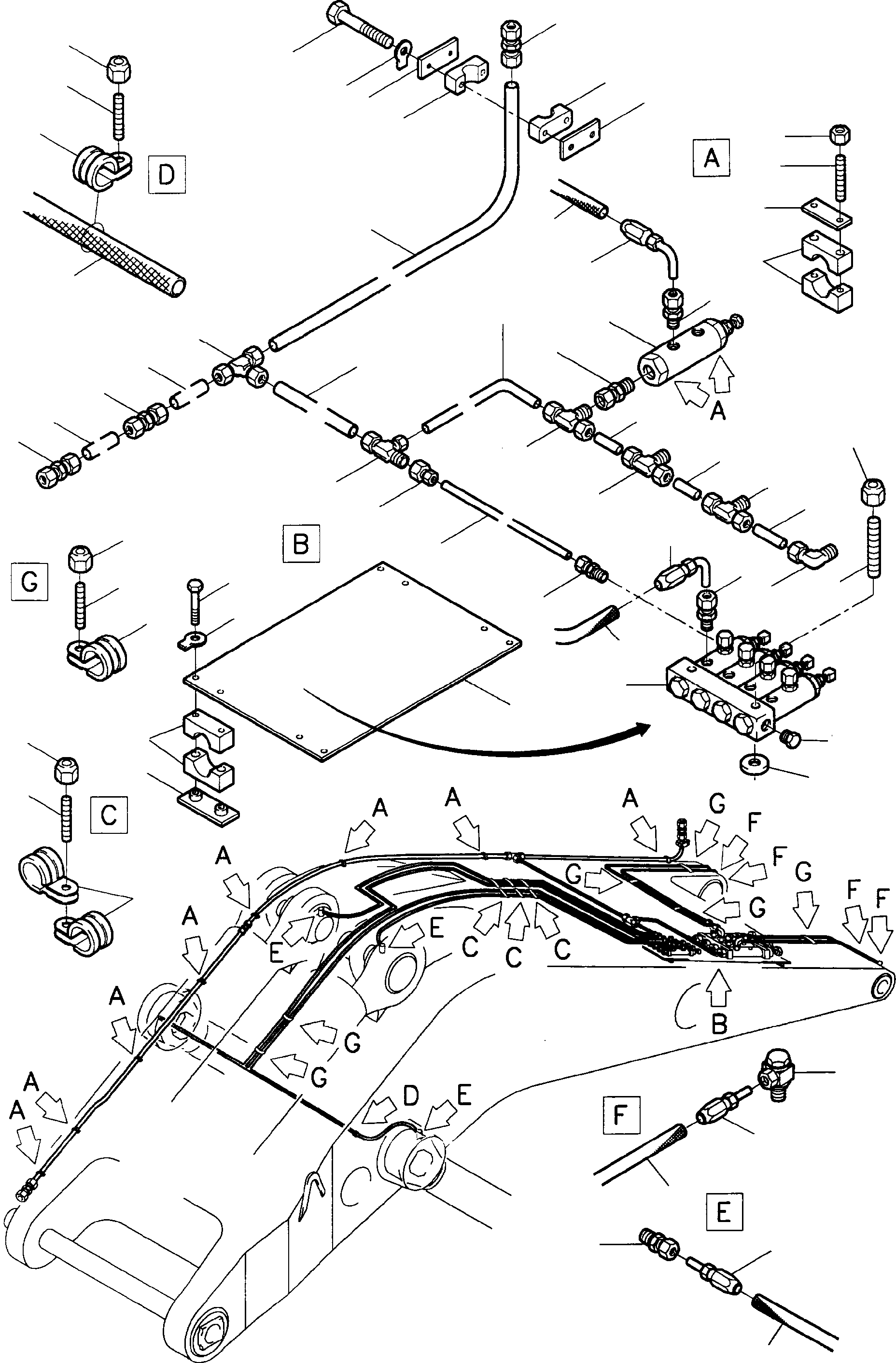

BOOM - LUBE LINES | H285S S/N 78129 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options	Reference
01		Metering valve	4	InternBDB: 269 881 40 \| InternKon: 660 980 40 / 8	090-2927
02		Metering valve	1	InternBDB: 269 880 40 \| InternKon: 660 980 40 / 9	090-2926
03	634 775 40	Clamp	8	InternKon: 660 980 40 / 1
04	511 885 98	Thread pin	16	InternBDB: PM 12x90 /32500 \| InternKon: 660 980 40 / 3
05	576 270 40	Union	4	InternBDB: GE 6-L / 1/4 NPT \| InternKon: 660 980 40 / 11
06	373 588 99	Union	4	InternBDB: GE 6-PL / 1/8 NPT \| InternKon: 660 980 40 / 14
07	502 303 98	Socket	4	InternBDB: EVGE 16-S/ 1/2 NPT \| InternKon: 660 980 40 / 10
08	372 625 99	Union	3	InternBDB: QS 16 /2353 \| InternKon: 660 980 40 / 16
09	372 722 99	Union	1	InternBDB: KS 16 /2353 \| InternKon: 660 980 40 / 17
10	428 861 40	Pipe Ш 16x80	3	InternBDB: 16x2 /2391 \| InternKon: 660 980 40 / 41
11	660 973 40	Console	1	InternKon: 660 980 40 / 35
12	635 121 40	Hose connection 90 ?	8	InternBDB: 532-31819-1 \| InternKon: 660 980 40 / 12
13	576 271 40	Union	4	InternBDB: SWVE 6-S 1/4 \| InternKon: 660 980 40 / 25
14	372 483 99	Union	1	InternBDB: GE 12-PS / 3/8 NPT \| InternKon: 660 980 40 / 18
15	324 672 40	Plug	1	InternBDB: 3/8 NPT \| InternKon: 660 980 40 / 15
16	215 424 99	Pipe Ш 12 Bulk ware, state length required	-2	InternBDB: 12x1,5/2391 \| InternKon: 660 980 40 / 42
17	576 160 40	Hose Bulk ware, state length required	-2	InternBDB: 504-36033-3 \| InternKon: 660 980 40 / 47
18	511 565 98	Thread pin	2	InternBDB: PM 8x50 /32500 \| InternKon: 660 980 40 / 6
19	340 112 99	Washer	2	InternBDB: 18 /7989 \| InternKon: 660 980 40 / 5
20	372 415 99	Union	3	InternBDB: ES 25 /2353 \| InternKon: 660 980 40 / 22
21	372 627 99	Union	2	InternBDB: QS 25 /2353 \| InternKon: 660 980 40 / 21
22	373 774 99	Union	1	InternBDB: TR 25/16/25 \| InternKon: 660 980 40 / 19
23	372 978 99	Union	1	InternBDB: KOR 25/12-PS \| InternKon: 660 980 40 / 20
24	660 974 40	Pipe assy. Ш 16	1	InternKon: 660 980 40 / 40
25	534 000 99	Pair of clamps	9	InternBDB: S-2-R-25 /3015 \| InternKon: 660 980 40 / 26
26	534 001 99	Plate	9	InternBDB: S-DP-A-2 /3015 \| InternKon: 660 980 40 / 27
27	534 002 99	Plate	9	InternBDB: S-AP-A-2 /3015 \| InternKon: 660 980 40 / 30
28	635 122 40	Collet	16	InternBDB: 432-23676-1 \| InternKon: 660 980 40 / 13
29	308 579 99	Bolt	18	InternBDB: M10x60 /931 \| InternKon: 660 980 40 / 28
30	509 308 98	Locking plate	9	InternBDB: SI 4 \| InternKon: 660 980 40 / 29
31	006 302 98	Clamp	20	InternBDB: RSGU 1100 15/15 \| InternKon: 660 980 40 / 31
32	635 123 40	Union	4	InternBDB: GE 6-SR 1/4 \| InternKon: 660 980 40 / 24
33	635 120 40	Hose connection	8	InternBDB: 432-23675-1 \| InternKon: 660 980 40 / 23
34	323 945 40	Thread pin	26	InternBDB: M6x15 /32501 \| InternKon: 660 980 40 / 33
35	534 092 99	Clamp	6	InternBDB: RSGU 1100 8/15 \| InternKon: 660 980 40 / 34
36	507 025 98	Nut	26	InternBDB: M 6 /985 \| InternKon: 660 980 40 / 32
37	660 976 40	Pipe assy. Ш 25	1	InternKon: 660 980 40 / 43
38	660 977 40	Pipe assy. Ш 25	1	InternKon: 660 980 40 / 44
39	660 978 40	Pipe assy. Ш 25	1	InternKon: 660 980 40 / 45
40	660 979 40	Pipe assy. Ш 25	1	InternKon: 660 980 40 / 46
41	634 774 40	Cover plate	8	InternBDB: DP III \| InternKon: 660 980 40 / 2
