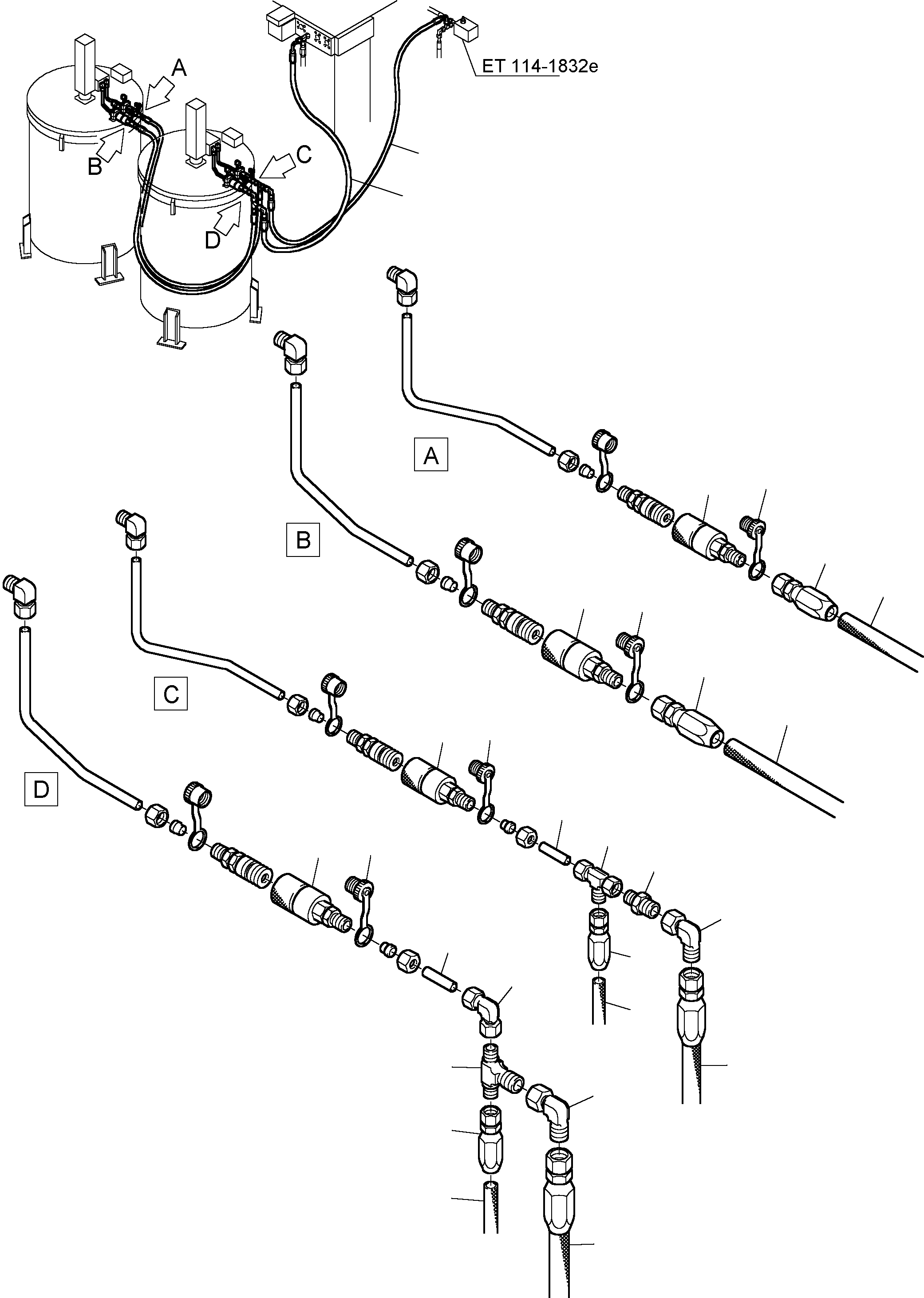

Komatsu parts book diagram for H285S S/N 78129: HYDRAULIC FOR LUBE PUMPS

01 01 02 02 03 03 04 04 05 05 06 06 07 07 08 08 09 10 11 12 13 14 15 15 16 16 17 18

	#	Part Number	Partname	Quantity	Options	Reference
	01	208 896 40	Protection cap	2	InternBDB: 636591413051 \| InternKon: 519 674 40 / 7
	02	208 894 40	Coupler plug NW 12,5	2	InternBDB: 626511413022 \| InternKon: 519 674 40 / 8
	03	255 924 40	Hose fittings	1	InternBDB: 07.002-13-10 \| InternKon: 519 674 40 / 9
	04	255 007 40	Hose DN 12 Bulk ware, state length required	-2	InternBDB: 2651-10 \| InternKon: 519 674 40 / 11
	05	323 064 40	Coupler plug	2	InternBDB: 626511308022 \| InternKon: 519 674 40 / 15
	06	368 235 40	Protection cap	2	InternBDB: 636591310051 \| InternKon: 519 674 40 / 16
	07	269 292 40	Hose fittings	1	InternBDB: 07.002-08-06 \| InternKon: 519 674 40 / 17
	08	256 584 40	Hose DN 8 Bulk ware, state length required	-2	InternBDB: 2651-6 \| InternKon: 519 674 40 / 19
	09	373 747 99	Union	1	InternBDB: TR 10/12/10-L
	10	215 492 99	Pipe Ш 15 Bulk ware, state length required	-2
	11	215 627 99	Pipe Ш 10 Bulk ware, state length required	-2
	12	372 175 99	Union	1	InternBDB: DDL 22 /2353
	13	372 172 99	Union	1	InternBDB: DDL 12 /2353
	14	373 732 99	Union	1	InternBDB: TR 15/22/15
	15	640 435 40	Hose assy. DN 20x6260	1	InternBDB: DOL 22 /DOL 22-90
	16	640 434 40	Hose assy. DN 10x8100	1	InternBDB: DOL 12 /DOL 12-90
	17	372 171 99	Union	1	InternBDB: DDL 10 /2353
	18	370 306 99	Union	1	InternBDB: EL 22 /2353

Komatsu H285S S/N 78129 parts catalog PDF

HYDRAULIC FOR LUBE PUMPS (114-2307f1) in H285S S/N 78129. Diagram image and parts list.
