#	Part Number	Partname	Quantity	Options
01	653 270 40	Boom assy.	1	InternBDB: SK 651 230 40 \| InternKon: KO - 653 300 40 / 01
02	763 520 73	Boom with bushings	1	InternBDB: E-ST
03	763 521 73	Boom with bushings and pipes assy.	1	InternBDB: E-ST
04	763 885 73	Pipe assy. Ш 65	2	InternBDB: 674 402 40 \| InternKon: 653 270 40 / 48
05	763 515 73	Pipe assy. Ш 65	2	InternBDB: 660 920 40 \| InternKon: 653 270 40 / 50
06	763 516 73	Pipe assy. Ш 65	2	InternBDB: 660 921 40 \| InternKon: 653 270 40 / 51
07	763 886 73	Pipe assy. Ш 65	2	InternBDB: 674 403 40 \| InternKon: 653 270 40 / 49
08	763 518 73	Pipe assy. Ш 65	2	InternBDB: 660 923 40 \| InternKon: 653 270 40 / 53
09	763 517 73	Pipe assy. Ш 65	2	InternBDB: 660 922 40 \| InternKon: 653 270 40 / 52
10	461 338 40	Hose assy. DN 50x2200	4	InternBDB: TL \| InternKon: 653 270 40 / 24
11	512 753 98	Hose assy. DN 50x3050	4	InternBDB: TL \| InternKon: 653 270 40 / 25
12	504 449 98	Collar ring	32	InternBDB: KO-6580-32 \| InternKon: 653 270 40 / 27
13	319 313 99	Bolt	128	InternBDB: M20x120 \| InternKon: 653 270 40 / 29
14	385 243 40	O-ring	52	InternKon: 653 270 40 / 28
15	504 452 98	Nut	128	InternBDB: M 20 \| InternKon: 653 270 40 / 30
16	319 305 99	Bolt	38	InternBDB: M20x60 \| InternKon: 653 270 40 / 39
17	647 325 40	Weld on angle	2	InternKon: 653 270 40 / 41
18	504 445 98	Half clamp	40	InternBDB: CS 6-65-AL \| InternKon: 653 270 40 / 34
19	534 008 99	Cover plate	96	InternBDB: DS 6 \| InternKon: 653 270 40 / 35
20	343 006 99	Locking plate	192	InternBDB: 13 /93
21	308 615 99	Bolt	192	InternBDB: M12x130 \| InternKon: 653 270 40 / 32
22	332 353 99	Nut	192	InternBDB: M 12 \| InternKon: 653 270 40 / 33
23	303 983 40	Weld on angle	10	InternBDB: W2 /6S \| InternKon: 653 270 40 / 40
24	504 446 98	Half clamp	48	InternBDB: H-CS 6/65 - PA \| InternKon: 653 270 40 / 37
25	653 125 40	Weld on angle	4	InternKon: 653 270 40 / 31
26	505 440 98	Half clamp	8	InternBDB: CS 6-65-PA \| InternKon: 653 270 40 / 38
27	301 893 40	Weld on angle	7	InternBDB: W4 / \| InternKon: 653 270 40 / 36
28	365 072 40	Adapter plate	2
29	367 128 99	O-ring	2	InternBDB: 62x4
30	319 289 99	Bolt	8	InternBDB: M16x60
31	561 548 40	Weld on angle	4	InternKon: 653 270 40 / 42
32	512 679 98	Hose assy. DN 50x3200	2	InternBDB: TL \| InternKon: 653 270 40 / 23
33	512 879 98	Hose assy. DN 50x2300	2	InternBDB: TL \| InternKon: 653 270 40 / 62
34	763 511 73	Pipe assy. Ш 65	1	InternBDB: 660 916 40 \| InternKon: 653 270 40 / 46
35	763 509 73	Pipe assy. Ш 65	1	InternBDB: 660 914 40 \| InternKon: 653 270 40 / 44
36	763 512 73	Pipe assy. Ш 65	1	InternBDB: 660 917 40 \| InternKon: 653 270 40 / 47
37	763 510 73	Pipe assy. Ш 65	1	InternBDB: 660 915 40 \| InternKon: 653 270 40 / 45
38	660 910 40	Freeze-in bushing	4	InternBDB: Ш 200 \| InternKon: 653 270 40 / 8
39	575 796 40	Seal ring	4	InternKon: 653 270 40 / 9
40	660 913 40	Washer	4	InternKon: 653 270 40 / 22
41	660 909 40	Freeze-in bushing	2	InternBDB: Ш 170 \| InternKon: 653 270 40 / 5
42	575 794 40	Seal ring	4	InternKon: 653 270 40 / 6
43	660 905 40	Pin	2	InternBDB: Ш 170 \| InternKon: 653 270 40 / 3
44	456 764 40	Catch	8	InternKon: 653 270 40 / 18
45	621 173 40	Axle stirrup	2	InternKon: 653 270 40 / 20
46	456 763 40	Shackle	4	InternKon: 653 270 40 / 19
47	343 008 99	Locking plate	17	InternKon: 653 270 40 / 16
48	307 826 99	Bolt	16	InternBDB: M16x50 \| InternKon: 653 270 40 / 21
49	307 825 99	Bolt	1	InternBDB: M16x45 \| InternKon: 653 270 40 / 15
50	660 904 40	Pin	2	InternBDB: Ш 170 \| InternKon: 653 270 40 / 4
51	660 907 40	Freeze-in bushing	2	InternBDB: Ш 250 \| InternKon: 653 270 40 / 7
52	660 902 40	Pin	1	InternBDB: Ш 250 \| InternKon: 653 270 40 / 2
53	409 329 40	Mounting cap	1	InternKon: 653 270 40 / 54
54	660 908 40	Catch	2	InternKon: 653 270 40 / 17
55	504 778 98	O-ring	1	InternBDB: 291,47x7,0 \| InternKon: 653 270 40 / 11
56	660 903 40	Cap	1	InternKon: 653 270 40 / 10
57	332 361 99	Nut	1	InternKon: 653 270 40 / 12
58	004 860 98	Grease nipple	1	InternBDB: AR 1/4 \| InternKon: 653 270 40 / 43
59	660 912 40	Shackle	1	InternKon: 653 270 40 / 14
60	660 911 40	Lining plate	1	InternKon: 653 270 40 / 13
70	635 661 40	Block	2	InternKon: 653 270 40 / 67
71	513 091 98	Hose assy. DN 50 x 920	2	InternBDB: TL \| InternKon: 653 270 40 / 68
72	504 461 98	Collar ring	8	InternBDB: K-6580-32 \| InternKon: 653 270 40 / 70
73	319 323 99	Bolt	32	InternBDB: M20 x 90 \| InternKon: 653 270 40 / 69
74	763 887 73	Pipe assy. Ш 65	1	InternBDB: 674 404 40 \| InternKon: 653 270 40 / 63
75	763 888 73	Pipe assy. Ш 65	1	InternBDB: 674 406 40 \| InternKon: 653 270 40 / 64
76	763 889 73	Pipe assy. Ш 65	1	InternBDB: 674 407 40 \| InternKon: 653 270 40 / 65
77	763 890 73	Pipe assy. Ш 65	1	InternBDB: 674 408 40 \| InternKon: 653 270 40 / 66

Komatsu H285S S/N 78129 parts catalog PDF

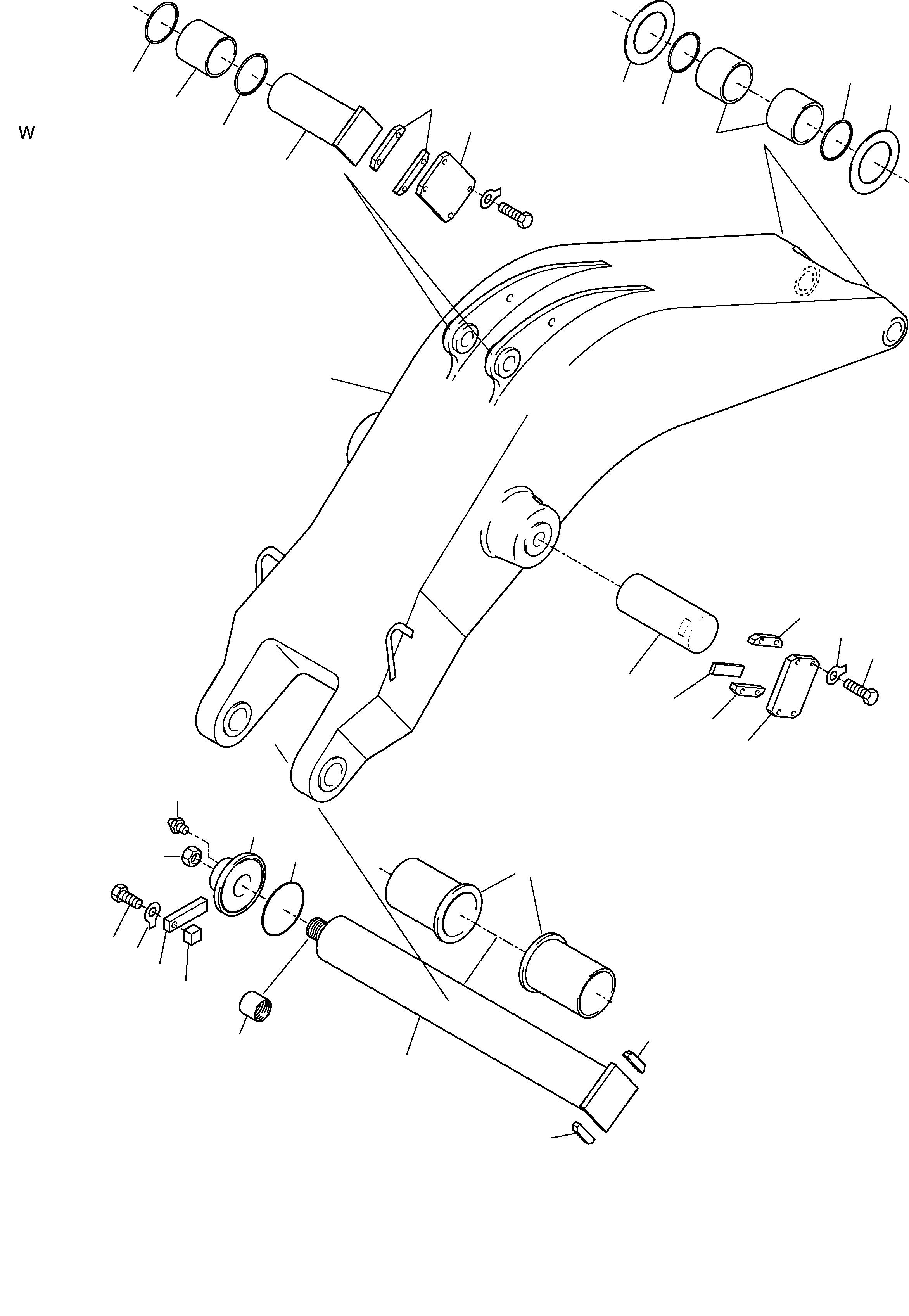

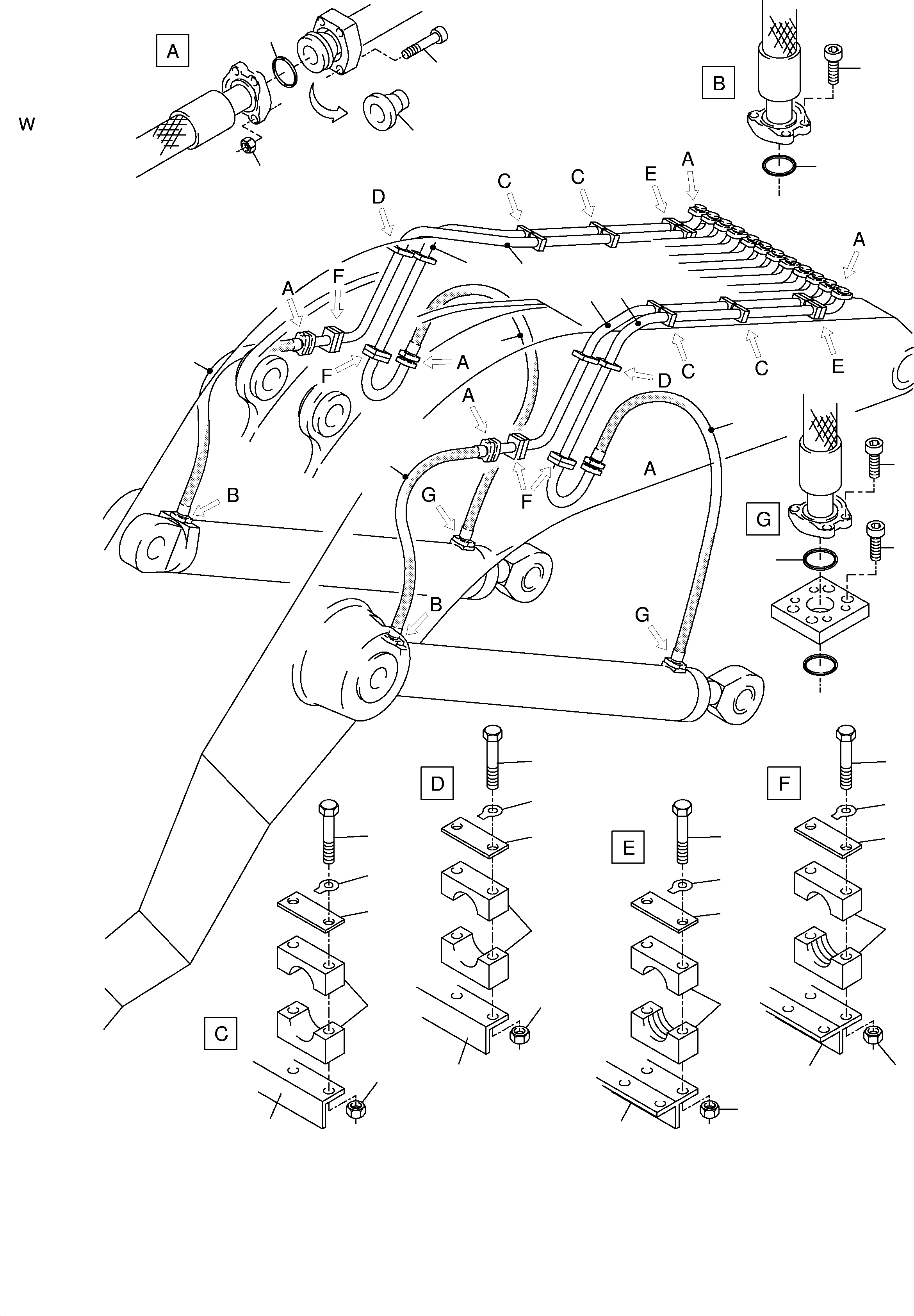

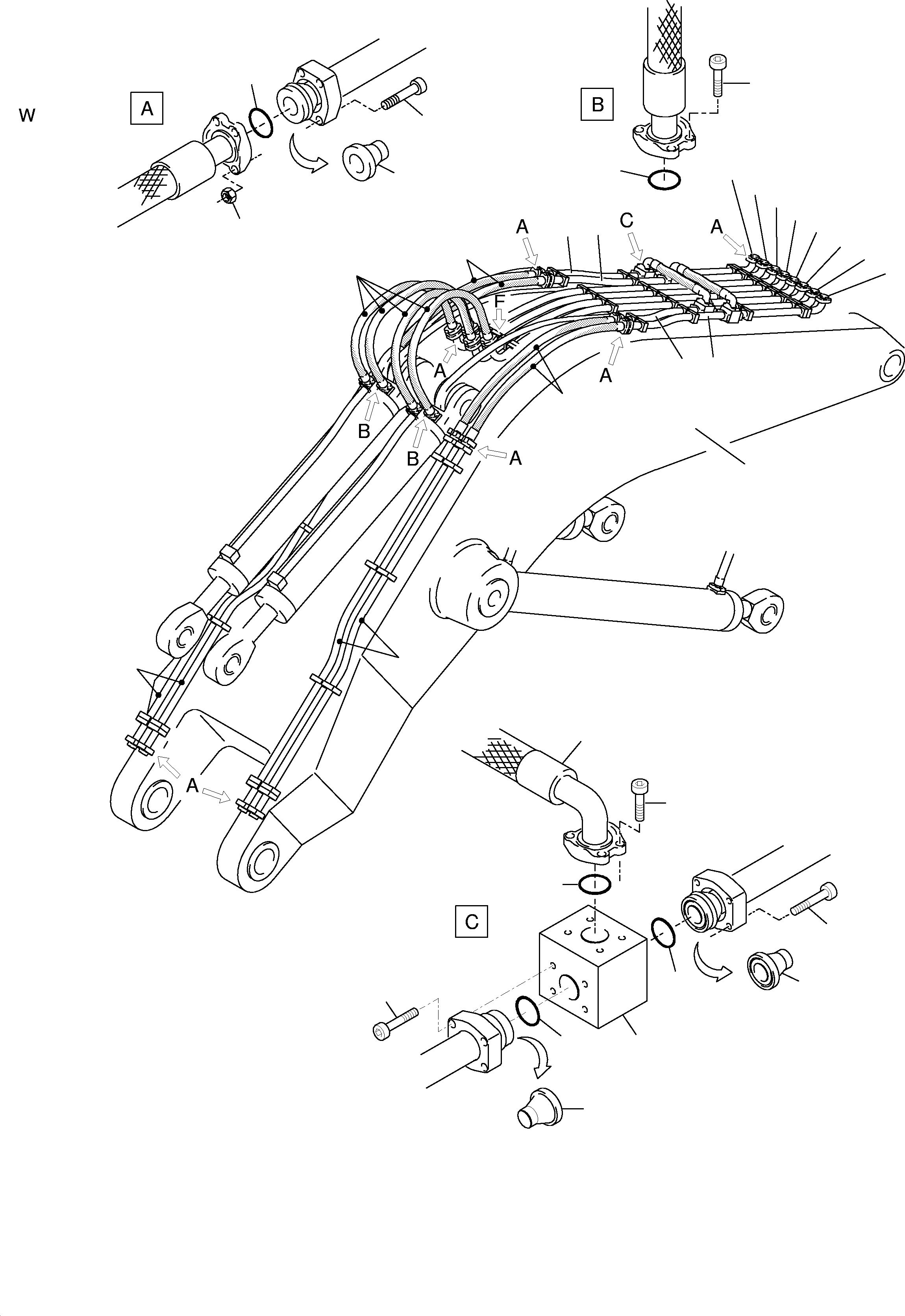

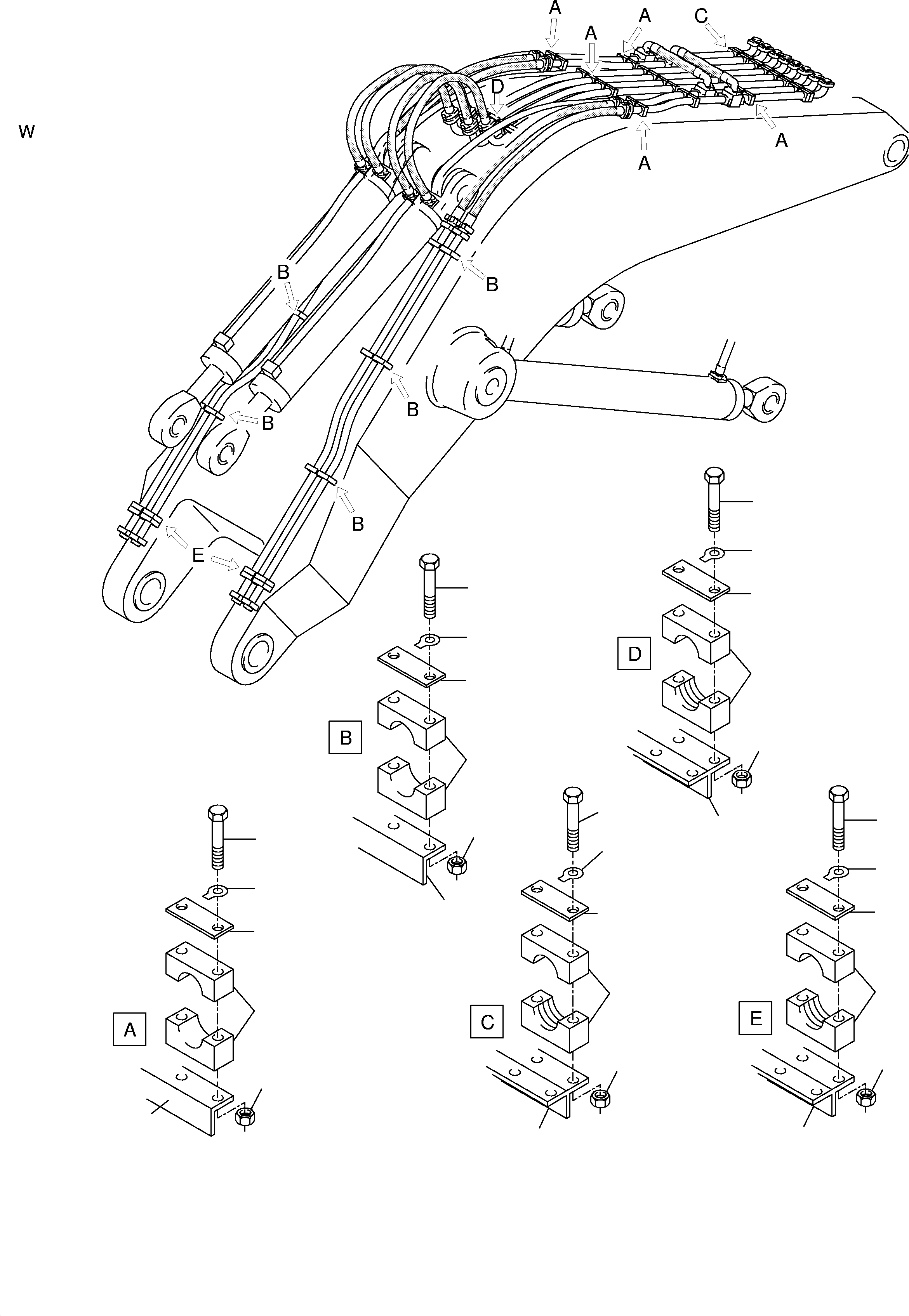

BACKHOE - BOOM (114-4017a) in H285S S/N 78129. Diagram image and parts list.
