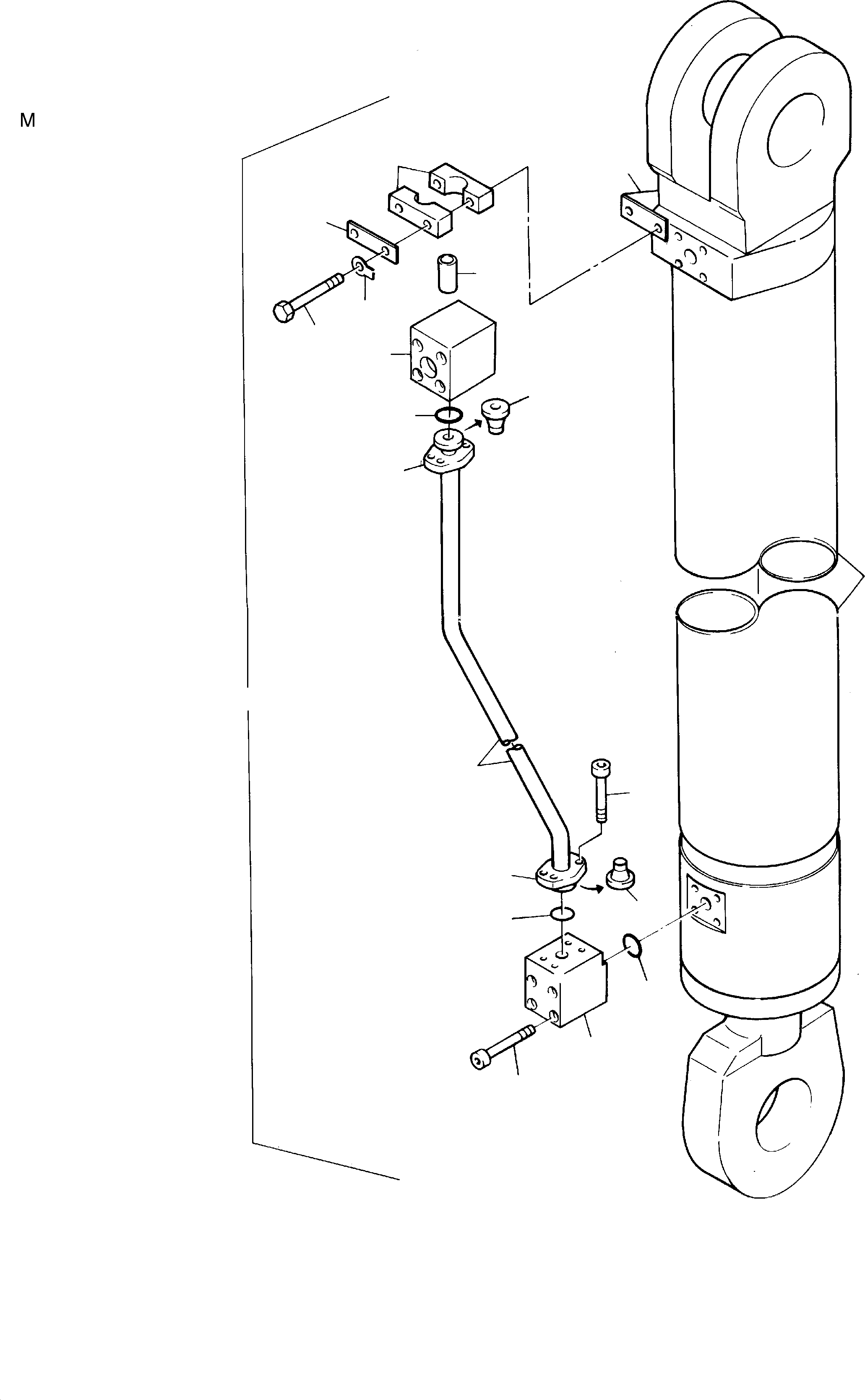

Komatsu parts book diagram for H285S S/N 78129: PIPING - STICK CYLINDER

01 02 03 04 05 06 07 07 08 08 09 09 10 11 12 13 14 15 16 17

	#	Part Number	Partname	Quantity	Options	Reference
	01		Hydraulic cylinder	2	InternBDB: 651 030 40 \| InternKon: 653 974 40 / 1	114-4175
	02	653 971 40	Piping assy. fig-nos. 03-17	2	InternBDB: E-ST \| InternKon: 653 974 40 / 2
	03	399 341 40	Connecting block	2	InternKon: 653 971 40 / 1
	04	463 812 40	Connecting block	2	InternKon: 653 971 40 / 2
	05	501 284 98	O-ring	2	InternBDB: 52x4 \| InternKon: 653 971 40 / 12
	06	319 212 99	Bolt	8	InternBDB: M14x150 /912 \| InternKon: 653 971 40 / 14
	07	385 243 40	O-ring	4	InternKon: 653 971 40 / 11
	08	504 461 98	Collar ring	4	InternBDB: K-6580-32 \| InternKon: 653 971 40 / 10
	09	504 448 98	Flange	4	InternBDB: FE-6500-32/6 \| InternKon: 653 971 40 / 09
	10	319 323 99	Bolt	16	InternBDB: M20x90 /912 \| InternKon: 653 971 40 / 13
	11	763 482 73	Pipe assy. Ш 65	2	InternBDB: 653 987 40 \| InternKon: 653 971 40 / 4
	12	463 817 40	Pipe	2	InternKon: 653 971 40 / 5
	13	463 813 40	Weld on brace	2	InternKon: 653 971 40 / 3
	14	504 446 98	Half clamp	4	InternBDB: H-CS 6/65 \| InternKon: 653 971 40 / 6
	15	534 008 99	Cover plate	2	InternKon: 653 971 40 / 8
	16	343 006 99	Washer	4	InternBDB: 13 /93 \| InternKon: 653 971 40 / 16
	17	308 459 99	Bolt	4	InternBDB: M12x100 /931 \| InternKon: 653 971 40 / 15

Komatsu H285S S/N 78129 parts catalog PDF

PIPING - STICK CYLINDER (114-4137) in H285S S/N 78129. Diagram image and parts list.
