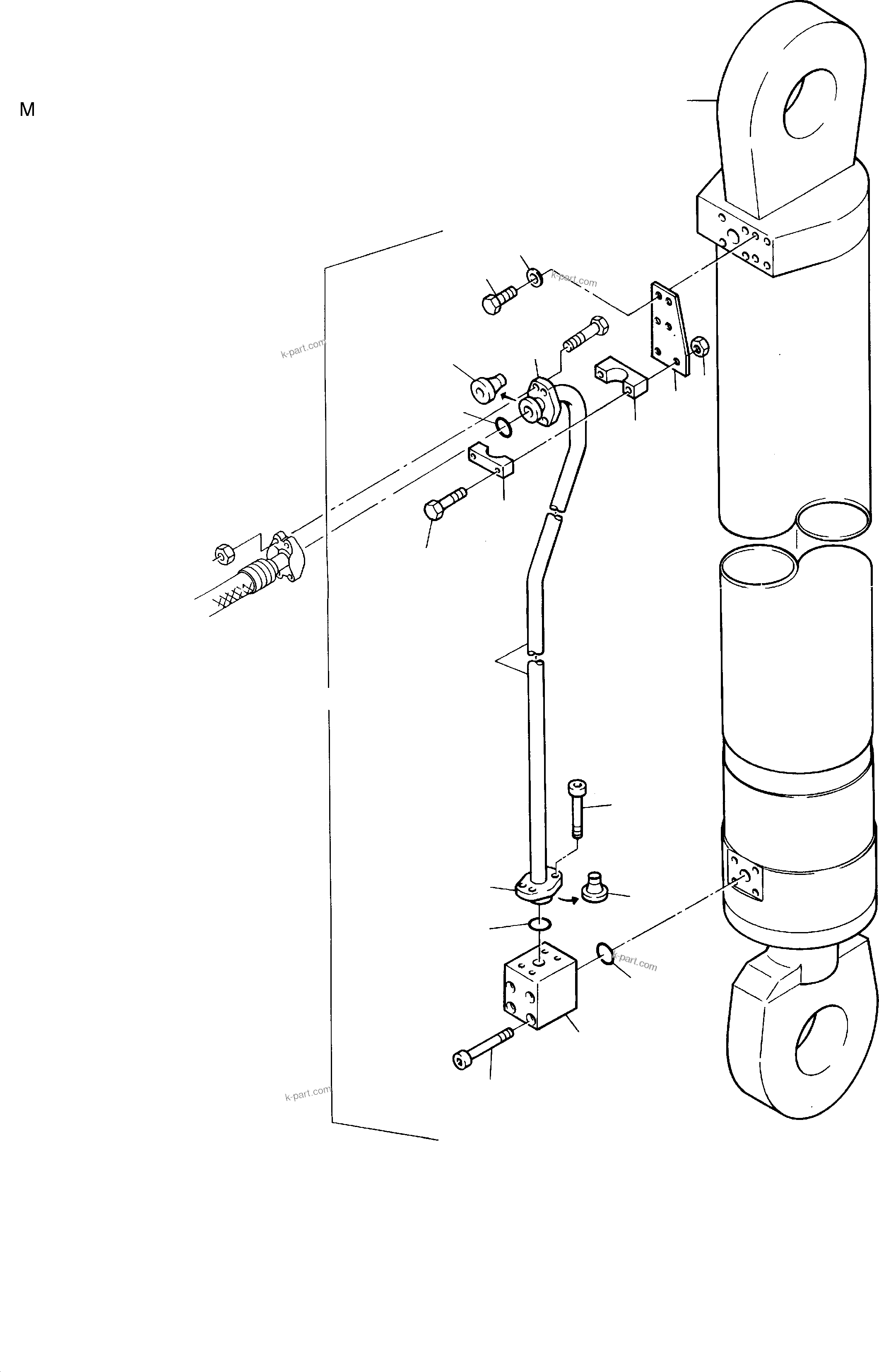

Komatsu parts book diagram for H285S S/N 78129: PIPING - BACKHOE CYLINDER

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?		Hydraulic cylinder	2	InternBDB: 651 040 40 \| InternKon: 653 964 40 / 1
	?	653 961 40	Piping assy. fig-nos. 03-17	2	InternBDB: E-ST \| InternKon: 653 964 40 / 2
	?	653 952 40	Connecting block	2	InternKon: 653 961 40 / 1
	?	367 128 99	O-ring	2	InternBDB: 62,0x4,0 \| InternKon: 653 961 40 / 10
	?	319 313 99	Bolt	8	InternBDB: M20x120 /912 \| InternKon: 653 961 40 / 11
	?	385 243 40	O-ring	4	InternKon: 653 961 40 / 09
	?	504 448 98	Flange	4	InternBDB: FE-6500-32/6 \| InternKon: 653 961 40 / 06
	?	504 461 98	Collar ring	2	InternBDB: K-6580-32 \| InternKon: 653 961 40 / 08
	?	504 449 98	Collar ring	2	InternBDB: KO-6580-32 \| InternKon: 653 961 40 / 7
	?	319 323 99	Bolt	8	InternBDB: M20x90 /912 \| InternKon: 653 961 40 / 12
	?	763 483 73	Pipe assy. Ш 65	2	InternBDB: 653 953 40 \| InternKon: 653 961 40 / 2
	?	653 956 40	Plate	2	InternKon: 653 961 40 / 3
	?	307 454 99	Bolt	8	InternBDB: M16x50 /933 \| InternKon: 653 961 40 / 13
	?	340 469 99	Washer	8	InternBDB: 17 /125 \| InternKon: 653 961 40 / 16
	?	505 440 98	Half clamp	4	InternKon: 653 961 40 / 4
	?	308 616 99	Bolt	4	InternBDB: M12x140 /931 \| InternKon: 653 961 40 / 14
	?	334 600 99	Nut	4	InternBDB: M 12 /985 \| InternKon: 653 961 40 / 15

Komatsu H285S S/N 78129 parts catalog PDF

PIPING - BACKHOE CYLINDER (114-4237) in H285S S/N 78129. Diagram image and parts list.
