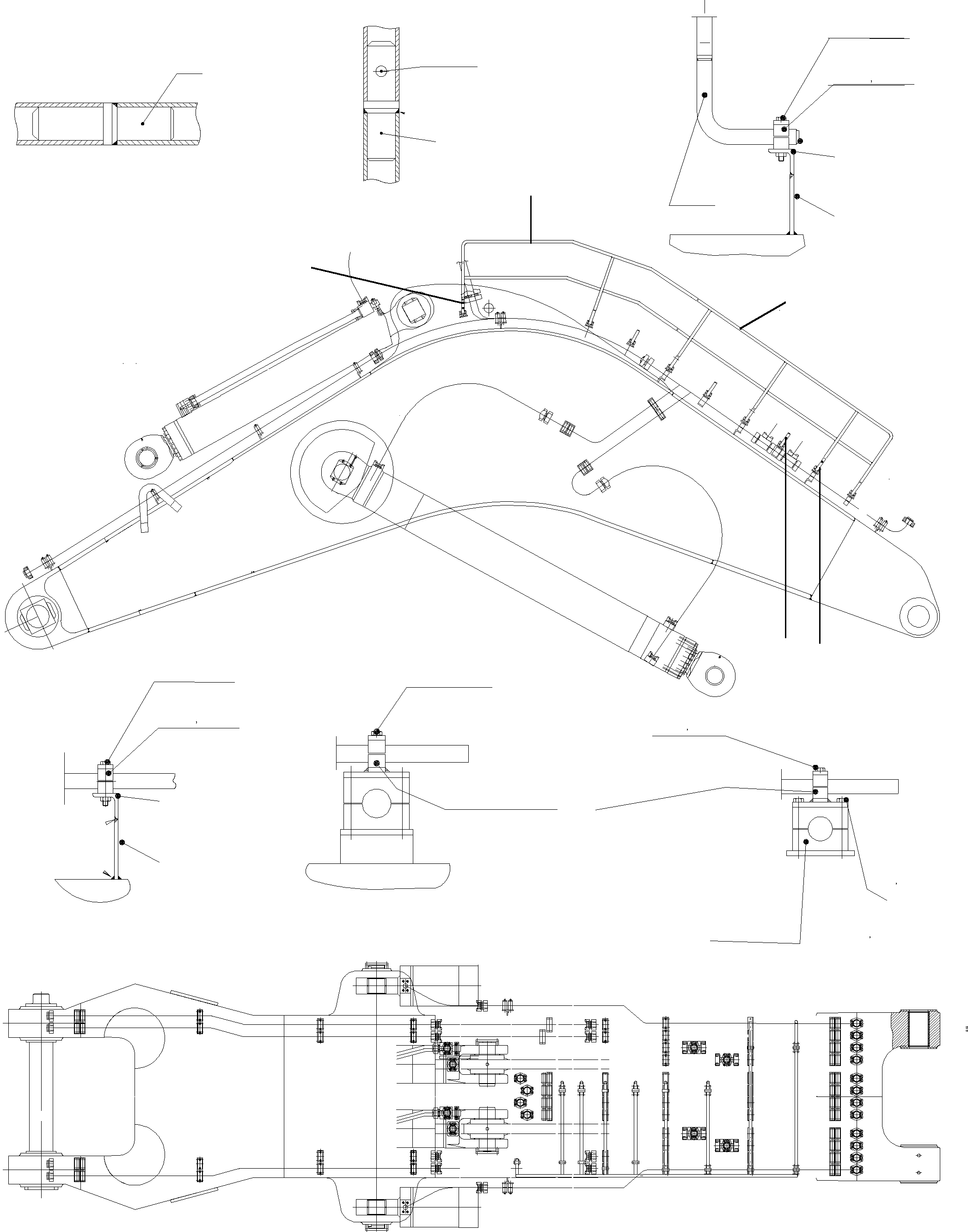

BOOM - CATWALK | H285S S/N 78129 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	770 135 73	Rail assy.	1	InternBDB: E-ST /Pos. 1,5,6,7,11
02	770 136 73	Rail assy.	1	InternBDB: E-ST /Pos. 2,3,4,5
03	770 137 73	Pipe assy.	2	InternBDB: E-ST /Pos. 8,13
04	770 138 73	Pipe assy.	6	InternBDB: E-ST /Pos. 9,13
05	770 139 73	Pipe assy.	1	InternBDB: E-ST /Pos. 10,13
06	621 105 40	Pin	6
07	308 554 99	Bolt	6	InternBDB: M8x40 /931 8.8
08	332 111 99	Nut	6	InternBDB: M 8 /934
09	346 510 99	Lock washer	6	InternBDB: A 8 /128
10	424 427 40	Plate	4
11	345 733 40	Angle	4	InternBDB: WN 011 839 99
12	504 225 98	Half clamp	34	InternBDB: S-2-R-30 /3015
13	534 001 99	Cover plate	17	InternBDB: S-DP-A-2 /3015
14	307 789 99	Bolt	8	InternBDB: M10x80 /933 8.8
15	332 113 99	Nut	8	InternBDB: M 10 /934
16	534 002 99	Weld-on plate	13	InternBDB: S-AP-A-2 /3015
17	534 009 99	Weld-on plate	7	InternBDB: S-AP-A-4 /3015
18	502 976 98	Half clamp	14	InternBDB: S-4-R-50 /3015
19	534 008 99	Cover plate	7	InternBDB: S-DP-A-4 /3015
20	308 613 99	Bolt	14	InternBDB: M12x110 /931 8.8
21	509 310 98	Locking plate	7	InternBDB: SI 6 /WN 011 839 99
22	621 104 40	Pin	2
23	308 579 99	Bolt	26	InternBDB: M10x60 /931 8.8
24	509 308 98	Locking plate	13	InternBDB: SI 4 /WN 011 839 99
