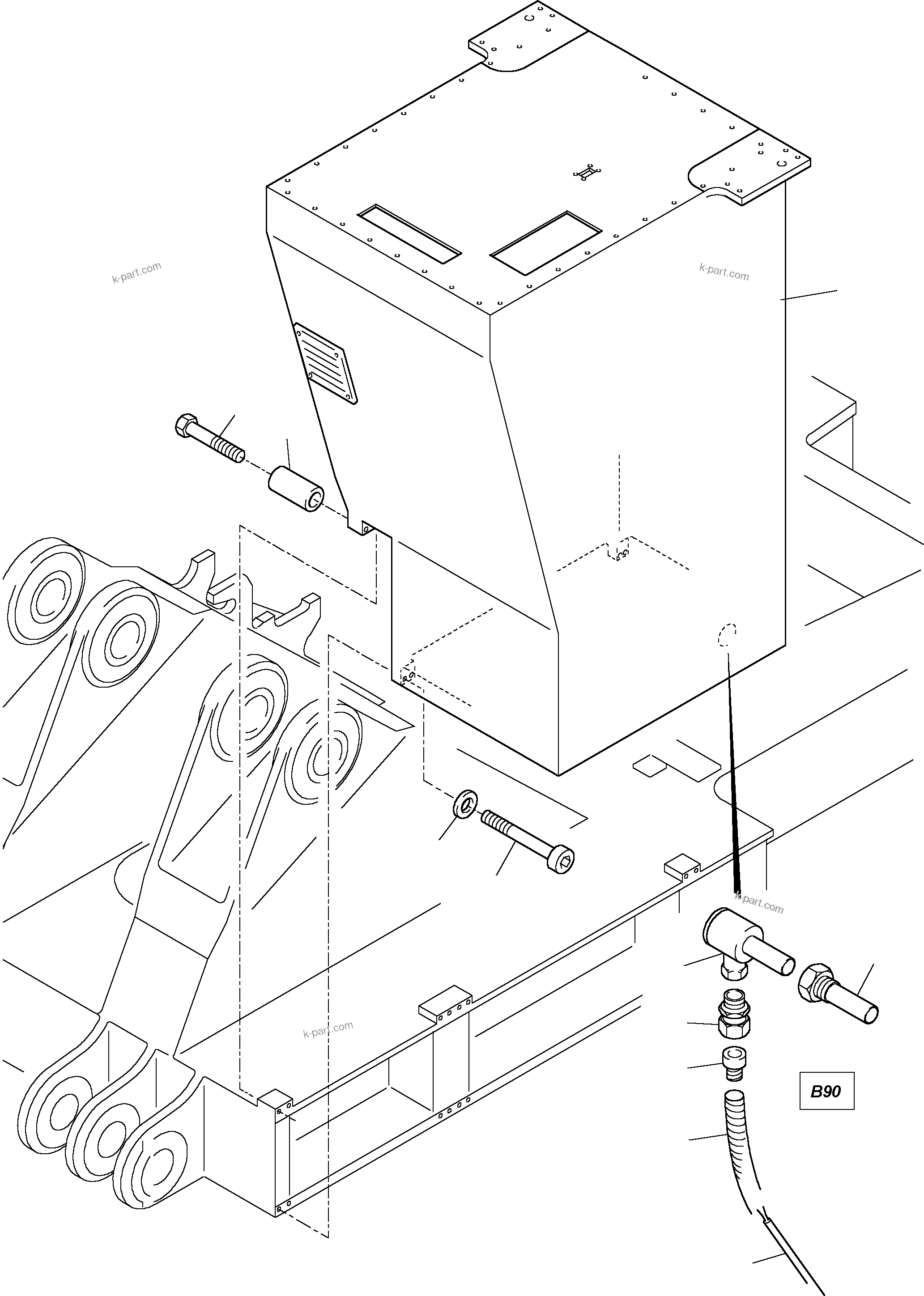

Diagram image 1 of 2

H455S S/N 15005

? ? ? ? ? ? ? ? ? ? ?

H455S S/N 15005

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	637 520 40	Cab support assy.	1	InternBDB: DKG \| InternKon: 872 255 40 / 3
?	511 809 98	Bolt	7	InternBDB: M 36 x 240 / 931 \| InternKon: 872 255 40 / 21
?	255 056 40	Washer	4	InternBDB: 37 \| InternKon: 872 255 40 / 24
?	513 604 98	Bolt	1	InternBDB: M 36 x 240 / 912 \| InternKon: 872 255 40 / 56
?	608 701 40	Cab support	1	InternBDB: DKG \| InternKon: 872 255 40 / 1
?	637 511 40	Cover	1	InternKon: 872 255 40 / 2
?	647 864 40	Seal	1	InternBDB: TL \| InternKon: 872 255 40 / 3
?	647 865 40	Seal	1	InternBDB: TL \| InternKon: 872 255 40 / 4
?	592 259 40	Profiled joint Bulk ware, state length required	-2	InternBDB: GHE 461 0075 \| InternKon: 872 255 40 / 5
?	647 884 40	Plate	1	InternKon: 872 255 40 / 6
?	294 022 40	Plate	1	InternKon: 872 255 40 / 7
?	675 646 40	Plate	1	InternKon: 872 255 40 / 8
?	675 647 40	Plate	13	InternKon: 872 255 40 / 9
?	307 576 99	Bolt	66	InternBDB: M8x20 \| InternKon: 872 255 40 / 10
?	343 108 99	Lock washer	60	InternBDB: 8 \| InternKon: 872 255 40 / 11
?	675 666 40	Plate	1	InternKon: 872 255 40 / 12
?	334 599 99	Nut	6	InternBDB: M 8 \| InternKon: 872 255 40 / 13
?	637 512 40	Seal	1
?	630 044 40	Door	1	InternKon: 630 036 40 / 1
?	390 199 40	Hinge assy.	4	InternBDB: DKG \| InternKon: 630 036 40 / 12
?	350 562 99	Grease nipple	4	InternBDB: AM 10x1 \| InternKon: 390 199 40 / 6
?	621 108 40	Pin	4	InternKon: 390 199 40 / 1
?	390 600 40	Bushing	8	InternKon: 390 199 40 / 2
?	390 601 40	Bushing	4	InternKon: 390 199 40 / 3
?	340 612 99	Washer	4	InternKon: 390 199 40 / 4
?	342 061 99	Cotter pin	4	InternBDB: 4x32 \| InternKon: 390 199 40 / 5
?	551 182 40	Fastener	2	InternBDB: Emka 1091-U1
?		Bolt	8
?		Nut	8
?	440 556 40	Hinge	2	InternBDB: Emka 1033-U11 \| InternKon: 630 036 40 / 2
?	627 680 40	Flap	2	InternKon: 630 036 40 / 11
?	372 363 40	Bolt	4	InternBDB: TL \| InternKon: 630 036 40 / 15
?	346 498 99	Lock washer	4	InternBDB: 12 \| InternKon: 630 036 40 / 14
?	332 353 99	Nut	4	InternBDB: M 12 \| InternKon: 630 036 40 / 16
?	344 273 99	Parallel pin	4	InternBDB: 3 M6x18 \| InternKon: 630 036 40 / 17
?	269 870 40	Cover tube	1	InternBDB: Noris \| InternKon: 659 800 40 / 17
?	440 382 40	Sensor PT 100	1	InternBDB: Noris TP 31 \| InternKon: 659 800 40 / 15
?	300 970 40	Cable union	1	InternBDB: PG 9
?	356 246 40	Socket	1	InternBDB: PG 9
?	356 238 40	Protecting hose Bulk ware, state length required	-2	InternBDB: PG 9
?	323 164 40	Cable Bulk ware, state length required	-2	InternBDB: AWG 12 SW / 2-polig
?	511 766 98	Resilient sleeve	4	InternBDB: 37/65 x 90
