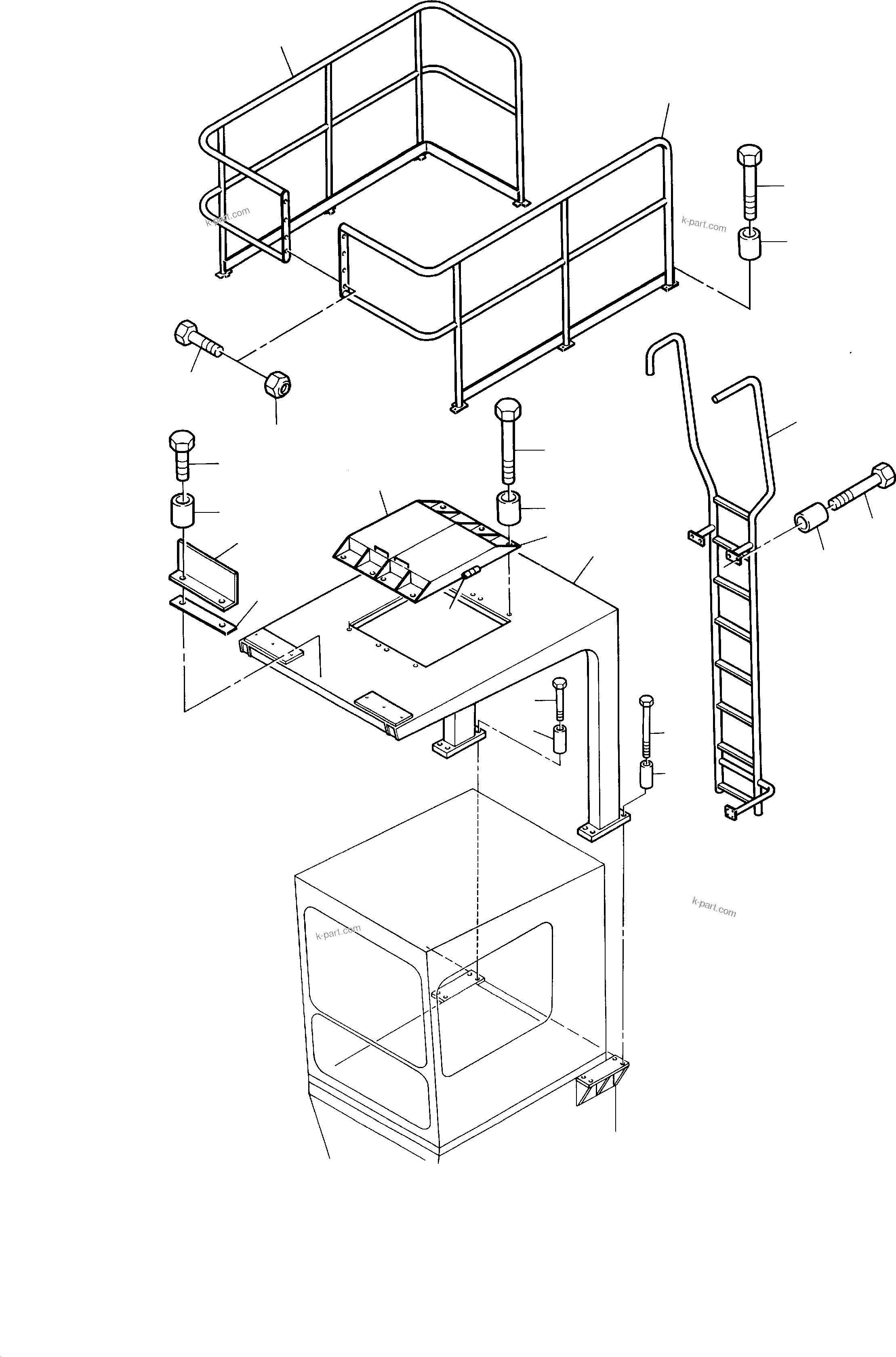

Komatsu parts book diagram for H455S S/N 15005: PROTECTION ROOF

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	650 206 40	Protection roof	1	InternKon: 650 205 40 / 1
	?	511 975 98	Bolt	8	InternBDB: M30 x 210 /931 10.9 Kaltzдh \| InternKon: 650 205 40 / 5
	?	510 739 98	Resilient sleeve	8	InternBDB: 31/60x55 WN 341 948 40 \| InternKon: 650 205 40 / 3
	?	872 204 40	Flap	1	InternKon: 872 202 40 / 1
	?	872 203 40	Flap	1	InternKon: 872 202 40 / 2
	?	390 199 40	Hinge	2	InternKon: 872 202 40 / 3
	?	623 943 40	Rail	1	InternKon: 623 950 40 / 2
	?	650 215 40	Ladder	1	InternKon: 623 950 40 / 1
	?	308 605 99	Bolt	3	InternBDB: M12 x 55 /931 \| InternKon: 623 950 40 / 6
	?	510 744 98	Resilient sleeve	3	InternBDB: 13/25 x 32 WN 341 948 40 \| InternKon: 623 950 40 / 7
	?	516 415 40	Angle	1	InternKon: 623 950 40 / 4
	?	516 416 40	Threaded rail	1	InternKon: 623 950 40 / 5
	?	623 949 40	Rail	1	InternKon: 623 950 40 / 3
	?	510 518 98	Bolt	4	InternBDB: M16 x 50 /931 10.9 Kaltzдh \| InternKon: 623 949 40 / 11
	?	334 601 99	Nut	4	InternBDB: M 16 /985 \| InternKon: 623 949 40 / 12

Komatsu H455S S/N 15005 parts catalog PDF

PROTECTION ROOF (715-1960) in H455S S/N 15005. Diagram image and parts list.
