#	Part Number	Partname	Quantity	Options
00	651 864 40	Operator's cab fig-nos. 01-129	1	InternBDB: Fa. Mack
01	623 990 40	Operator's cab w/o mounting parts	1
02	651 850 40	Door w/o mounting parts	1
03	519 858 40	Seat frame	1
04	489 160 40	Door	1
05	385 708 40	Lever assy.	1
06	385 709 40	Border cleat	2	InternBDB: Fa. Happich
07	489 165 40	Border cleat	2
08	489 166 40	Border cleat	2
09	489 167 40	Border cleat	1
10	489 168 40	Border cleat	1
11	489 169 40	Border cleat	1
12	489 170 40	Border cleat	1
13	489 171 40	Border cleat	1
14	489 172 40	Border cleat	1
15	627 601 40	Border cleat	2
16	489 174 40	Border cleat	4
19	627 602 40	Border cleat	2
20	623 999 40	Border cleat	2
21	489 176 40	Border cleat	2
22	627 603 40	Border cleat	2
23	491 022 40	Border cleat	1
24	491 023 40	Border cleat	1
25	491 024 40	Border cleat	1
26	385 729 40	Border cleat	1
27	385 730 40	Border cleat	1
28	385 731 40	Border cleat	1
29	489 178 40	Border cleat	2
30	489 179 40	Border cleat	2
31	489 180 40	Covering	1	InternBDB: Fa. Almet
32	489 181 40	Covering	1
33	627 604 40	Perforated plate	1	InternBDB: 1,5x145x1371
34	627 605 40	Perforated plate	1	InternBDB: 1,5x856x1371 Almet
35	651 866 40	Covering	1	InternBDB: Almet
36	489 184 40	Insulation board	1	InternBDB: Grw + Hartm.
37	489 185 40	Insulation board	1	InternBDB: Grw + Hartm.
38	627 606 40	Insulation board	2	InternBDB: Grw + Hartm. 50x109x692
39	489 187 40	Door sheet	1
40	489 188 40	Door sheet	1
41	623 996 40	Border cleat	2
42	302 038 40	Plate	2
43	621 585 40	Adapter	3
44	356 533 40	Catch	1
45	374 222 40	Detent	1
46	368 431 40	Washer	1
47	356 535 40	Compression spring	1
48	356 536 40	Threaded rod	1
49	236 098 40	Draw spring	1
50	489 190 40	Perforated plate	1	InternBDB: 1,5x451x887
51	489 191 40	Perforated plate	1	InternBDB: 1,5x451x1126
52	627 607 40	Perforated plate	1	InternBDB: 1,5x678x741
53	489 193 40	Insulation board	1	InternBDB: 80x463x849
54	489 194 40	Insulation board	1	InternBDB: 80x463x1088
55	489 195 40	Insulation board	1	InternBDB: 80x518x463
56	489 196 40	Insulation board	2	InternBDB: 80x518x690
57	627 608 40	Insulation board	1	InternBDB: Grw + Hartm. 50x820x1435
58	489 198 40	Insulation board	1	InternBDB: Grw + Hartm. 50x435x545
59	627 609 40	Insulation board	1	InternBDB: Grw + Hartm. 50x692x755
60	386 444 40	Insulation board	1	InternBDB: 513x637
61	345 178 99	Dowel pin	1	InternBDB: 6x30 /1481
62	500 489 98	Tapping screw	265	InternBDB: 3,5x13 C /7973
63	385 203 40	Shim	13	InternBDB: Fa. Happich 336 0001
64	507 037 98	Nut	2	InternBDB: M 10 /985
65	308 581 99	Bolt	1	InternBDB: M10x70 /931 8.8
66	307 756 99	Bolt	1	InternBDB: M8x30 /933 8.8
67	307 728 99	Bolt	4	InternBDB: M6x16 /933 8.8
68	635 261 40	Handle with lock	1	InternBDB: Kason 0056 CH 5020
69	308 536 99	Bolt	4	InternBDB: M6x40 /931 8.8
70	319 421 99	Screw	2	InternBDB: M8x35 /912 8.8
72	332 110 99	Nut	2	InternBDB: M 6 /934
73	320 974 99	Screw	18	InternBDB: M4x10 /84 4.8 B2E
74	346 508 99	Lock washer	12	InternBDB: B 4 /128
75	627 611 40	Perforated plate	1	InternBDB: 1,5x194x679
76	500 937 98	Tapping screw	12	InternBDB: ST 3,9x9,5 C /7971
77	320 977 99	Screw	4	InternBDB: M4x25 /84 4.8 B2E
78	635 262 40	Stop	1	InternBDB: Kason 0056 00 5002
79	356 130 40	Silent bloc	1	InternBDB: Phoenix 781053
80	350 748 99	Fork end	2	InternBDB: G 6x12 /71752
81	350 742 99	Fork end	1	InternBDB: G 10x20 /71752 9SMN28
82	002 827 98	Pin	1	InternBDB: 10x20 ESN 01 WN 010 869 99 9SMN28K
83	002 823 98	Pin	2	InternBDB: 6x12 ESN 01 WN 010 869 99 9SMN28K
84	551 289 40	Seat upholstery	1	InternBDB: 016901 Grammer 400 breit Integral schwarz
85	058 380 40	Dome light	2	InternBDB: 2 JA 003232-001
86	057 295 40	Socket	2	InternBDB: 0 352 030 002 Bosch
87	627 612 40	Perforated plate	1	InternBDB: 1,5x421x533
89	635 495 40	Handle	1	InternBDB: Kason 0481 A 00600
90	651 865 40	Spacer block	1
91	490 060 40	Handle	1	InternBDB: Happich GHE-Nr. 581 A 388
92	385 232 40	Hood catch	2	InternBDB: Happich 580 A 837
93	385 233 40	Hood catch	2	InternBDB: Happich 580 A 838
94	226 972 40	Single nozzle	3	InternBDB: SWF 100.078
95	196 487 40	Distributor piece	1	InternBDB: WRD 199 855
96	167 694 40	Profiled joint 4400 mm Bulk ware, state length required	-2	InternBDB: GHE 461 0046, 4,4 m
97	166 575 40	Profiled joint 620 mm Bulk ware, state length required	-2	InternBDB: GHE 461 0048, 0,62 m
98	623 997 40	Border cleat	2
99	196 488 40	Connection hose Bulk ware, state length required	-2	InternBDB: 6x1 SWF 902.916, 6,3 m
100	515 194 40	Cable 2,5 qmm/ 5,6 m Bulk ware, state length required	-2	InternBDB: XYFAFW 2, 5 qmm blau Kabel-Wolf, 5,6 m
101	515 194 40	Cable 2,5 qmm/ 8,8 m Bulk ware, state length required	-2	InternBDB: XYFAFW 2,5 qmm blau Kabel-Wolf, 8,8 m
102	471 861 99	Cable 1,5 qmm/ 8,6 m Bulk ware, state length required	-2	InternBDB: H07V - K1X 1,5 WN 241 975 40 PVC/CU, 8,6 m
103	471 861 99	Cable 1,5 qmm/ 6,4 m Bulk ware, state length required	-2	InternBDB: H07V - K1X 1,5 WN 241 975 40 PVC/CU, 6,4 m
104	385 252 40	Speaker cable 4,8 m Bulk ware, state length required	-2	InternBDB: 2-adrig Seyffahrt KG, 4,8 m
105	385 252 40	Speaker cable 6,3 m Bulk ware, state length required	-2	InternBDB: 2-adrig Seyffahrt KG, 6,3 m
106	636 395 40	Door	1
107	056 054 40	Grommet	2	InternBDB: KT 21
108	324 713 40	Speaker	1	InternBDB: DL 1525-A1 Blaupunkt Nr. 7606003000 Paarweise
109	399 701 40	Push switch	1	InternBDB: 75038507 Merit
110	623 998 40	Border cleat	2
111	627 610 40	Insulation board	1	InternBDB: 50x157x692 Grw + Hartm.
113	491 026 40	Sheet metal	1
114	318 383 99	Countersunk screw	4	InternBDB: M6x30 /963
115	385 727 40	Border cleat	1
116	340 506 99	Disc	4	InternBDB: A 6,4 / 125
118	507 025 98	Nut	4	InternBDB: M6 / 985
119	575 042 40	Rubber cord 10x3x260	2	InternBDB: Happich 10x3x260
120	575 043 40	Rubber cord 10x3x460	1	InternBDB: Happich 10x3x460
121	575 044 40	Rubber cord 10x3x500	1	InternBDB: Happich 10x3x500
122	636 385 40	Filter box assy.	1
123	319 382 99	Screw	4	InternBDB: M6 x 22 / 963
124	269 055 40	Air filter	1	InternBDB: 30 000.218
125	510 747 98	Resilient sleeve	3	InternBDB: 8,4 /15x35 WN 341 948 40
126	307 760 99	Bolt	3	InternBDB: M8x50 /933
127	319 127 99	Screw	3	InternBDB: M5 x 50 / 912
128	307 735 99	Bolt	3	InternBDB: M6x35 /933
129	324 390 40	Rubber cord Bulk ware, state length required	-2	InternBDB: Happich 423 0002, 1,0 m
130	490 061 40	Rivet	5	InternBDB: Happich GHE-Nr. 335 0 415
134	269 273 40	Joint hinge	-2	InternBDB: GHE 601 0143
150	506 825 98	Ball handle	1
151	440 556 40	Band roller	2
152	058 208 40	Bulb	4	InternBDB: 24 V 10 W
153	501 026 40	Bulb	2	InternBDB: 24 V 18 W
154	324 391 40	H.P. blower	1	InternBDB: Hornkohl + Wolf 33-0158-/24V
155	511 262 98	Resilient sleeve	3	InternBDB: 6,4 / 12x25 WN 341 948 40

Komatsu H455S S/N 15005 parts catalog PDF

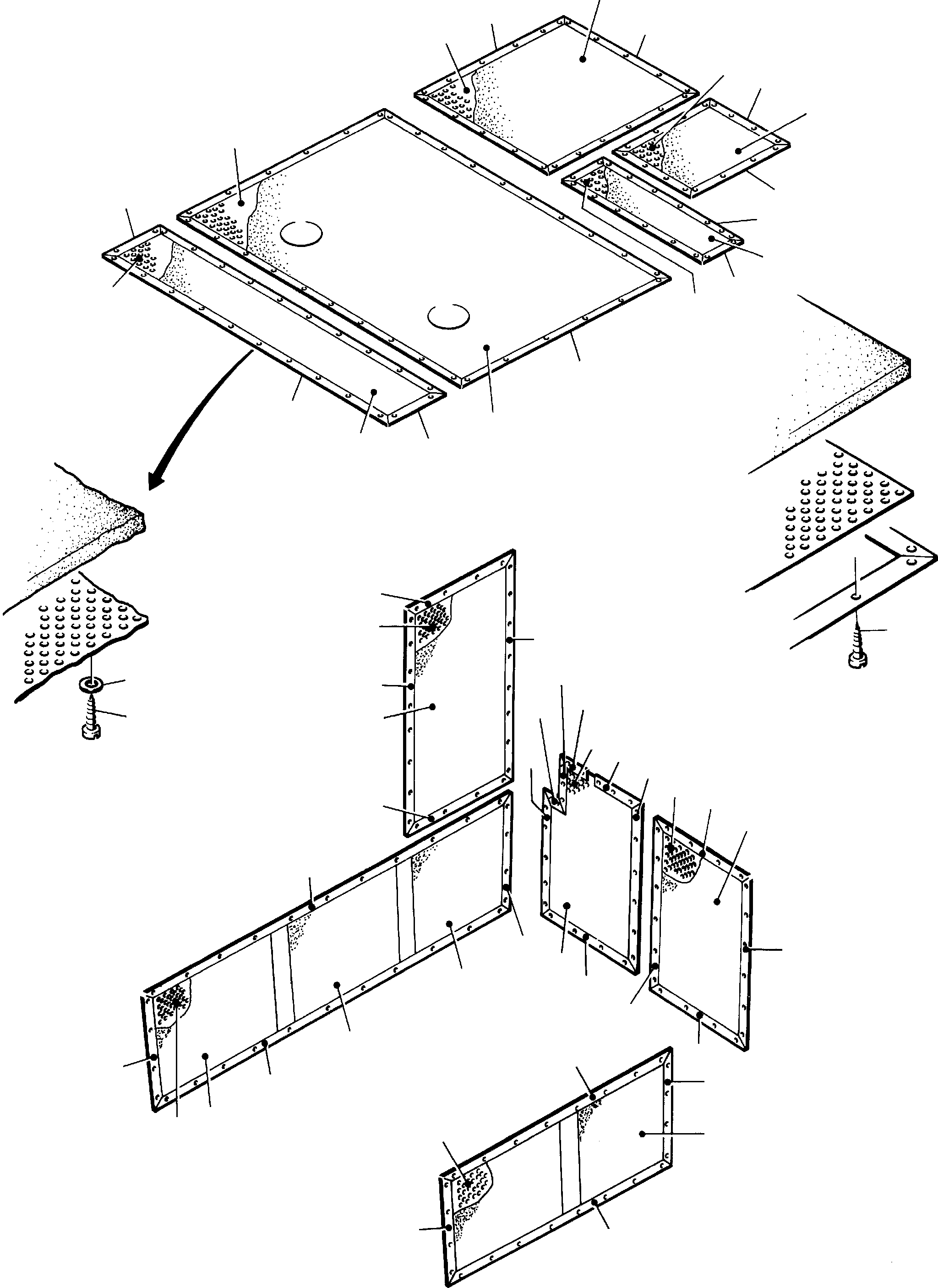

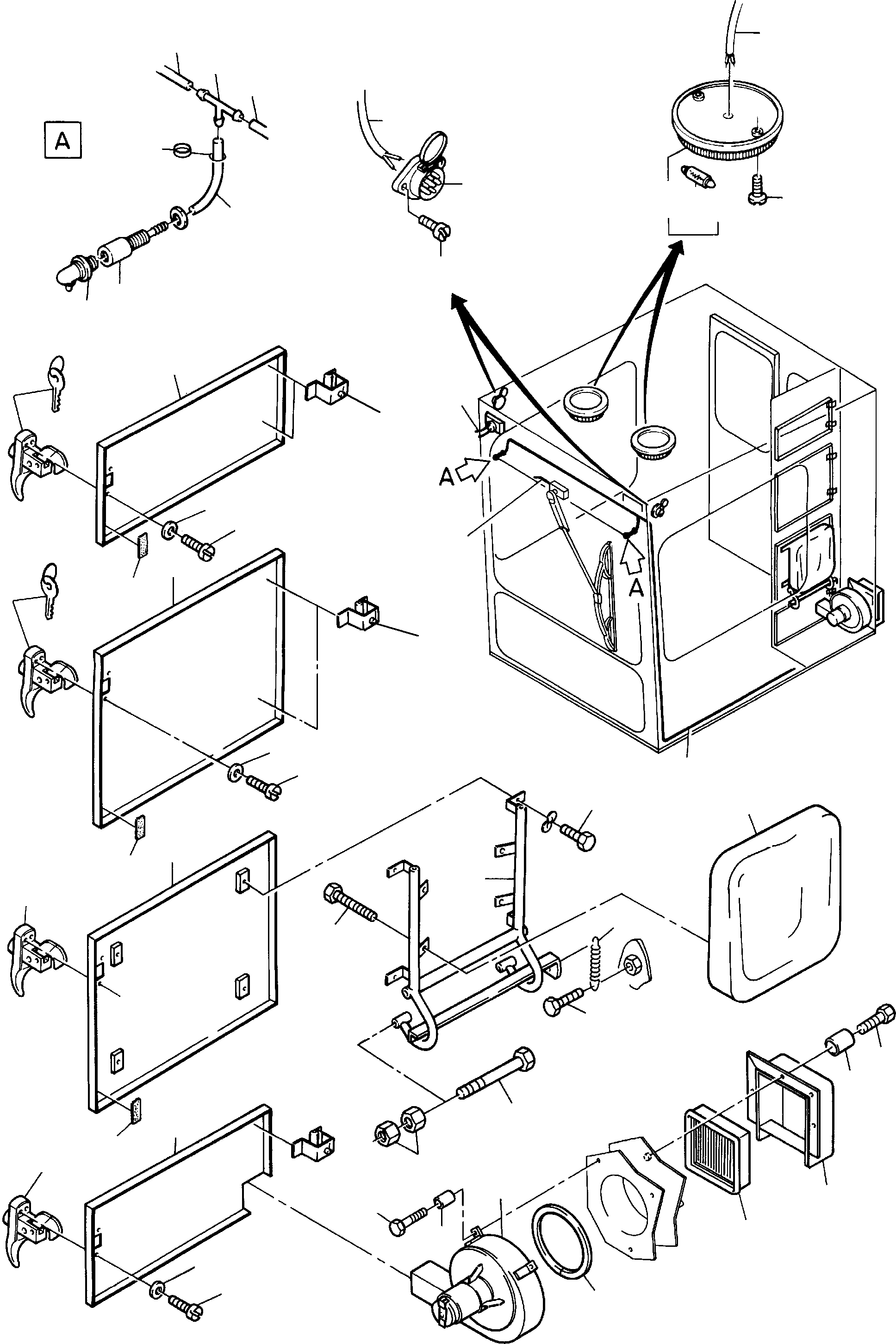

OPERATOR'S CAB (090-6718e) in H455S S/N 15005. Diagram image and parts list.
