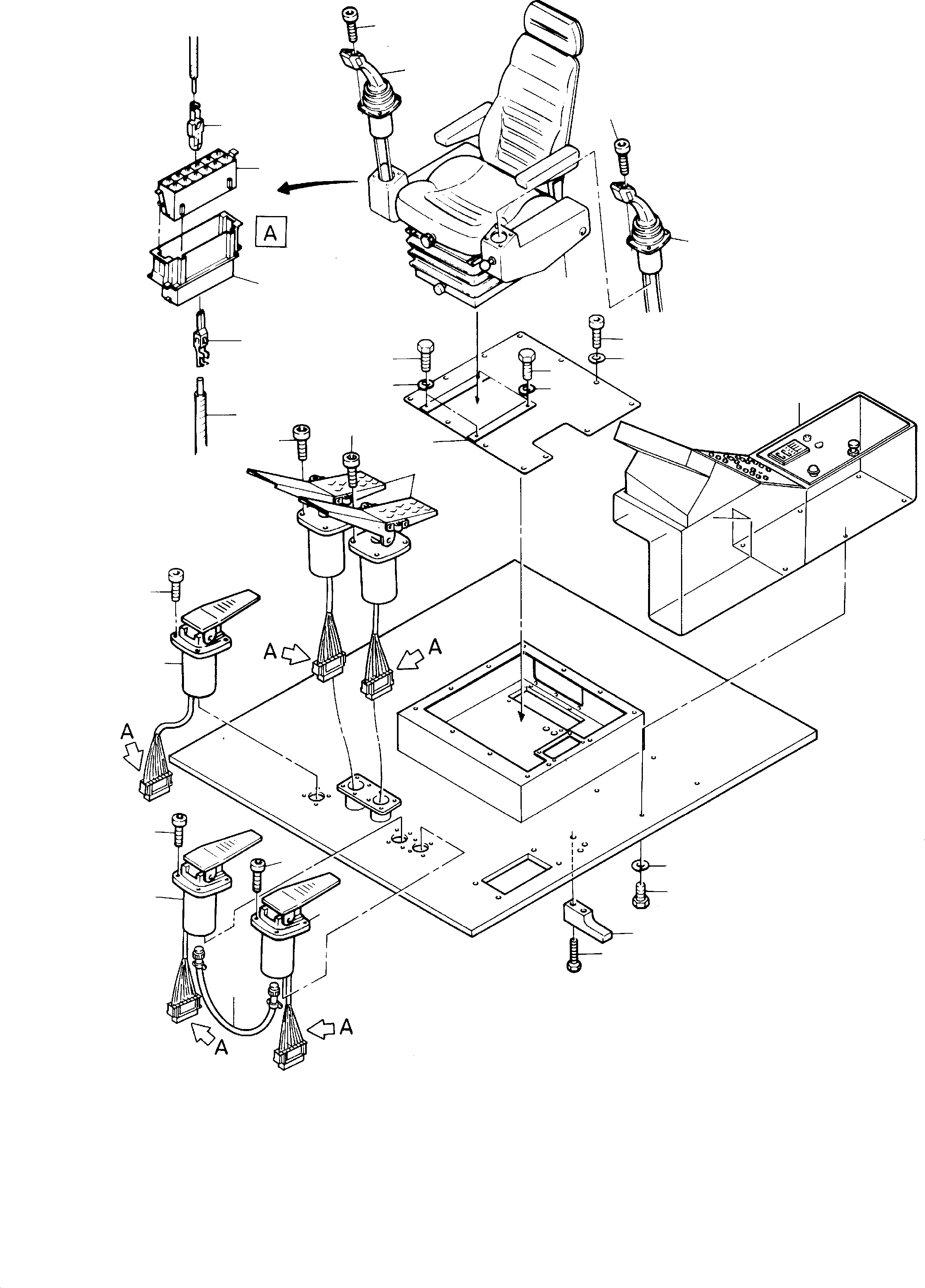

01 |
|
Operator's seat |
1 |
InternBDB: 358 623 40
|
090-6717 |
|
|
02 |
|
Operation panel |
1 |
InternKon: 659 874 40 / 2
|
515-1920a |
|
|
03 |
|
Manipulator |
2 |
InternBDB: 651 400 40 | InternKon: 659 874 40 / 16
|
991-0120 |
|
|
04 |
|
Manipulator |
2 |
InternBDB: 634 477 40 | InternKon: 659 874 40 / 102
|
991-0122 |
|
|
05 |
|
Manipulator |
3 |
InternBDB: 630 134 40 | InternKon: 659 874 40 / 22
|
991-0121 |
|
|
06 |
490 958 40
|
Socket |
9 |
InternBDB: Gr. + Ha. GHW-NR 14019.562.699
|
|
|
|
07 |
490 959 40
|
Housing |
9 |
InternBDB: Gr. + Ha. GHW-NR 14020.562.699
|
|
|
|
08 |
515 129 40
|
Contact |
108 |
InternBDB: Gr. + Ha. GHW-NR 46851.213.179
|
|
|
|
09 |
490 960 40
|
Tab |
108 |
InternBDB: Gr. + Ha. GHW-NR 26260.331.179
|
|
|
|
10 |
634 374 40
|
Cable |
1 |
InternBDB: FSG 3522 S 10-90.00A | InternKon: 659 874 40 / 123
|
|
|
|
11 |
481 125 40
|
Retainer |
2 |
|
|
|
|
12 |
318 603 99
|
Screw |
12 |
InternBDB: M6x16 /912
|
|
|
|
13 |
307 830 99
|
Bolt |
4 |
InternBDB: M16x70 /933
|
|
|
|
14 |
635 329 40
|
Cable 18-pol. x 1000 |
1 |
|
|
|
|
15 |
506 293 40
|
Cover |
1 |
InternKon: 643 733 40 / 2
|
|
|
|
16 |
308 576 99
|
Bolt |
2 |
InternBDB: M10x45 /933
|
|
|
|
17 |
343 855 99
|
Lock washer |
2 |
InternBDB: 10 /7980
|
|
|
|
18 |
318 914 99
|
Bolt |
12 |
InternBDB: M8x16 | InternKon: 643 733 40 / 13
|
|
|
|
19 |
343 854 99
|
Lock washer |
12 |
InternBDB: 8 /7980 | InternKon: 643 733 40 / 20
|
|
|
|
23 |
346 500 99
|
Lock washer |
6 |
InternBDB: 10 /128 | InternKon: 643 733 40 / 21
|
|
|
|
24 |
307 775 99
|
Bolt |
6 |
InternBDB: M10x20 /933 | InternKon: 643 733 40 / 16
|
|
