H455S S/N 15005

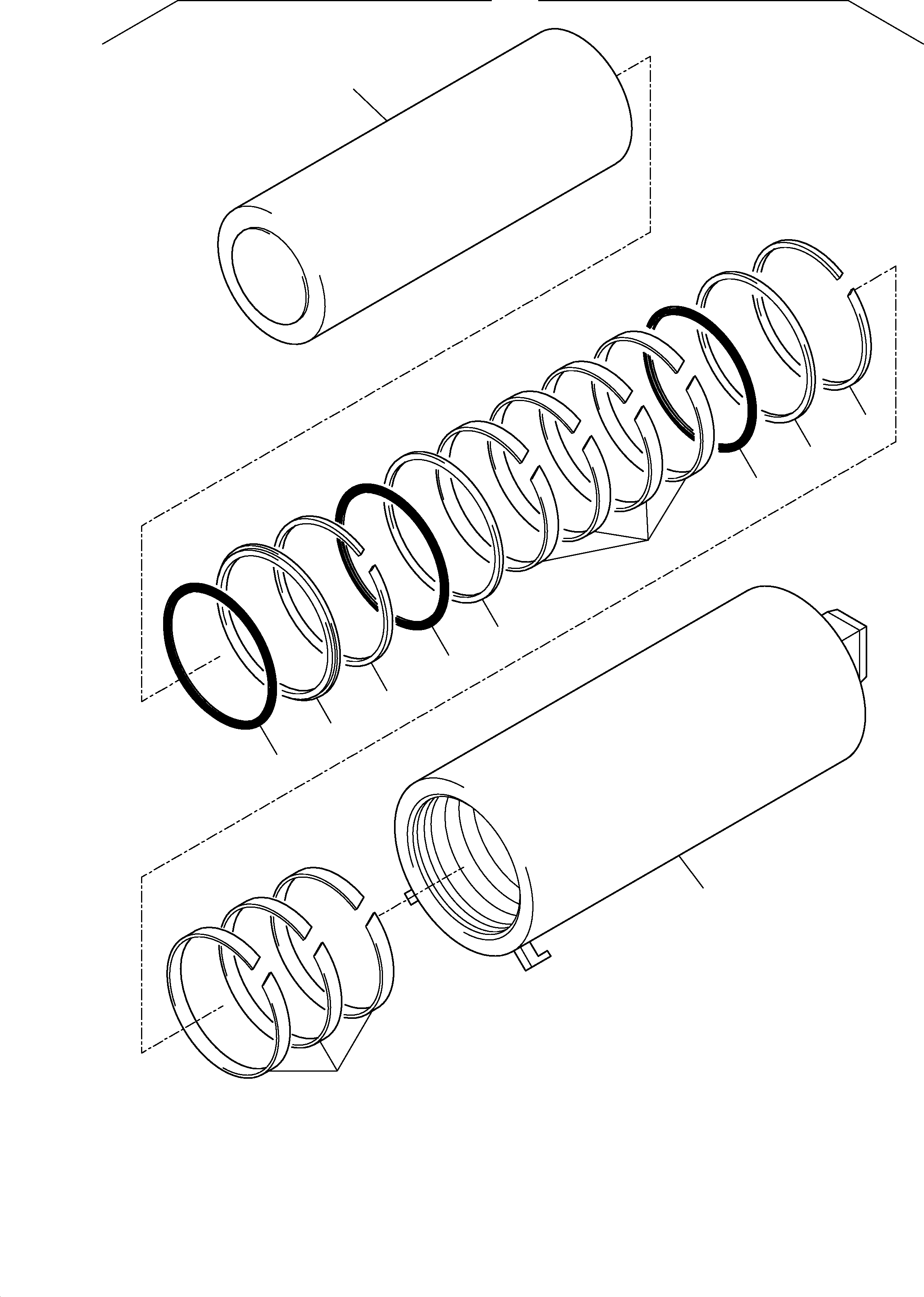

Komatsu parts book diagram for H455S S/N 15005: HYDR. TENSIONER

01 02 03 04 04 05 05 06 07 08 09 10 10

	#	Part Number	Partname	Quantity	Options	Reference
	01	607 712 40	Tensioner assy.	1	InternBDB: DBM AT-Nr. 710 498 73
	02	607 747 40	Cylinder	1	InternKon: 607 712 40 / 01
	03	607 748 40	Piston	1	InternBDB: Ш 230 \| InternKon: 607 712 40 / 02
	04	592 799 40	Rod guide ring	7	InternBDB: BB-50706-2300-C-TLG-R \| InternKon: 607 712 40 / 03
	05	604 546 40	Rod guide strap	2	InternBDB: BS-50740-2300-C-47 \| InternKon: 607 712 40 / 04
	06	592 803 40	Seal ring	1	InternBDB: ES-56152-2300-451 \| InternKon: 607 712 40 / 05
	07	511 710 98	O-ring	1	InternBDB: 234,32x5,33 B /011 745 99 \| InternKon: 607 712 40 / 06
	08	634 363 40	Seal ring	1	InternBDB: RS-13-02300-Z51 \| InternKon: 607 712 40 / 07
	09	634 364 40	Seal ring	1	InternBDB: RS-13-02300-T46 \| InternKon: 607 712 40 / 08
	10	504 302 98	O-ring	2	InternBDB: 240,67x7,0 B /011 745 99 \| InternKon: 607 712 40 / 09
	\|$$11	768 643 73	Seal kit consist of fig. nos 04-10	1

Komatsu H455S S/N 15005 parts catalog PDF

HYDR. TENSIONER (515-3112) in H455S S/N 15005. Diagram image and parts list.
