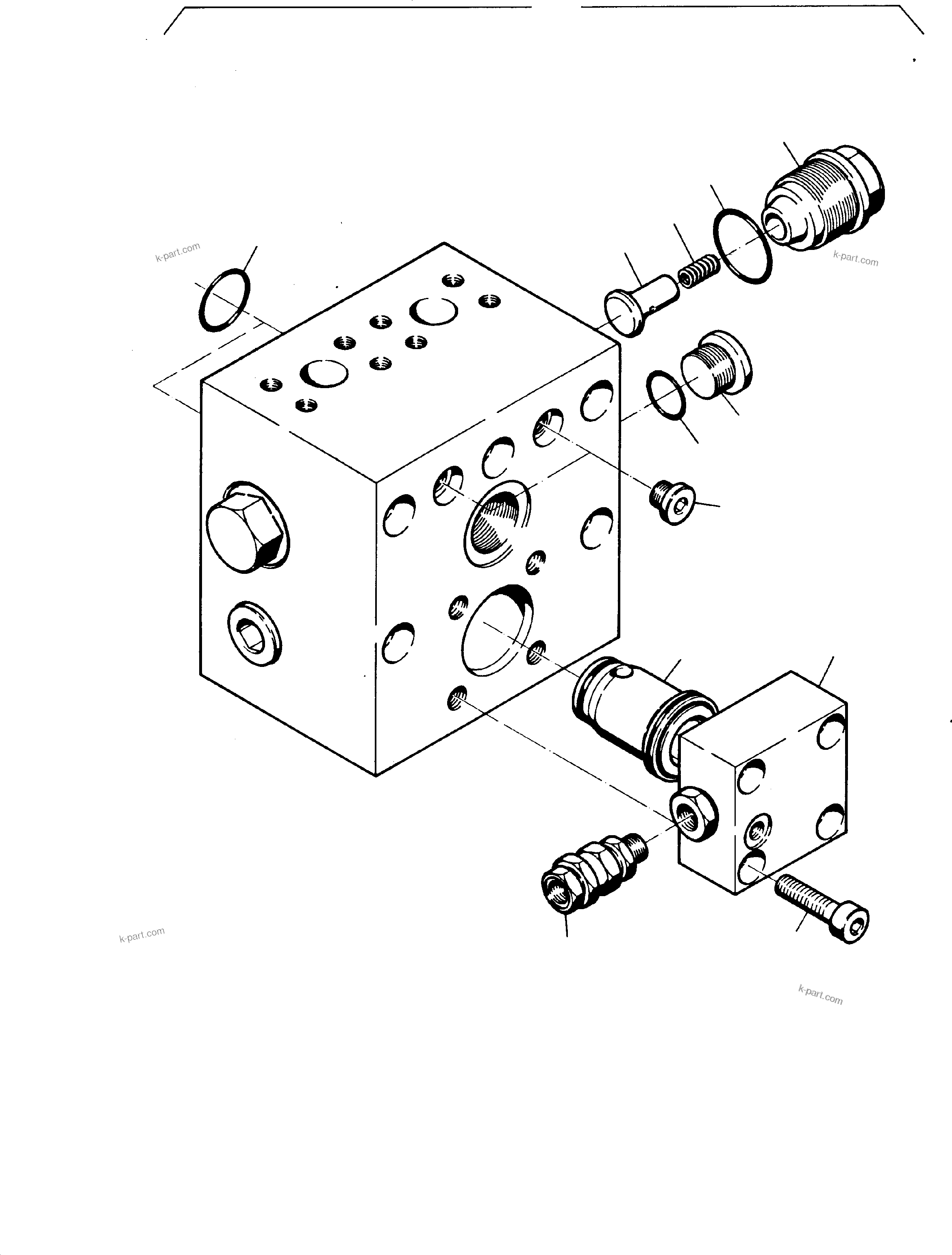

Komatsu parts book diagram for H455S S/N 15005: SLEW-BRAKE VALVE

? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	551 494 40	Brake valve assy.	1	InternBDB: Rexroth MH2DBB40P9-2x/420YPM 11 516 803
	?	006 729 98	O-ring	2	InternBDB: 47,22x3,53 \| InternKon: 112-1848c / 13
	?	319 384 99	Bolt	4	InternBDB: M20x70 /912 \| InternKon: 112-1848c / 15
	?	805 585 73	Plate	1	InternBDB: 642 307 \| InternKon: 112-1848c / 14
	?	757 601 73	Valve	1	InternBDB: 515 971 \| InternKon: 112-1848c / 17
	?	805 586 73	Seal kit to fig-no: 05	1	InternBDB: 314 055
	?		Pressure sequence stage	1	InternBDB: 584 982 \| InternKon: 112-1848c / 16	090-0552
	?	805 587 73	Plug	4	InternBDB: 642 311 \| InternKon: 112-1848c / 06
	?	506 857 98	O-ring	4	InternBDB: 56x3 \| InternKon: 112-1848c / 10
	?	255 012 40	Spring	4	InternBDB: 008 862 \| InternKon: 112-1848c / 08
	?	255 011 40	Taper	4	InternBDB: 147 996 \| InternKon: 112-1848c / 07
	?	757 411 73	Plug	2	InternBDB: 023 942 \| InternKon: 112-1848c / 09
	?	500 582 98	O-ring	2	InternBDB: 38x3 \| InternKon: 112-1848c / 19
	?	754 708	Plug	2	InternBDB: 001 729 \| InternKon: 112-1848c / 12

Komatsu H455S S/N 15005 parts catalog PDF

SLEW-BRAKE VALVE (090-0499a) in H455S S/N 15005. Diagram image and parts list.
