H455S S/N 15005

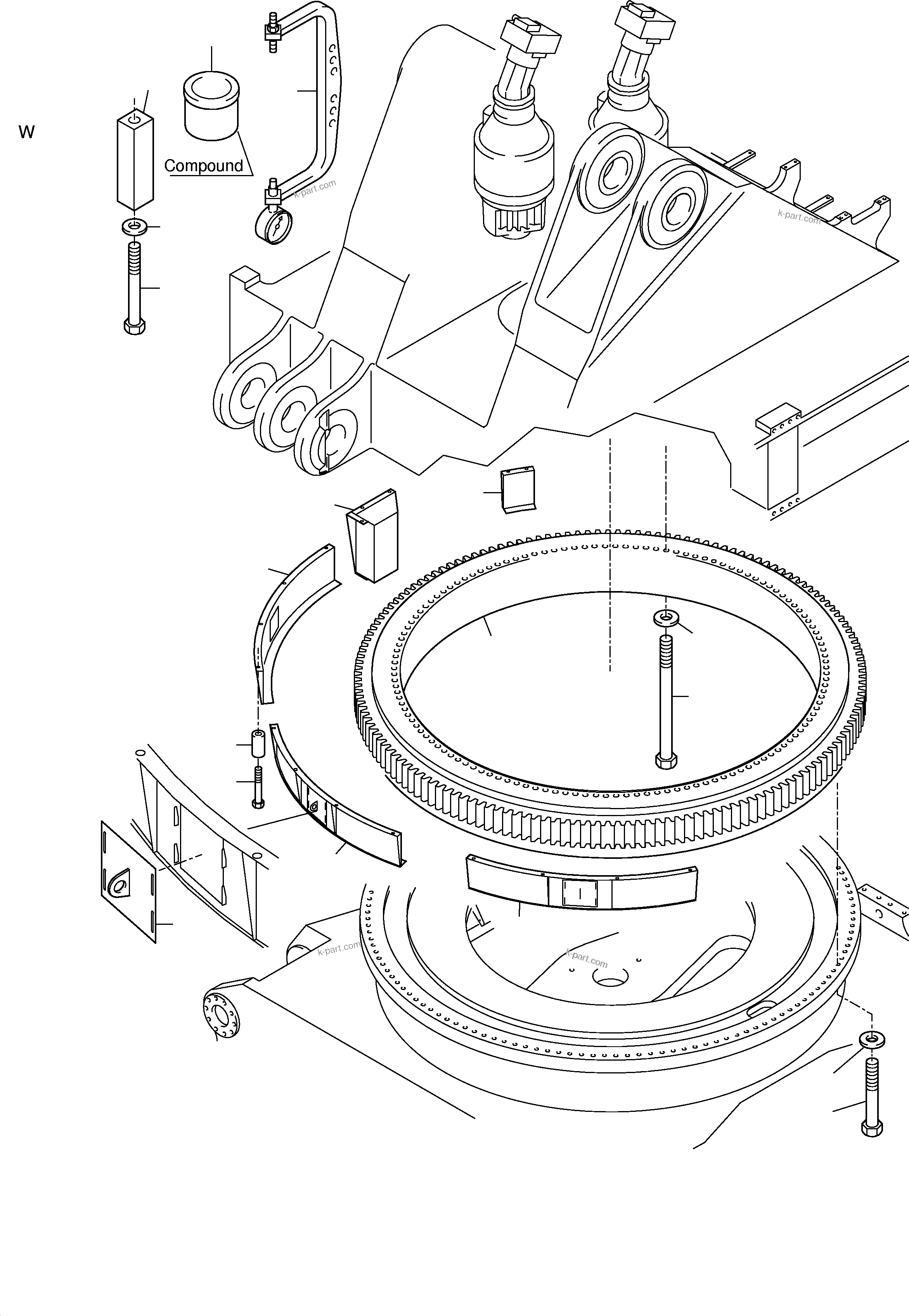

Komatsu parts book diagram for H455S S/N 15005: SLEW RING ARR.

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?		Slew ring	1	InternBDB: 626 900 40	515-1115b
	?	512 199 98	Bolt	132	InternBDB: M36x485 \| InternKon: 637 551 40 / 22
	?	255 056 40	Washer	264	InternBDB: Ш 37 \| InternKon: 637 551 40 / 24
	?	505 288 98	Bolt	124	InternBDB: M36x230 \| InternKon: 637 560 40 / 2
	?	409 484 40	Test bolt	8	InternBDB: M36x230 \| InternKon: 637 560 40 / 3
	?	379 077 40	Spanner	1
	?	376 792 40	Jaw	1
	?	324 969 40	Compound (2 LBS) (1,3 kg.)	5	InternBDB: GM 519 8563
	?	763 159 73	Slew ring - mounting kit fig-nos. 02-08	-2	InternBDB: E-ST
	?	653 658 40	Sheet metal	6	InternKon: 620 835 40 / 1
	?	620 850 40	Cover	6	InternKon: 620 835 40 / 4
	?	653 652 40	Protection casing	1	InternKon: 620 835 40 / 3
	?	653 655 40	Sheet metal	1	InternKon: 620 835 40 / 2
	?	510 741 98	Resilient sleeve	29	InternKon: 620 835 40 / 5
	?	308 436 99	Bolt	29	InternBDB: M12x75 /931 \| InternKon: 620 835 40 / 6

Komatsu H455S S/N 15005 parts catalog PDF

SLEW RING ARR. (515-1100a) in H455S S/N 15005. Diagram image and parts list.
