H455S S/N 15005

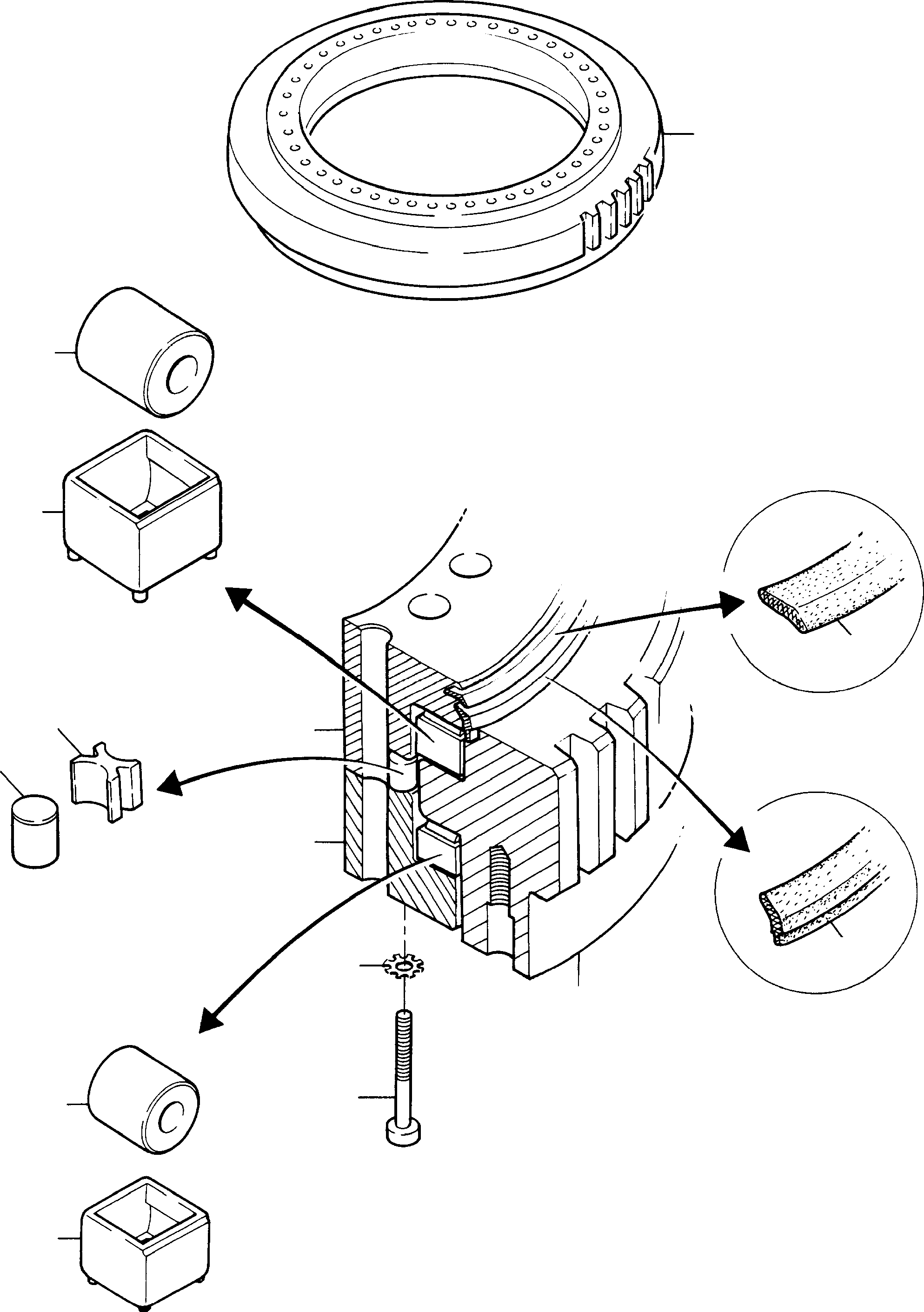

Komatsu parts book diagram for H455S S/N 15005: SLEW RING

01 02 03 04 05 06 07 08 09 10 11 12 13 14

	#	Part Number	Partname	Quantity	Options	Reference
	01	626 900 40	Slew ring assy.	1	InternBDB: DBM
	02	626 901 40	Nip ring No field repair item	1	InternKon: 626 900 40 / 1
	03	626 903 40	Ring No field repair item	1	InternKon: 626 900 40 / 2
	04	626 905 40	Retaining ring No field repair item	1	InternKon: 626 900 40 / 3
	05	500 515 98	Tooth lock washer	22	InternBDB: A 17 \| InternKon: 626 900 40 / 11
	06	534 090 99	Screw	22	InternBDB: M16 x 180 /912 10.9 \| InternKon: 626 900 40 / 10
	07	517 797 40	Roller set No field repair item	1	InternBDB: TL 487 109 40 Ш 80-125 St. \| InternKon: 626 900 40 / 4
	08	593 429 40	Plastic cage No field repair item	125	InternKon: 626 900 40 / 7
	09	626 907 40	Roller set No field repair item	1	InternBDB: TL 487 109 40 Ш 60-162 St. \| InternKon: 626 900 40 / 5
	10	626 908 40	Roller set No field repair item	1	InternBDB: TL 487 109 40 Ш 50-181 St. \| InternKon: 626 900 40 / 6
	11	626 998 40	Plastic cage No field repair item	162	InternKon: 626 900 40 / 8
	12	224 639 40	Lip type seal NG 25 x 11.900 Bulk ware, state length required	1	InternBDB: x TL \| InternKon: 626 900 40 / 14
	13	224 640 40	Lip type seal NG 40 x 11.900 Bulk ware, state length required	1	InternBDB: x TL \| InternKon: 626 900 40 / 13
	14	626 808 40	Extension	181	InternKon: 626 900 40 / 9
	\|$$15	989 965	Adhesive	-2	InternBDB: Sicomet 85

Komatsu H455S S/N 15005 parts catalog PDF

SLEW RING (515-1115b) in H455S S/N 15005. Diagram image and parts list.
