#	Part Number	Partname	Quantity	Options

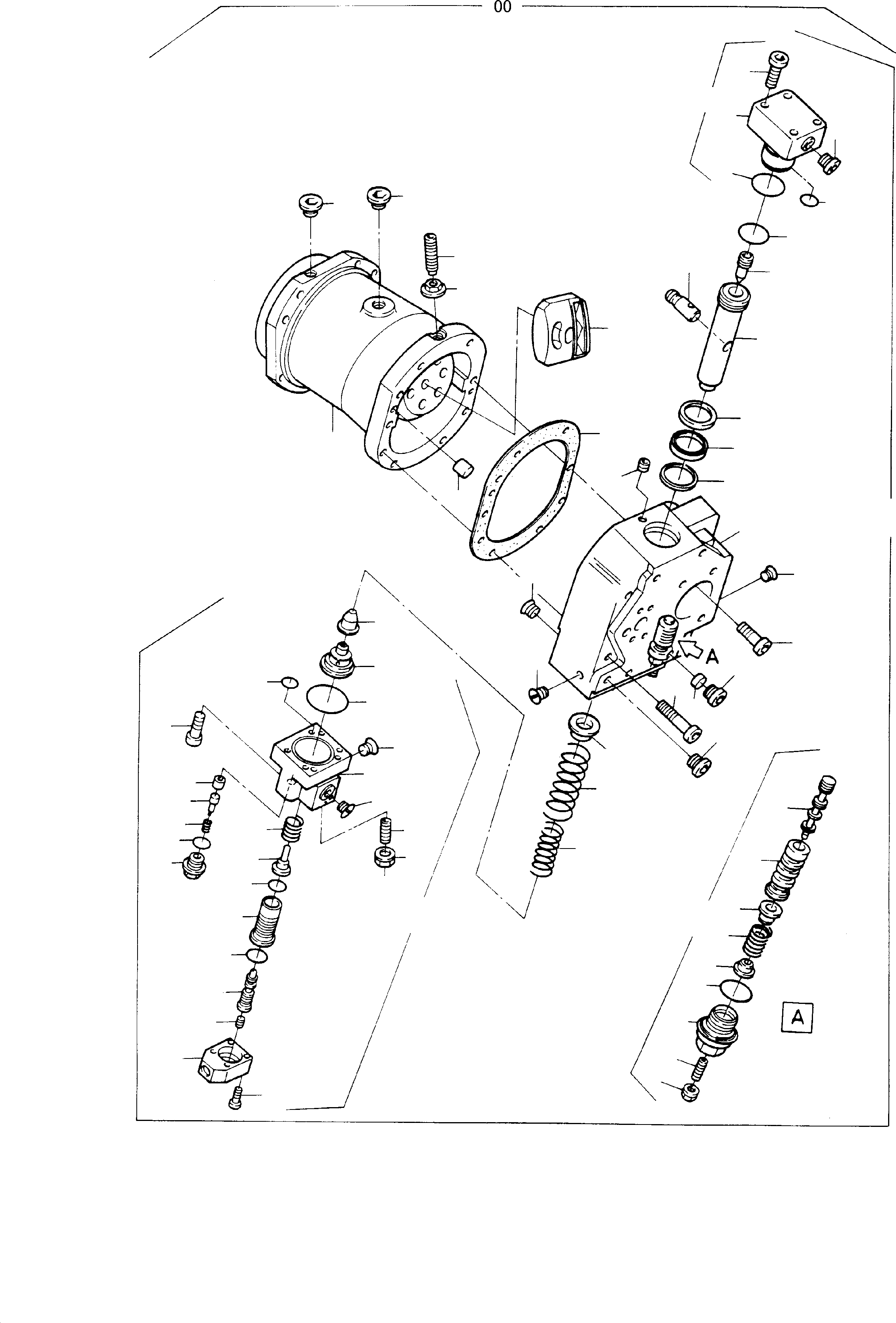

00	324 823 40	Variable displacement pump, assy.	1	InternBDB: Hydromatik A7V TO 200 HDD/60 L-PZB 01 418 962 AT-Nr. 669 065
01	756 159 73	Control lense	1	InternBDB: 419663 \| InternKon: 418962 / 3
02		Housing	1	InternBDB: 418278 \| InternKon: 418962 / 6
03	173 448 40	Screw plug	3	InternBDB: vsti22x1,5- ed \| InternKon: 10 / 13
04	756 161 73	Thread pin	2	InternBDB: 153075 \| InternKon: 418962 / 11
05	964 767	Flanged nut	2	InternBDB: 152459 M12 \| InternKon: 418962 / 12
06	756 160 73	Adjustment fig-nos: 07-29	1	InternBDB: 418934 \| InternKon: 418962 / 2
07	756 162 73	Cover, assy. fig-nos: 31-35	1	InternBDB: 418613 \| InternKon: 418934 / 1
08	756 163 73	Control plate fig-nos: 41-64	1	InternBDB: 418611
09	756 164 73	Control part fig-nos: 71-79	1	InternBDB: 416172 \| InternKon: 418934 / 3
10	756 165 73	Cover plate	1	InternBDB: 418503 \| InternKon: 418934 / 7
11	756 166 73	Gasket	1	InternBDB: 418665 \| InternKon: 418934 / 8
12	756 167 73	Piston	1	InternBDB: 425453 \| InternKon: 418934 / 9
13	756 168 73	Regulation journal	1	InternBDB: 425450 \| InternKon: 418934 / 10
14	756 169 73	Spring plate	1	InternBDB: 418627 \| InternKon: 418934 / 11
15	756 170 73	Ring	1	InternBDB: 424412 \| InternKon: 418934 / 13
16	756 171 73	Compression spring	1	InternBDB: 418517 \| InternKon: 418934 / 14
17	756 172 73	Compression spring	1	InternBDB: 418518 \| InternKon: 418934 / 15
18	756 173 73	Thread pin	1	InternBDB: 408958 \| InternKon: 418934 / 16
19	998 592	Screw plug	2	InternBDB: vsti16x1,5- ed \| InternKon: 418934 / 26
20	319 192 99	Screw	7	InternBDB: M16x100/912 \| InternKon: 418934 / 31
21	319 187 99	Screw	1	InternBDB: M16x45/912 \| InternKon: 418934 / 32
22	344 888 99	Parallel pin	2	InternBDB: 12M6x24/7 \| InternKon: 418934 / 35
23	753 570	Nozzle	1	InternBDB: 156493 \| InternKon: 418934 / 38
24	756 175 73	Ring	1	InternBDB: 156777 50x2,5/34110 \| InternKon: 418934 / 39
25	756 174 73	Ring	1	InternBDB: 157036 \| InternKon: 418934 / 40
26	964 736	Safety plug	7	InternBDB: 153880 \| InternKon: 418934 / 41
27	756 176 73	Thread pin	1	InternBDB: 083489 M5x6913- 12.9 \| InternKon: 418934 / 43
28	992 655	Screw plug	1	InternBDB: vsti8x1-ed \| InternKon: 418934 / 50
29	756 177 73	Support ring	1	InternBDB: 424410 \| InternKon: 418934 / 55
30	999 046	Safety plug	1	InternBDB: 153879 \| InternKon: 418934 / 42
31	756 178 73	Cover	1	InternBDB: 418507 \| InternKon: 418613 / 1
32	319 188 99	Screw	4	InternBDB: M16x50/912 \| InternKon: 418613 / 3
33	971 170	O-ring	1	InternBDB: 56,82x2,62 \| InternKon: 418613 / 4
34	980 609	O-ring	2	InternBDB: 12,42x1,78 \| InternKon: 418613 / 5
35	992 655	Screw plug	1	InternBDB: vsti8x1-ed \| InternKon: 418613 / 6
41	756 179 73	Housing	1	InternBDB: 418550 \| InternKon: 418611 / 1
42	756 180 73	Sleeve	1	InternBDB: 414074 \| InternKon: 418611 / 2
43	756 181 73	Piston valve	1	InternBDB: 414236 \| InternKon: 418611 / 3
44	756 182 73	Spring bolt	1	InternBDB: 414235 \| InternKon: 418611 / 4
45	756 183 73	Compression spring	1	InternBDB: 408166 \| InternKon: 418611 / 5
46	756 184 73	Spring collet	1	InternBDB: 418583 \| InternKon: 418611 / 6
47	756 185 73	Spring plate	1	InternBDB: 418584 \| InternKon: 418611 / 7
48	756 186 73	Cover	1	InternBDB: 414073 \| InternKon: 418611 / 8
49	756 187 73	Screw plug	2	InternBDB: 405175 \| InternKon: 418611 / 9
50	756 188 73	Bush	2	InternBDB: 425878 \| InternKon: 418611 / 10
51	756 189 73	Pin	2	InternBDB: 405174 \| InternKon: 418611 / 11
52	756 190 73	Compression spring	2	InternBDB: 060383 \| InternKon: 418611 / 12
53	319 142 99	Screw	4	InternBDB: M8x30/912 \| InternKon: 418611 / 13
54	319 414 99	Screw	4	InternBDB: M5x20/912 \| InternKon: 418611 / 14
55	325 097 99	Thread pin	1	InternBDB: M6x40/913- 12.9 \| InternKon: 418611 / 15
56	964 663	Flanged nut	1	InternBDB: 152425 \| InternKon: 418611 / 16
57	980 609	O-ring	2	InternBDB: 12,42x1,78 \| InternKon: 418611 / 17
58	972 106	O-ring	2	InternBDB: 9,2x2,62 \| InternKon: 418611 / 18
59	180 025 40	O-ring	1	InternBDB: 13,95x2,62 \| InternKon: 418611 / 19
60	006 715 98	O-ring	1	InternBDB: 17,12x2,62 \| InternKon: 418611 / 20
61	505 088 98	O-ring	1	InternBDB: 61,6x2,62 \| InternKon: 418611 / 21
62	999 046	Safety plug	2	InternBDB: 153879 \| InternKon: 418611 / 22
63	964 736	Safety plug	1	InternBDB: 153880 \| InternKon: 418611 / 23
64	756 191 73	Thread pin	1	InternBDB: M4x6/913- 12.9 \| InternKon: 418611 / 26
71	756 192 73	Piston valve	1	InternBDB: 418853 \| InternKon: 416172 / 1
72	756 193 73	Sleeve	1	InternBDB: 418806 \| InternKon: 416172 / 2
73	756 194 73	Spring plate	1	InternBDB: 421397 \| InternKon: 416172 / 3
74	756 195 73	Spring plate	1	InternBDB: 421396 \| InternKon: 416172 / 4
75	756 196 73	Compression spring	1	InternBDB: 416360 \| InternKon: 416172 / 5
76	756 197 73	Screw plug	1	InternBDB: 418813 \| InternKon: 416172 / 6
77	756 198 73	Thread pin	1	InternBDB: 420991 \| InternKon: 416172 / 11
78	964 663	Fanged nut	1	InternBDB: 152425 \| InternKon: 416172 / 12
79	972 114	O-ring	1	InternBDB: 21,89x2,62 \| InternKon: 416172 / 13

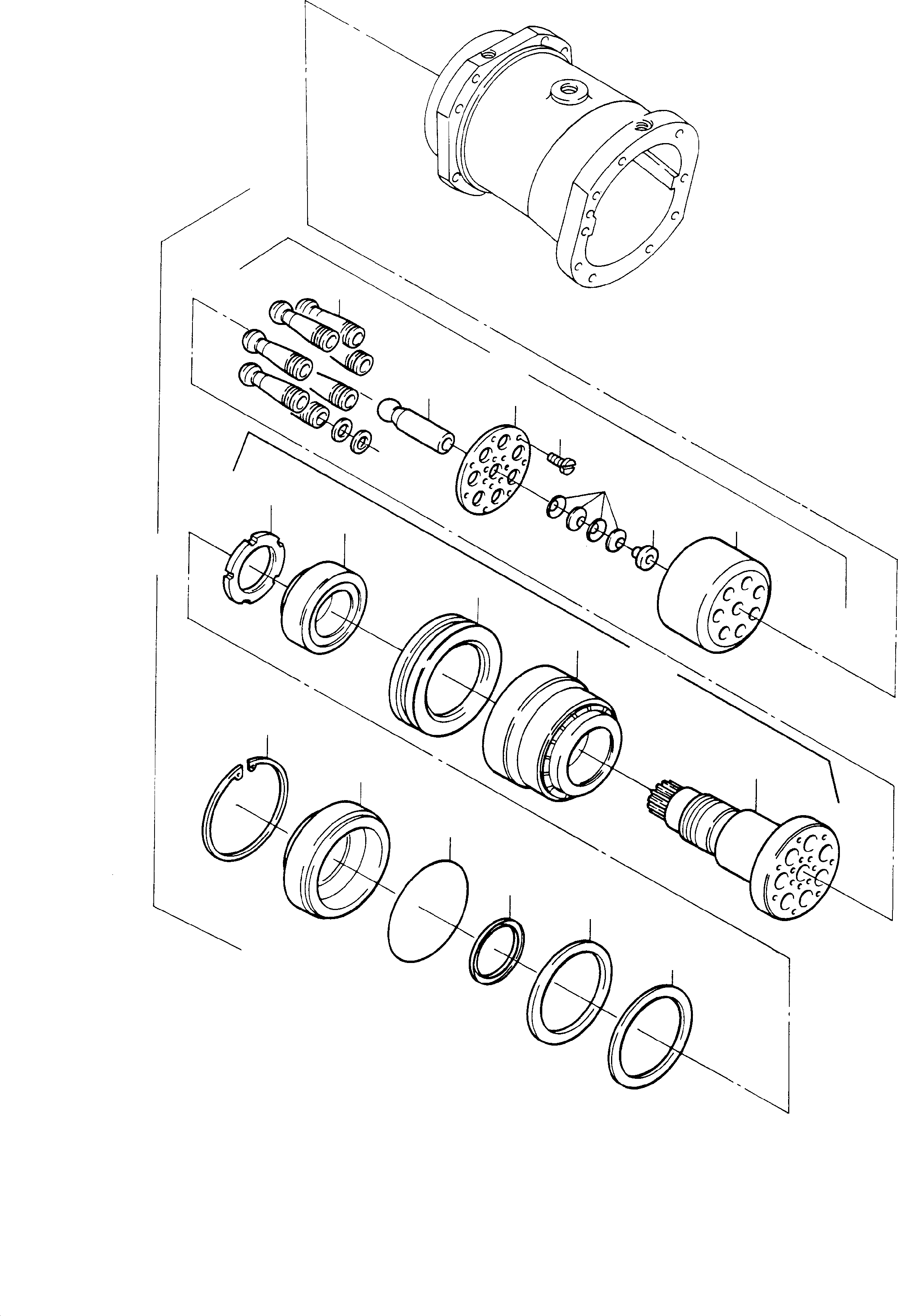

81	756 199 73	Transmission, assy. fig-nos: 82,90-102	1	InternBDB: 418608 \| InternKon: 418962 / 1
82	756 200 73	Transmission, assy. fig-nos: 83-89	1	InternBDB: 418110 \| InternKon: 418 608 / 1
83	756 201 73	Piston	7	InternBDB: 418498+ 157028 \| InternKon: 4 / 5
84	756 202 73	Trunnion	1	InternBDB: 418497 \| InternKon: 418110 / 3
85	756 203 73	Withdrawal plate	1	InternBDB: 418499 \| InternKon: 418110 / 11
86	343 266 99	Screw	14	InternBDB: M6x20/7985 \| InternKon: 418110 / 12
87	756 204 73	Cup spring	4	InternBDB: 418513 \| InternKon: 418110 / 7
88	756 205 73	Spring plate	1	InternBDB: 418474 \| InternKon: 418110 / 6
89	756 206 73	Cylinder	1	InternBDB: 418502 \| InternKon: 418110 / 1
90	756 207 73	Groove nut	1	InternBDB: 156328 \| InternKon: 418 608 / 5
91	361 598 99	Roller bearing	1	InternBDB: 33115/720 \| InternKon: 418 608 / 11
92	756 208 73	Race	1	InternBDB: 411352 \| InternKon: 418 608 / 3
93	756 210 73	Bearing unit	1	InternBDB: 156510 \| InternKon: 418 608 / 10
94	756 211 73	Drive shaft	1	InternBDB: 418505 \| InternKon: 418 608 / 2
95	342 682 99	Circlip	1	InternBDB: 160x4/472 \| InternKon: 418 608 / 12
96	756 209 73	Cover	1	InternBDB: 081938 \| InternKon: 418 608 / 4
97	501 377 98	O-ring	1	InternBDB: 148,49x5,33 \| InternKon: 418 608 / 15
98	504 563 98	Shaft seal	1	InternBDB: BABSL 0,5 62x85x7 \| InternKon: 418 608 / 14
99	754 679	Supporting disc	1	InternBDB: 156329 \| InternKon: 418 608 / 6
100	756 212 73	Shim washer 130x160x0,3	2	InternBDB: 156332 \| InternKon: 418 608 / 17
101	756 213 73	Shim washer 130x160x0,4	2	InternBDB: 157033 \| InternKon: 418 608 / 18
102	756 214 73	Shim washer 130x160x0,5	2	InternBDB: 156333 \| InternKon: 418 608 / 19
103	993 880 73	Drive shaft with bearing set	1	InternBDB: 270774
\|$$93	756 215 73	Seal kit, assy. fig-nos. 24,25,33,34, 57-61,79,97,98	-2	InternBDB: E-St
\|$$94		Fluid sealing with hardening agent, to fig-nos: 18,26,27,30, 62-64	-2	InternBDB: Loctite 601
\|$$95	973 125	Fluid sealing 50 ml to fig-nos: 86,90	-2	InternBDB: Loctite 241
