01 |
|

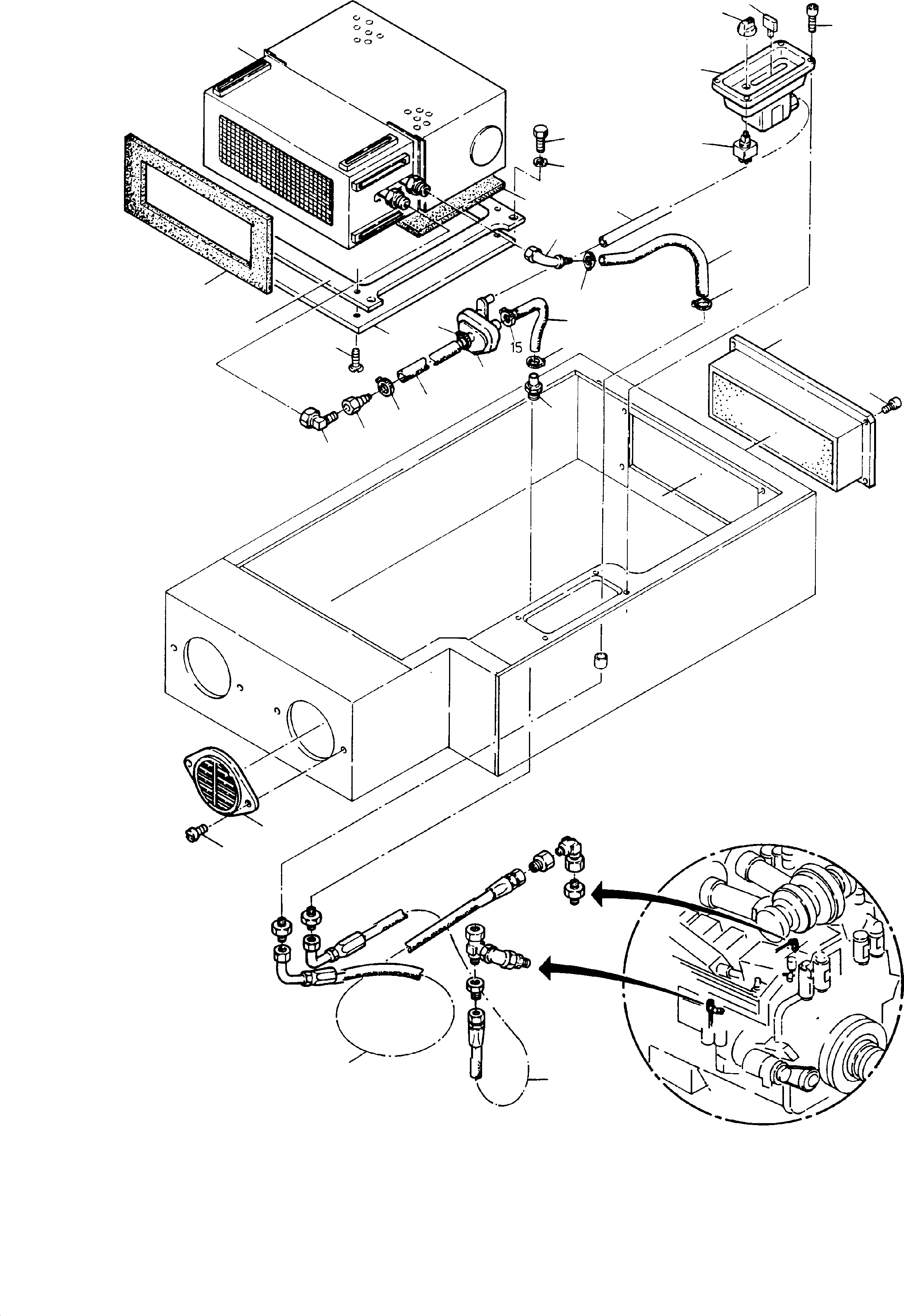

Heater assembly |
1 |
InternBDB: 515 070 40 | InternKon: 506 242 40 / 1
|
090-0759 |
|
|
02 |
307 775 99
|
Bolt |
4 |
InternBDB: M10x20 /933 | InternKon: 506 242 40 / 11
|
|
|
|
03 |
343 095 99
|
Lock washer |
4 |
InternBDB: 10 /127 | InternKon: 506 242 40 / 12
|
|
|
|
04 |
320 435 99
|
Bolt |
4 |
InternBDB: M8x15 /7991 | InternKon: 506 242 40 / 13
|
|
|
|
06 |
515 193 40
|
Control unit |
1 |
InternBDB: Hornk.u.Wolf 27-573.00.100 | InternKon: 506 242 40 / 2
|
|
|
|
07 |
318 576 99
|
Screw |
4 |
InternBDB: M5x10 /964 | InternKon: 506 242 40 / 15
|
|
|
|
08 |
318 579 99
|
Bolt |
4 |
InternBDB: M6x16 /964 | InternKon: 427 959 40 / 47
|
|
|
|
09 |
440 085 40
|
Vent valve |
1 |
InternBDB: Hornk.u.Wolf 28-1099 | InternKon: 427 959 40 / 20
|
|
|
|
10 |
255 477 40
|
Breather |
2 |
InternBDB: Hornk.u.Wolf 13-386 | InternKon: 427 959 40 / 21
|
|
|
|
11 |
318 573 99
|
Bolt |
4 |
InternBDB: M4x10 /964 | InternKon: 427 959 40 / 46
|
|
|
|
12 |
269 979 40
|
Moulding material
Bulk ware, state length
required |
-2 |
InternBDB: 10x20x1400
Manke Z 125 | InternKon: 506 242 40 / 14
|
|
|
|
13 |
324 624 40
|
Screen valve |
1 |
InternBDB: Hornk.u.Wolf 45-636 | InternKon: 506 242 40 / 3
|
|
|
|
14 |
551 974 40
|
Bowden cable 900 lg. |
1 |
InternBDB: 27-529 | InternKon: 506 242 40 / 17
|
|
|
|
15 |
500 078 98
|
Clamp |
6 |
InternBDB: 1S 21x15 010 422 99 | InternKon: 506 242 40 / 10
|
|
|
|
16 |
269 547 40
|
Hose connection |
2 |
InternBDB: Schulz R 1/2" 005.05.90 | InternKon: 506 242 40 / 7
|
|
|
|
17 |
256 626 40
|
Hose DN 16
Bulk ware, state length
required |
-2 |
InternBDB: Aeroquipe 2556-10 | InternKon: 506 242 40 / 9
|
|
|
|
18 |
255 899 40
|
Hose fittings |
1 |
InternBDB: 07.001-16-10 | InternKon: 506 242 40 / 6
|
|
|
|
19 |
506 243 40
|
Retainer |
1 |
InternKon: 506 242 40 / 4
|
|
|
|
20 |
515 069 40
|
Hose fittings |
1 |
InternBDB: 07.072-16-10 | InternKon: 506 242 40 / 5
|
|
|
|
21 |
506 273 40
|
Retainer |
1 |
InternKon: 506 242 40 / 16
|
|
|
|
22 |
698 045 73
|
Turn switch |
1 |
InternBDB: Hornk.+Wolf 69-449
|
|
|
|
23 |
698 046 73
|
Control knob |
1 |
InternBDB: Hornk.+Wolf 27-000.296
|
|
|
|
24 |
966 792
|
Button, black |
1 |
InternBDB: Hornk.+Wolf 27-000.113
|
|
|
|
27 |
643 806 40
|
Hose assy. NW 12x7150 |
1 |
InternBDB: DOS 16 /DOS 16 WN 341 951 40 | InternKon: 456 309 40 / 57
|
|
|
|
28 |
643 805 40
|
Hose assy. NW 12x6000 |
1 |
InternBDB: DOS 16 /DOS 16 WN 341 951 40 | InternKon: 456 309 40 / 58
|
|
|
|
30 |
372 174 99
|
Union |
2 |
InternBDB: DDL 18 /2353
|
|
