H135S S/N 61064

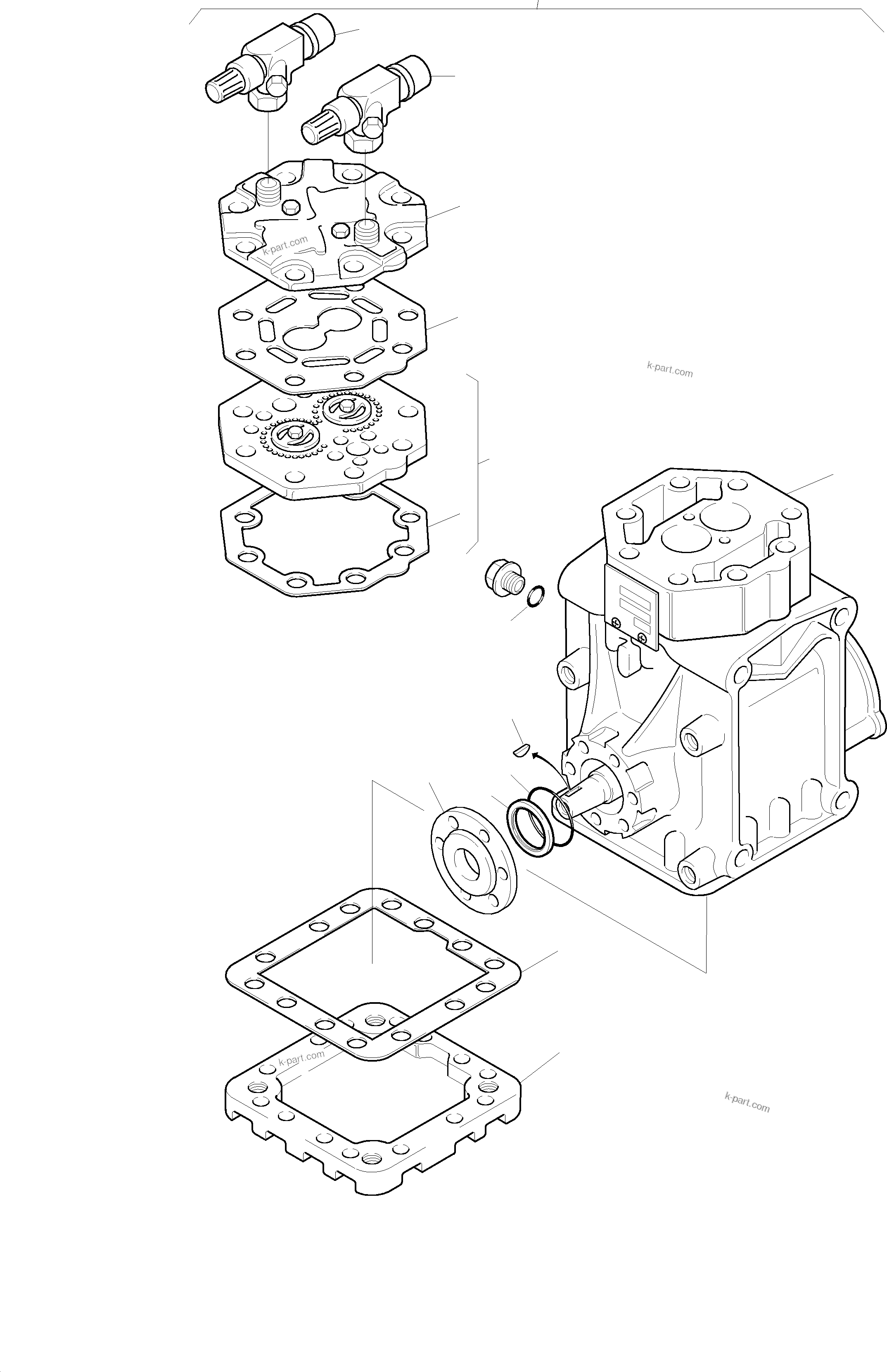

Komatsu parts book diagram for H135S S/N 61064: AIR CONDITIONING COMPRESSOR

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	634 844 40	Compressor assy.	1	InternBDB: BWD ET 210 R-21904
	?	763 942 73	Valve	1	InternBDB: 022-21937
	?	763 943 73	Valve	1	InternBDB: 022-21936
	?	765 977 73	O-ring	1	InternBDB: 028-07140
	?	765 978 73	Feather key	1	InternBDB: 029-09888
	?		Shaft seal These parts are not sold separately	1	InternBDB: 028-21551
	?	765 980 73	Valve plate with seal	1	InternBDB: 488-20610
	?	765 981 73	Seal kit	-2	InternBDB: 488-16316
	?		O-ring These parts are not sold separately	1	InternBDB: 028-21555
	?	765 983 73	Seal	1	InternBDB: 028-09533
	?	765 984 73	Seal	1	InternBDB: 028-08825
	?	765 985 73	Seal	1	InternBDB: 028-07143
	?	766 179 73	Felt ring	1	InternBDB: 028-25131
	?	766 258 73	O-ring to fig-nos. 02+03	2	InternBDB: 028-25013
	?	767 661 73	Repair kit	1	InternBDB: 488-21802

Komatsu H135S S/N 61064 parts catalog PDF

AIR CONDITIONING COMPRESSOR (090-6312a) in H135S S/N 61064. Diagram image and parts list.
