H135S S/N 61064

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?	647 685 40	Compressor drive, air-conditioning	1	InternKon: 457 283 40 / 4
?	634 844 40	Compressor	1	InternBDB: BWD ET 210 R 21904 \| InternKon: 647 685 40 / 1
?		Shaft coupling	1	InternBDB: 499 400 40 DBM/TL Roht.49055240 Mцnninghoff Typ 318.353.1 \| InternKon: 647 685 40 / 2	090-0629
?	461 008 40	Hydr. motor	1	InternBDB: Sauer SNM2/11 CI06 \| InternKon: 647 685 40 / 3
?	764 160 73	Seal kit to fig-no: 04	1	InternBDB: 272 018
?	550 652 40	Frame	1	InternKon: 647 685 40 / 4
?	440 986 40	Silent block	4	InternBDB: Phoenix 781 091 60 Shore \| InternKon: 647 685 40 / 5
?	449 153 40	Angle	2	InternKon: 647 685 40 / 6
?	449 147 40	Socket	2	InternKon: 647 685 40 / 7
?	507 177 98	Union	1	InternBDB: GE 12-L /9/16-18 UWN \| InternKon: 647 685 40 / 8
?	621 615 40	Disk	1	InternKon: 647 685 40 / 9
?	215 642 99	Pipe Ш 12 Bulk ware, state length required	-2	InternBDB: 10,11,12,30,31,32 12x2 /2391
?	500 366 98	Non-return valve	1	InternBDB: Ermeto RHD 12-PL \| InternKon: 647 685 40 / 14
?	006 913 98	Union	2	InternBDB: Voss 12-SR \| InternKon: 647 685 40 / 16
?	372 413 99	Union	2	InternBDB: DS12 /2353 \| InternKon: 647 685 40 / 19
?	372 182 99	Union	2	InternBDB: DDS12 /2353 \| InternKon: 647 685 40 / 17
?	372 130 99	Union	1	InternBDB: EES 12 /2353 \| InternKon: 647 685 40 / 21
?	371 974 99	Union	3	InternBDB: FFS12 /2353 \| InternKon: 647 685 40 / 18
?	457 292 40	Strip	1	InternKon: 647 685 40 / 39
?	003 138 98	Plate ring	4	InternBDB: 13,5-410 010 949 99 \| InternKon: 647 685 40 / 27
?	003 122 98	Screw retention	4	InternBDB: M10-205 010 947 99 \| InternKon: 647 685 40 / 26
?	534 061 99	Bolt	4	InternBDB: 3/8-16 UNC x1 1/2 010 500 99 \| InternKon: 647 685 40 / 23
?	505 003 98	Bolt	1	InternBDB: 5/16-24 UNF x3/4 011 562 99 \| InternKon: 647 685 40 / 24
?	332 113 99	Nut	16	InternBDB: M10 /934 \| InternKon: 647 685 40 / 25
?	180 325 40	Connector plate	1	InternBDB: Rexroth G 342/1 \| InternKon: 647 685 40 / 29
?	320 214 99	Screw	2	InternBDB: M6x20 /912 \| InternKon: 647 685 40 / 34
?	343 853 99	Lock washer	2	InternBDB: 6 /7980 \| InternKon: 647 685 40 / 36
?	332 110 99	Nut	2	InternBDB: M6 /934 \| InternKon: 647 685 40 / 35
?	340 465 99	Washer	2	InternBDB: 10,5 /125 \| InternKon: 647 685 40 / 38
?	307 780 99	Bolt	2	InternBDB: M10x35 /933 8.8 \| InternKon: 647 685 40 / 37
?	635 344 40	4/2-directional spool valve	1	InternBDB: Vickers DG 4V-3-2A-M-U-H7-60-EN50 \| InternKon: 647 685 40 / 28
?	515 210 40	Elbow plug	1
?	500 287 98	O-ring	4	InternBDB: 9,25x1,78
?	319 125 99	Screw	4	InternBDB: M5x30 /912 10.9 \| InternKon: 647 685 40 / 56
?	502 949 98	Clamp	2	InternBDB: CS 3/12 \| InternKon: 647 685 40 / 40
?	533 997 99	Plate	1	InternBDB: ES 3 \| InternKon: 647 685 40 / 41
?	533 996 99	Plate	1	InternBDB: DS 3 \| InternKon: 647 685 40 / 42
?	307 782 99	Bolt	2	InternBDB: M10x45 /933 \| InternKon: 647 685 40 / 43
?	534 002 99	Plate	1	InternBDB: ES 4 \| InternKon: 647 685 40 / 44
?	502 655 98	Clamp	2	InternBDB: H-CS 4/23 \| InternKon: 647 685 40 / 45
?	504 586 98	Plate	1	InternBDB: SS 4 \| InternKon: 647 685 40 / 46
?	504 585 98	Screw	2	InternBDB: GS 4 M10x42 \| InternKon: 647 685 40 / 47
?	504 817 98	Clamp	2	InternBDB: H-CS 4/20 \| InternKon: 647 685 40 / 48
?	307 785 99	Bolt	2	InternBDB: M10x60 /933 \| InternKon: 647 685 40 / 49
?	534 001 99	Plate	1	InternBDB: DS 4 \| InternKon: 647 685 40 / 50
?	550 661 40	Cover	1	InternKon: 647 685 40 / 51
?	307 596 99	Bolt	2	InternBDB: M6x25 /933 \| InternKon: 647 685 40 / 53
?	507 025 98	Nut	2	InternBDB: M6 /985 \| InternKon: 647 685 40 / 54
?	507 037 98	Nut	2	InternBDB: M10 /985 \| InternKon: 647 685 40 / 55
?	499 440 40	Lining plate set	1	InternKon: 647 685 40 / 52
?	499 441 40	Lining plate	1	InternKon: 499 440 40 / 1
?	499 442 40	Lining plate	2	InternKon: 499 440 40 / 2
?	499 443 40	Lining plate	1	InternKon: 499 440 40 / 3
?	499 444 40	Lining plate	1	InternKon: 499 440 40 / 4

Komatsu H135S S/N 61064 parts catalog PDF

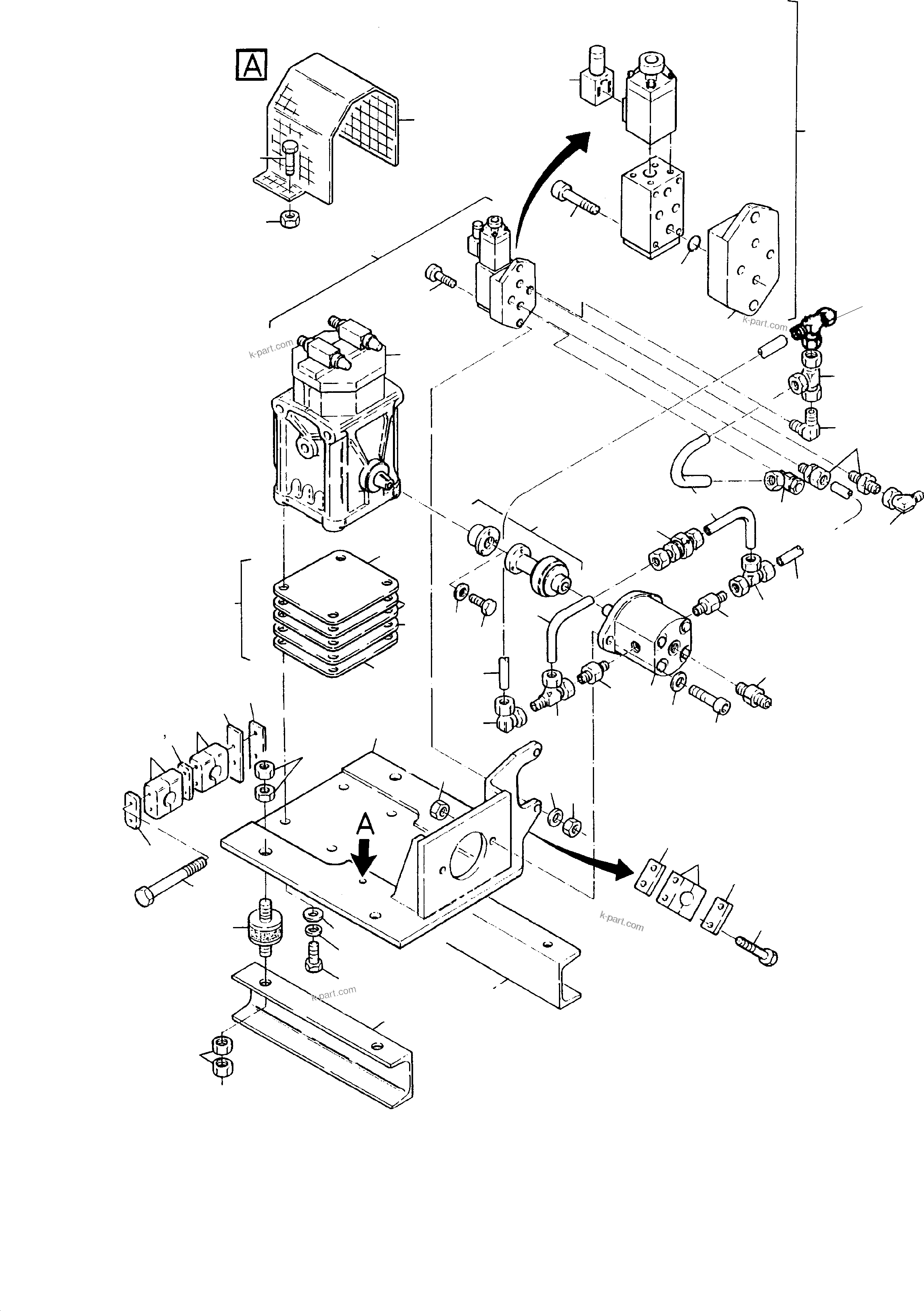

COMPRESSOR DRIVE, AIR-CONDITIONING (116-2030d) in H135S S/N 61064. Diagram image and parts list.
