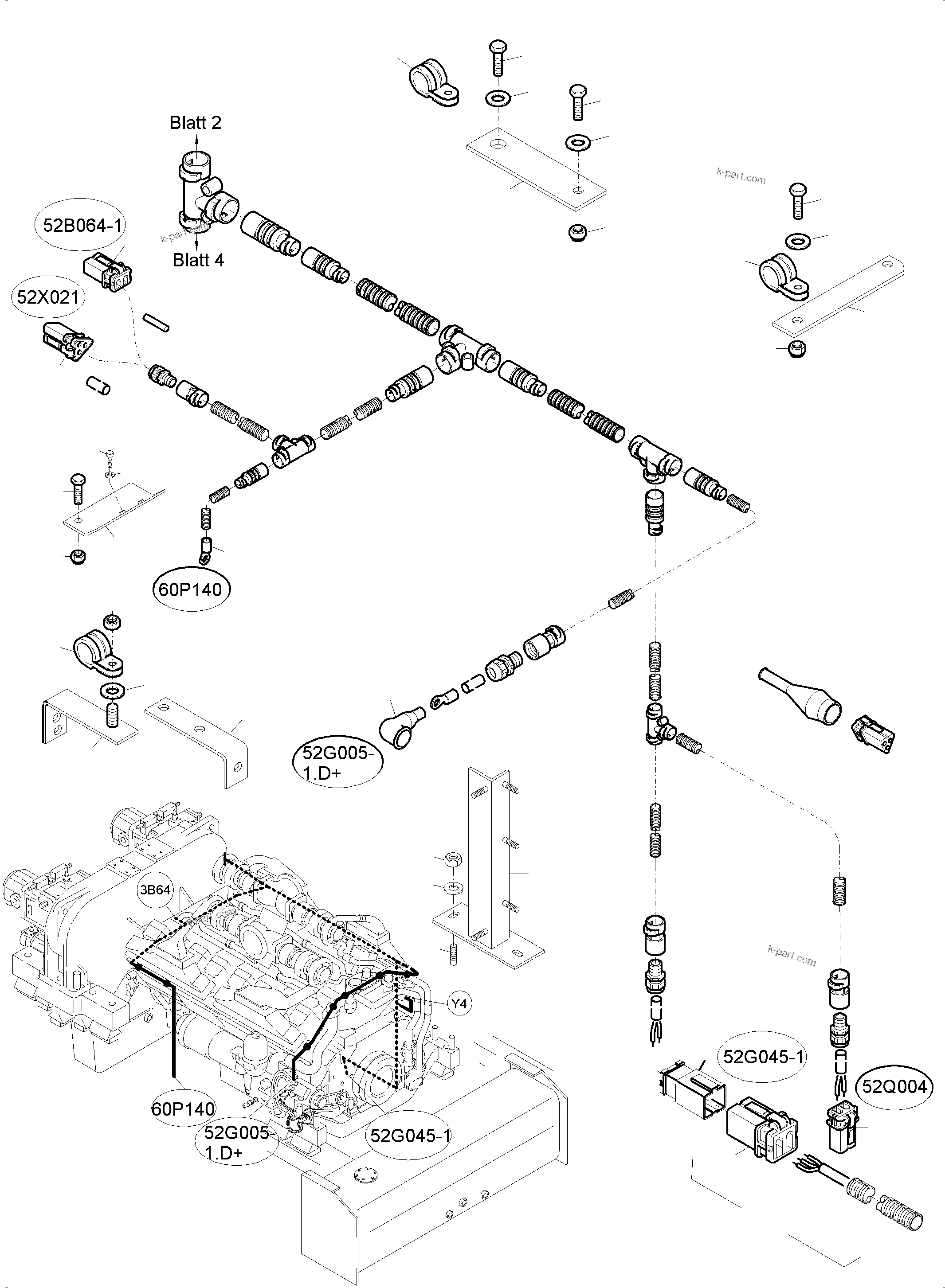

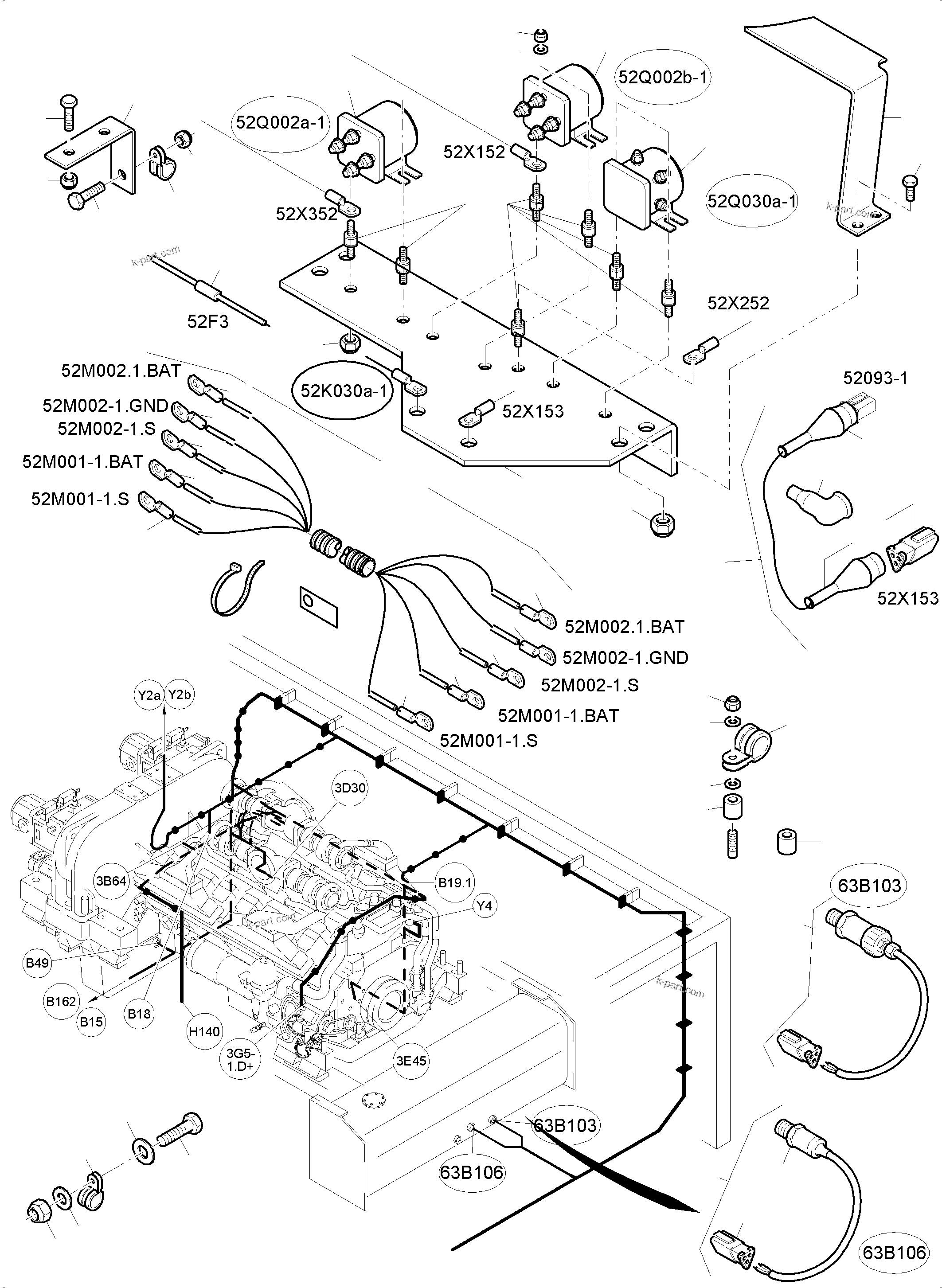

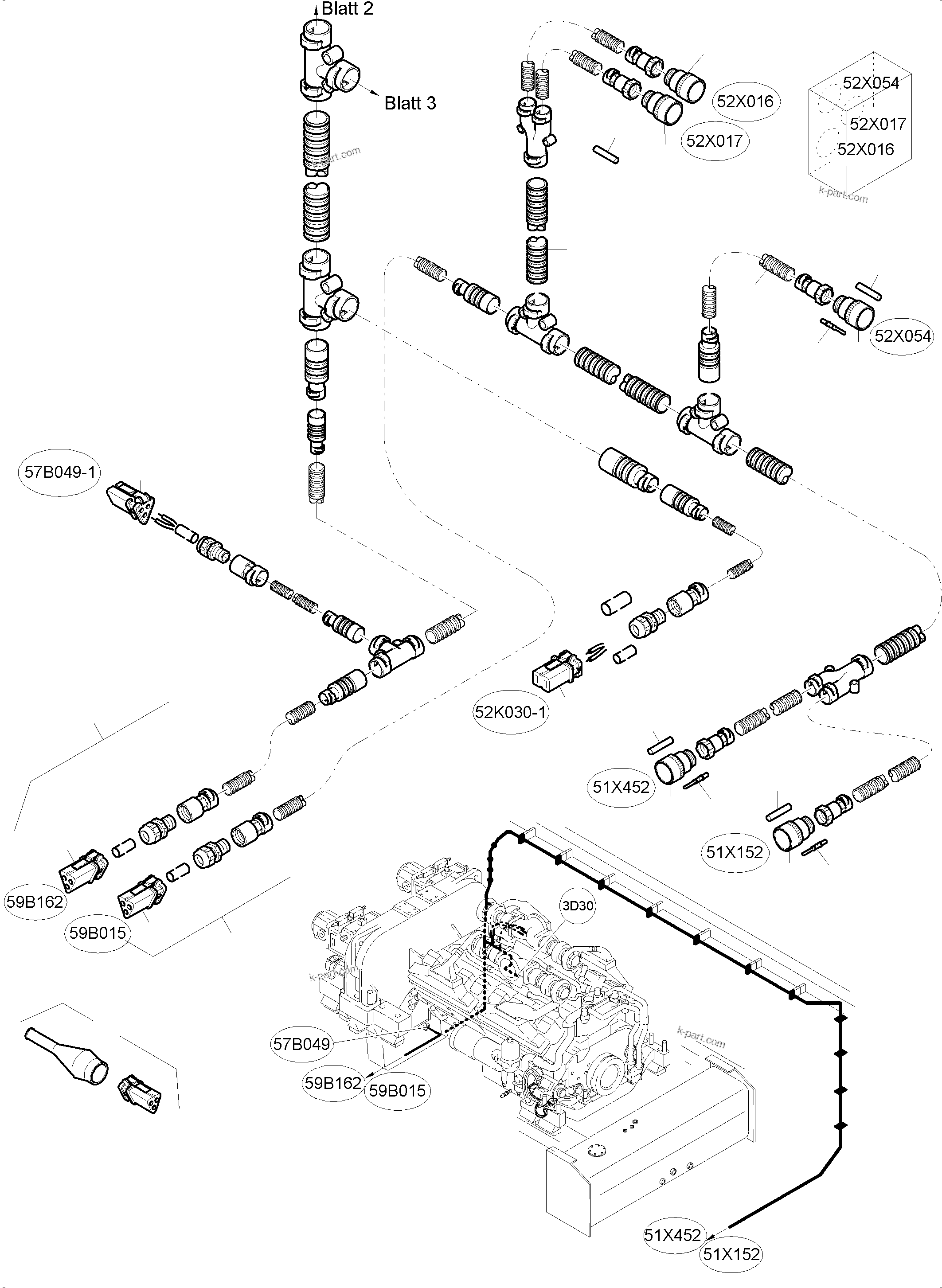

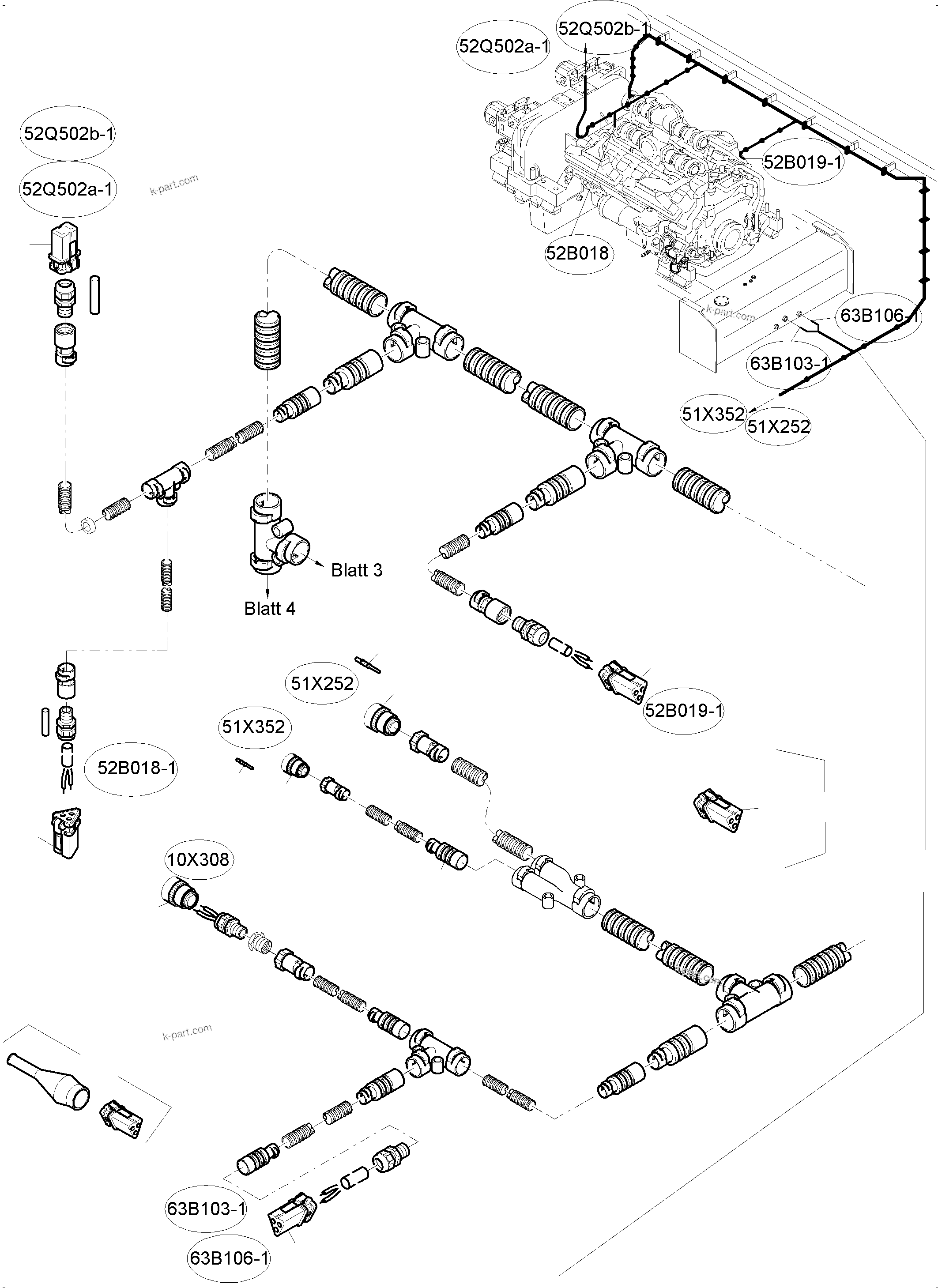

Diagram image 1 of 4

PC4000-6 S/N 58137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 58137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 58137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 58137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	960 118 40	Harness engine	1
?	963 802 40	Electric parts reserve system	1
?	518 080 98	Resilent sleeve	9
?	0443453411	Clip NW 34	5
?	0443451610	Clip NW 16	8
?	507 596 98	Washer	43
?	507 037 98	Nut	50
?	2080619170	Clip	20
?	307 777 99	Bolt	12
?	944 941 40	Retainer	1
?	0443452110	Clip NW 21,5	15
?	0443451210	Clip NW 12	44
?	0819320010	Clip	6
?	960 584 40	Harness starter relay	1
?	947 904 40	Relay plate	1
?	947 903 40	Protection guard	1
?	307 752 99	Bolt	7
?	334 599 99	Nut	7
?	510 744 98	Resilent sleeve	3
?	960 190 40	Harness-Engine control	1
?	944 900 40	Retainer	1
?	944 901 40	Retainer	1
?	319 126 99	Bolt	2
?	340 465 99	Washer	48
?	340 461 99	Washer	2
?	340 467 99	Washer	3
?	308 439 99	Bolt	3
?	944 902 40	Retainer	2
?	944 903 40	Retainer	1
?	944 924 40	Retainer	1
?	511 263 98	Thread pin	2
?	307 728 99	Bolt	4
?	507 025 98	Nut	2
?	350 762 99	Washer	4
?	960 582 40	Harness 52B093-1-52X153	1
?	963 801 40	Retainer for harness	1
?	933 388 40	Plug	1
?	055 108 40	Cable lug	7
?	055 109 40	Cable lug	5
?	907 511 40	Cable lug	2
?	952 675 40	Plug assy.	8
?	651 461 40	Housing assy.	2
?	955 627 40	Plug assy.	6
?	950 112 40	Plug	2
?	906 599 40	Sealing plug	1
?	0819100770	Sealing plug	18
?	950 133 40	Plug	1
?	0819105340	Pin contact	6
?	0819105320	Pin contact	25
?	950 132 40	Protection Cap	10
?	940 852 40	Sealing plug	49
?	255 745 40	Rubber	1
?	958 963 40	Sealing plug	1
?	950 166 40	Plug assy.	1
?	950 173 40	O-Ring	1
?	950 174 40	Pin contact	3
?	950 179 40	Contact element	1
?	950 178 40	Housing	1
?	950 176 40	Cap	1
?	621 698 40	Pin contact	4
?	906 652 40	Pin contact	1
?	906 650 40	Pin contact	2
?	933 387 40	Sealing plug	1
?	950 109 40	Plug	1
?	950 110 40	Plug	2
?	950 113 40	Plug	1
?	0819105420	Socket	8
?	938 318 40	Level probe with plug assy.	1
?	950 280 40	Sensor with cable and plug	1
?	517 122 98	Lock washer	3
?	307 779 99	Bolt	7
?	655 547 40	Housing	1
?	655 548 40	Contact seal	2
?	655 549 40	Single seal	2
?	655 550 40	Rubber grommet	1
?	950 346 40	Level probe	1
?	955 670 40	Plug	1
?	793 268 73	Fuse with cable 400A	1
?	635 965 40	Relay	2
?	765 579 73	Time lag relay	1
?	655 642 40	Circular bearing	6
?	512 975 98	Nut	12
?	056 076 40	Protection Cap	2
?			-2
?			-2
?			-2

Komatsu PC4000-6 S/N 58137 parts catalog PDF

CABLES - ENGINE AND TRANSMITTER (355-2285c) in PC4000-6 S/N 58137. Diagram image and parts list.
