Diagram image 1 of 3

PC4000-6 S/N 58137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 58137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 58137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	933 358 40	Shift plate (air condition governor)	1
?	960 547 40	Shift plate	1
?	783 532 4100	Komtrax-Plus Display	1
?	518 224 98	Bolt	40
?	955 336 40	Socket plate	1
?	940 047 40	Alarm transmitter	1
?		Controller operation panel location 20	1	355-2220a
?	953 097 40	Plate	1
?	960 136 40	Harness Can-Bus	1
?	960 131 40	Data-conection Can-Bus	1
?	960 135 40	Harness Can-Bus-cabin 20X399-20X309	1
?	960 137 40	Data-conection Can-Bus 20X399-10X307	1
?	960 548 40	Switch plate	1
?	414 866 40	Ignition switch	1
?	490 518 40	Alarm transmitter	1
?	440 369 40	Turn switch 3-stage	1
?	324 400 40	Turn switch	7
?	324 401 40	Turn switch	1
?	399 702 40	Turn switch	3
?	896 473 40	Toggle switch	1
?	891 033 40	Emergency switch off assy.	1
?	324 402 40	Turn switch	1
?	942 119 40	Indicator lamp with LED, red	1
?	942 118 40	Indicator lamp with LED, yellow	1
?	913 237 40	Graphical symbol, warning light	1
?	906 647 40	T-Splitter	4
?	958 955 40	Can-bushing	5
?	958 956 40	CAN-Bushing	3
?	0819213200	Body	1
?	0819100770	Sealing plug	3
?	174 411 40	Cable strap	4
?	941 777 40	Plate	2
?	950 166 40	Plug assy.	2
?	950 178 40	Body	2
?	950 174 40	Pin contact	6
?	950 179 40	Contact element	2
?	950 176 40	Protection cap	2
?	941 144 40	End resistor	1
?	655 686 40	Impact key	1
?	655 676 40	Spring element	1
?	635 115 40	Contact element	1
?	635 652 40	Contact element	1
?	323 675 40	Indicator light, red	1
?	940 735 40	Light emitting diode, red	1
?	256 230 40	Indicator light, yellow	1
?	940 736 40	LED yellow	1
?	955 337 40	Socket plate	1
?	955 350 40	Harness	1
?	953 008 40	Cable Celect	1
?	907 642 40	Socket	1
?	953 010 40	Harness 10XB20	1
?	898 668 40	Socket assy	1
?	953 011 40	Harness 10XC20	1
?	913 255 40	Plug RS 232 assy.	1
?	941 727 40	Lead in duct	1
?	941 728 40	Protective cap	1
?	318 167 99	Bolt	18
?	512 181 98	Screw	4
?	940 454 40	Socket	1
?	906 633 40	Plug	1
?	940 453 40	Plug	1
?	950 136 40	Plug	3
?	898 669 40	Socket assy.	1
?	950 131 40	Protection cap	3
?	655 494 40	Socket assy	1
?	655 497 40	Protection cap	1
?	906 598 40	Socket	1
?	505 940 40	Assembly rail	-2
?	906 612 40	Through clamp 2,5	80
?	906 794 40	Protective wire clamp 16,0	1
?	906 773 40	Cover plate	2
?	906 613 40	Cover plate	5
?	940 673 40	Clamp	-2
?	906 630 40	Protective wire clamp 2,5	22
?	941 739 40	Clamp 16,0	1
?	941 741 40	Cover plate	1
?	941 736 40	Clamp 4,0	9
?	941 737 40	Cover plate	1
?	941 502 40	Potencial clamp 1,5	19
?	770 326 73	Plate	1
?	440 307 99	Socket	2
?	796 187 73	Cigarette lighter	1
?	698 239 73	Key	1
?	896 732 40	Ashtray	1
?	769 589 73	Switch	1
?	794 380 73	Lamp	1
?	794 381 73	Bulb	1
?	440 151 99	Tab 1,5	-2
?	055 115 40	Tab 1,5-2,5	-2
?	697 269 73	Tab 4,0-6,0 gelb/yellow	-2

Komatsu PC4000-6 S/N 58137 parts catalog PDF

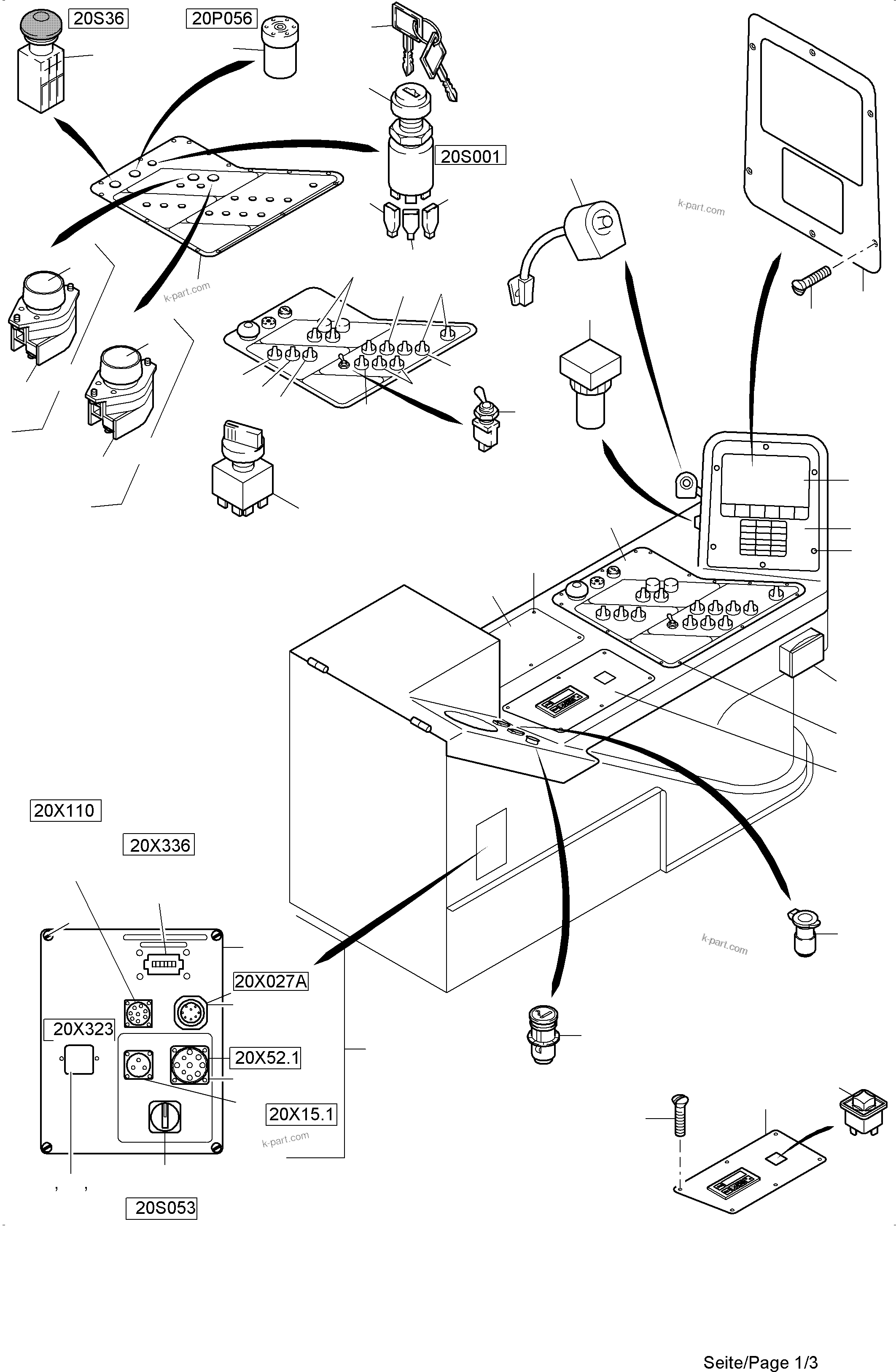

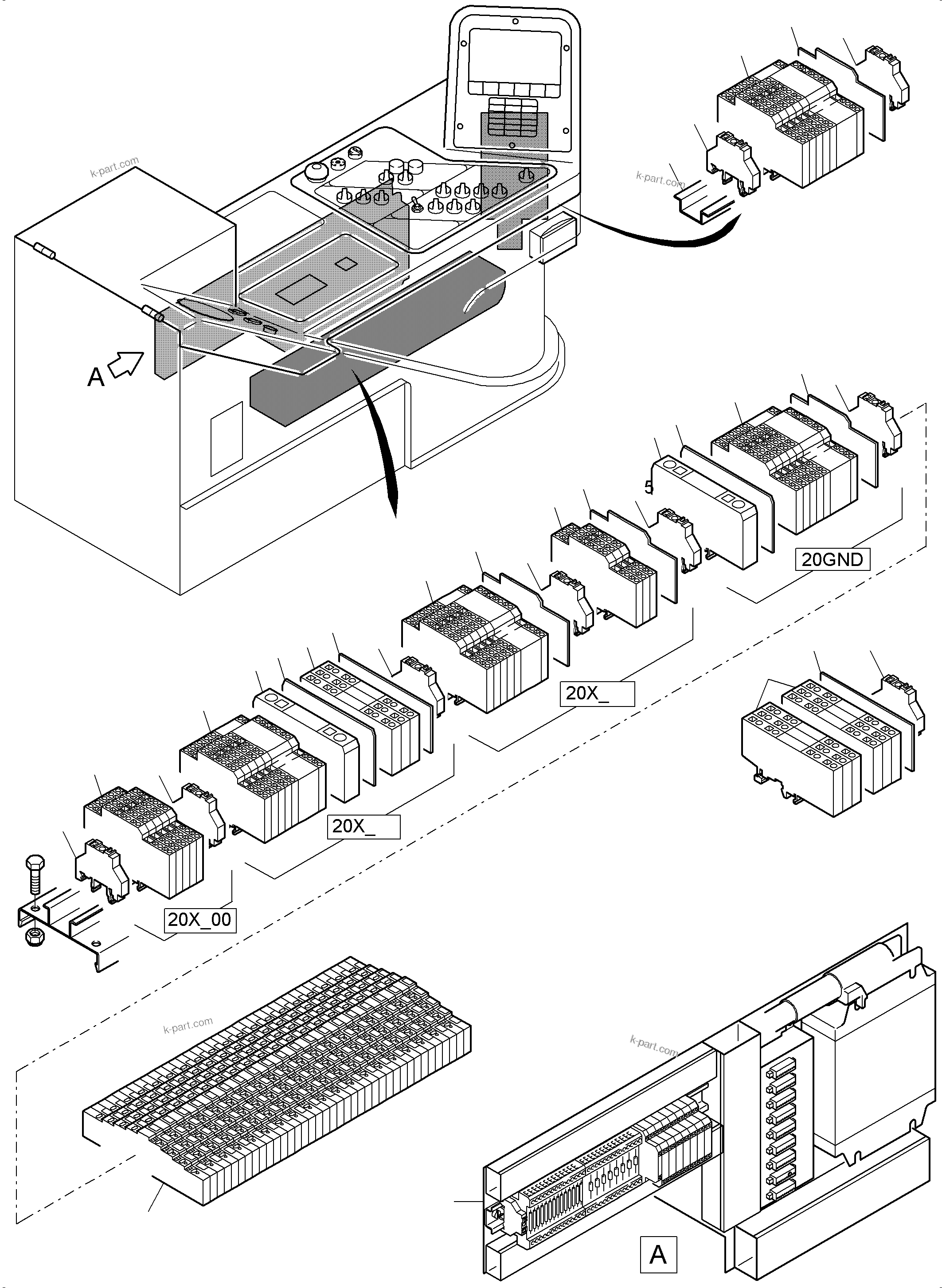

OPERATION PANEL (355-2215a) in PC4000-6 S/N 58137. Diagram image and parts list.
