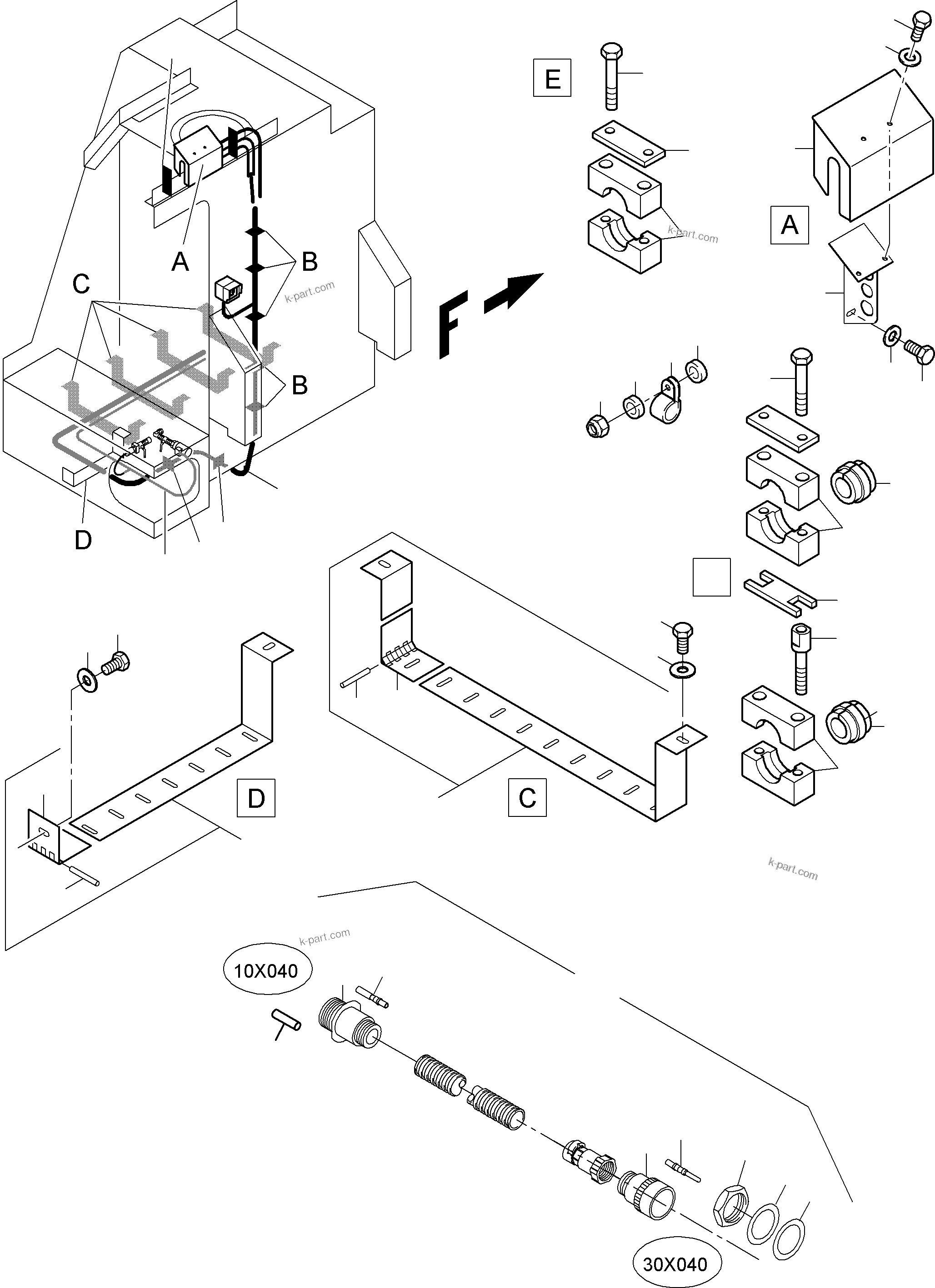

Diagram image 1 of 2

PC4000-6 S/N 58137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC4000-6 S/N 58137

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	960 100 40	Harness 10X040-30X040	1
?	946 209 40	Retainer assy.	4
?	307 777 99	Bolt	10
?	946 210 40	Retainer assy.	1
?	507 596 98	Washer	4
?	0443451610	Clip NW 16	4
?	350 768 99	Washer	10
?	655 530 40	Strab	5
?	509 876 98	Nut	4
?	960 510 40	Harness 10X140-30X140	1
?	944 098 40	Mounting plate	1
?	944 605 40	Hood plug protection	1
?	307 775 99	Bolt	2
?	340 465 99	Washer	4
?	307 773 99	Bolt	2
?	504 789 98	Catch	10
?	504 788 98	Build-up screw	20
?	515 628 98	Grommet	10
?	510 452 98	Grommet	10
?	534 004 99	Cover plate	10
?	518 032 98	Clamp set	10
?	308 581 99	Bolt	20
?	340 508 99	Washer	4
?	516 095 98	Clamp set	1
?	950 122 40	Socket	1
?	950 108 40	Plug	1
?	907 934 40	Pin contact	11
?	0819105420	Female contact	19
?	940 852 40	Plug	16
?	0819105440	Female contact	11
?	0819105320	Pin contact	21
?	944 781 40	Switch assy.	1
?	950 130 40	Protection cap	1
?	655 634 40	Protection cap	2
?	621 698 40	Contact plug 1-2 qmm	4
?	896 520 40	End pin	2
?	517 322 98	Cable nut	1
?	0819150808	Nut	3
?	950 318 40	Lock wacher	3
?	941 328 40	Seal ring	1
?	950 282 40	Sensor	1
?	955 627 40	Plug	1
?	940 726 40	Switch	2
?	321 010 99	Screw	12
?	941 427 40	Pin contact	1
?	0819100770	Plug	1
?	950 104 40	Plug	1
?	950 119 40	Plug	1
?	941 426 40	Female contact	2
?	081 320 40	Hinge	5
?	081 480 40	Hinge pin	5
