|$$1 |
|
List of location identification |
-1 |
|
|
|
|
|$$2 |
|
Cabin support Low voltage cabinet; Location 10 |
-1 |
|
|
|
|
10 |
ORT-LOC
|
Electric - cab support 515-2210 |
-2 |
|
|
|
|
10 |
ORT-LOC
|
Cabin support harnesses 515-2214 |
-2 |
|
|
|
|
10 |
ORT-LOC
|
ORB-COMM 715-2215 |
-2 |
|
|
|
|
11 |
|
Cabin support - Small voltage board |
-2 |
|
|
|
|
11 |
ORT-LOC
|
Switch frame 515-2211 |
-2 |
|
|
|
|
11 |
ORT-LOC
|
Switch frame (cold weather condition) 515-2218 |
-2 |
|
|
|
|
13 |
|
Cabin supprot floor bottom |
-2 |
|
|
|
|
15 |
|
Switch frame - Customer |
-2 |
|
|
|
|
16 |
|
Switch frame preheating hydraulic oil |
-2 |
|
|
|
|
|$$12 |
|
Cabin; Location 20 |
-1 |
|
|
|
|
20 |
ORT-LOC
|
Cabin-operating elements 515-2220 |
-2 |
|
|
|
|
20 |
ORT-LOC
|
Cabin-Harnesses-Electric 515-2221 |
-2 |
|
|
|
|
20 |
|
Camera-Systems, only on customer request, see machine card |
-2 |
|
|
|
|
21 |
|
Switch frame cabin - Customer |
-2 |
|
|
|
|
30 |
|
Drive (Diesel or Electro) |
-2 |
|
|
|
|
31 |
ORT-LOC
|
Fuel tank - electric 515-2232 |
-2 |
|
|
|
|
|$$19 |
|
Hydraulic tank; Location 40 |
-1 |
|
|
|
|
40 |
ORT-LOC
|
Switch cabinet Loc. 40 515-2240 |
-2 |
|
|
|
|
40 |
ORT-LOC
|
Oil tank, oil cooler and transfusing pump - electric parts 715-2241 |
-2 |
|
|
|
|
40 |
ORT-LOC
|
Oil tank, oil cooler and transfusing pump - harnesses 715-2242 |
-2 |
|
|
|
|
|$$23 |
|
Oil cooler; Location 41 |
-1 |
|
|
|
|
41 |
|
contains in previous pages |
-2 |
|
|
|
|
|$$25 |
|

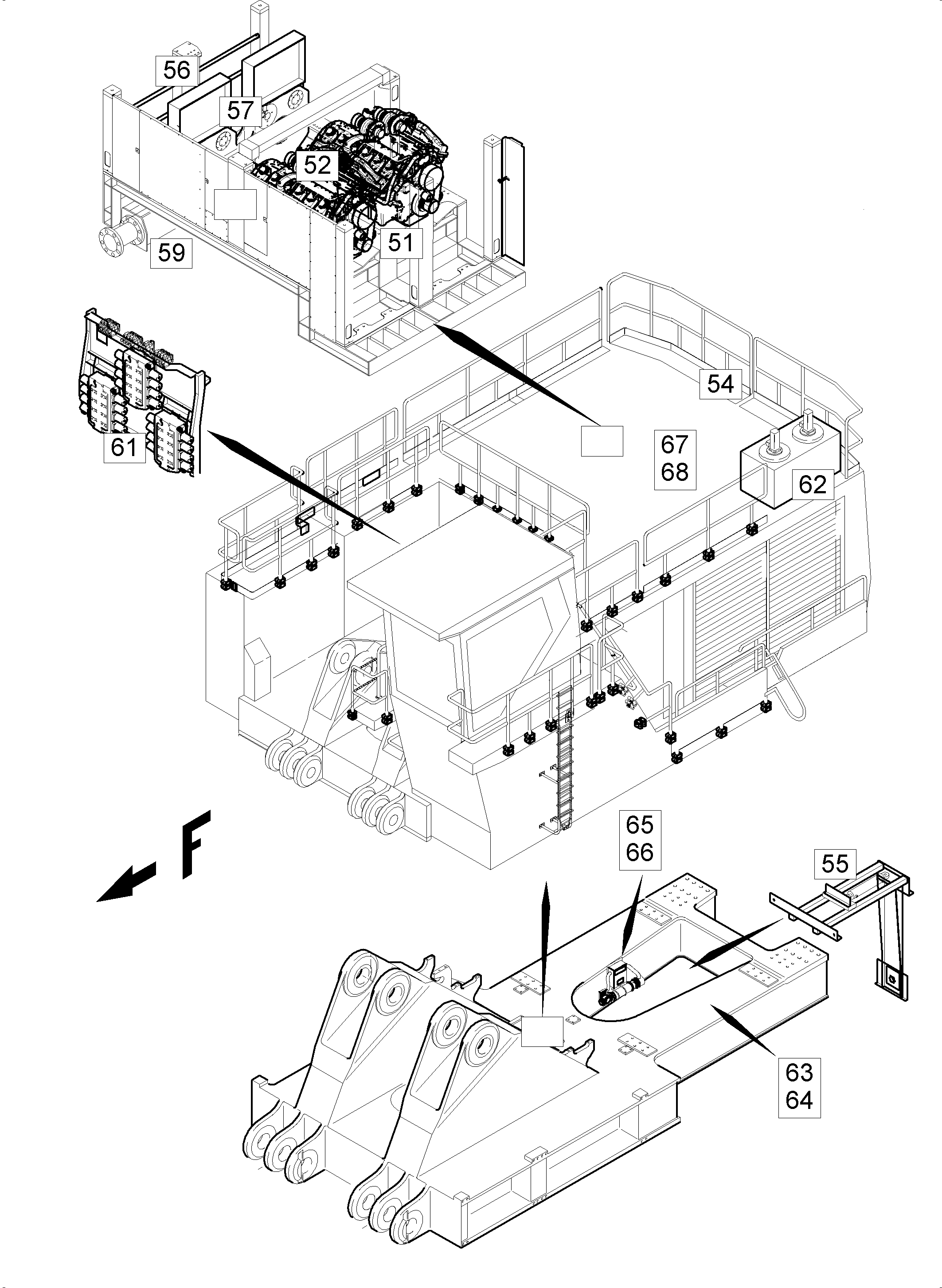

Machinery house; Location 50 |
-1 |
|
|
|
|
50 |
ORT-LOC
|
Machinery house electric - roof and drive frame 515-2250 |
-2 |
|
|
|
|
50 |
ORT-LOC
|
Switch cabinet Loc. 51 515-2251 |
-2 |
|
|
|
|
50 |
ORT-LOC
|
Cables - Engine and Transmitter 515-2252 |
-2 |
|
|
|
|
50 |
ORT-LOC
|
Refueling equipment 515-2255 |
-2 |
|
|
|
|
50 |
ORT-LOC
|
Switch cabinet Loc. 56 515-2256 |
-2 |
|
|
|
|
50 |
ORT-LOC
|
Control- and Filter Plates and Pump ditributor gear, electrics 515-2257 |
-2 |
|
|
|
|
51 |
|
Motorroom |
-2 |
|
|
|
|
51 |
|
contains in previous pages |
-2 |
|
|
|
|
52 |
|
Motor |
-2 |
|
|
|
|
52 |
|
contains in previous pages |
-2 |
|
|
|
|
54 |
|
Counterweight |
-2 |
|
|
|
|
54 |
|
contains in previous pages |
-2 |
|
|
|
|
55 |
|
Refueling equipment |
-2 |
|
|
|
|
56 |
|
Pump room |
-2 |
|
|
|
|
56 |
|
contains in previous pages |
-2 |
|
|
|
|
57 |
|
Control and filter plate 1+2, Pump Distributor Gear 1+2 |
-2 |
|
|
|
|
59 |
|
Suction oil tank |
-2 |
|
|
|
|
59 |
|
contains in previous pages |
-2 |
|
|
|
|
|$$44 |
|
Superstructure; Location 60 |
-1 |
|
|
|
|
60 |
ORT-LOC
|
Control blocks - HP-Filter - Location 61 515-2261 |
-2 |
|
|
|
|
60 |
ORT-LOC
|
Electr. Parts 2 and 3 barrel lubrication 715-2262 |
-2 |
|
|
|
|
60 |
ORT-LOC
|
Elect. Parts - superstructure-platform 515-2264 |
-2 |
|
|
|
|
61 |
|
Control blocks, remote control plates |
-2 |
|
|
|
|
61 |
|
contains in previous pages |
-2 |
|
|
|
|
62 |
|
Lubrication arrangement |
-2 |
|
|
|
|
62 |
|
contains in previous pages |
-2 |
|
|
|
|
63 |
|
Reserve oil tank motor 1 |
-2 |
|
|
|
|
64 |
|
Reserve oil tank motor 2 |
-2 |
|
|
|
|
65 |
|
Preheating cooling water motor 1 |
-2 |
|
|
|
|
66 |
|
Preheating cooling water motor 2 |
-2 |
|
|
|
|
67 |
|
Crane |
-2 |
|
|
|
|
68 |
|
Compressor |
-2 |
|
|
|
|
|$$58 |
|
Ascent and ladder; Location 70 |
-1 |
|
|
|
|
70 |
ORT-LOC
|
Ascent and ladder electric 515-2270 |
-2 |
|
|
|
|
|$$60 |
|
Battery box; Location 71 |
-1 |
|
|
|
|
71 |
ORT-LOC
|
Batteries - Harnesses 515-2271 |
-2 |
|
|
|
|
|$$62 |
|
Loading device; Location 80 |
-1 |
|
|
|
|
80 |
|
without parts page |
-2 |
|
|
|
|
|$$64 |
|

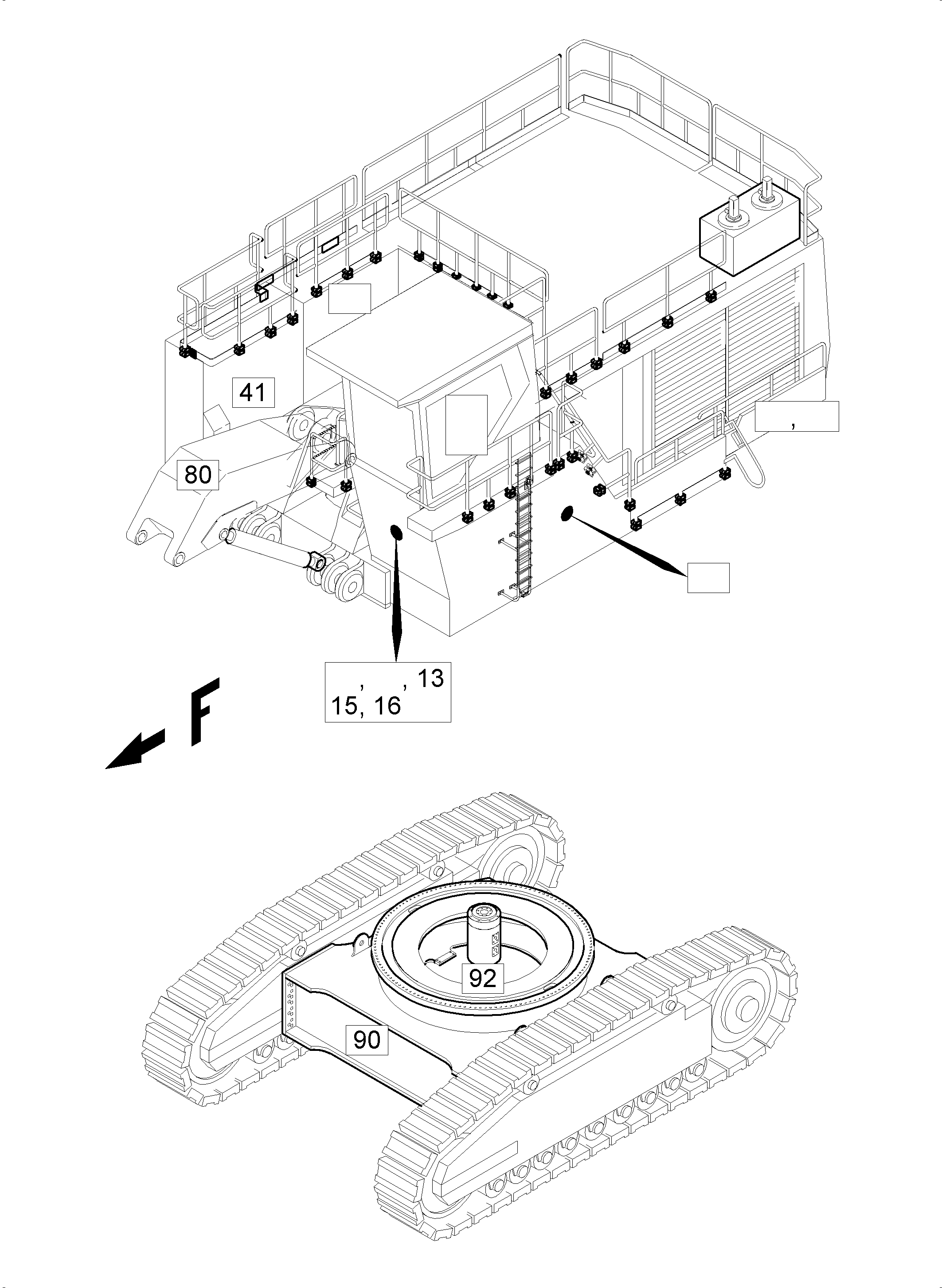

Undercarriage |
-1 |
|
|
|
|
90 |
|
without parts page |
-2 |
|
|
|
|
92 |
|
Rotary joint |
-2 |
|
|
