Diagram image 1 of 6

PC5500-6 S/N 15164

01 02 06 07 08 10 11 11 12 12 13 13 14 142 15 151 152 153 154 155 156 157 158 159 16 17 175 177 190 191 195 196 208 21 210 211 211 212 24 25 31 32 38 39 40 40 41 44 45 45 46

PC5500-6 S/N 15164

100 100 100 101 101 101 102 104 105 106 106 106 108 109 111 112 113 113 113 22 29 29 29 29 30 30 30 30 34 35 36 37 37 42 42 43 43 60 90 91 91 92 93 94 95 95 96 96 97 97 98 99 99 99

PC5500-6 S/N 15164

125 126 180 181 182 183 184 185 186 187 220 221 222 223 223 224 224 225 226 230 231 232 233 234 26 27 28 29 30 31 32 47 61 62 63 64 65 65 65 65 65 65 66 67 68 69 70 71 72 72 72 72 72 72 72 72 72 72 73 74 75 76 77 78 79 80 81 82 86 87

PC5500-6 S/N 15164

115 116 117 117 118 119 119 120 120 121 122 123 124 127 128 129 130 131 132 133 134 135 136 137 138 139 140 175 175 176 176 178 179 23 29 30 33 48 53 53 53 54 55 56 67 72 72

PC5500-6 S/N 15164

143 144 145 146 147 148 149 150 160 162 164 166 166 166 168 170 176

PC5500-6 S/N 15164

250 251 252 253 254 255 256 256 257 257 258 259 259 260 260 261 262 263 270 271 272 273 274 274 275 276 280 281 282 283 284 285

#	Part Number	Partname	Quantity
01	962 920 40	Switch cabinet assy.	1
02	958 927 40	Cable can bus 56x317-40x310	1
06	963 840 40	Switch cabinet retainer ORT 40	1
07	516 878 98	Bolt	4
08	518 594 98	Washer	4
10	963 841 40	Plate	2
11	506 957 98	Bolt	12
12	340 463 99	Washer	12
13	507 025 98	Nut	18
14	509 648 98	Bolt	5
15	518 547 98	Lock washer	5
16	510 746 98	Resilien sleeve	5
17	963 330 40	Socket plate	1
21	984 420 40	Switch cabinet, empty	1
22	962 924 40	Switch framing assy.	1
23	962 925 40	Mounting plate assy.	1
24	976 663 40	Bottom plate with harness set	1
25	949 128 40	Seal	1
26	984 422 40	Cable 1 GND	-2
27	984 423 40	Cable 2 GND	-2
28	0819320010	Clip	1
29	509 870 98	Nut	12
30	510 321 98	Washer	12
31	509 869 98	Nut	9
32	515 331 98	Washer	17
33	979 225 40	Cable can bus H-tank	1
34	957 071 40	Angle	1
35	957 072 40	Angle	1
36	957 413 40	Angle	1
37	950 187 40	Hinge	2
38	515 253 40	Cord	1
39	940 913 40	Warmth shrink hose	-2
40	517 487 98	Cable shoe	4
41	506 957 98	Bolt	8
42	514 921 98	Nut	4
43	518 299 98	Washer	4
44	941 844 40	Protection hose	-2
45	950 211 40	End Grommet	4
46	906 519 40	Eyebolt	2
47	0440451210	Clip	1
48	950 682 40	Distance sleeve	4
53	906 647 40	T-Splitter	3
54	979 226 40	Cable 40x311-40x312	1
55	979 227 40	Cable 40x312-40x313	1
56	941 144 40	End resistor	1
60	984 424 40	Switch framing	1
61	960 613 40	Resistor array assy.	1
62	655 748 40	Diode array	1
63	986 209 40	Relay with retainer	1
64	941 503 40	Cover plate	10
65	941 685 40	Group plate	8
66	906 612 40	Through clamp 2.5	20
67	906 613 40	Cover plate	3
68	906 768 40	Through clamp 6,0	8
69	906 772 40	Cover plate	1
70	906 614 40	Bridge 2-fold	4
71	906 775 40	Bridge	6
72	940 673 40	Clamp	10
73	906 624 40	Marker	5
74	906 625 40	Marker	2
75	941 502 40	Potencial clamp	10
76	906 615 40	Bridge 3-fold	1
77	950 466 40	Cross connection	1
78	356 281 40	Marker	1
79	951 255 40	Strip 24 mm	-2
80	951 253 40	Strip 6 mm	-2
81	951 564 40	Serial plate reel	-2
82	951 562 40	Resin strip	-2
86	906 611 40	Mounting part	1
87	604 733 40	Resistor	15
90	951 885 40	Frame	1
91	957 439 40	Retainer	2
92	957 440 40	Retainer	1
93	957 441 40	Retainer	1
94	957 442 40	Stop	1
95	957 073 40	Angle	2
96	514 072 98	Screw	8
97	307 447 99	Bolt	6
98	307 629 99	Bolt	6
99	518 594 98	Lock washer	14
100	518 299 98	Washer	12
101	514 921 98	Nut	12
102	966 561 40	Rubber plate	1
104	519 091 98	Washer	6
105	0819320010	Clip	3
106	0443451010	Clamp	3
108	0443550810	Clamp	3
109	500 853 98	Bolt	6
111	984 438 40	Makrolon plate	-2
112	940 061 40	Rivet	6
113	0443452110	Clamp DN17	4
115	941 431 40	Contoller housing	1
116	962 928 40	Plug aasy	1
117	941 430 40	Modul	2
118	941 412 40	Plug connector	18
119	270 873 40	Wiring channel 40x40	-2
120	655 518 40	Wiring channel 40x60	-2
121	519 860 98	Assembly rail	-2
122	950 339 40	Wire clip 4-16 mm2	1
123	950 185 40	Wire clip 2,5 mm2	23
124	906 773 40	Cover plate 16 mm2	1
125	906 626 40	Marker	1
126	906 627 40	Marker	1
127	519 077 98	Screw	15
128	145 743 40	Washer	15
129	307 703 99	Bolt	2
130	518 560 98	Lock washer	2
131	307 640 99	Bolt	8
132	517 183 98	Nut	8
133	340 504 99	Lock washer	8
134	224 320 99	Bolt	4
135	334 506 99	Nut	4
136	515 331 98	Washer	4
137	509 860 98	Nut	2
138	334 649 99	Nut	8
139	509 869 98	Nut	4
140	966 609 40	Mounting plate	1
142	984 809 40	Ground plate	1
143	978 438 40	Harness 40X011 - 40	1
144	962 932 40	Harness 40X111 - 40	1
145	976 660 40	Harness 40X140 - 40	1
146	976 661 40	Harness 40X161 - 40	1
147	962 930 40	Harness 40X240 - 40	1
148	963 143 40	Harness 40X340 - 40	1
149	959 451 40	Harness 40X310-40X311	1
150	962 931 40	Harness 40X261-40	1
151	950 726 40	Plug	2
152	950 727 40	Plug	1
153	950 728 40	Plug	1
154	517 322 98	Nut	2
155	517 323 98	Nut	1
156	517 324 98	Nut	1
157	950 901 40	Seal	1
158	950 900 40	Seal	1
159	950 899 40	Seal	2
160	950 118 40	Socket	1
162	950 121 40	Socket	1
164	950 140 40	Socket	1
166	950 125 40	Socket	1
168	950 170 40	Plug in socket	1
170	950 146 40	Plug in socket	1
175	958 955 40	Can-bushing	3
176	958 956 40	CAN-Bushing	2
177	950 435 40	Cable	-2
178	941 777 40	Plate	4
179	174 411 40	Cable strap	8
180	986 200 40	Relay	1
181		Retainer	1
182	344 498 40	Supporting trestle	1
183	320 975 99	Bolt	1
184	518 314 98	Lock washer	1
185	056 070 40	Cable end sleeve	2
186	324 484 40	Cable end sleeve	2
187	990 632 40	Plate	1
190		(see parts page 515-2232b) Cable can bus,	1
191	962 917 40	Cable can bus 10x140-30x140	1
195		(see parts page 515-2250) Cable can bus,	1
196		(see parts page 515-2250) Cable can bus,	1
208	979 280 40	Door assy.	1
210	799 380 73	Seal	1
211	799 379 73	Door lock	4
212		Angle	4
220	950 801 40	Plug	1
221	907 958 40	Wegde	1
222	0819105340	Pin contact	5
223	950 190 40	Rubber grommet	2
224	0819100770	Sealing plate	3
225	055 110 40	Cable lug	1
226	940 914 40	Warmth shrink hose	-2
230	950 802 40	Body Plug	1
231	907 959 40	Wegde	1
232	0819105440	Female contact	9
233	907 640 40	Wire end ferrule	-2
234	940 912 40	Warmth shrink hose	-2
250	984 419 40	Retainer	1
251	519 860 98	Assembly rail	-2
252	984 425 40	Heater assy.	1
253	984 427 40	Harness switch cabinet heater	1
254	517 120 98	Lock washer	2
255	509 869 98	Nut	2
256	518 594 98	Lock washer	4
257	509 870 98	Nut	4
258	0819320010	Clip	1
259	344 498 40	Supporting trestle	3
260	940 673 40	Clamp	2
261	906 612 40	Through clamp 2.5	2
262	950 185 40	Protective wire clip	1
263	635 896 40	Tube protection	1
270	950 717 40	Heater	1
271	950 443 40	Socket	1
272	0819212300	Wegde	1
273	0819105320	Pin contact	2
274	950 190 40	Rubber grommet	2
275	940 914 40	Warmth shrink hose	-2
276	999 111 40	Warmth shrink hose	-2
280	950 189 40	Plug	1
281	081 921 24 00	Wegde	1
282	0819105420	Female contact	1
283	056 070 40	Cable sleeve 1,0-1,5	2
284	940 912 40	Warmth shrink hose	-2
285	940 463 40	Insulating tube	1
\|$$202			-2
\|$$203			-2
\|$$204			-2
\|$$205			-2
\|$$206			-2

Komatsu PC5500-6 S/N 15164 parts catalog PDF

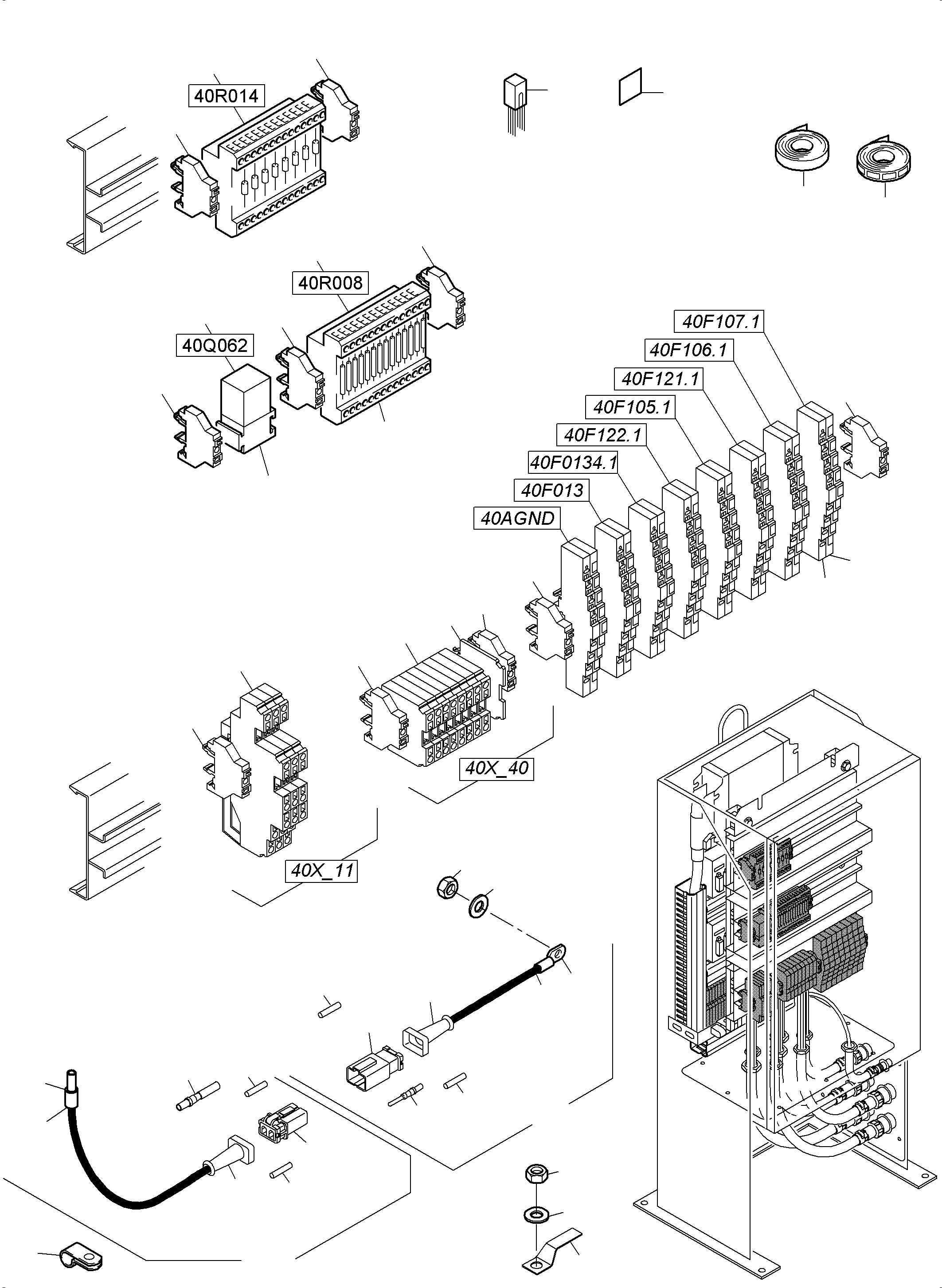

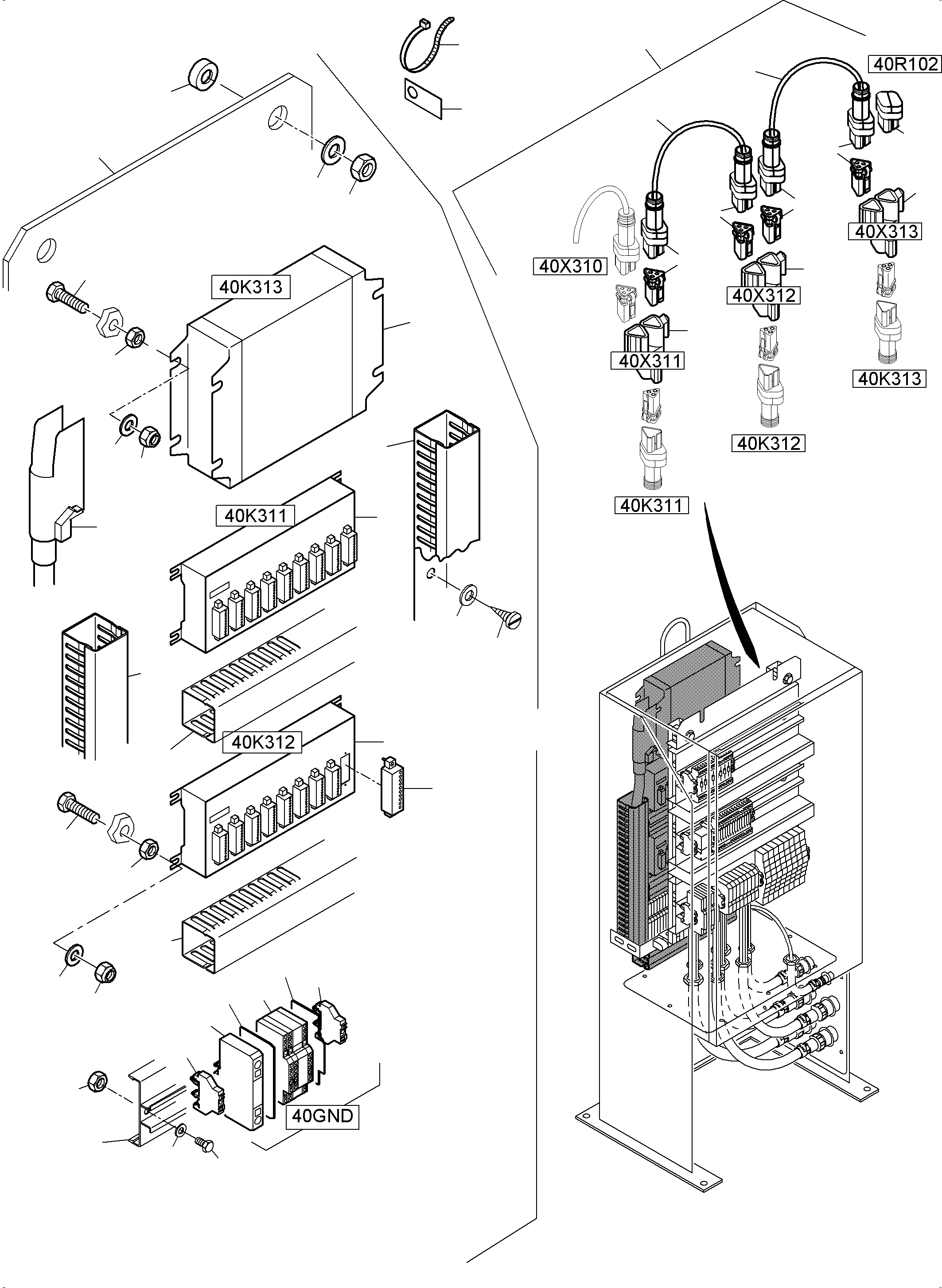

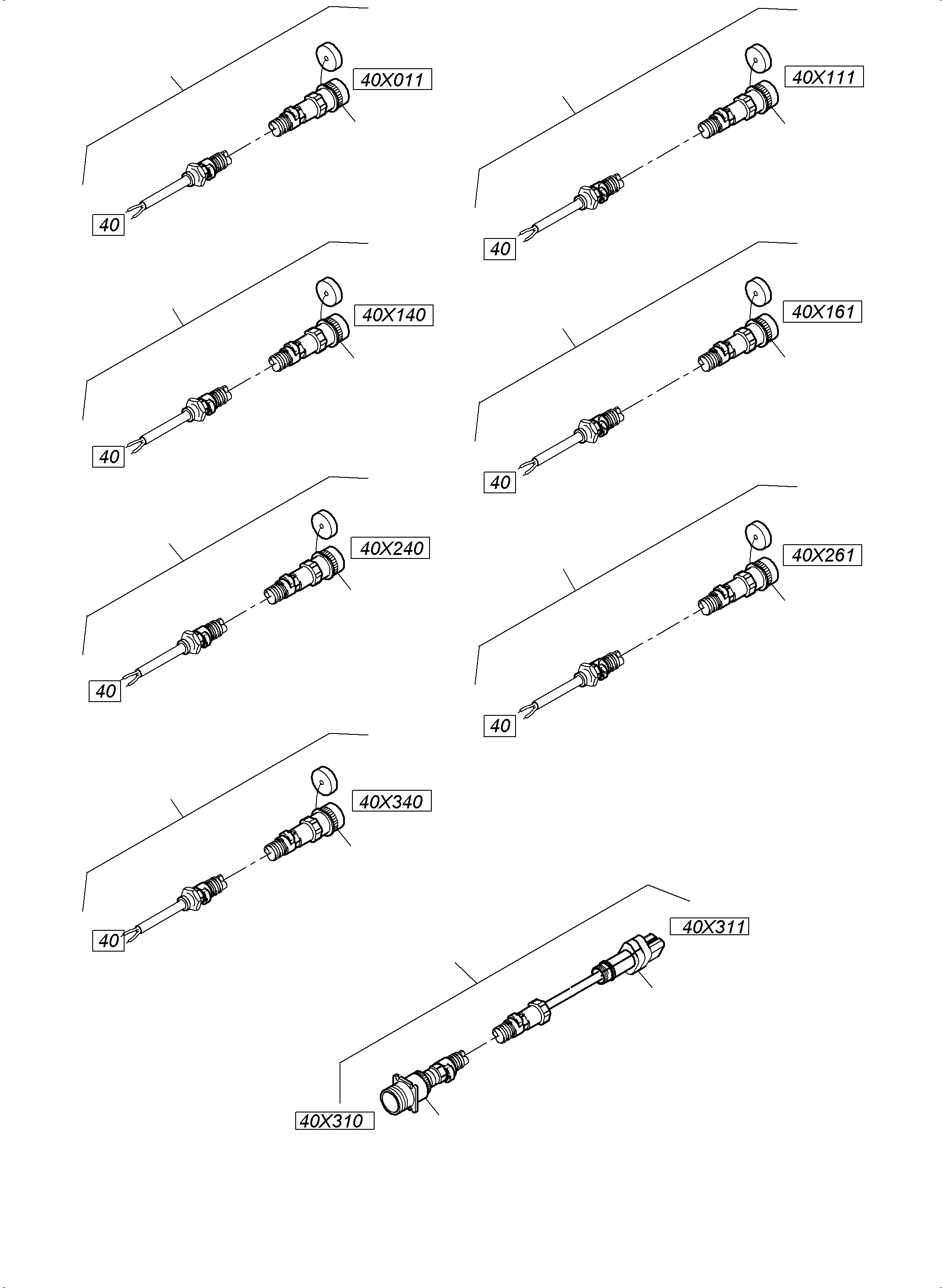

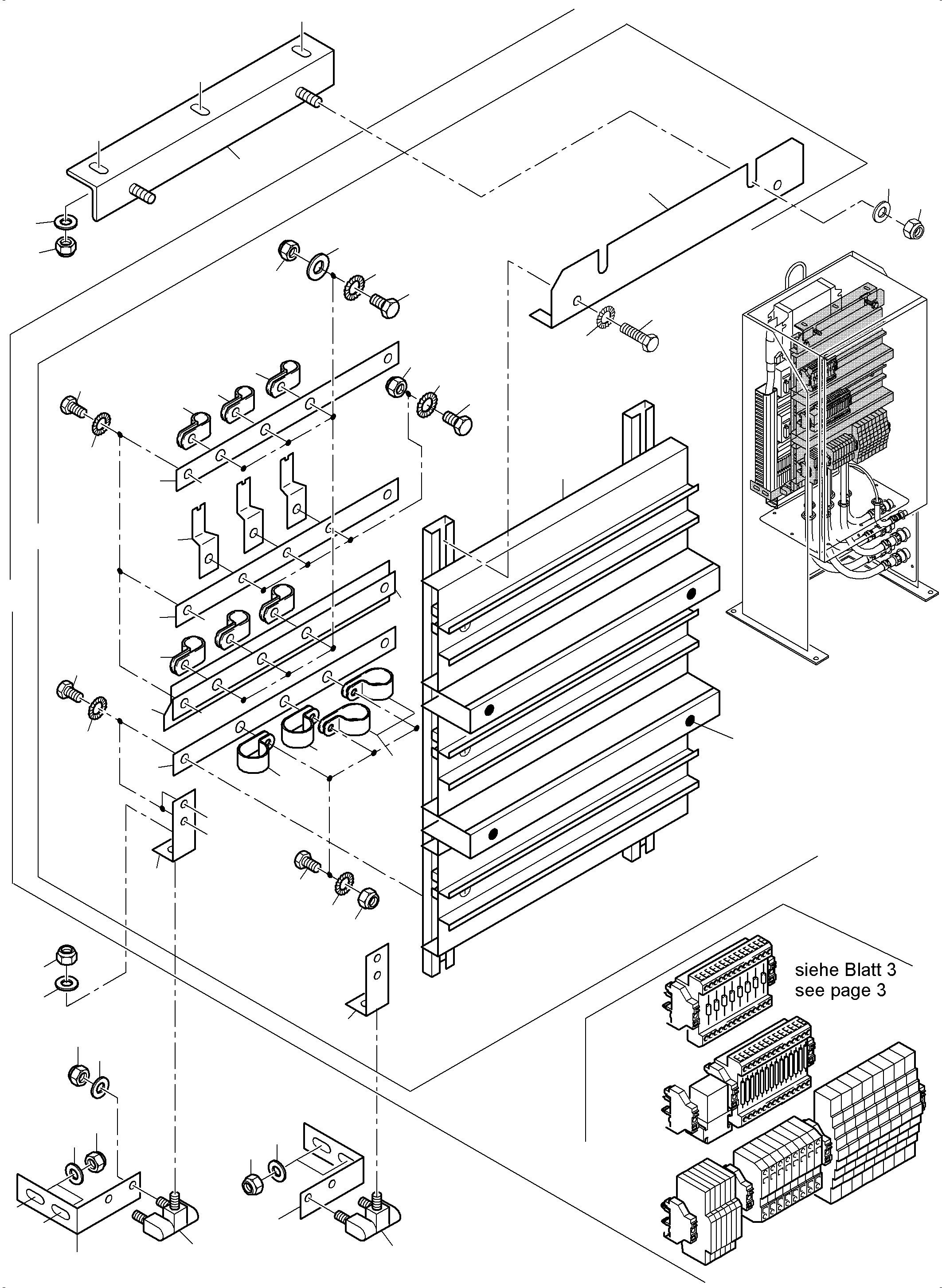

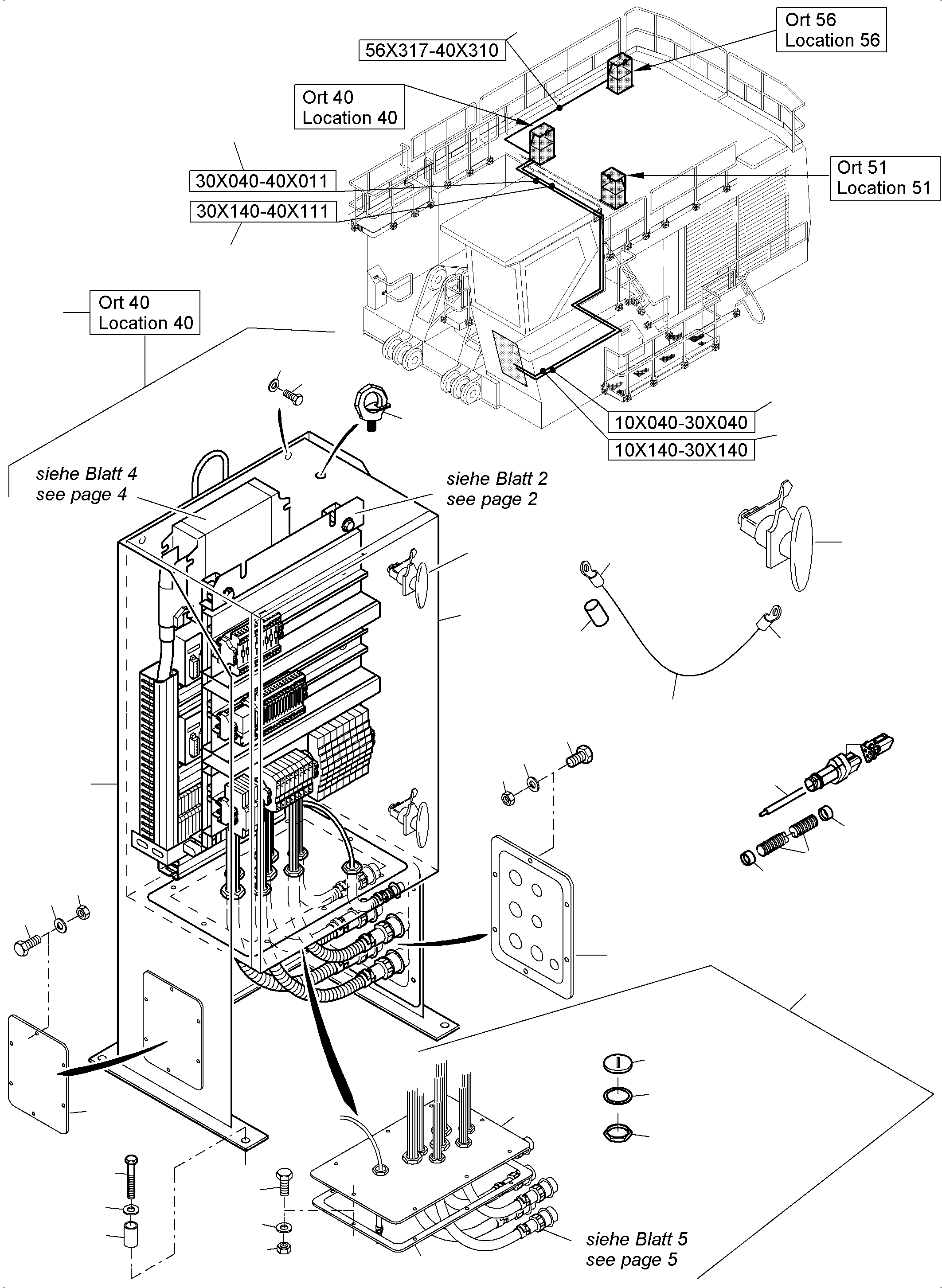

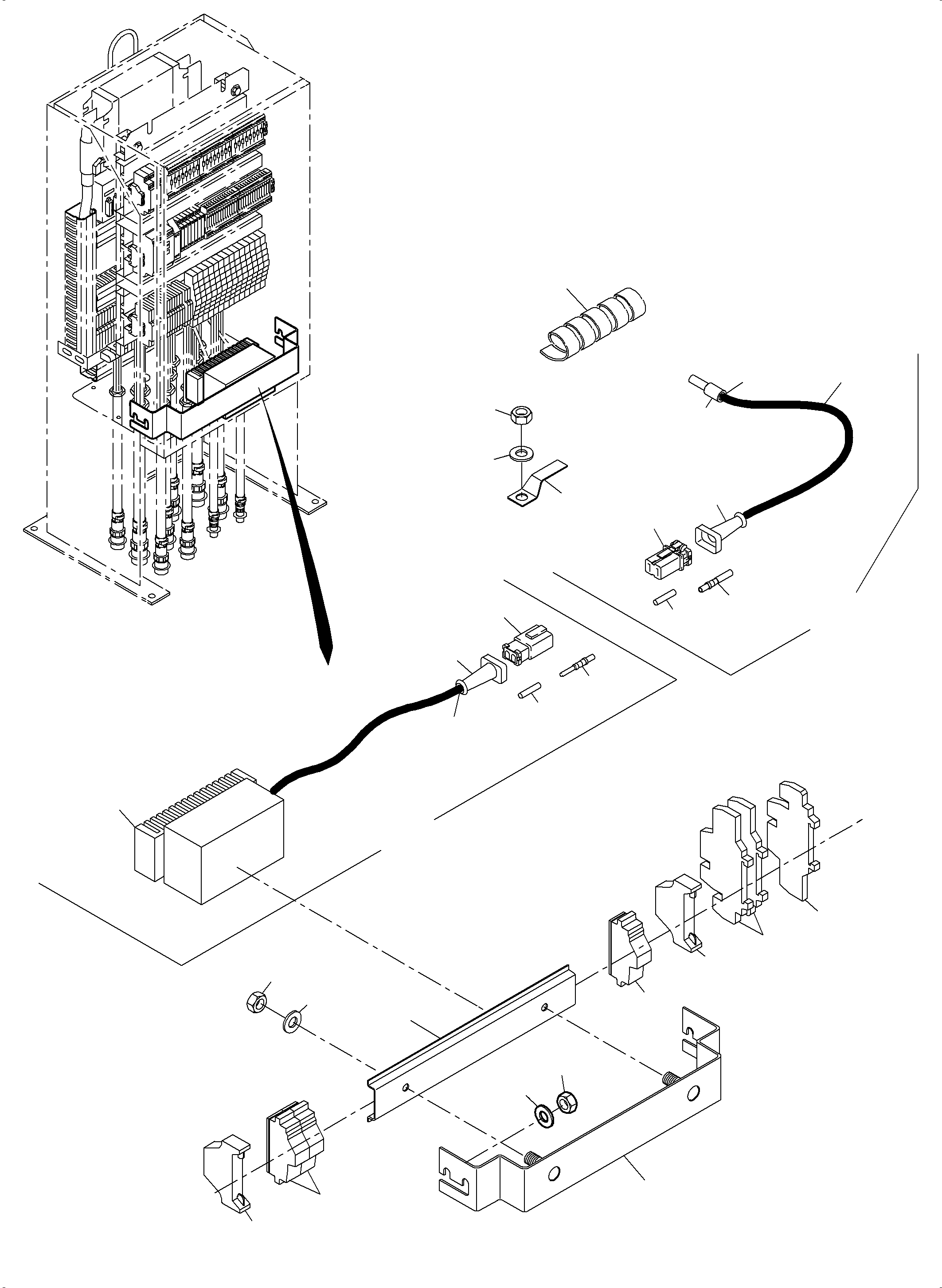

SWITCH CABINET ORT 40 (515-2240g) in PC5500-6 S/N 15164. Diagram image and parts list.
