Diagram image 1 of 3

PC5500-6 S/N 15164

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15164

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15164

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	991 351 40	Harness engine / refueling	1
?	966 006 40	Lamp housing assy.	1
?	926 528 40	Switch assy.	1
?	977 086 40	lamp with retainer	1
?	948 816 40	Plate	1
?	321 014 99	Screw	4
?	518 080 98	Resilent sleeve	2
?	0819320010	Clip	3
?	0443451210	Clamp DN10	28
?	0443451610	Clamp DN12	15
?	0443451910	Clamp	26
?	0443452711	Clamp DN23	1
?	902 412 40	Thread plate	4
?	517 122 98	Lock washer	2
?	907 854 40	Threaded pin	2
?	907 989 40	Threaded pin	51
?	511 773 98	Thread pin	2
?	507 037 98	Nut	59
?	340 465 99	Washer	57
?	507 596 98	Washer	53
?	944 613 40	Plate	1
?	950 126 40	Socket	1
?	950 130 40	Protection cap	1
?	0819105320	Pin contact	29
?	940 852 40	Plug	2
?	0819150808	Nut	1
?	950 318 40	Lock washer	1
?	950 898 40	Seal ring	1
?	907 980 40	Fitting	1
?	940 471 40	Fitting	2
?	940 520 40	Fitting	1
?	907 703 40	Cable union 4x3	1
?	907 708 40	Cable union 6x2,5	2
?	896 520 40	End pin 3,0x25	1
?	941 880 40	Plug	6
?	056 070 40	Cable sleeve 1,0-1,5	13
?	951 260 40	Slide protection	1
?	907 623 40	Cable union DN 12	1
?	940 463 40	Insulating tube	-2
?	0819213400	Wegde	6
?	941 777 40	Plate	6
?	174 411 40	Cable strap	12
?	940 909 40	Warmth shrink hose	-2
?	940 913 40	Warmth shrink hose	-2
?	907 974 40	Fitting	1
?	950 143 40	Socket	1
?	0819110809	Lock washer	1
?	950 897 40	Seal ring	1
?	950 129 40	Protection cap	1
?	0819105420	Female contact	18
?	941 791 40	Rubber grommet	6
?	950 503 40	Shrinkdown tubing	-2
?	323 430 40	Box, aluminium	1
?	942 119 40	Indicator light red with LED	7
?	903 423 40	Graphical symbol set	1
?	255 328 40	Circuit element	1
?	323 677 40	Press button adapter	1
?	950 726 40	Plug	1
?	517 322 98	Cable nut	1
?	358 291 40	Plug	4
?	950 899 40	Seal ring	1
?	323 675 40	Indicator light, red	7
?	940 735 40	Light emitting diode, red	7
?	979 206 40	Head light assy.	1
?	977 085 40	Retainer	1
?	951 320 40	Head light	1
?	955 670 40	Plug with bushings assy.	1
?	940 016 40	Switch	1
?	950 280 40	Sensor with cable and plug	2
?	963 871 40	Harness oil level	2
?	955 670 40	Socket assy. with rubber grommet 3 pole	1
?	950 346 40	Level probe	1
?	951 198 40	Distributer	1
?	950 457 40	Thermal contraction tube	-2
?	951 199 40	Thermal contraction tube	-2
?	950 504 40	Shrinkdown tubing	-2
?	951 200 40	Junction	1
?	440 092 40	Plug	3
?	932 518 40	Cable lug	1
?	966 667 40	Plug assy. with rubber grommet	1
?	655 873 40	Cable 1,5 bl	-2
?	951 359 40	Lamp	1
?	951 360 40	Retainer	1
?	517 121 98	Lock washer	1
?	907 707 40	Cable union	1
?	940 520 40	Fitting	1
?	896 522 40	End pin	2
?	655 631 40	Pipe adapter DN 12/10	1
?	307 752 99	Bolt	1
?	0819320010	Clip	1
?	950 189 40	Plug	1
?	081 921 24 00	Wegde	1
?	621 699 40	Female contact 1-2 qmm	2
?	950 190 40	Rubber grommet	1

Komatsu PC5500-6 S/N 15164 parts catalog PDF

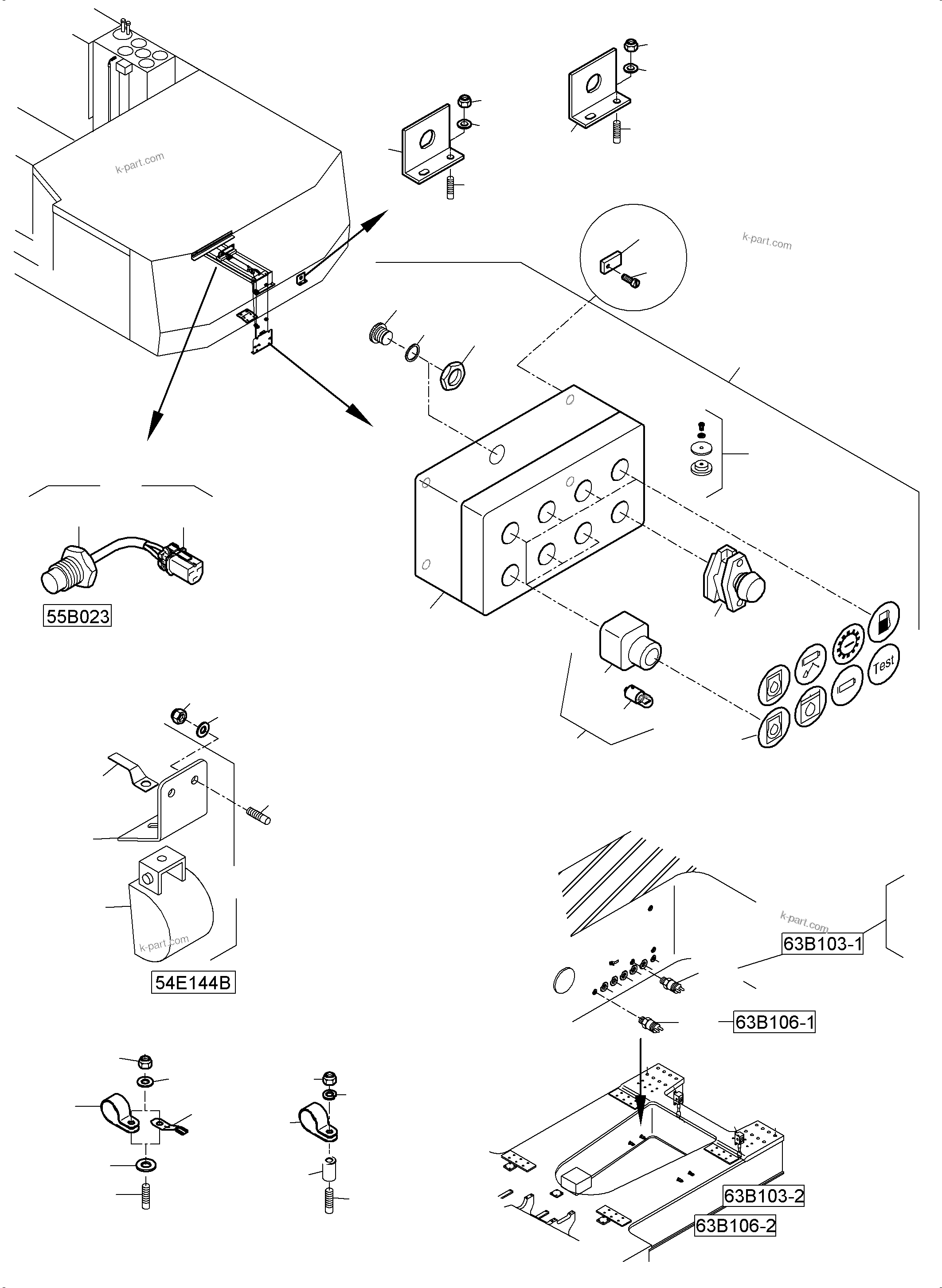

ELECTRO PARTS REFUELING, WITHOUT OR WITH SERVICE ARM (515-2255f) in PC5500-6 S/N 15164. Diagram image and parts list.
