Diagram image 1 of 4

PC5500-6 S/N 15164

01 02 05 09 123 13 138 139 14 158 160 21 21 24 261 262 262 263 264 264 265 268 269 270 275 276 276 277 278 28 28 281 282 283 284 285 286 287 289 29 31 32 33 34 36 38 39 47 56 61 63 67 71 90 91 92 93 96

PC5500-6 S/N 15164

10 100 100 101 102 105 105 106 106 107 107 108 108 109 109 11 11 110 110 111 111 112 112 115 12 120 121 122 122 123 124 125 125 13 13 13 13 130 131 135 136 14 15 15 16 17 18 18 19 22 27 33 33 37 38 39 39 40 41 42 43 44 45 48 49 57 63 64 67 68 69 70 71 71 75 76 77 78 79 80 81 82 83 85 95 97 98 98 99 99

PC5500-6 S/N 15164

13 13 13 13 145 146 147 148 151 154 18 39 39 39 39 71

PC5500-6 S/N 15164

220 221 222 223 223 224 225 225 226 227 228 228 229 230 231 232 233 234 235 236 237 245 246 247 248

#	Part Number	Partname	Quantity	Reference
01		Switch framing	1
02	948 328 40	Plate	1
05	977 092 40	Lamp with retainer	1
09		Horn	1	113-2150
10	945 739 40	Seal	1
11	907 989 40	Thread pin	1
12	518 547 98	Lock washer	2
13	507 037 98	Nut	34
14	517 122 98	Lock washer	8
15	334 599 99	Nut	34
16	319 421 99	Bolt	20
17	991 329 40	Cover assy.	1
18	0443451210	Clamp	18
19	967 865 40	Retainer	1
21	307 754 99	Bolt	4
22	0443452110	Clamp	3
24	7826191500	Komtrax Plus-controller	1
27	0443452711	Clamp	9
28	906 231 40	Circular bearing	8
29	955 464 40	Load limitation valve	1
31	308 534 99	Bolt	4
32	517 120 98	Washer	4
33	517 121 98	Lock washer	38
34	941 786 40	Temperature sensor assy.	1
36	340 506 99	Washer	4
37	125 270 99	Bolt	6
38	307 777 99	Bolt	8
39	340 465 99	Washer	20
40	952 689 40	Retainer	1
41	504 853 98	Clamp set	2
42	504 854 98	Grommet	-2
43	500 398 98	Cover plate	2
44	308 641 98	Bolt	4
45	517 123 98	Lock washer	4
47	907 371 40	Sealing profile 9 - 12 mm	-2
48	307 773 99		-2
49	518 547 98		-2
56	308 544 99		4
57	0443453411	Clamp	5
61	936 312 40	Rubber plate 3x1190x200	3
63	0443451510	Clamp	-2
64	0443551210	Clamp	-2
67	0819320010	Clip	-2
68	991 327 40	Assembly box assy.	1
69	986 936 40	Seal	1
70	307 598 99	Bolt	4
71	507 596 98	Washer	20
75	655 530 40	Strab	4
76	906 758 40	Key seal kit	3
77	906 759 40	Rubber clamp 60	4
78	906 760 40	Rubber clamp 40	3
79	906 761 40	Rubber clamp 30	24
80	906 762 40	Shim	3
81	989 236 40	Retainer assy.	2
82	500 853 98	Bolt	2
83	350 768 99	Washer	4
85	941 724 40	Cable	1
90	977 091 40	Retainer	1
91	951 320 40	Head light	1
92	941 777 40	Plate	30
93	174 411 40	Cable strap	60
95	991 330 40	Cover	1
96	950 726 40	Plug M 20	3
97	950 727 40	Plug M 25	4
98	950 728 40	Plug M 32	1
99	974 058 40	Plug assy. HD 18	2
100	974 059 40	Plug assy. HD 24	2
101	941 727 40	Lead in duct	1
102	941 728 40	Protective cap	1
105	969 833 40	Cap 18	1
106	951 031 40	Seal	1
107	946 218 40	Cap 18	1
108	350 762 99	Washer	1
109	307 646 99	Bolt	1
110	969 835 40	Cap 24	1
111	951 032 40	Seal	1
112	946 224 40	Cap 24	1
115	992 288 40	Assembly box	1
120	517 322 98	Nut M 20x1,5	1
121	517 323 98	Nut M 25x1,5	1
122	517 324 98	Nut M 32x1,5	1
123	950 899 40	Seal RD 20	1
124	950 900 40	Seal RD 25	1
125	950 901 40	Seal RD 32	1
130	932 860 40	Seal kit	-2
131	907 104 40	Rubber clamp 20	11
135	081 480 40	Hinge pin	1
136	081 320 40	Hinge	1
138	940 726 40	Light switch	1
139	321 010 99	Bolt	4
145	957 905 40	Cable	1
146	950 737 40	Head light assy.	4
147	952 071 40	Lamp retainer	2
148	307 779 99	Bolt	12
151	307 780 99	Bolt	6
154	044 345 06 10	Clip	8
158		ORB-COMM Controller	-2	715-2215c
160	958 963 40	Plug assy. with rubber grommet	1
220	951 198 40	Distributer	1
221	950 457 40	Thermal contraction tube	-2
222	951 199 40	Thermal contraction tube	-2
223	950 504 40	Shrinkdown tubing	-2
224	951 200 40	Junction	1
225	440 092 40	Plug	3
226	932 518 40	Cable lug	1
227	966 667 40	Plug assy. with rubber grommet	1
228	655 873 40	Cable 1,5 bl	-2
229	951 359 40	Lamp	1
230	951 360 40	Retainer	1
231	517 121 98	Lock washer	1
232	907 707 40	Cable union	1
233	940 520 40	Fitting	1
234	896 522 40	End pin	2
235	655 631 40	Pipe adapter DN 12/10	1
236	307 752 99	Bolt	1
237	0819320010	Clip	1
245	950 189 40	Plug	1
246	081 921 24 00	Wegde	1
247	621 699 40	Female contact 1-2 qmm	2
248	950 190 40	Rubber grommet	1
261	307 757 99	Bolt	4
262	518 594 98	Lock washer	2
263	340 628 99	Washer	4
264	504 828 98	Nut	6
265	951 728 40	Shock absorber	4
268	986 533 40	Retainer	1
269	986 598 40	Cable Service Monitor 10P010 - 11X_10	1
270	941 482 40	Thread pin	2
281	974 840 40	Service display	1
282	951 473 40	Mounting clamp	1
283	951 475 40	Mounting cable	1
284	320 837 99	Screw	1
285	332 441 99	Nut	1
286	340 458 99	Washer	1
287	986 534 40	Retainer	1
289	340 507 99	Washer	2
275	941 840 40	Protective hose DN 12	-2
276	950 208 40	End grommet	2
277	950 503 40	Shrinkdown tubing	-2
278	951 368 40	Resin strip	-2

Komatsu PC5500-6 S/N 15164 parts catalog PDF

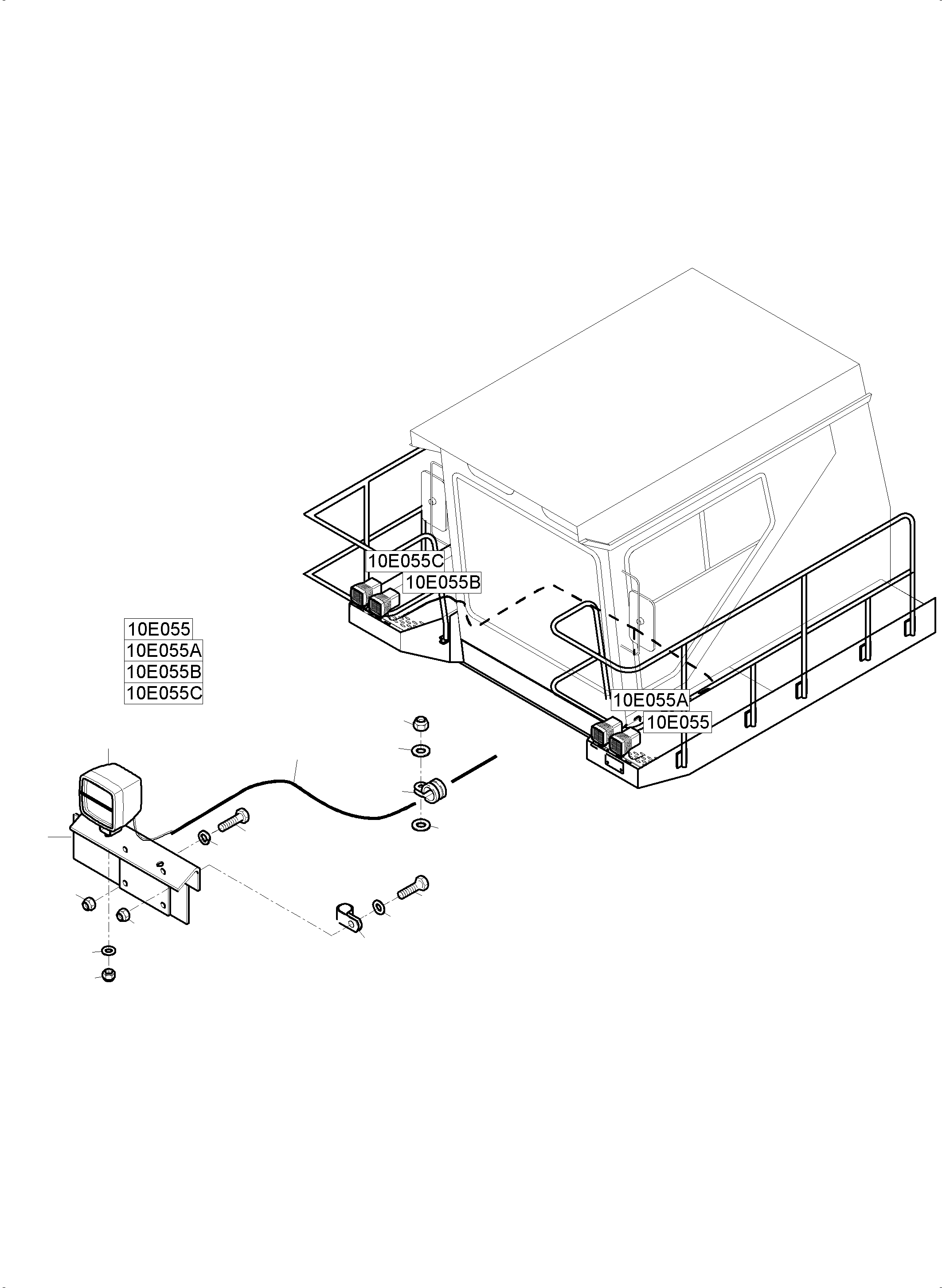

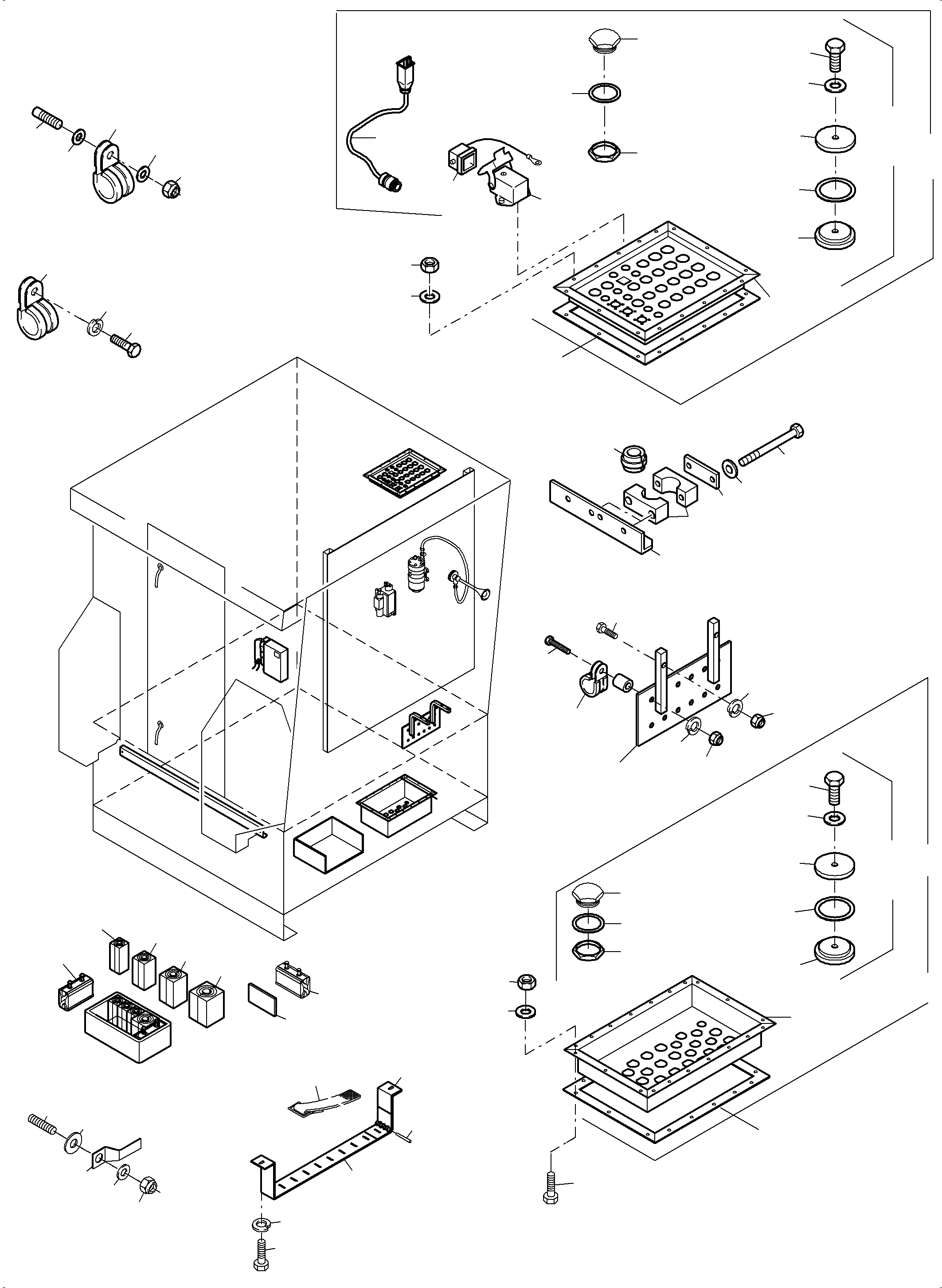

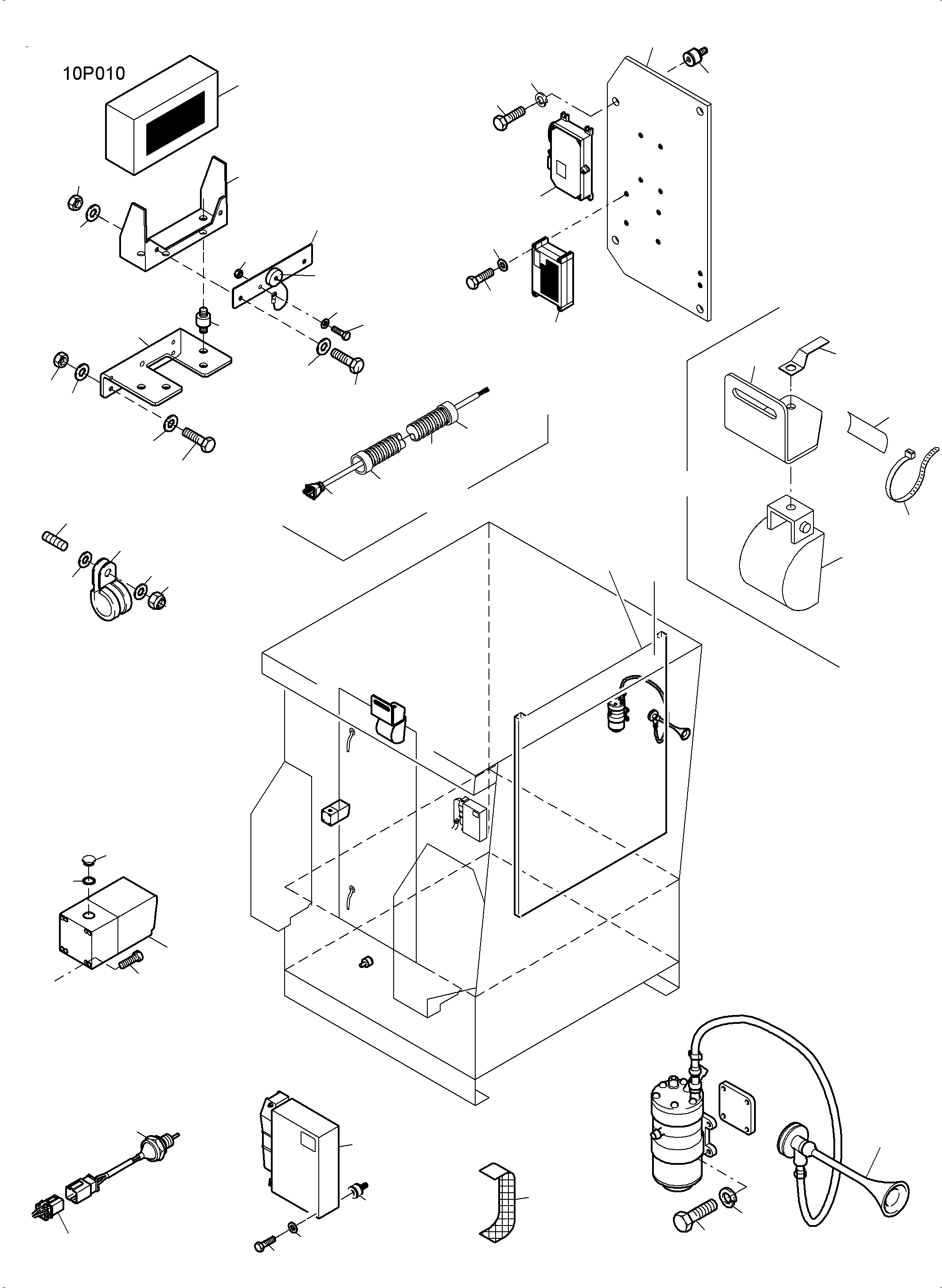

ELECTRIC - CAB SUPPORT AND INTERMEDIATE LANDING (515-2210f) in PC5500-6 S/N 15164. Diagram image and parts list.
