Diagram image 1 of 7

PC5500-6 S/N 15166

? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15166

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15166

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15166

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15166

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15166

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15166

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	992 704 40	Switch framing assy.	1
?	999 296 40	Breaker 1 A	1
?	999 298 40	Breaker 6 A	10
?	999 299 40	Breaker 10 A	49
?	999 300 40	Breaker 13 A	2
?	999 301 40	Breaker 16 A	4
?	999 302 40	Breaker 20 A	1
?	999 303 40	Breaker 25 A	1
?	999 305 40	Breaker 32 A	1
?	999 307 40	Breaker 50 A	8
?	999 309 40	Breaker 100 A	1
?	951 995 40	Switch framing	1
?	960 613 40	Resistor array assy.	2
?	655 748 40	Diode array	3
?	984 440 40	Plate	1
?	997 129 40	Amplifier, not adjusted	13
?	941 278 40	Socket	1
?	896 716 40	Hour meter	2
?	896 754 40	Switch modul	1
?	603 346 40	Clamp assy.	1
?	963 818 40	Relais with retainer and bolts and bolts 50 A	2
?	951 445 40	Semiconductor relay 10 A	1
?	898 680 40	Relay assy.	16
?	951 886 40	Safety cut off	1
?	951 862 40	Semiconductor relay 24VDC/24VDC/10A	21
?	962 663 40	Relais with retainer and bolts 75 A	5
?	490 889 40	Series terminal with diode, red	7
?	490 890 40	Series terminal with diode, green	1
?	926 505 40	Series terminal with diode, red	2
?	906 768 40	Through clamp 6 mm2	2
?	906 772 40	Cover plate 6 mm2	1
?	986 209 40	Relais with retainer and bolts 30A	5
?	974 015 40	Relais with retainer and bolts 120 A	1
?	955 333 40	Cross connection (Copper)	1
?	940 640 40	Rail collector end cap	28
?	906 623 40	Marking strip	5
?	950 620 40	Rail collector	-2
?	906 612 40	Through clamp 2.5	201
?	940 673 40	Clamp	72
?	906 613 40	Cover plate	23
?	906 614 40	Bridge 2-fold	35
?	906 615 40	Bridge 3-fold	3
?	906 616 40	Bridge 4-fold	1
?	906 617 40	Bridge 5-fold	1
?	957 090 40	Plate	1
?	511 262 98	Resilient sleeve	4
?	461 321 40	Terminal	88
?	461 322 40	Cover plate	10
?	896 747 40	Wiring channel 100	-2
?	941 561 40	Lead cable X13	1
?	906 773 40	Cover plate 16 mm2	6
?	941 502 40	Potencial clamp 1,5 mm2	12
?	941 503 40	Cover plate	12
?	501 670 98	Screw	52
?	145 743 40	Washer	52
?	999 405 40	Distribution block	1
?	941 787 40	Terminal	4
?	906 624 40	Marker	3
?	906 625 40	Marker	2
?	906 626 40	Marker	1
?	906 627 40	Marker	1
?	906 628 40	Marker	1
?	906 629 40	Marker	3
?	906 687 40	Marker	1
?	906 688 40	Marker	1
?	963 800 40	Terminal cover	1
?	950 607 40	Cap nut M 10	4
?	515 314 40	Dust cap	1
?	963 147 40	Plug assy. 11K305	1
?	654 439 40	Time-lag relay	1
?	906 769 40	Through clamp 16 mm2	6
?	950 185 40	Protective wire clip	46
?	941 434 40	Lead cable X21	1
?	941 724 40	Lead cable X17	1
?	941 430 40	Modul	1
?	941 431 40	Contoller housing adjust acc. to elec. Schematic	1
?	941 432 40	Contoller housing adjust acc. to elec. Schematic	1
?	941 819 40	Lead cable X11	1
?	941 412 40	Plug connector	9
?	950 466 40	Cross connection 15 pol.	3
?	490 542 40	Cross connection	25
?	350 762 99	Washer	12
?	940 675 40	Sleeve with srew	30
?	320 972 99	Bolt	4
?	894 577 40	Socket assy.	1
?	891 034 40	Dust cap	1
?	963 145 40	Plug assy. 11K303	1
?	963 146 40	Plug assy. 11K304	1
?	356 281 40	Marking strips 01-10	2
?	356 282 40	Marking strips 11-20	1
?	356 283 40	Marking strips 21-30	1
?	356 284 40	Marking strips 31-40	1
?	356 286 40	Marking strips 51-60	1
?	356 287 40	Marking strips 61-70	1
?	356 288 40	71-80	1
?	356 289 40	Marking strips 81-90	1
?	518 546 98	Lock washer	4
?	518 314 98	Lock washer	4
?	307 661 99	Bolt	4
?	307 737 99	Bolt	4
?	501 382 98	Thread pin	12
?	509 869 98	Nut	32
?	515 331 98	Washer	12
?	514 070 98	Bolt	2
?	941 354 40	Cable shoe	4
?	951 231 40	Swing rate sensor	1
?	323 590 40	Switch modul EGT 2	2
?	951 916 40	Relay 24VDC/24VDC/500W	3
?	323 234 40	Cover 25 BN	-2
?	655 517 40	Cover 40 BN	-2
?	356 285 40	Marking strips 41-50	1
?	654 372 40	Cable shoe	9
?	999 133 40	Bridge	-2
?	940 609 40	Makrolon plate	-2
?	940 610 40	Makrolon plate	-2
?	940 061 40	Rivet	58
?	951 888 40	Separate plate	4
?	941 685 40	Group plate	12
?	951 895 40	Safety cut off	2
?	951 284 40	Relay	4
?	323 179 40	Relay 50A	1
?	344 498 40	Supporting trestle	2
?	320 975 99	Bolt	2
?	340 504 99	Washer	2
?	950 600 40	Relay 75A	1
?	340 904 99	Washer	2
?	055 103 40	Cable shoe	2
?	055 104 40	Cable shoe	4
?	986 200 40	Relay 30A	1
?	056 070 40	Wire end ferrule 1-8	2
?	324 484 40	Wire end ferrule 6-12	2
?	990 632 40	Connector plate	1
?	950 613 40	Relay 120A	-2
?	950 662 40	Cable shoe	4
?	576 212 40	Clamp	1
?	604 734 40	Resistor 30,1 kOhm	1
?	604 809 40	Resistor 10 kOhm	1
?	957 091 40	Plate	1
?	0443450810	Clamp	5
?	0819320010	Clip	7
?	307 775 99	Bolt	5
?	507 037 98	Nut	10
?	518 547 98	Lock washer	10
?	507 596 98	Washer	10
?	307 779 99	Bolt	5
?	906 611 40	Mounting part	1
?	604 733 40	Resistor 820 OHM / 2 W	15
?	940 020 40	Relay	52
?	592 338 40	Socket	52
?	414 369 40	Spring retainer	52
?	978 192 40	Connection cable	1
?	321 015 99	Bolt	2
?	942 152 40	Modul	1
?	950 419 40	Lead cable X30	1
?			-2
?			-2
?			-2
?			-2
?			-2

Komatsu PC5500-6 S/N 15166 parts catalog PDF

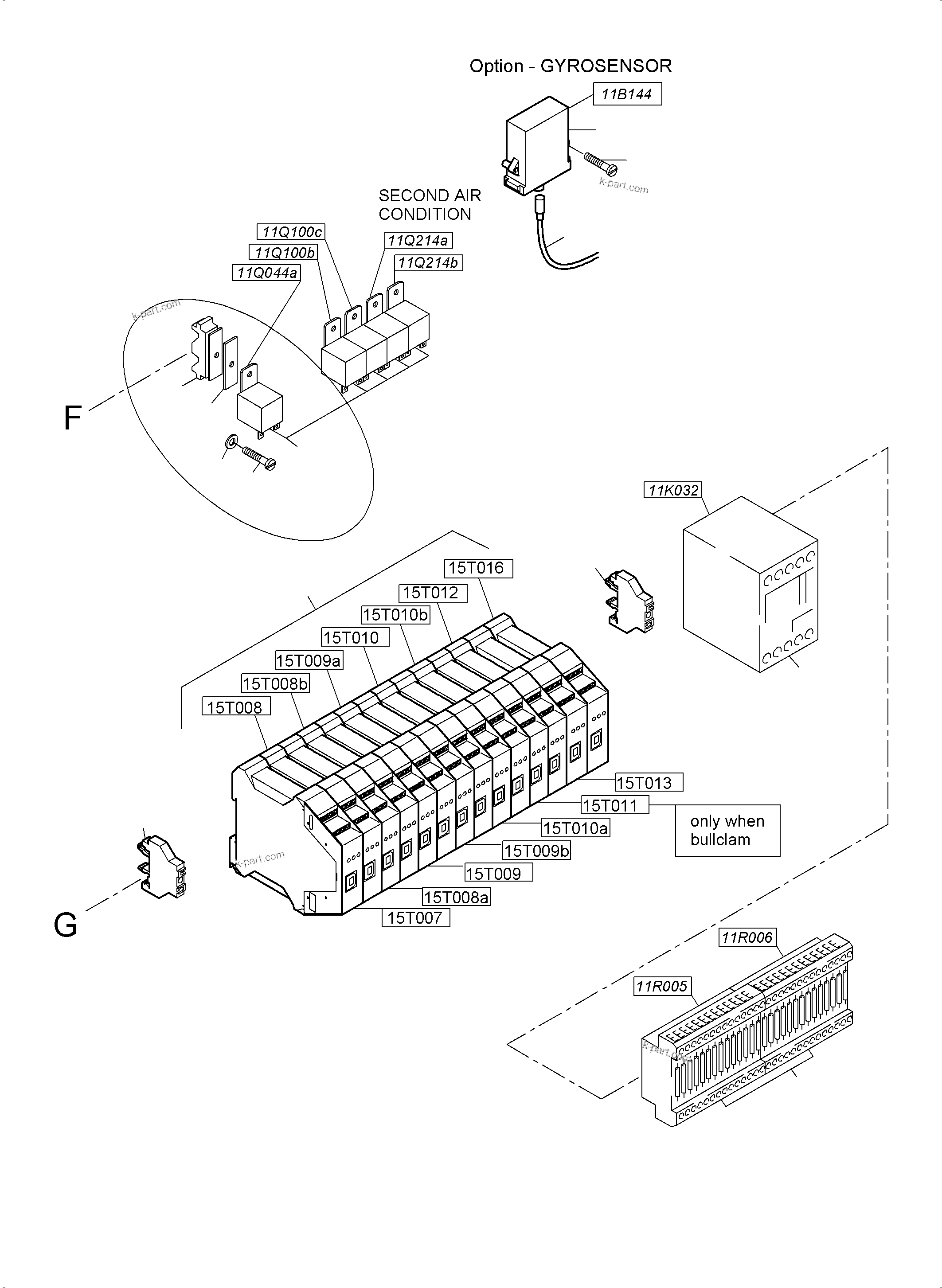

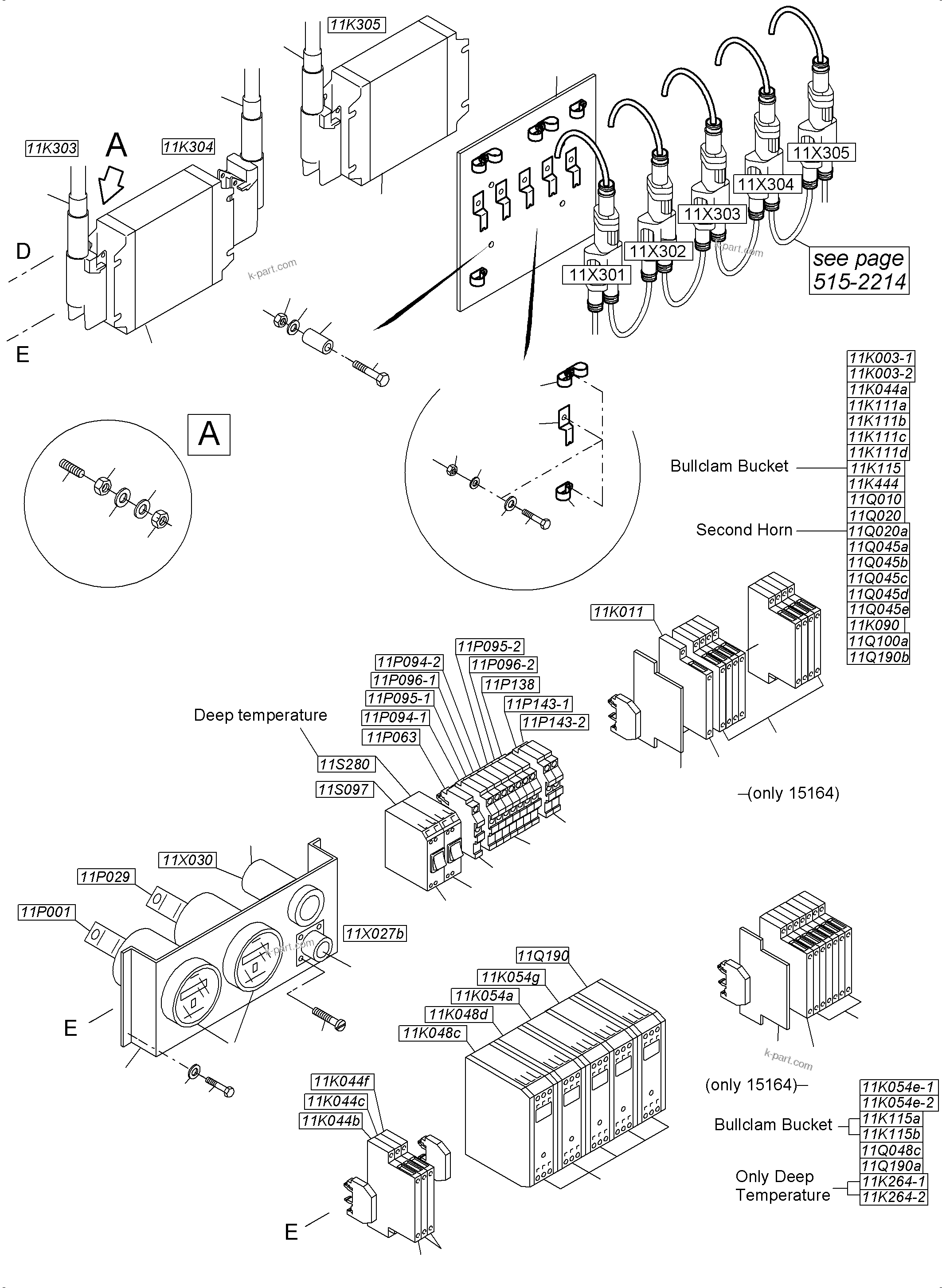

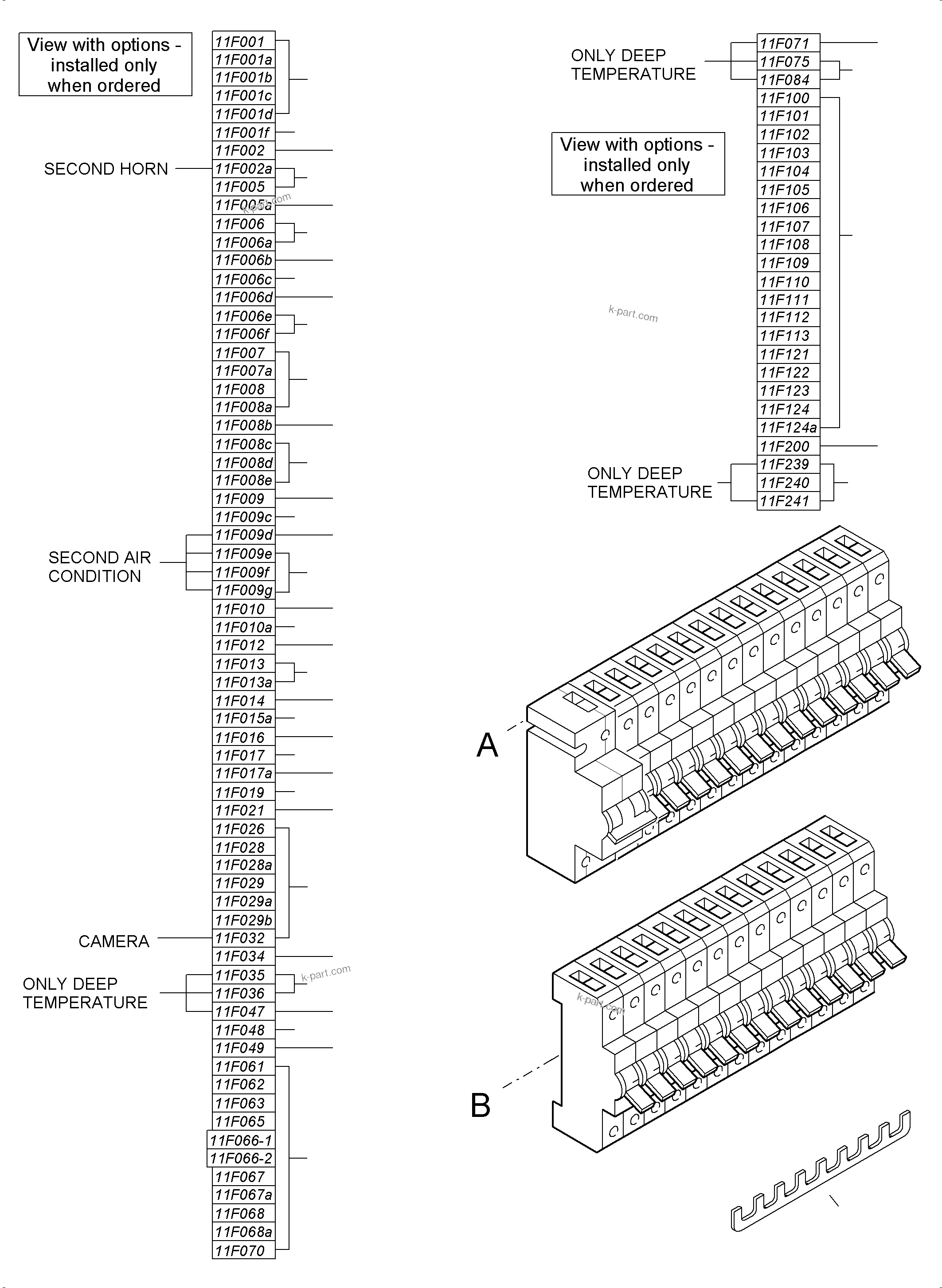

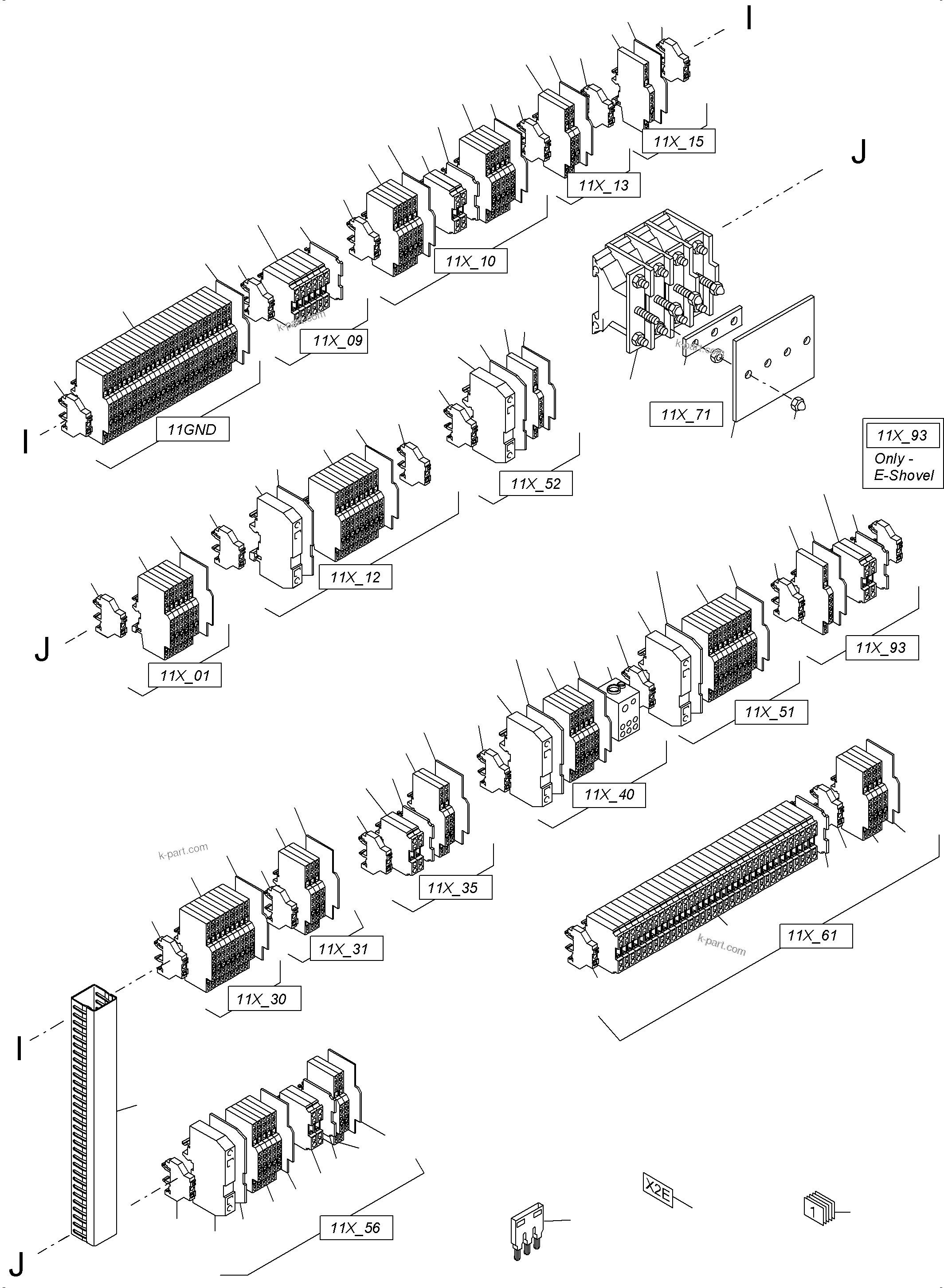

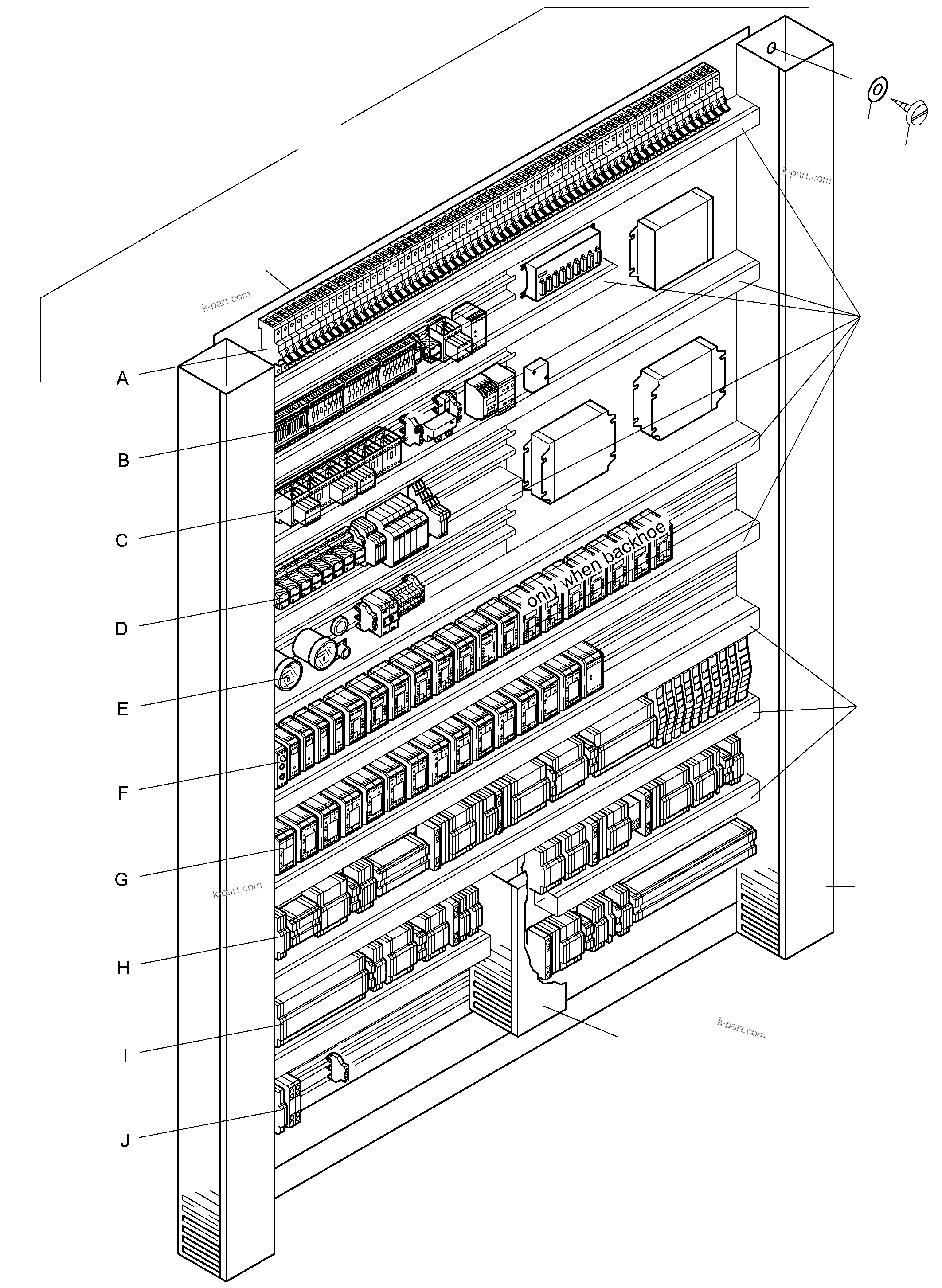

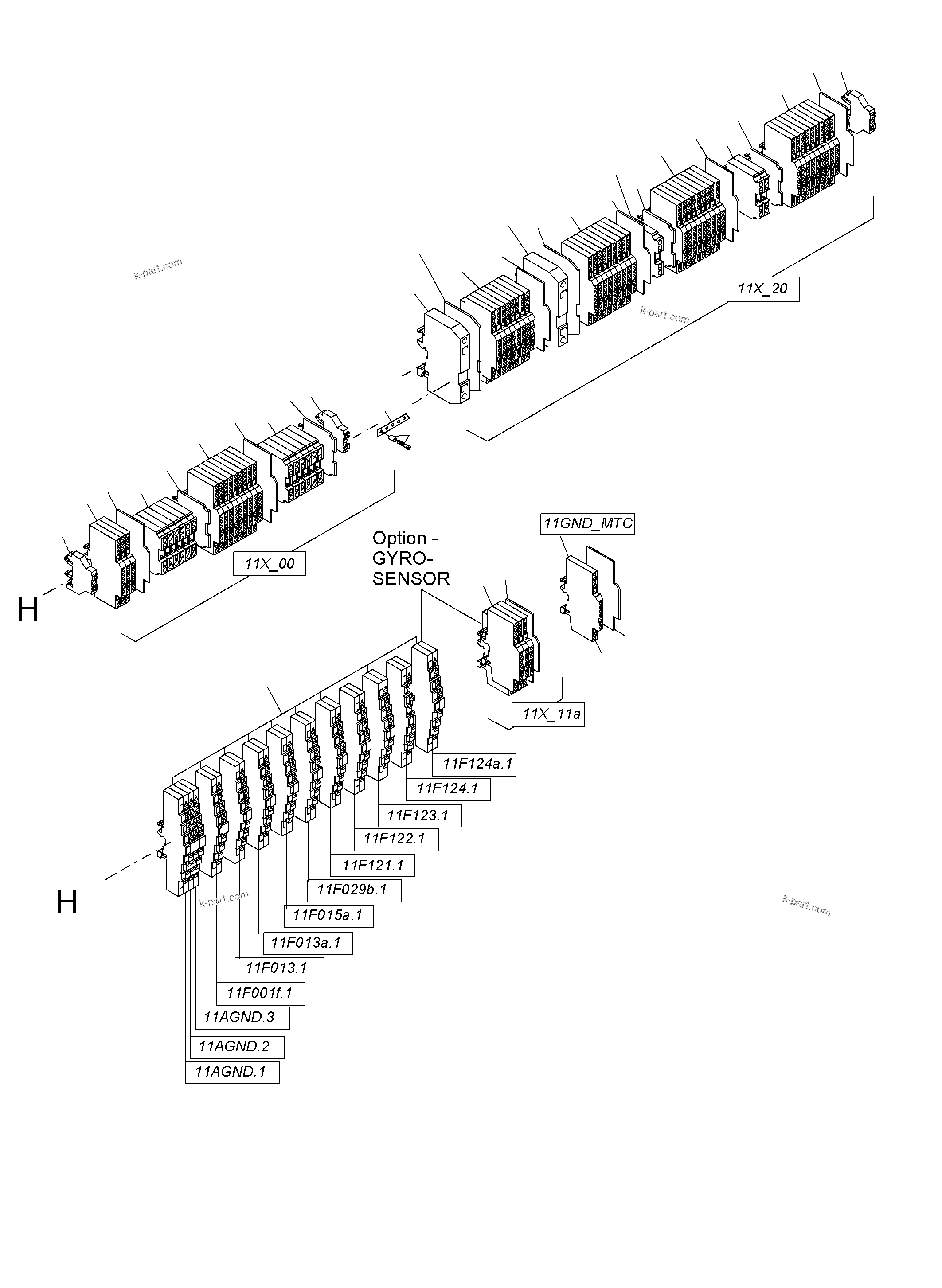

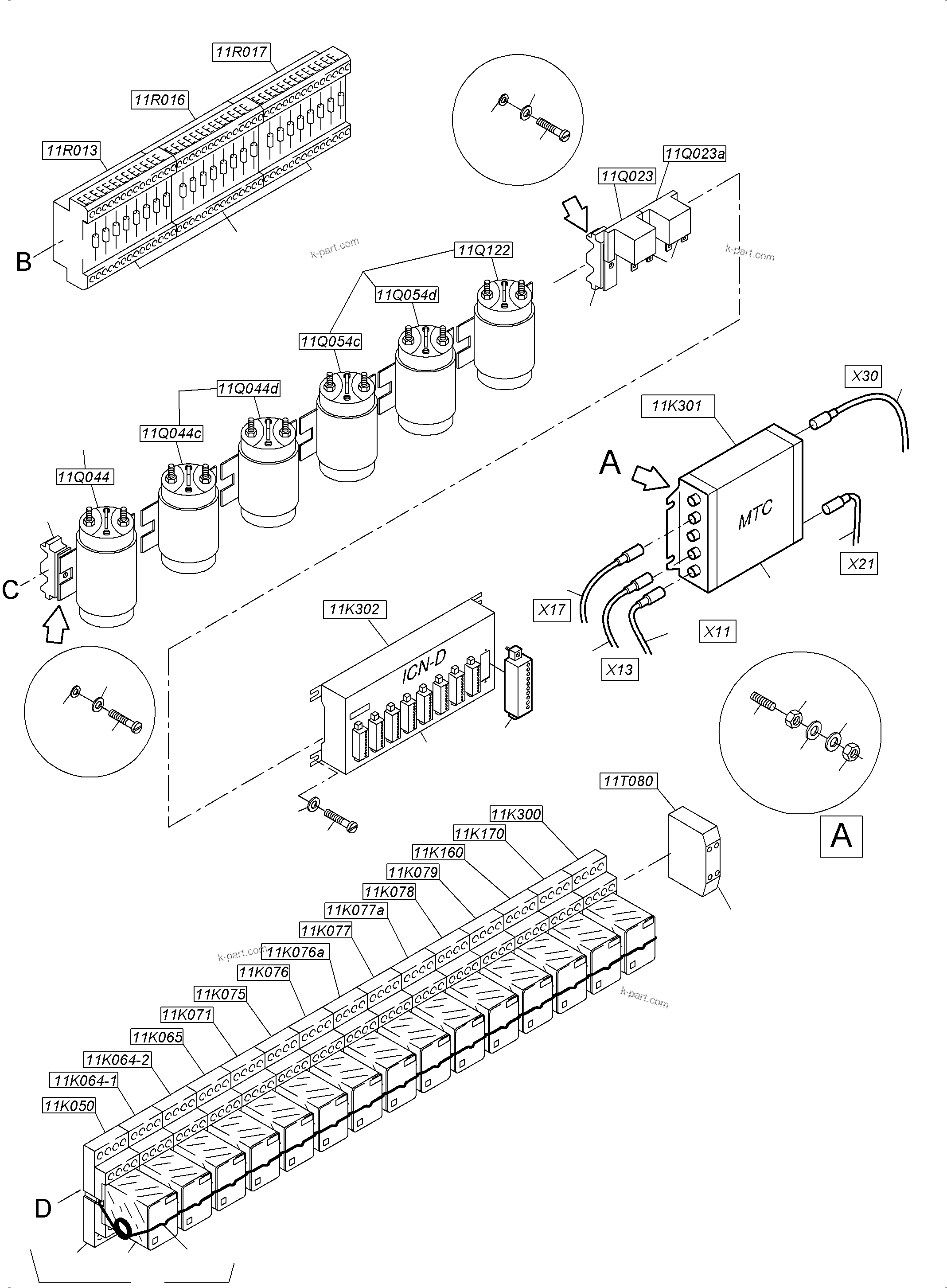

SWITCH FRAMING LOCATION 11 (515-2218j) in PC5500-6 S/N 15166. Diagram image and parts list.
