Diagram image 1 of 8

PC5500-6 S/N 15166

01 03 05 06 08 09 10 11 113 12 125 125 125 126 126 127 127 127 127 127 127 127 127 127 128 129 129 129 129 129 129 129 129 13 13 130 131 131 132 132 132 133 133 134 134 135 136 --- --- 14 14 140 143 145 15 15 151 16 16 17 18 18 185 186 186 187 187 187 19 19 19 190 191 191 192 193 20 20 21 22 22 23 23 24 24 24 25 25 25 25 25 25 25 25 26 27 27 27 28 28 29 29 29 29 29 29 29 29 30 30 30 30 30 31 34 35 35 36 41 42 43 44 44 44 45 46 47 69 70

PC5500-6 S/N 15166

02 141 142 51 52 53 54 55 55 55 56 56 56 56 60 61 62 63 64 64 65 66 67 68 69 70 71 72 73 75 75 76 77 78

PC5500-6 S/N 15166

04 150 51 52 53 54 55 55 55 56 56 56 56 60 62 62 63 64 64 65 66 66 67 68 71 72 73 75 75 76 77 78 80 80

PC5500-6 S/N 15166

01 100 101 101 101 102 102 104 105 106 107 108 109 110 110 111 112 113 114 115 116 117 118 118 129 129 54 56 56 56 63 63 63 64 64 64 64 64 64 64 66 66 66 68 71 71 71 72 80 80 80 86 87 88 92 93 94 95 96 97 98 98 99 99 99

PC5500-6 S/N 15166

03 100 101 101 102 104 105 106 107 108 109 110 110 110 111 112 113 117 118 119 63 64 64 64 64 68 71 71 72 80 80 92 93 94 95 96 97 98 98 99

PC5500-6 S/N 15166

102 102 102 102 120 121 121 121 121 122 122 122 122 32 33 56 60 63 64 68 71 71 71 71 80 80 80 80 80 80 80 80 99 99 99 99 99 99 99 99

PC5500-6 S/N 15166

07 135 135 135 135 160 161 162 163 164 164 165 165 166 166 166 166 170 171 172 173 174 174 175 175 176 176 177 178 37 38 39 40

PC5500-6 S/N 15166

125 125 127 127 176 176 191 191 191 192 192 192 193 200 201 201 202 202 203 203 204 205 206 207 48

#	Part Number	Partname	Quantity
01	991 353 40	Harness motor 1	1
02	978 426 40	Harness motor control 1	1
03	962 996 40	Harness motor 2	1
04	978 428 40	Harness motor control 2	1
05	990 619 40	Harness-starter-relay 1	1
06	990 620 40	Harness-starter-relay 2	1
07	976 656 40	Harness mass motor-cross bar	2
08	976 657 40	Plug retainer	1
09	957 962 40	Retainer	2
10	966 023 40	Protection guard	2
11	947 904 40	Relay plate	2
12	966 024 40	Angle	2
13	0443451210	Clamp	12
14	0443451510	Clamp	8
15	0443451910	Clamp	4
16	0443452711	Clamp	7
17	0443453211	Clamp	4
18	307 752 99	Bolt	18
19	334 599 99	Nut	12
20	340 464 99	Washer	30
21	307 728 99	Bolt	6
22	507 025 98	Nut	22
23	307 775 99	Bolt	2
24	307 777 99	Bolt	2
25	340 465 99	Washer	29
26	518 547 98	Washer	4
27	507 596 98	Washer	3
28	332 113 99	Nut	4
29	507 037 98	Nut	25
30	941 482 40	Thread pin	9
31	461 350 40	Revolution sensor	2
32	962 998 40	Harness air filter / cold start	1
33	907 498 40	Maintenance switch	4
34	961 122 40	Angle	2
35	340 506 99	Washer	18
36	350 762 99	Washer	12
37	976 648 40	Harness 52X022-1 - 52X022a-1	1
38	976 649 40	Harness 52X023-1 - 52X023a-1	1
39	976 650 40	Harness 52X022-2 - 52X022a-2	1
40	976 651 40	Harness 52X023-2 - 52X023a-2	1
41	655 642 40	Circular bearing	4
42	607 492 40	Resilient sleeve	4
43	0443551210	Double clamp	6
44	0819320010	Clip	19
45	501 551 98	Bolt	16
46	515 588 98	Nut	16
47	340 458 99	Washer	32
48	991 356 40	Harness 11X52 - 52Q002A	1
51	941 406 40	Plug assy.	2
52	941 407 40	Plug assy.	2
53	941 405 40	Plug assy.	2
54	950 112 40	Plug	3
55	941 408 40	Fitting	6
56	950 132 40	Protection cap	3
60	940 447 40	Cable union 30x3	2
61	907 708 40	Cable union 6x2,5	1
62	971 880 40	Plug	6
63	0819105320	Pin contact	-2
64	940 852 40	Plug	-2
65	0819100770	Sealing plate	-2
66	0819105420	Female contact	-2
67	951 510 40	Female contact	-2
68	621 698 40	Contact plug 1-2 qmm	-2
69	941 777 40	Plate	-2
70	174 411 40	Cable strap	-2
71	896 520 40	End pin 3,0x25	-2
72	0819213400	Wedge 6x0,6	-2
73	950 503 40	Shrinkdown tubing	-2
75	940 468 40	Insulating tube 16x1	-2
76	906 516 40	Female contact	-2
77	941 791 40	Rubber grommet	-2
78	906 650 40	Pin contact	-2
80	907 703 40	Cable union 4x3	20
86	950 110 40	Plug	1
87	950 113 40	Socket	1
88	950 137 40	Plug	1
92	950 166 40	Plug assy.	2
93	950 178 40	Body	2
94	950 173 40	O-ring	2
95	950 174 40	Pin contact	-2
96	950 179 40	Contact element	-2
97	950 176 40	Protection cap	2
98	907 704 40	Cable union 3x3,5	2
99	940 461 40	Insulating tube B5x0,6	-2
100	960 642 40	Socket assy. with protective housing	1
101	952 675 40	Plug assy. with rubber grommet	3
102	966 667 40	Plug assy. with rubber grommet	2
104	958 963 40	Socket assy. with rubber grommet	1
105	941 880 40	Plug	1
106	0819213400	Wedge	1
107	621 699 40	Female contact	3
108	941 791 40	Rubber grommet	1
109	940 459 40	Insulating tube B 3x0,4	-2
110	940 462 40	Insulating tube B 6x0,6	-2
111	907 707 40	Cable union 2x2,5 / 2x6	1
112	896 522 40	End pin 6,0x25	1
113	907 477 40	Cable union 12/M16	1
114	950 189 40	Plug	1
115	081 921 24 00	Wedge	1
116	950 190 40	Rubber grommet	1
117	950 136 40	Plug	1
118	950 131 40	Protection cap	1
119	933 385 40	Plug assy.	1
120	950 110 40	Plug	1
121	056 054 40	Grommet	-2
122	651 461 40	Housing assy.	4
125	055 108 40	Cable lug 5 - 2,5	3
126	519 459 98	Cable lug 8 - 6	2
127	255 745 40	Rubber grommet	8
128	963 436 40	Plug assy. with rubber grommet	1
129	940 463 40	Insulating tube B 7x0,7	-2
130	907 511 40	Cable lug 2.5F M12	1
131	519 282 98	Cable 2,5 mm2	-2
132	907 553 40	Cable 16,0 mm2	-2
133	600 225 99	Cable lug 5 - 6	2
134	655 693 40	End grommet	2
135	932 530 40	Cable lug 6 - 2,5	1
136	950 505 40	Shrinkdown tubing	-2
140	509 875 98	Thread pin	4
141	950 362 40	Temperatur sensor	1
142	950 281 40	Pressure measuring transducer	1
143	907 989 40	Threaded pin	3
145	044 355 21 10	Double clamp DN17	4
150	941 786 40	Temperatur sensor	2
151	907 991 40	Thread pin	2
160	950 826 40	Plug 7 pol.	1
161	950 827 40	Socket 7 pol.	1
162	951 171 40	Female contact	5
163	950 835 40	Pin contact	5
164	950 828 40	Seal	10
165	950 829 40	Plug	4
166	950 833 40	Body	2
170	950 824 40	Plug 4 pol.	1
171	950 825 40	Socket 4 pol.	1
172	950 831 40	Female contact	4
173	950 830 40	Pin contact	4
174	950 832 40	Seal	8
175	600 209 99	Cable lug 10-95	2
176	056 076 40	Protection cap	2
177	950 506 40	Shrinkdown tubing	-2
178	906 651 40	Cable 95,0	-2
185	990 617 40	Harness 52Q002A-1 - 52Q002A-2	-2
186	950 208 40	End grommet	2
187	520 042 98	Cable lug	2
190	990 618 40	Harness 11X_52 - 52Q002A-2	-2
191	907 692 40	Fitting M16	2
192	932 944 40	Cable union M 16x1,5	1
193	269 078 40	Wire end ferrule	1
200	950 209 40	End grommet	1
201	906 490 40	Union	2
202	940 471 40	Fitting M 16 / DN10	2
203	520 042 98	Cable shoe	3
204	907 693 40	Fitting M20/NW17	1
205	907 478 40	Cable union DN 17	1
206	056 071 40	Cable sleeve 2,5	2
207	951 368 40	Resin strip	-2

Komatsu PC5500-6 S/N 15166 parts catalog PDF

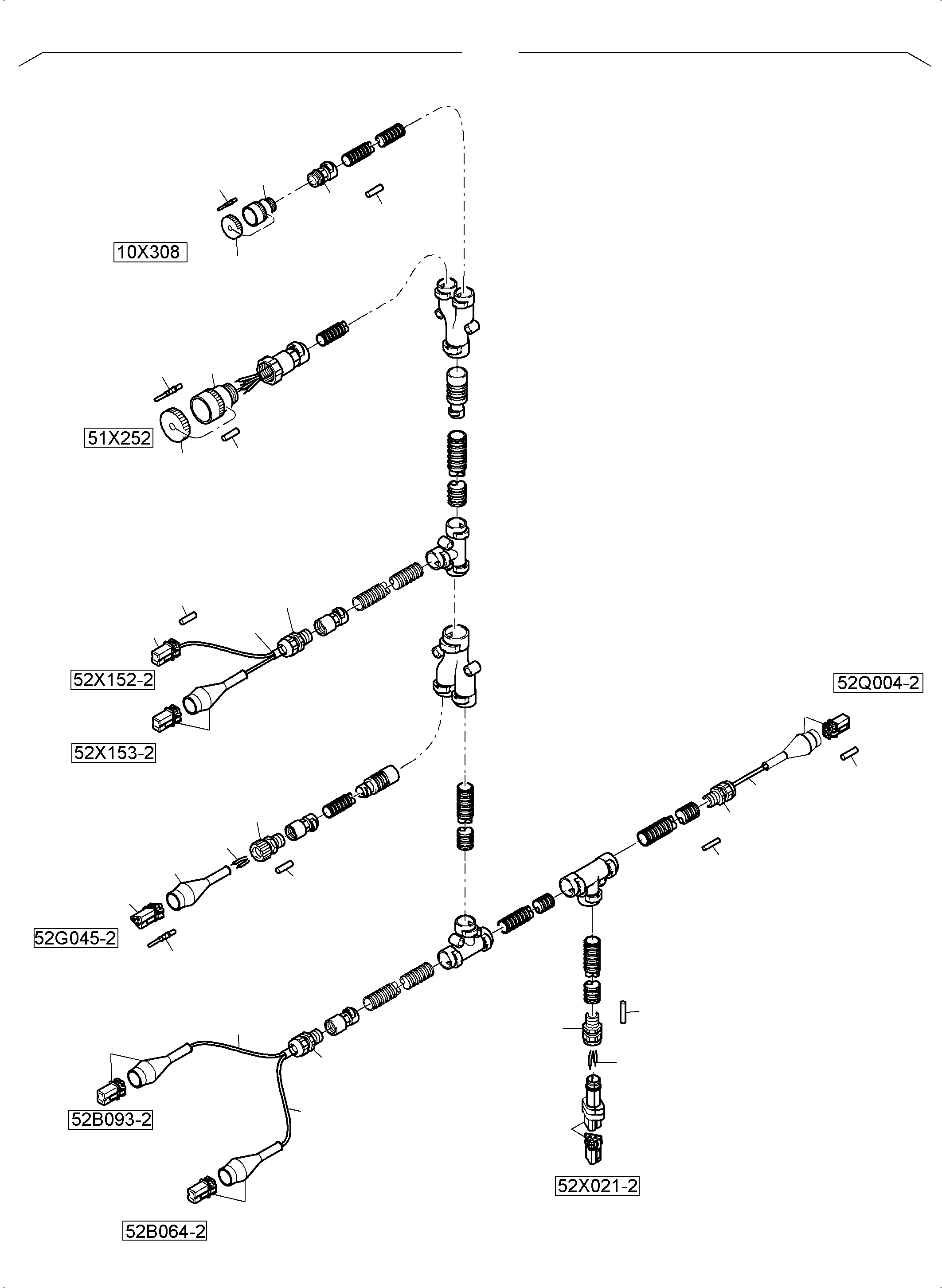

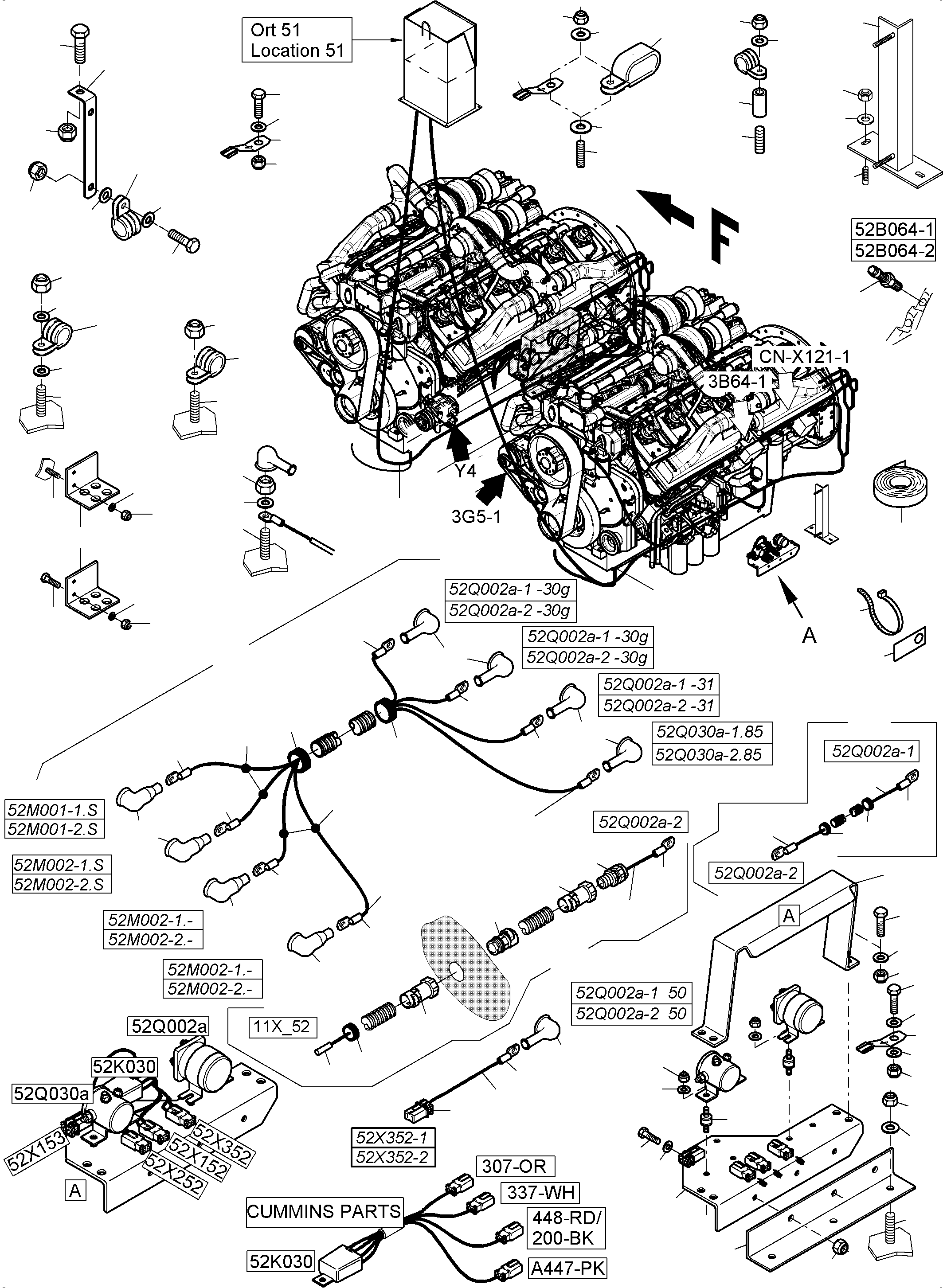

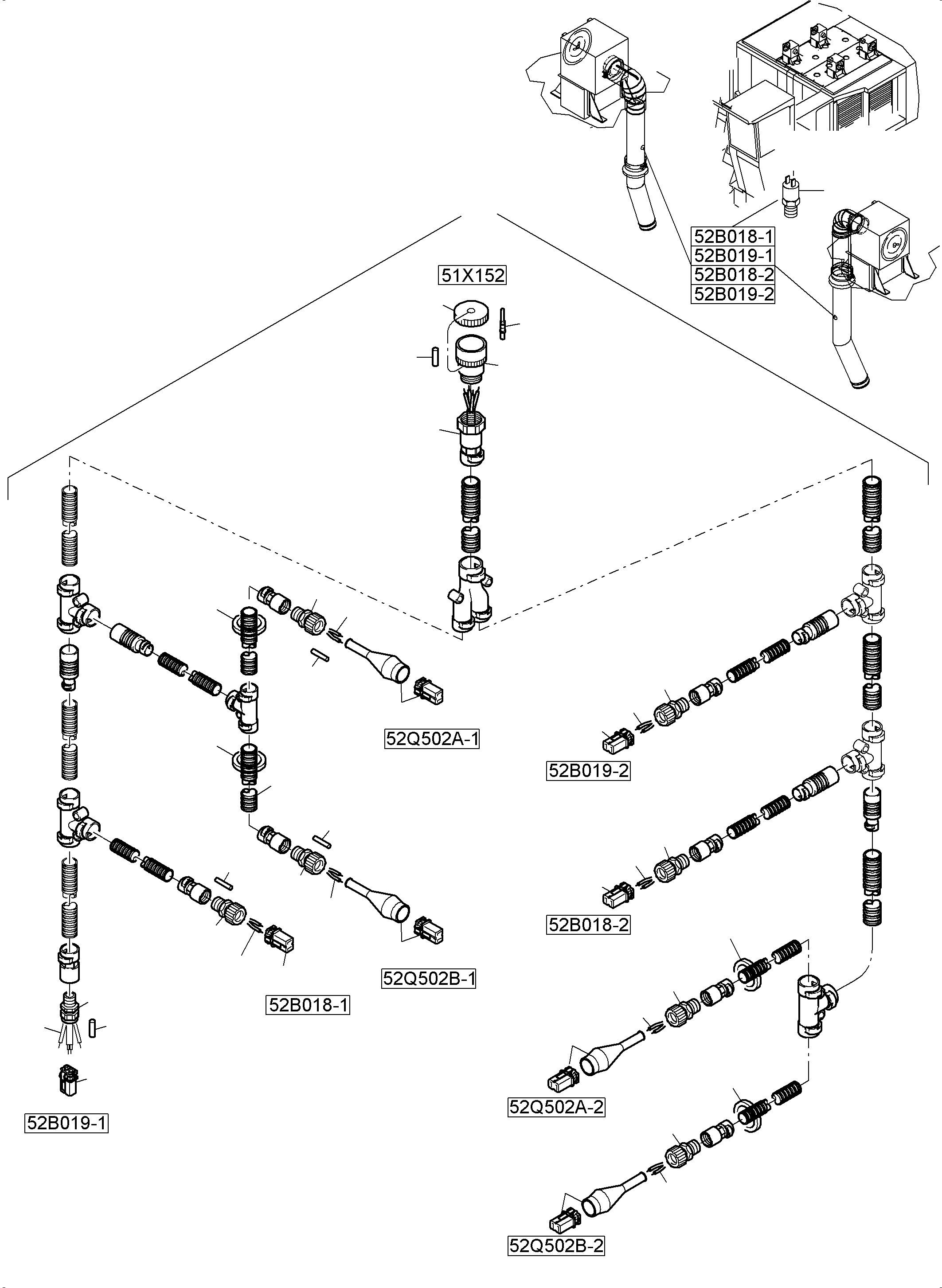

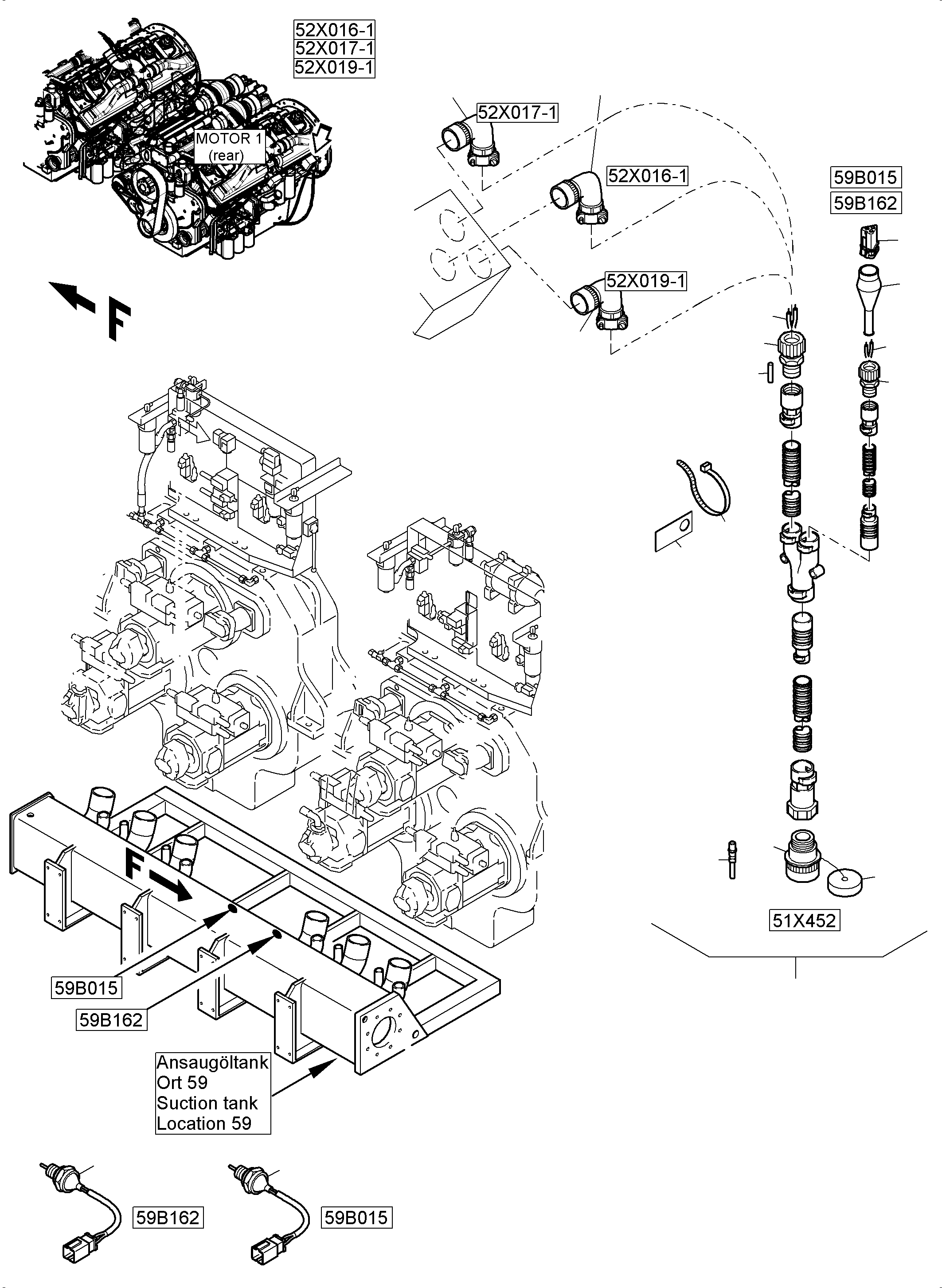

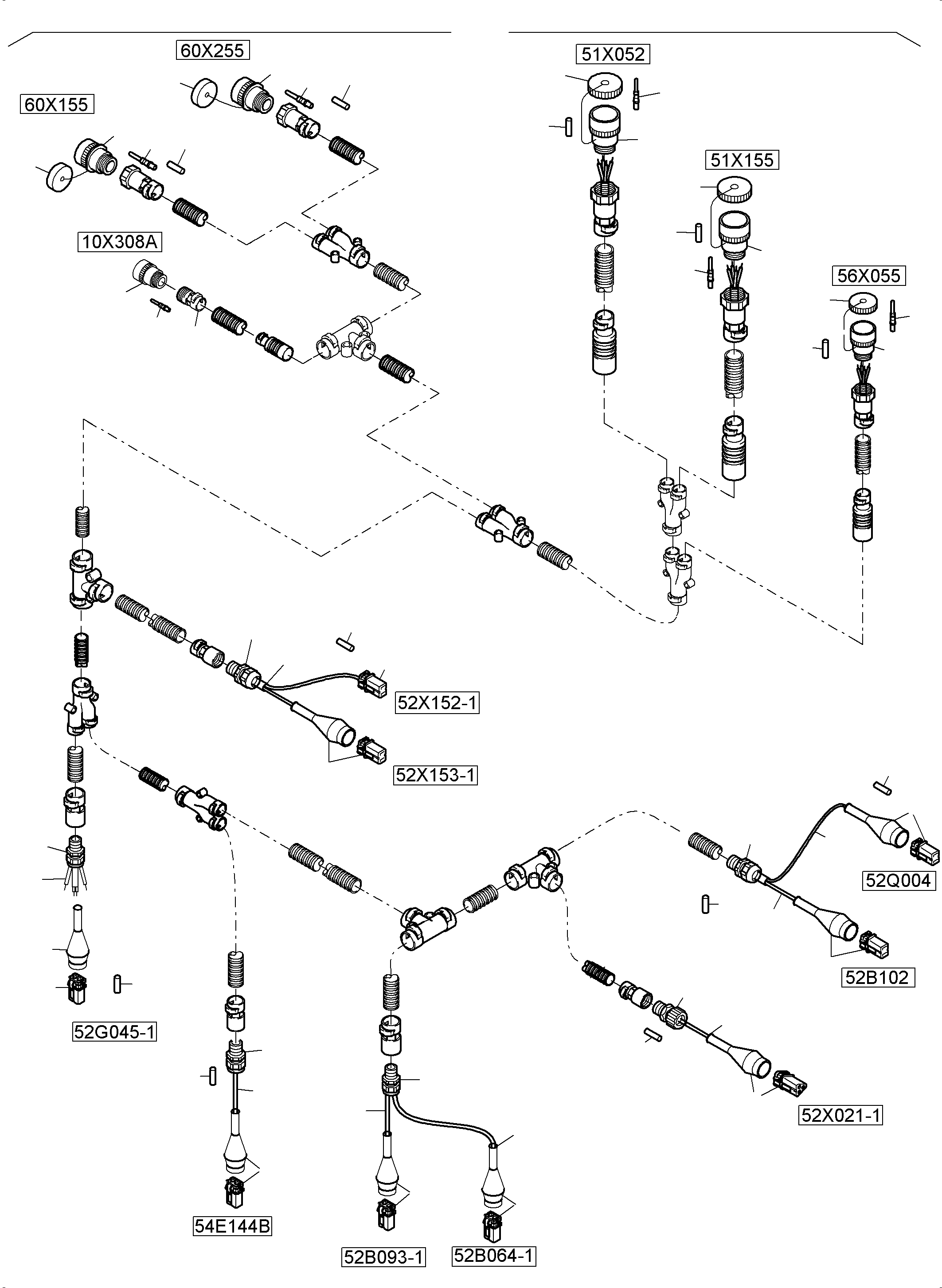

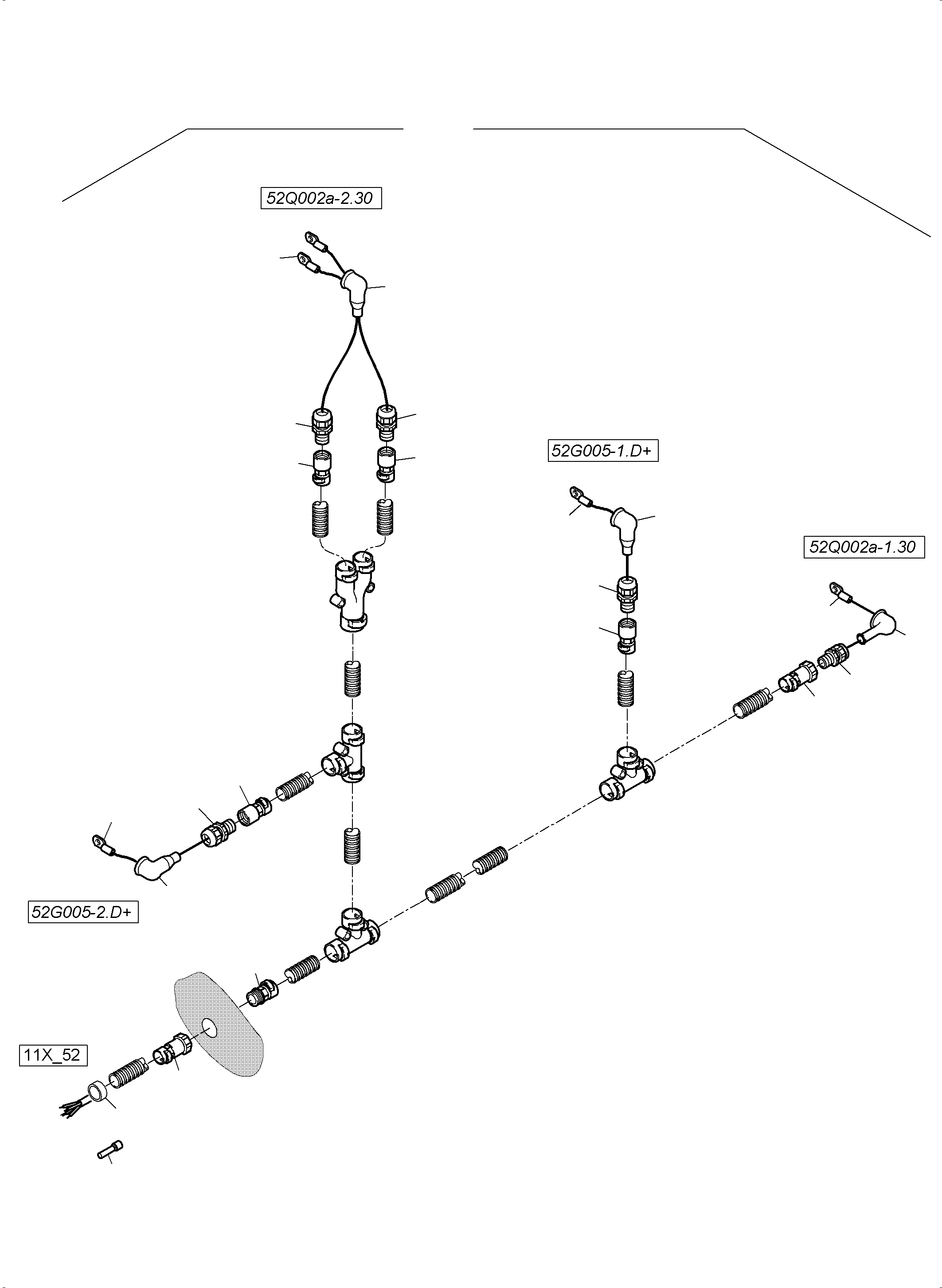

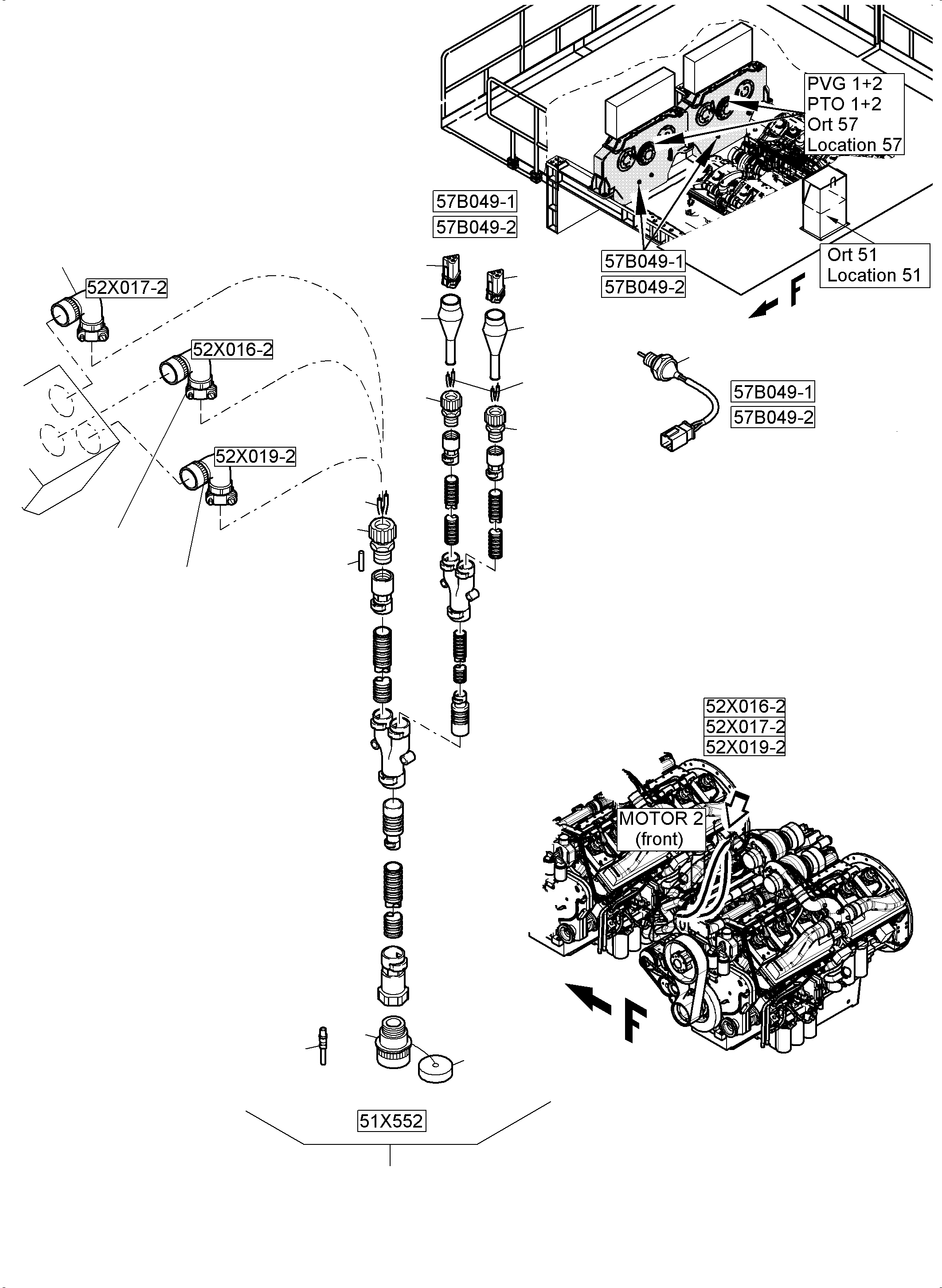

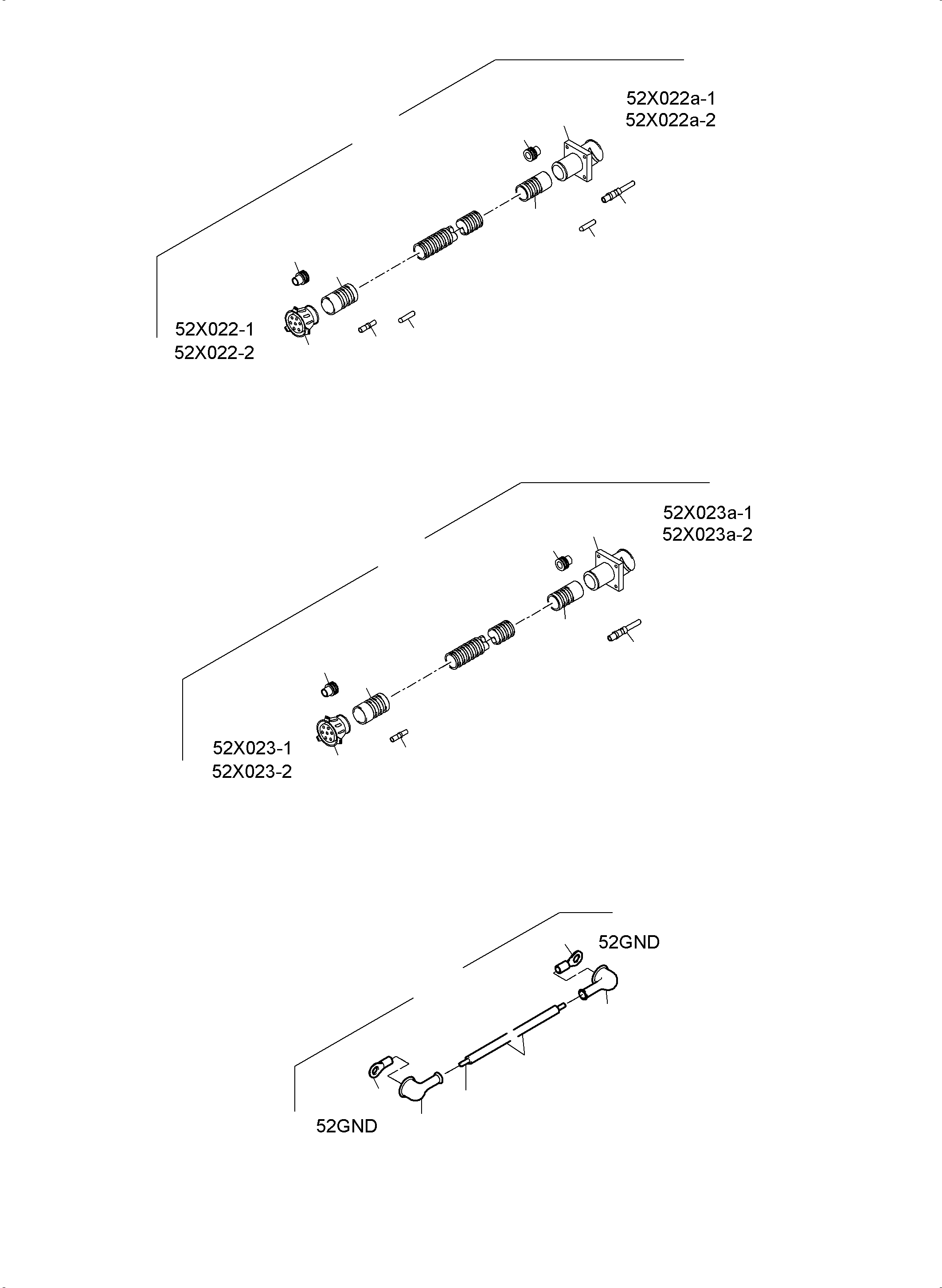

CABLES - ENGINE AND TRANSMITTER (515-2252i) in PC5500-6 S/N 15166. Diagram image and parts list.
