Diagram image 1 of 2

PC5500-6 S/N 15166

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15166

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	977 089 40	Lamp with retainer	1
?	307 639 99	Bolt	2
?	518 594 98	Lock washer	2
?	907 989 40	Threaded pin	44
?	507 596 98	Washer	44
?	340 465 99	Washer	44
?	507 037 98	Nut	34
?	443 453 211	Clamp DN29	22
?	0443451210	Clamp DN10	26
?	957 068 40	Tread plate	1
?	952 663 40	Protection plate	1
?	308 577 99	Bolt	3
?	952 662 40	Protection plate	1
?	307 773 99	Bolt	4
?	517 122 98	Lock washer	7
?	510 746 98	Resilient sleeve	3
?	0443452310	Clamp	1
?	0819320010	Clip	1
?	951 320 40	Head light	1
?	977 088 40	Retainer	1
?	955 905 40	Cover	1
?	955 902 40	Retainer	1
?	307 775 99	Bolt	2
?	896 746 40	Horn	1
?	961 139 40	Retainer	1
?	907 476 40	Cable union	1
?	907 989 40	Threaded pin	6
?	308 585 99	Bolt	2
?	999 402 40	Socket assy.	1
?	940 462 40	Insulating tube	-2
?	940 471 40	Fitting M16/DN10	1
?	907 703 40	Cable union 4x3	1
?	940 271 40	Cable union DN 10	1
?	941 777 40	Plate	-2
?	174 411 40	Cable strap	-2
?	255 680 40	Pull switch 54S007/8	1
?	655 649 40	Cable protection hose DN 10	-2
?	941 765 40		2
?	940 852 40	Plug	4
?	896 520 40	End pin 3,0x25	2
?	515 213 40	Cable 1,0	-2
?	0819216300	Wedge	1
?	0819105320	Pin contact	2
?	951 509 40	Cover	1
?	940 916 40	Shrinkdown tubing	-2
?	954 558 40	Harness - driver warning system (option) 54S007	-2
?	954 559 40	Harness - driver warning system (option) 54S008	-2
?	318 107 99	Screw	6
?	518 560 98	Lock washer	6
?	985 839 40	Chain kpl. yellow	1
?	999 176 40	Shrinkdown tubing, yellow	-2
?	955 909 40	Harness - motor switch off from floor 54S051	1
?	955 910 40	Harness - motor switch off from floor 54S052	1
?	321 011 99	Screw	8
?	985 840 40	Chain, cpl. Red	2
?	472 688 99	Chain	-2
?	098 955 40	Ring	4
?	941 210 40	Shrinkdown tubing, red	-2
?	940 520 40	Fitting	1
?	655 631 40	Pipe adapter DN 12/10	1
?	907 705 40	Cable union	1
?	947 400 40	Pull switch assy.	2
?	941 669 40	Pull switch, without LED 54S051/52	1
?	941 592 40	Light emitting diode, red	1
?	055 140 40	Butt connector 0,5 - 1,0 mm2	1
?	951 198 40	Distributer	1
?	950 457 40	Thermal contraction tube	-2
?	951 199 40	Thermal contraction tube	-2
?	950 504 40	Shrinkdown tubing	-2
?	951 200 40	Junction	1
?	440 092 40	Plug	3
?	932 518 40	Cable lug	1
?	966 667 40	Plug assy. with rubber grommet	1
?	655 873 40	Cable 1,5 bl	-2
?	951 359 40	Lamp	1
?	951 360 40	Retainer	1
?	517 121 98	Lock washer	1
?	907 707 40	Cable union	1
?	940 520 40	Fitting	1
?	896 522 40	End pin	2
?	655 631 40	Pipe adapter DN 12/10	1
?	307 752 99	Bolt	1
?	0819320010	Clip	1
?	950 189 40	Plug	1
?	081 921 24 00	Wegde	1
?	621 699 40	Female contact 1-2 qmm	2
?	950 190 40	Rubber grommet	1

Komatsu PC5500-6 S/N 15166 parts catalog PDF

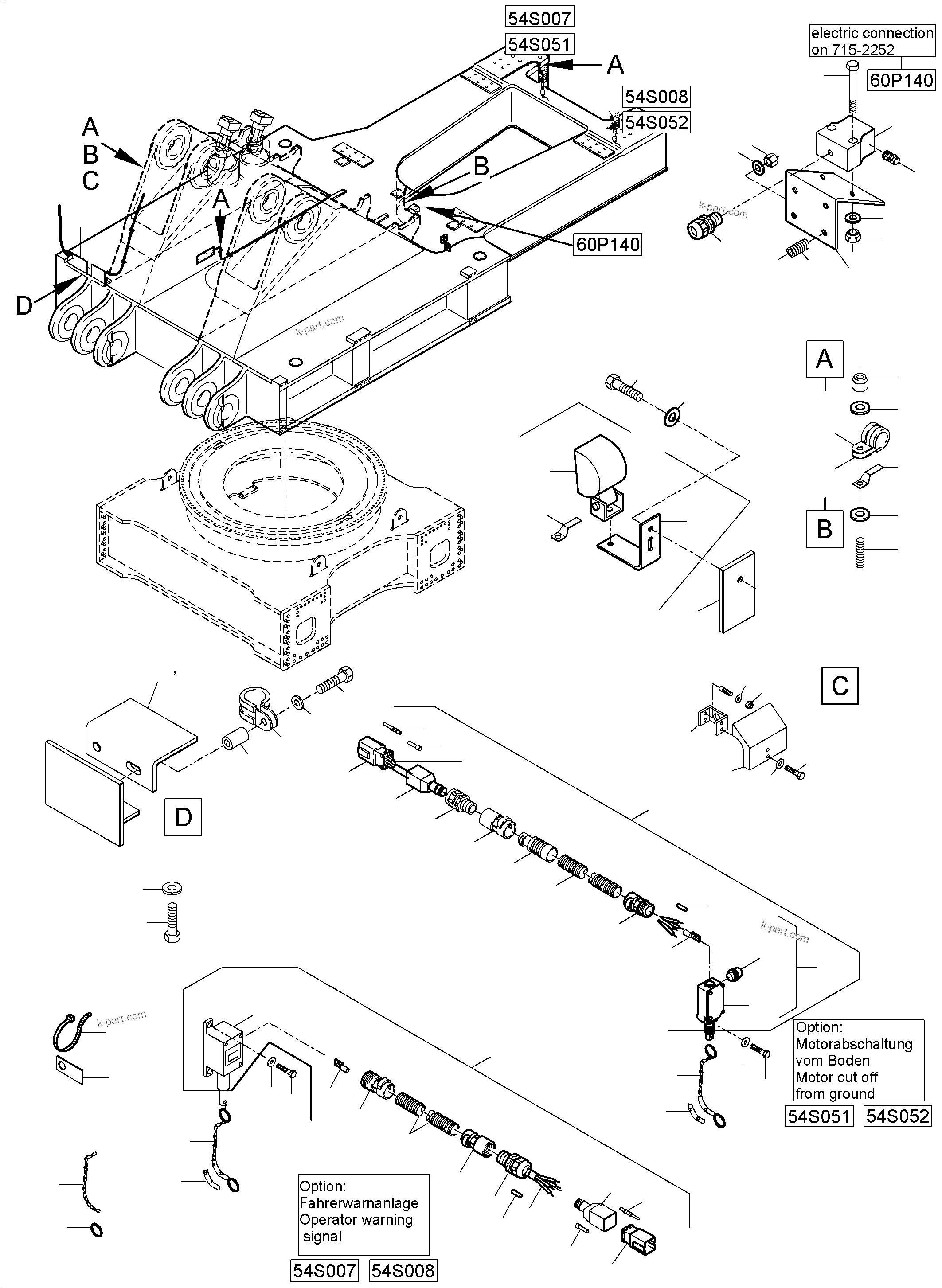

ELECT. PARTS - SUPERSTRUCTURE-PLATFORM (515-2264e) in PC5500-6 S/N 15166. Diagram image and parts list.
