CAB SUPPORT, MOUNTING | H455-SD S/N 15009 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

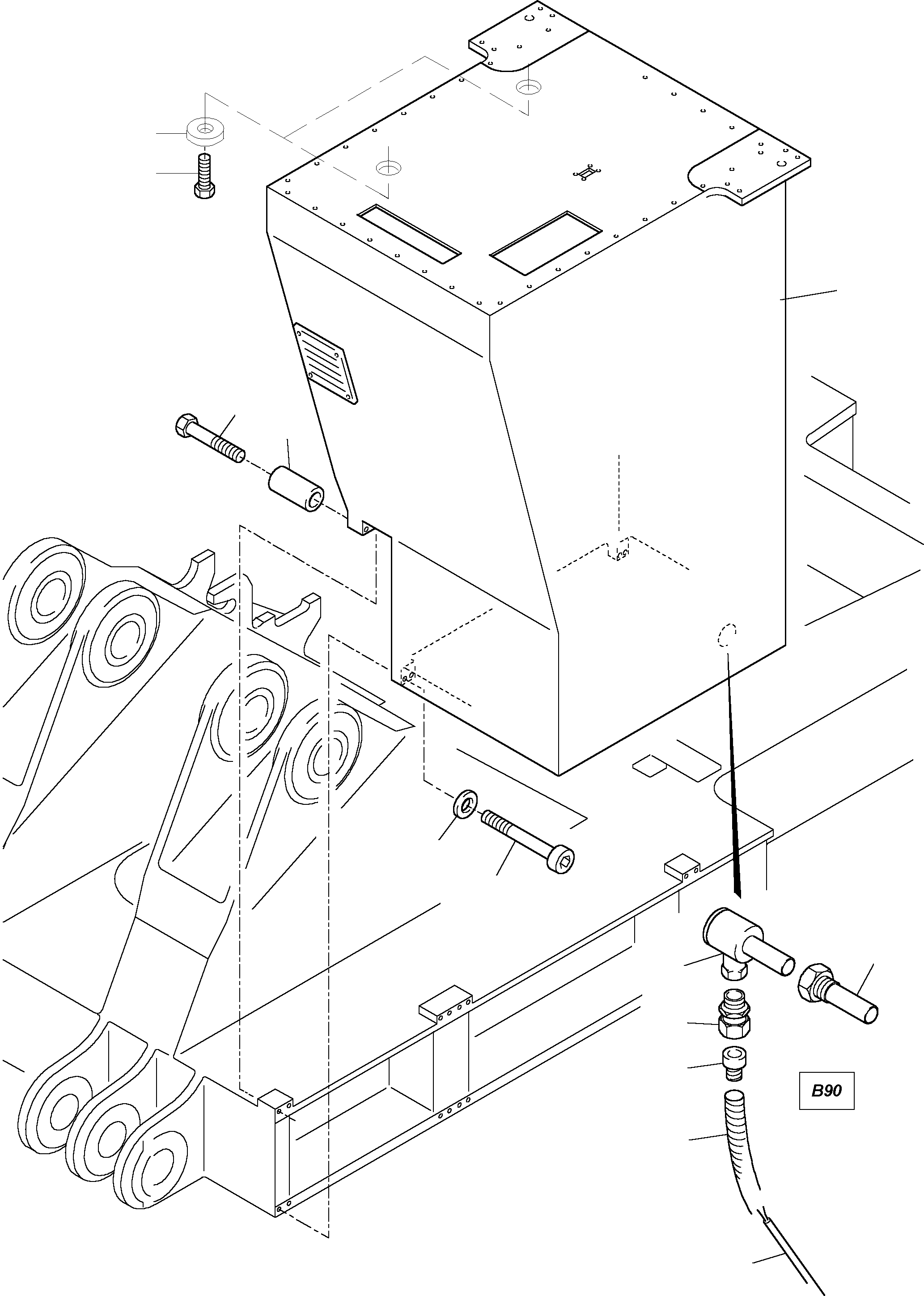

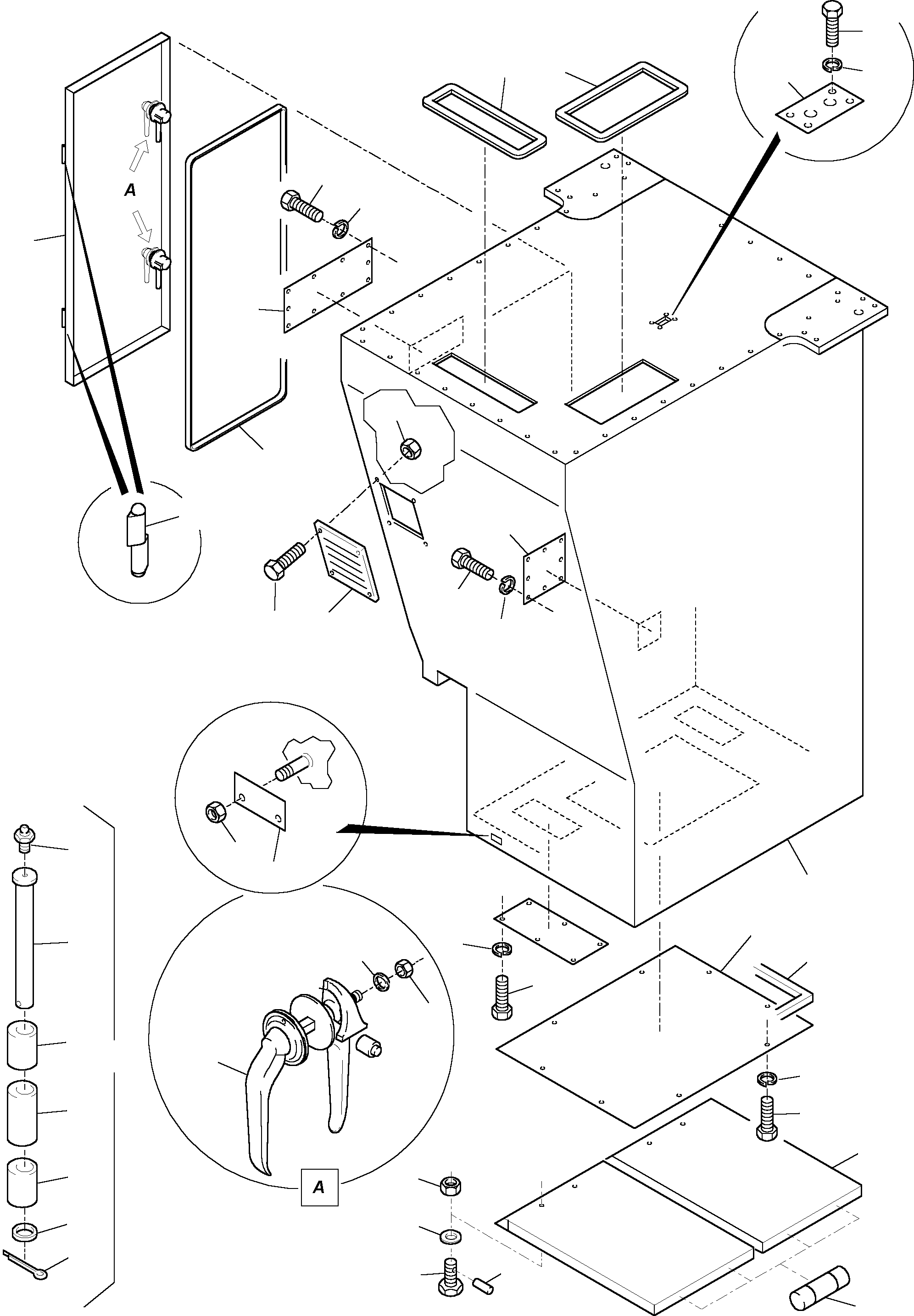

Diagram image 1 of 2

H455-SD S/N 15009

01 02 03 04 50 51 52 53 54 55 56 60 61

H455-SD S/N 15009

05 06 07 08 09 10 11 12 13 14 14 14 14 14 14 15 15 15 15 15 16 17 17 18 19 20 20 21 22 23 23 24 25 26 27 28 30 31 32 33 34 34 35

#	Part Number	Partname	Quantity	Options
01	637 520 40	Cab support assy.	1	InternBDB: DKG \| InternKon: 872 255 40 / 3
02	511 809 98	Bolt Cold weather design	7	InternBDB: M 36 x 240 / 931 \| InternKon: 872 255 40 / 21
02	302 662 99	Bolt Standard	7	InternBDB: M 36 x 240 / 931 \| InternKon: 872 255 40 / 21
03	255 056 40	Washer	4	InternBDB: 37 \| InternKon: 872 255 40 / 24
04	513 604 98	Bolt Cold weather design	1	InternBDB: M 36 x 240 / 912 KALTZ \| InternKon: 872 255 40 / 56
05	608 701 40	Cab support	1	InternBDB: DKG \| InternKon: 637 520 40 / 1
06	637 511 40	Cover	1	InternKon: 637 520 40 / 2
07	647 864 40	Seal	1	InternBDB: TL \| InternKon: 637 520 40 / 3
08	647 865 40	Seal	1	InternBDB: TL \| InternKon: 637 520 40 / 4
09	592 259 40	Profiled joint 5000 mm Bulk ware, state length required	-2	InternBDB: GHE 461 0075 \| InternKon: 637 520 40 / 5
10	647 884 40	Plate	1	InternKon: 637 520 40 / 6
11	294 022 40	Ventilation grid	1	InternKon: 637 520 40 / 7
12	675 646 40	Plate	1	InternKon: 637 520 40 / 8
13	887 034 40	Cover	1	InternKon: 637 520 40 / 9
14	307 576 99	Bolt	26	InternBDB: M8x20 \| InternKon: 637 520 40 / 10
15	343 108 99	Lock washer	22	InternBDB: 8 \| InternKon: 637 520 40 / 11
16	675 666 40	Plate	1	InternKon: 637 520 40 / 12
17	334 599 99	Nut	6	InternBDB: M 8 \| InternKon: 637 520 40 / 13
18	635 837 40	Sealing compound	-2	InternBDB: Terosn 930 weiЯ / Kartusche 310 ml \| InternKon: 637 520 40 / 17
19	661 680 40	Door	1	InternKon: 630 036 40 / 1
20	390 199 40	Hinge assy.	4	InternBDB: DKG \| InternKon: 630 036 40 / 12
21	350 562 99	Grease nipple	4	InternBDB: AM 10x1 \| InternKon: 390 199 40 / 6
22	621 108 40	Pin	4	InternKon: 390 199 40 / 1
23	390 600 40	Bushing	8	InternKon: 390 199 40 / 2
24	390 601 40	Bushing	4	InternKon: 390 199 40 / 3
25	340 612 99	Washer	4	InternKon: 390 199 40 / 4
26	342 061 99	Cotter pin	4	InternBDB: 4x32 \| InternKon: 390 199 40 / 5
27	440 387 40	Fastener	2	InternBDB: Emka 1091-U1
28	512 545 98	Washer	1	InternBDB: Ш 13 / 125
30	440 556 40	Hinge	2	InternBDB: Emka 1033-U11 \| InternKon: 630 036 40 / 2
31	627 680 40	Flap	2	InternKon: 630 036 40 / 11
32	372 363 40	Bolt	4	InternBDB: TL \| InternKon: 630 036 40 / 15
33	346 498 99	Lock washer	4	InternBDB: 12 \| InternKon: 630 036 40 / 14
34	332 353 99	Nut	5	InternBDB: M 12 \| InternKon: 630 036 40 / 16
35	344 273 99	Parallel pin	4	InternBDB: 3 M6x18 \| InternKon: 630 036 40 / 17
50	269 870 40	Cover tube	1	InternBDB: Noris \| InternKon: 894 043 40 / 17
51	440 382 40	Sensor PT 100	1	InternBDB: Noris TP 31 \| InternKon: 894 043 40 / 15
52	300 970 40	Cable union	1	InternBDB: PG 9
53	356 246 40	Socket	1	InternBDB: PG 9
54	356 238 40	Protecting hose Bulk ware, state length required	-2	InternBDB: PG 9
55	323 164 40	Cable Bulk ware, state length required	-2	InternBDB: AWG 12 SW / 2-polig
56	511 766 98	Resilient sleeve	4	InternBDB: 37/65 x 90
60	307 209 99	Bolt	2	InternBDB: M 30 x 80 / 931 \| InternKon: 653 660 40 / 58
61	674 999 40	Washer	2	InternBDB: Ш 120 / 33x20 \| InternKon: 653 660 40 / 57
