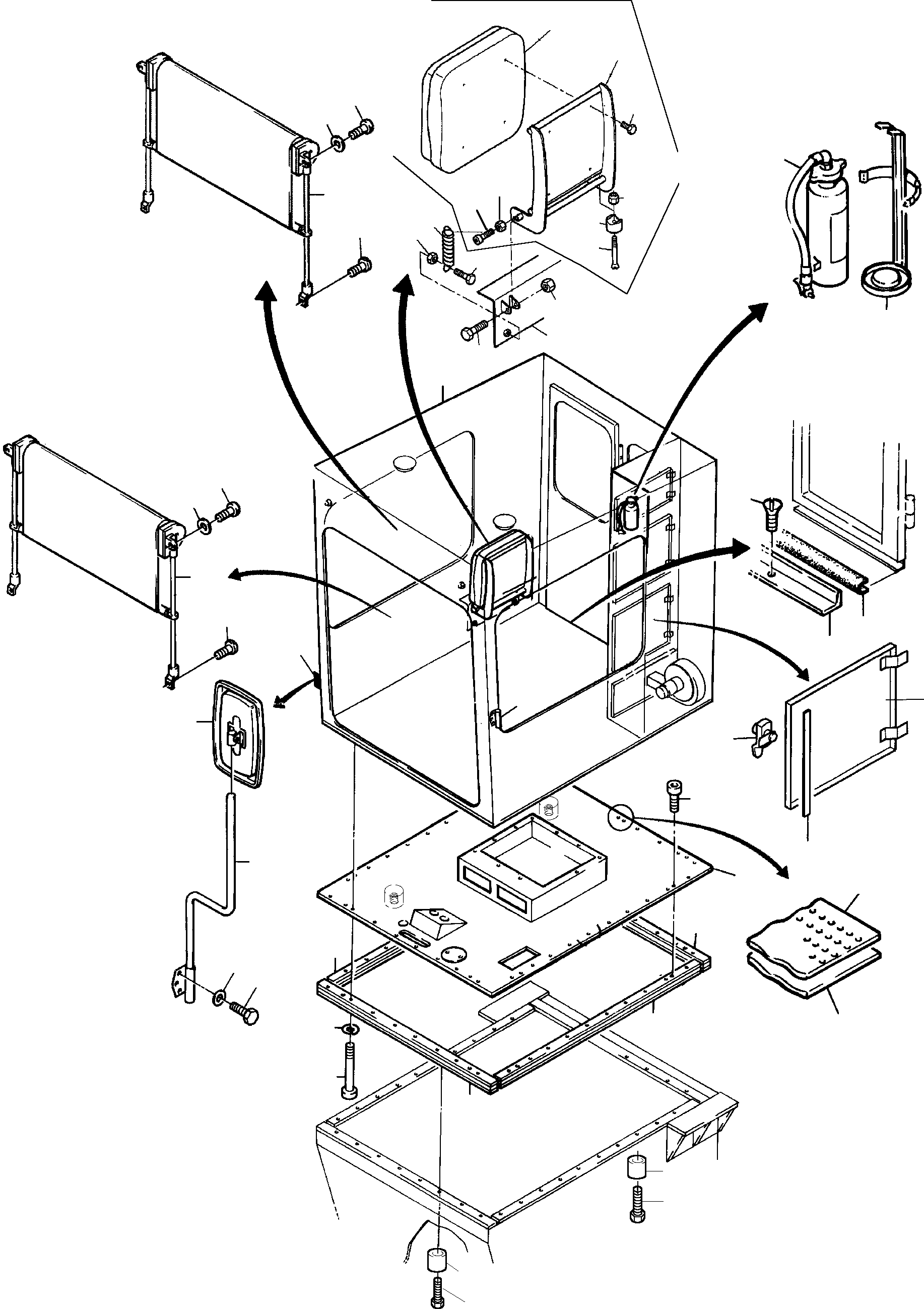

OPERATOR'S CAB ARR. WITH FOLDING SEAT R.H. | H455-SD S/N 15009

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options	Reference
01		Operator's cab	1	InternBDB: 883 778 40 \| InternKon: 872 265 40 / 1	991-0163a
02	343 855 99	Lock washer	35	InternBDB: 10 /7980 \| InternKon: 872 265 40 / 14
03	319 267 99	Bolt Standard	33	InternBDB: M10x120 \| InternKon: 872 265 40 / 7
03	513 969 98	Bolt cold weather design	33	InternBDB: M10x120 \| InternKon: 872 265 40 / 7
04	319 147 99	Bolt	8	InternBDB: M10x25 \| InternKon: 643 733 40 / 14
05	506 541 40	Rubber-metal block	1	InternBDB: TL \| InternKon: 643 733 40 / 6
06	506 543 40	Rubber-metal block	1	InternBDB: TL \| InternKon: 643 733 40 / 5
07	506 539 40	Rubber-metal block	1	InternBDB: TL \| InternKon: 643 733 40 / 4
08	506 542 40	Rubber-metal block	1	InternBDB: TL
09	308 846 99	Bolt	32	InternBDB: M10x65 / 10.9 \| InternKon: 653 660 40 / 33
10	510 746 98	Resilent sleeve	38	InternBDB: M10x65 / 10.9 \| InternKon: 653 660 40 / 34
11	511 939 98	Bolt	6	InternBDB: M10x90 / 10.9 \| InternKon: 653 660 40 / 60
12	621 640 40	Mirror bracket	1	InternBDB: H 241 \| InternKon: 890 659 40 / 28
13	621 641 40	Mirror bracket l.h	1	InternBDB: H 285 \| InternKon: 890 659 40 / 29
14	089 173 40	Mirror	2	InternKon: 890 659 40 / 30
15	346 499 99	Lock washer	6	InternBDB: 6 \| InternKon: 890 659 40 / 31
16	307 631 99	Bolt	6	InternBDB: M6x10 \| InternKon: 890 659 40 / 32
20	490 489 40	Window shade, hand-operated	1	InternBDB: TL \| InternKon: 890 659 40 / 26
21	643 743 40	Control plate	1	InternKon: 643 733 40 / 1
22	655 552 40	Fire extinguisher	1
23	414 500 40	Bracket	1
24	653 626 40	Floor	1	InternBDB: TL \| InternKon: 890 659 40 / 4
25	650 656 40	Lining	1	InternBDB: TL \| InternKon: 890 659 40 / 5
26	462 810 40	Cover strip	1	InternKon: 890 659 40 / 38
27	318 379 99	Bolt	3	InternBDB: M6x12 \| InternKon: 890 659 40 / 46
28	166 575 40	Profiled joint 800 mm Bulk ware, state length required	1	InternBDB: GHE 461 0048 \| InternKon: 890 659 40 / 47
29	321 009 99	Bolt	2	InternBDB: M5x16 \| InternKon: 890 659 40 / 44
30	340 461 99	Washer	2	InternBDB: 5,3 \| InternKon: 890 659 40 / 45
31	318 573 99	Bolt	2	InternBDB: M4x10 \| InternKon: 890 659 40 / 40
32	414 501 40	Protection Box	1
33	634 405 40	Window shade, r.h.	1	InternBDB: TL \| InternKon: 643 733 40 / 26
41	872 275 40	Carrier	1	InternKon: 872 277 40 / 1
42	872 671 40	Folding seat	1	InternKon: 872 277 40 / 2
43	308 608 99	Bolt	2	InternBDB: M12x70 /931 \| InternKon: 872 277 40 / 3
44	334 600 99	Nut	2	InternBDB: M 12 /985 \| InternKon: 872 277 40 / 4
45	308 553 99	Bolt	2	InternBDB: M8x35 /931 \| InternKon: 872 277 40 / 6
46	332 111 99	Nut	4	InternBDB: M 8 /934 \| InternKon: 872 277 40 / 7
47	675 685 40	Flap	1	InternKon: 872 277 40 / 8
48	241 391 40	Plate 20x5x60	1	InternKon: 872 277 40 / 9
49	385 233 40	Lock	1	InternBDB: GHE 580 0175 \| InternKon: 872 277 40 / 10
50	575 044 40	Rubber seal 10x3x500 Bulk ware, state length required	-2	InternBDB: Happich \| InternKon: 872 277 40 / 11
51	872 675 40	Seat frame	1	InternKon: 872 671 40 / 1
52	551 289 40	Seat upholstery	1	InternBDB: Grammer 016901 \| InternKon: 872 671 40 / 2
53	237 262 40	Stop	2	InternKon: 872 671 40 / 3
54	500 169 98	Bolt	2	InternBDB: M6x70 /963 \| InternKon: 872 671 40 / 4
55	507 025 98	Nut	14	InternBDB: M 6 /985 \| InternKon: 872 671 40 / 5
56	307 752 99	Bolt	2	InternBDB: M8x20 /933 \| InternKon: 872 671 40 / 6
57	308 536 99	Bolt	4	InternBDB: M6x40 /931 \| InternKon: 872 671 40 / 8
58	652 044 40	Draw spring	2	InternBDB: /2076 \| InternKon: 872 671 40 / 9
