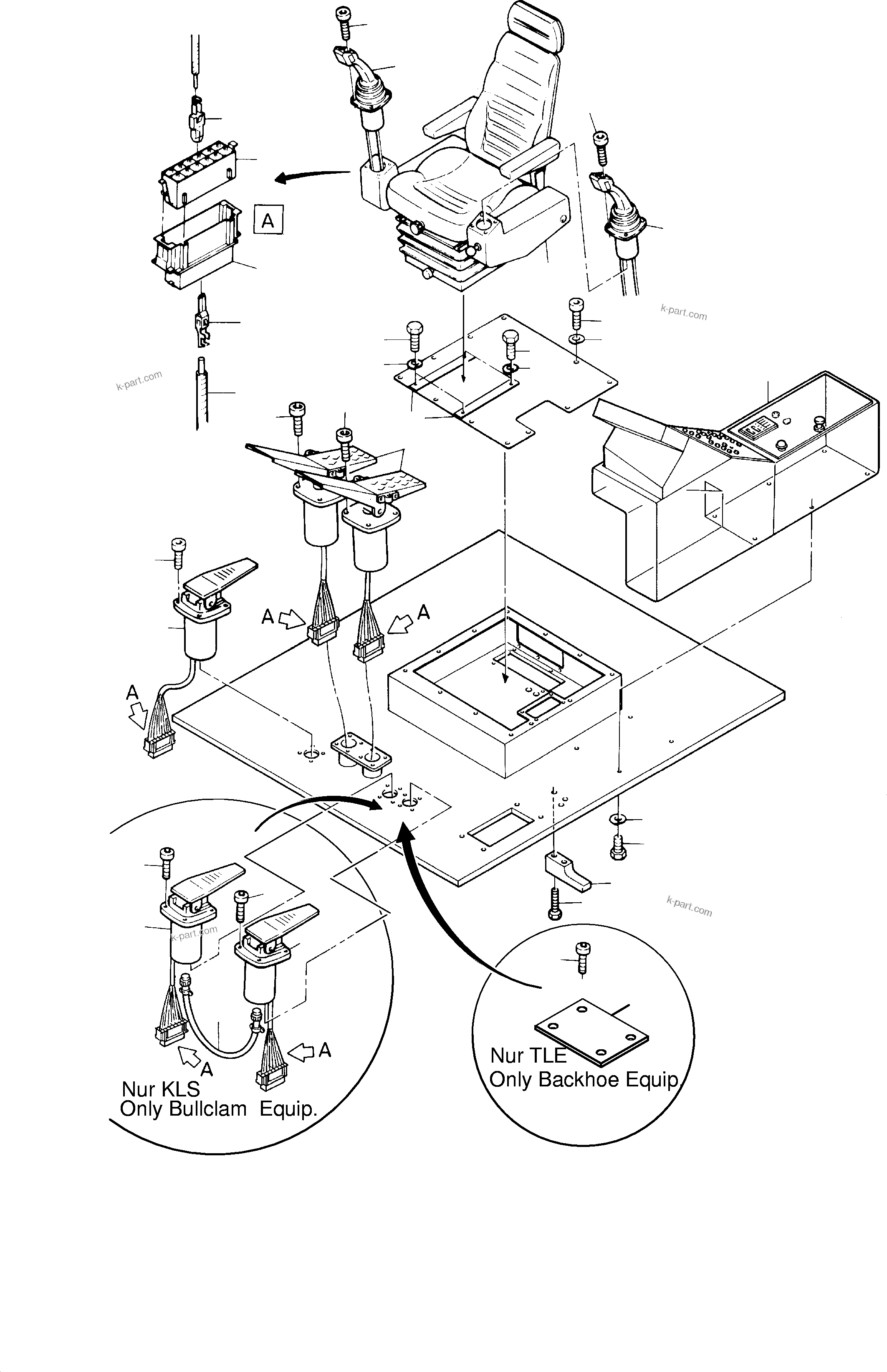

OPERATOR'S STAND | H455-SD S/N 15009 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options	Reference
?		Operator's seat	1	InternBDB: 886 123 40	991-0288
?		Operation panel	1	InternKon: 659 874 40 / 2	515-1920d
?		Manipulator	2	InternBDB: 894 097 40 \| InternKon: 659 874 40 / 16	991-0120b
?		Manipulator	2	InternBDB: 891 092 40 \| InternKon: 659 874 40 / 102	991-0122a
?		Manipulator	3	InternBDB: 891 093 40 \| InternKon: 659 874 40 / 22	991-0121a
?	490 958 40	Socket	9	InternBDB: Gr. + Ha. GHW-NR 14019.562.699
?	490 959 40	Housing	9	InternBDB: Gr. + Ha. GHW-NR 14020.562.699
?	515 129 40	Contact	108	InternBDB: Gr. + Ha. GHW-NR 46851.213.179
?	490 960 40	Tab	108	InternBDB: Gr. + Ha. GHW-NR 26260.331.179
?	634 374 40	Cable	1	InternBDB: FSG 3522 S 10-90.00A
?	481 125 40	Retainer	2
?	318 603 99	Screw	12	InternBDB: M6x16 /912
?	307 830 99	Bolt	4	InternBDB: M16x70 /933
?	635 329 40	Cable 18-pol. x 1000	1
?	886 103 40	Cover	1	InternKon: 643 733 40 / 2
?	308 576 99	Bolt	2	InternBDB: M10x45 /933
?	343 855 99	Lock washer	2	InternBDB: 10 /7980
?	318 914 99	Bolt	12	InternBDB: M8x16 \| InternKon: 643 733 40 / 13
?	343 854 99	Lock washer	12	InternBDB: 8 /7980 \| InternKon: 643 733 40 / 20
?	346 500 99	Lock washer	6	InternBDB: 10 /128 \| InternKon: 643 733 40 / 21
?	319 429 99	Bolt	6	InternBDB: M10x20 /912 \| InternKon: 643 733 40 / 16
?	903 936 40	Cover	1	InternKon: 903 937 40 / 1
?	319 416 99	Bolt	4	InternBDB: M6x10 / 8.8 / 912 \| InternKon: 903 937 40 / 2
