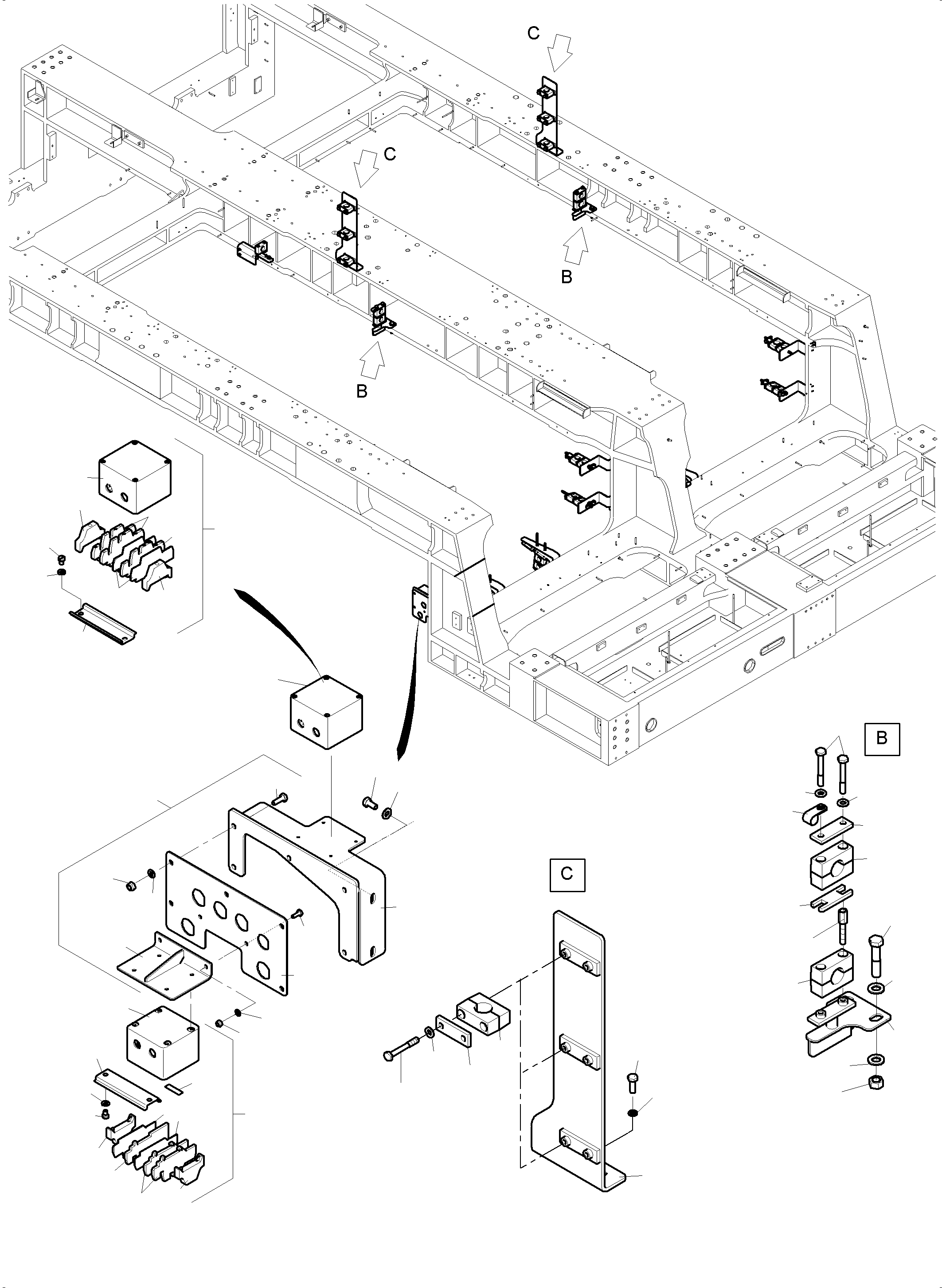

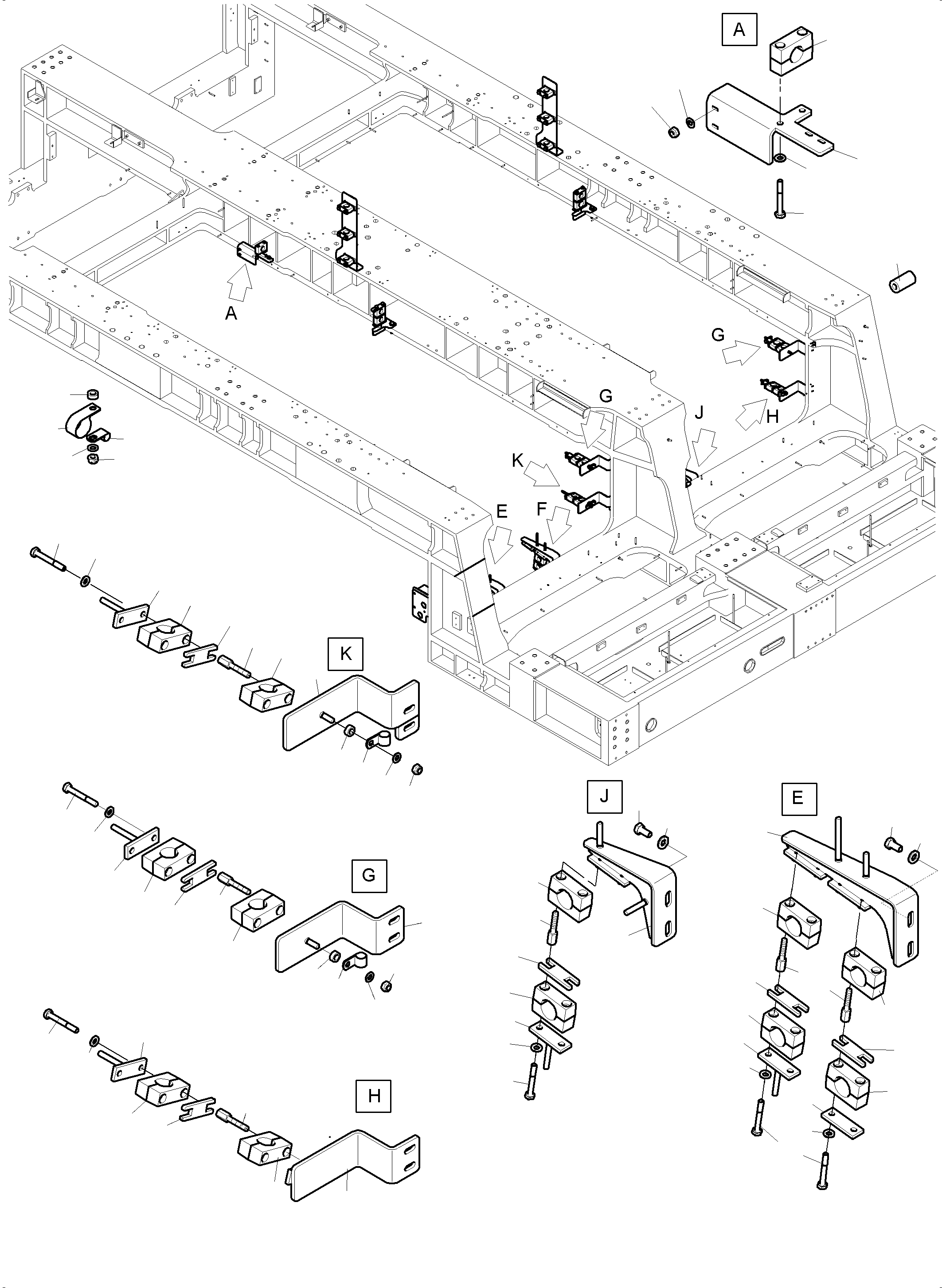

E-PARTS POWER FRAME CSA | PC 7000-6E 35 003 11.06.2019

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity
01	986 975 40	Disconnecting point assy	1
02	984 118 40	Switch box assy 58X_52	1
03	984 107 40	Retainer	2
04	984 114 40	Retainer	1
05	977 397 40	Cable retainer	1
06	984 116 40	Cable retainer	1
07	984 117 40	Cable retainer	2
08	984 133 40	Cable retainer	2
09	984 136 40	Cable retainer	2
10	984 128 40	Retainer	1
11	516 095 98	Clamp set	15
12	518 042 98	Clamp set	37
13	504 789 98	Catch	21
14	504 788 98	Screw	42
15	534 004 99	Cover plate	21
16	977 308 40	Cover plate	11
17	307 802 99	Bolt	8
18	517 118 98	Lock washer	8
19	308 582 99	Bolt	32
20	517 122 98	Lock washer	32
21	307 779 99	Bolt	9
22	518 547 98	Lock washer	4
23	308 635 99	Bolt	4
24	332 336 99	Nut	4
25	517 123 98	Lock washer	4
26	507 037 98	Nut	20
27	340 465 99	Washer	20
28	340 459 99	Washer	4
29	507 036 98	Nut	4
30	507 596 98	Washer	7
31	516 143 98	Resilient sleeve	2
32	0443453211	Clamp Ш 32	3
33	0443451910	Clamp Ш19	7
34	0443451510	Clamp Ш15	5
35	2080619170	Clamp Ш 40	2
40	986 976 40	Retainer	1
41	986 978 40	Disconnecting point	1
42	984 139 40	Retainer	1
43	307 752 99	Bolt	2
44	340 464 99	Washer	2
45	334 599 99	Nut	2
46	986 943 40	Switch box	1
47	519 860 98	Assembly rail	-2
48	346 499 99	Lock washer	2
49	319 056 99	Screw	4
50	940 673 40	Clamp	4
51	906 612 40	Through clamp 2.5	4
52	906 630 40	Protective wire clip	2
53	906 613 40	Cover plate	4
54	906 624 40	Marker	2
55	906 687 40	Marker	2
56	951 252 40	Marking strip	-2
57	986 972 40	Switch box assy 58X_53	1
58	986 973 40	Switch box	1
