Diagram image 1 of 7

PC 7000-6E 35 003 11.06.2019

01 02 02 03 04 05 06 06 07 08 09 10 10 10 105 106 11 11 111 112 12 12 13 14 14 15 16 17 18 19 20 21 27 29 29 30 31 32 33 34 35 35 38 42 43 90

PC 7000-6E 35 003 11.06.2019

05 06 06 06 100 100 101 101 129 143 143 144 145 145 146 146 147 148 149 150 19 22 23 24 28 28 35 35 35 35 36 36 36 36 36 36 36 37 37 37 37 37 37 37 38 39 88 88 88 89 89 89 90 90 90 90 90 90 91 92 92 93 93 94 94 95 95 96 97 97 98

PC 7000-6E 35 003 11.06.2019

05 100 104 109 110 14 14 155 174 174 176 176 180 19 21 230 231 44 45 46 47 48 51 52 53 54 55 56 57 57 57 58 58 59 60 60 61 61 62 62 63 65 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 99

PC 7000-6E 35 003 11.06.2019

102 103 19 60 60 60 60 60 60 60 60 60 60 60 64 64 64 64 65 65 65 65 66 67 68 69 69 70 70 71 72 72 72 72 75 75 75 75 91

PC 7000-6E 35 003 11.06.2019

107 107 107 107 107 107 114 115 116 117 118 119 120 122 134 134 134 134 135 140 140 140 140 169 175 176 176 177 178 179 182 183 184 184 185 185 185 185 185 185 185 186 186 186 186 186 186 187 187 187 187 187 187 188 188 188 188 188 188 189 189 189 189 189 189 190 191 192 193 193 194 194 195 196 197 198 198 199 200 201 202 203 203 204 204 205 206 206 207 207 208 208 210

PC 7000-6E 35 003 11.06.2019

107 108 113 114 115 116 117 118 119 120 121 121 122 123 123 124 124 125 125 135 135 140 151 152 153 153 153 154 154 154 154 155 155 155 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 169 170 171 172 173 176 176 184 185 185 186 186 187 187 188 188 189 189 198 198 203 204 205 206 207 208 210 211 212 213 213 214 215 216 217 218 219 220 26 27 31

PC 7000-6E 35 003 11.06.2019

107 126 127 128 129 129 131 132 133 134 135 135 136 137 138 139 140 141 142 17 17 25 38 40 41 41 60 60

#	Part Number	Partname	Quantity
01	963 840 40	Switch cabinet retainer	1
02	963 841 40	Plate	2
03	970 147 40	Plate	1
04	971 536 40	Angle	1
05	984 123 40	E-parts switch cabinet assy.	1
06	0443452711	Clamp	6
07	0443452110	Clamp	1
08	0443451510	Clamp	1
09	507 596 98	Washer	2
10	340 508 99	Washer	2
11	500 822 98	Nut	2
12	509 777 98	Bolt	2
13	506 957 98	Bolt	32
14	515 331 98	Washer	72
15	509 869 98	Nut	28
16	516 878 98	Bolt	4
17	518 594 98	Lock washer	12
18	984 420 40	Switch cabinet	1
19	962 678 40	Switch-Mounting plate - framming assy.	1
20	949 128 40	Seal	1
21	975 592 40	Switch cabinet plate assy. with harnesses	1
22	957 071 40	Angle	1
23	957 072 40	Angle	1
24	957 413 40	Angle	1
25	509 861 98	Nut	2
26	985 184 40	Cable can bus assy. Otr 51	1
27	962 685 40	Harness 1 GND	1
28	950 187 40	Hinge	2
29	906 519 40	Eyebolt	2
30	517 487 98	Cable shoe	4
31	962 687 40	Harness 2 GND	1
32	515 253 40	Cord 1200lg	-2
33	940 913 40	Warmth shrink hose	-2
34	950 682 40	Distance sleeve	4
35	950 809 40	Nut	15
36	518 299 98	Washer	16
37	514 921 98	Nut	16
38	0819320010	Clip	6
39	0443451210	Clamp	2
40	517 120 98	Lock washer	3
41	332 332 99	Nut	4
42	509 870 98	Nut	5
43	340 654 99	Washer	1
44	951 253 40	Marking strip	-2
45	951 255 40	Strip	-2
46	951 563 40	Etiketten reel	18
47	951 564 40	Serial plate reel	1
48	951 562 40	Resin strip	-2
51	966 609 40	Mounting plate	1
52	941 432 40	ICN-VV Modul	1
53	980 885 40	Plug assy 51K318	1
54	980 886 40	Plug assy 51K319	1
55	941 430 40	ICN-D Modul 51K317	1
56	941 412 40	Plug connector 10-pol.	9
57	270 873 40	Wiring channel	-2
58	655 518 40	Wiring channel	-2
59	519 860 98	Assembly rail	-2
60	940 673 40	Clamp	15
61	950 339 40	Protective wire clip	1
62	906 773 40	Cover plate	1
63	950 185 40	Protective wire clip	24
64	906 612 40	Through clamp 2.5	29
65	906 613 40	Cover plate	5
66	941 502 40	Potencial clamp	10
67	941 503 40	Cover plate	1
68	941 685 40	Group plate	10
69	950 466 40	Cross connection	1
70	906 614 40	Bridge 2-fold	2
71	906 615 40	Bridge 3-fold	1
72	906 624 40	Marker	1
73	906 625 40	Marker	1
74	906 626 40	Marker	1
75	906 687 40	Marker	5
76	906 603 40	Marker	1
77	906 623 40	Marking strip	1
78	501 670 98	Screw	15
79	145 743 40	Washer	15
80	332 109 99	Nut	2
81	307 703 99	Bolt	2
82	518 560 98	Lock washer	2
83	224 320 99	Bolt	4
84	307 665 99	Bolt	4
85	517 183 98	Nut	4
86	340 459 99	Washer	4
87	334 649 99	Nut	4
88	514 072 98	Bolt	8
89	514 074 98	Bolt	6
90	517 121 98	Lock washer	14
91	951 885 40	Switch framing assy.	1
92	962 593 40	Retainer with clamps assy.	1
93	962 594 40	Retainer with clamps assy.	1
94	974 725 40	Retainer with clamps assy.	1
95	962 595 40	Retainer with Can bus assy.	1
96	957 442 40	Stop	1
97	957 073 40	Angle	2
98	966 561 40	Rubber plate	1
99	940 610 40	Makrolon plate	1
100	940 061 40	Rivet	9
101	940 609 40	Makrolon plate	1
102	901 392 40	Resistor array assy.	2
103	655 748 40	Diode array	2
104	985 172 40	Harness 51X317-51K317	1
105	941 844 40	Protection hose DN 36	-2
106	950 211 40	End Grommet	4
107	056 070 40	Wire end ferrule	450
108	907 640 40	Wire end ferrule 2,5	3
109	440 109 40	Sleeve	1
110	055 108 40	Cable lug	1
111	799 380 73	Seal	1
112	799 379 73	Latsch assy.	4
113	990 900 40	Switch cabinet plate	1
114	980 843 40	Harness 51X011 - 51	1
115	980 844 40	Harness 51X111 - 51	1
116	980 845 40	Harness 51X211 - 51	1
117	980 846 40	Harness 51X052 - 51	1
118	980 852 40	Harness 51X057 - 51	1
119	980 848 40	Harness 51X150 - 51	1
120	980 849 40	Harness 51X250 - 51	1
121	980 850 40	Harness 51X350 - 51	1
122	980 851 40	Harness 51X062 - 51	1
123	980 853 40	Harness 51X170 - 51	1
124	970 168 40	Harness 51X316 - 51X317	1
125	970 169 40	Harness 51X319 - 51X320	1
126	984 419 40	Retainer	1
127	984 425 40	Heater assy.	1
128	962 681 40	Harness switch cabinet heater	1
129	344 498 40	Supporting trestle	3
131	950 717 40	Heater	1
132	950 443 40	Socket	1
133	0819212300	Wegde	1
134	0819105320	Pin contact	27
135	950 190 40	Rubber grommet	4
136	940 914 40	Warmth shrink hose	-2
137	999 111 40	Warmth shrink hose	-2
138	950 189 40	Plug	1
139	081 921 24 00	Wegde	1
140	0819105420	Female contact	96
141	940 912 40	Thermal contraction tube	-2
142	940 463 40	Insulating tube	1
143	957 439 40	Retainer	2
144	0443451010	Clamp	3
145	519 091 98	Washer	6
146	500 853 98	Bolt	6
147	0443550810	Clamp	3
148	957 440 40	Retainer	1
149	307 445 99	Bolt	6
150	957 441 40	Retainer	1
151	985 161 40	Cable can bus assy. 51X317-318	1
152	985 162 40	Cable can bus assy. 51X318-319	1
153	906 647 40	T-Splitter	3
154	958 956 40	CAN-Bushing assy.	3
155	958 955 40	CAN-Bushing assy.	6
156	941 777 40	Plate	30
157	174 411 40	Cable strap	60
158	950 428 40	Protective cover	9
159	950 432 40	Plug	9
160	906 648 40	Wegde	5
161	950 434 40	Female contact	18
162	950 457 40	Thermal contraction tube	-2
163	906 653 40	Female contact	12
164	940 908 40	Thermal contraction tube	-2
165	906 604 40	Wegde	3
166	950 801 40	Plug	1
167	907 958 40	Wegde	1
168	0819105340	Pin contact	1
169	0819100770	Sealing plate	3
170	055 110 40	Cable lug	1
171	950 802 40	Body Plug	1
172	907 959 40	Wegde	1
173	0819105440	Female contact	1
174	951 036 40	Modukcable ICN-V	2
175	940 911 40	Warmth shrink hose	1
176	635 042 40	Wire end ferrule 1,5	45
177	950 503 40	Shrinkdown tubing	-2
178	950 504 40	Shrinkdown tubing	-2
179	951 368 40	Resin strip	-2
180	907 641 40	Wire end ferrule 2,5	3
182	950 118 40	Socket	1
183	941 427 40	Pin contact	1
184	621 698 40	Contact plug 1-2 qmm	7
185	940 852 40	Plug	87
186	950 898 40	Seal ring	9
187	950 318 40	Panel lock washer	9
188	0819150808	Nut	9
189	950 130 40	Protection cap	9
190	519 770 98	Wire end ferrule	1
191	269 078 40	Wire end ferrule 16/28,7	1
192	950 505 40	Shrinkdown tubing	-2
193	950 126 40	Socket	2
194	500 090 98	Wire end ferrule 0,75-6	14
195	940 909 40	Warmth shrink hose	-2
196	940 913 40	Warmth shrink hose	-2
197	950 146 40	Socket	-2
198	621 699 40	Female contact 1-2 qmm	37
199	950 897 40	Seal ring	1
200	0819110809	Lock washer	1
201	0819110808	Nut	1
202	950 129 40	Protection cap	1
203	951 261 40	Slide protection	3
204	517 323 98	Nut	3
205	950 124 40	Socket	2
206	950 125 40	Socket	4
207	951 262 40	Abrasion protection	4
208	517 324 98	Nut	4
210	975 588 40	Socket assy. 4-pol.	1
211	950 170 40	Flange plug	1
212	950 174 40	Pin contact	3
213	950 179 40	Contact element	2
214	950 177 40	Protection cap	2
215	975 591 40	Bushing assy.	1
216	517 322 98	Cable nut	1
217	951 260 40	Slide protection	1
218	950 171 40	Socket	1
219	950 175 40	Bushing contact	3
220	950 178 40	Body	1
230	333 506 99	Nut	4
231	507 025 98	Nut	4

Komatsu PC 7000-6E 35 003 11.06.2019 parts catalog PDF

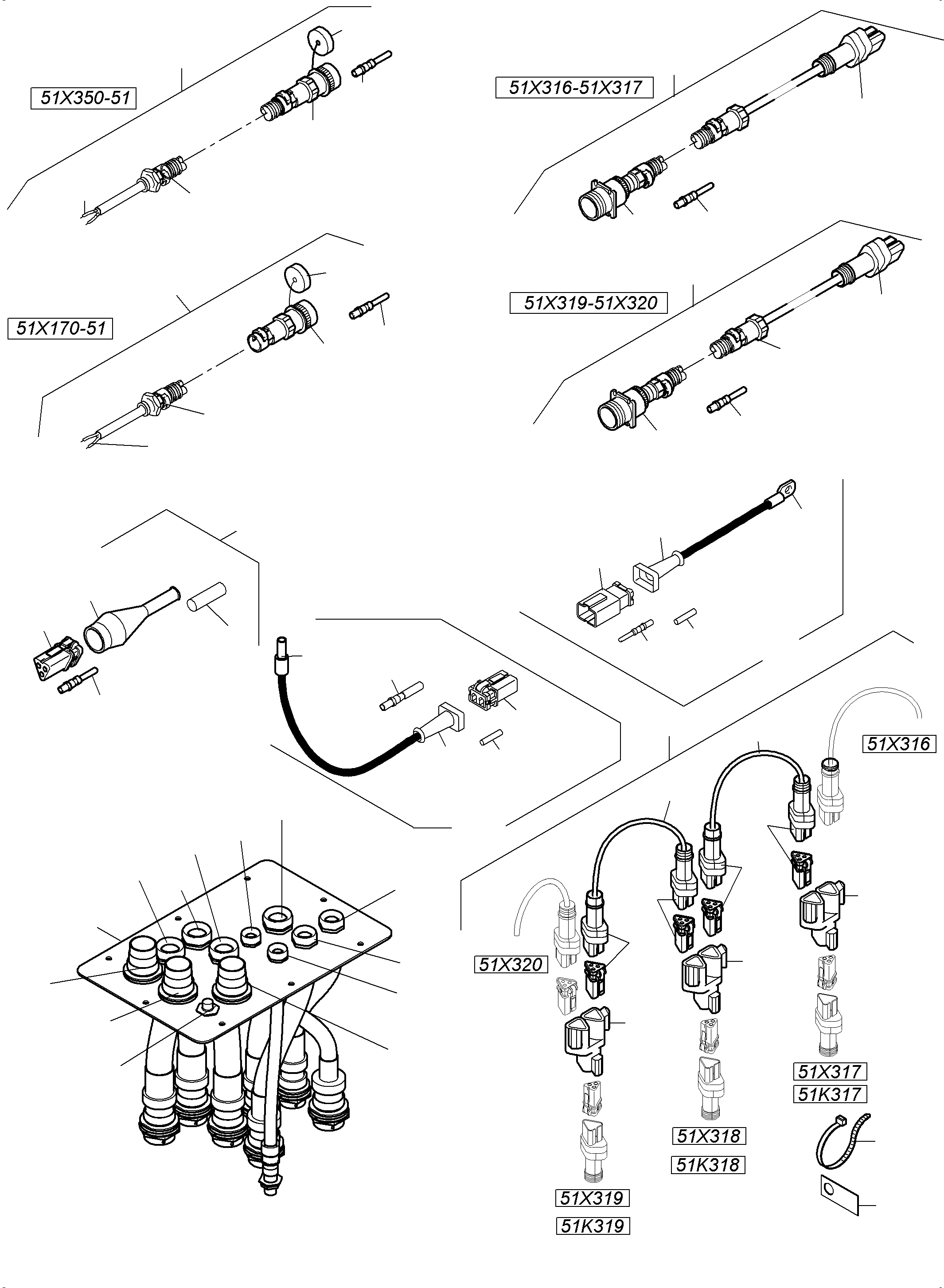

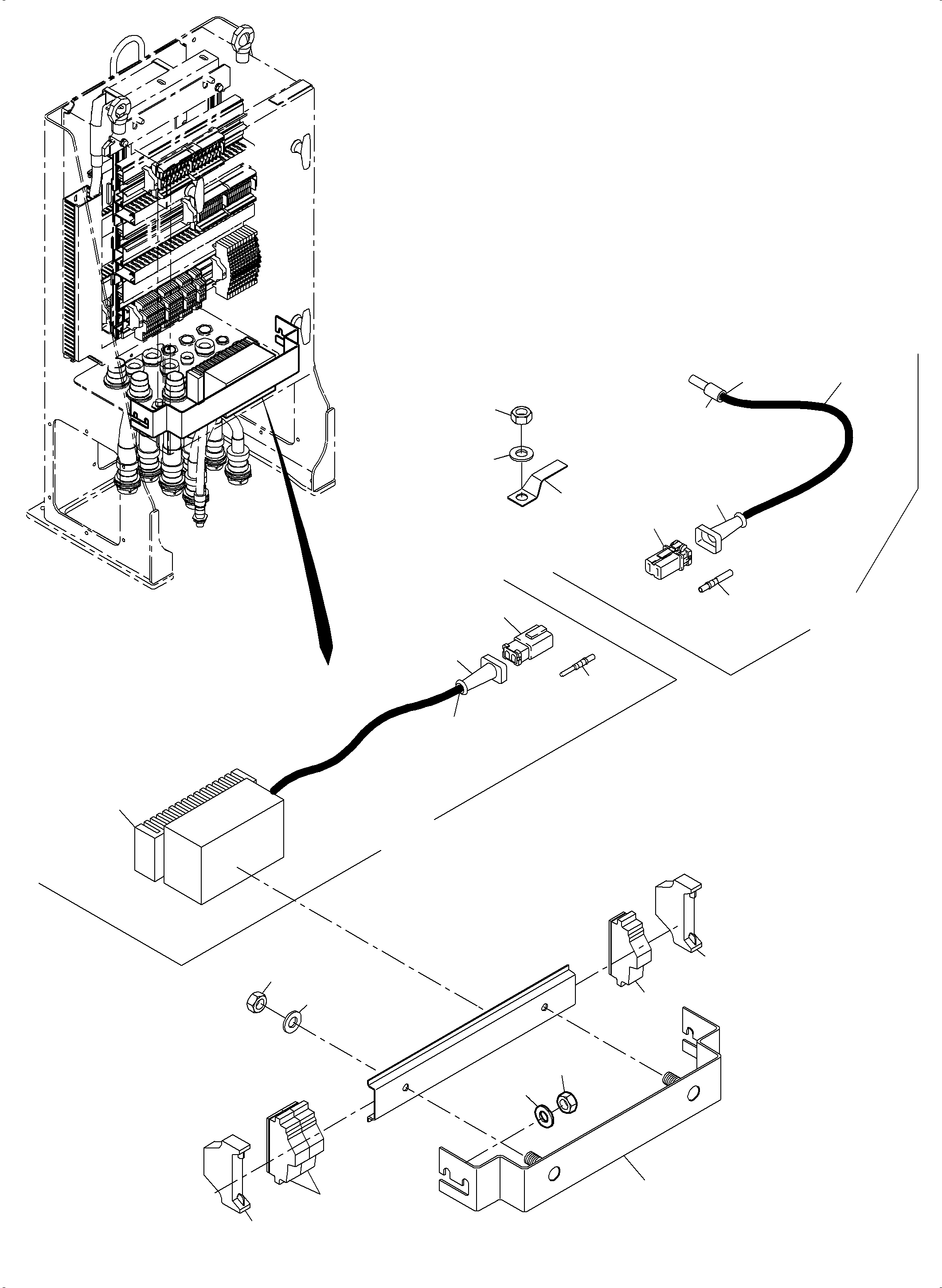

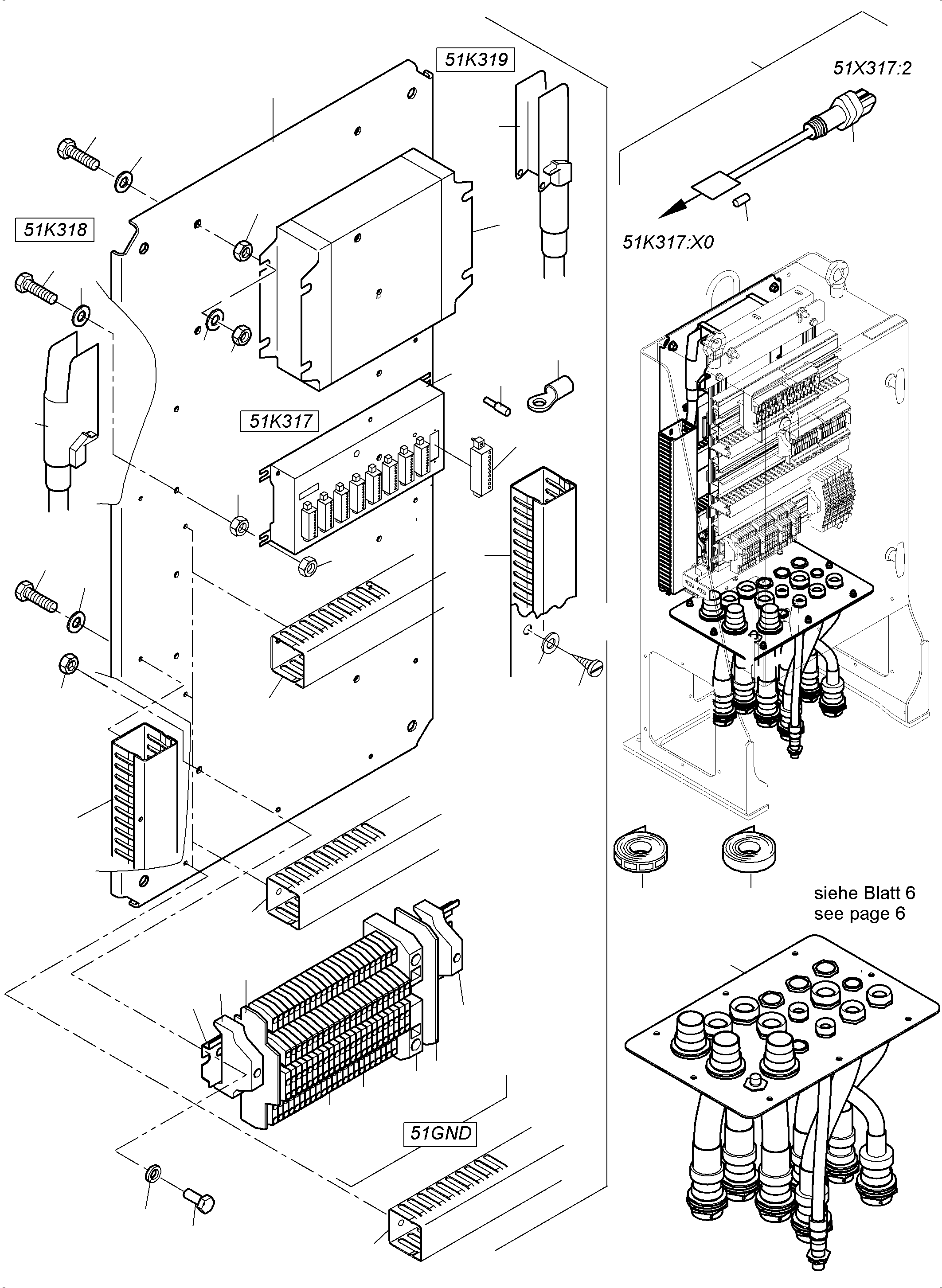

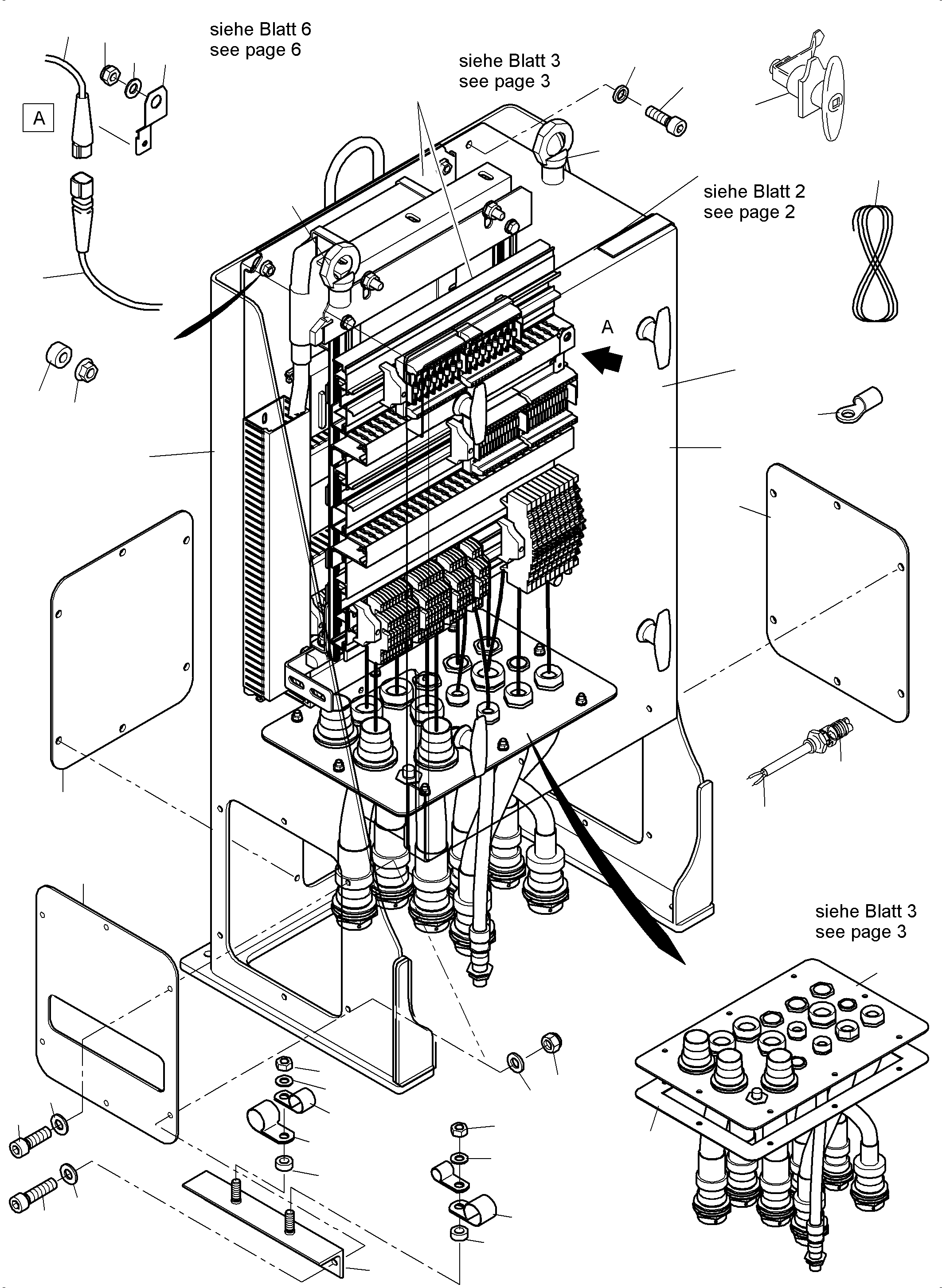

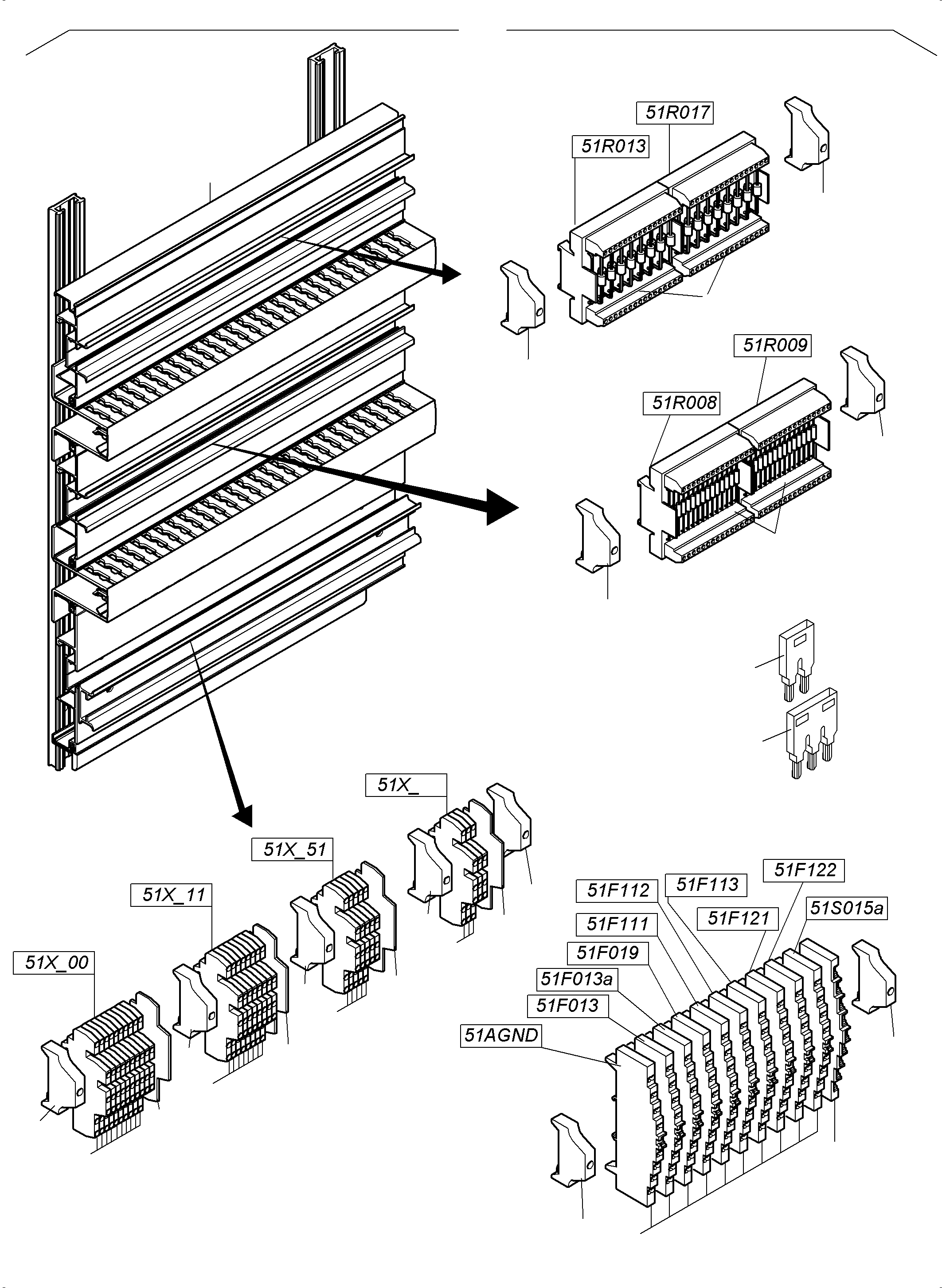

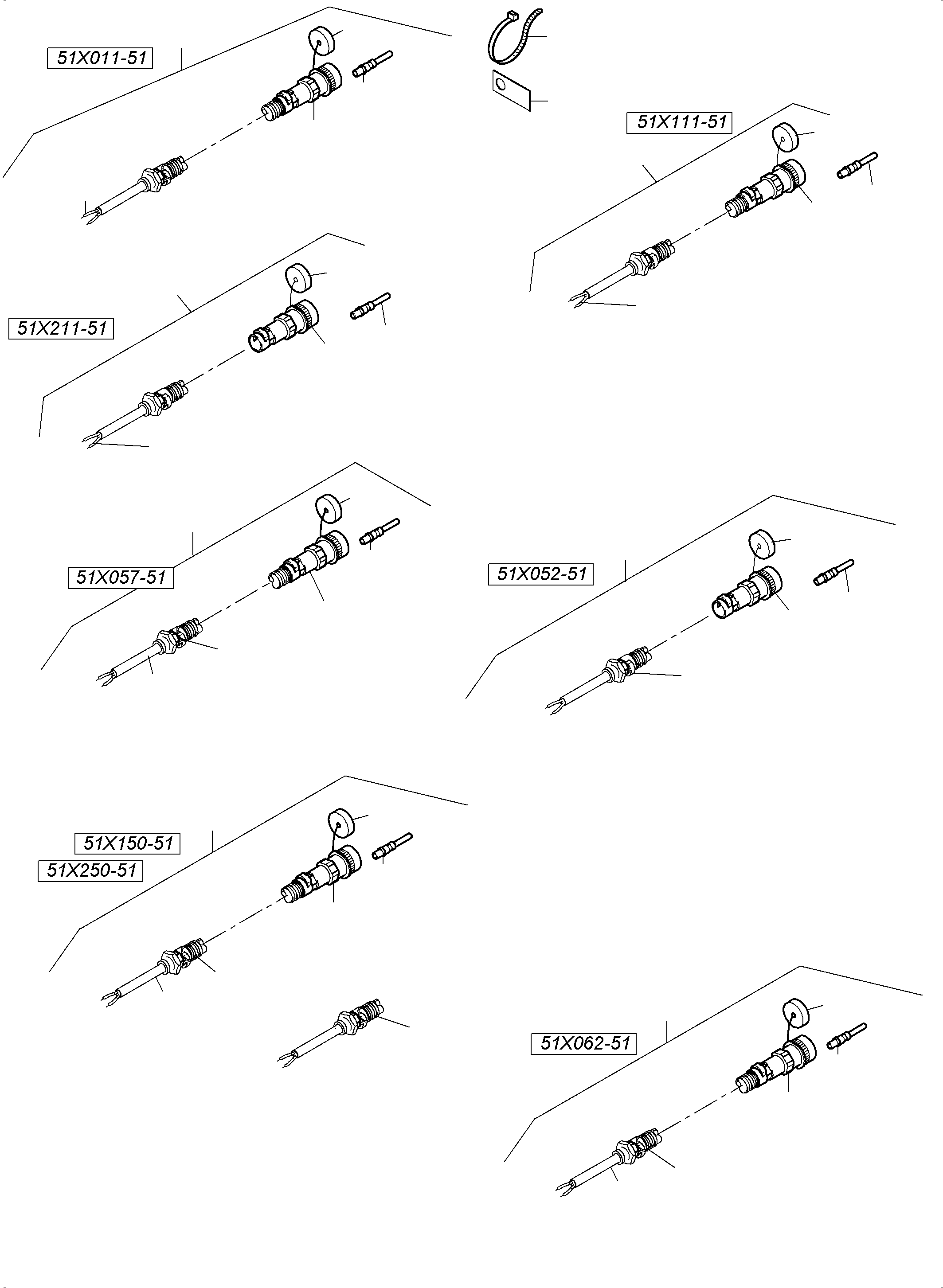

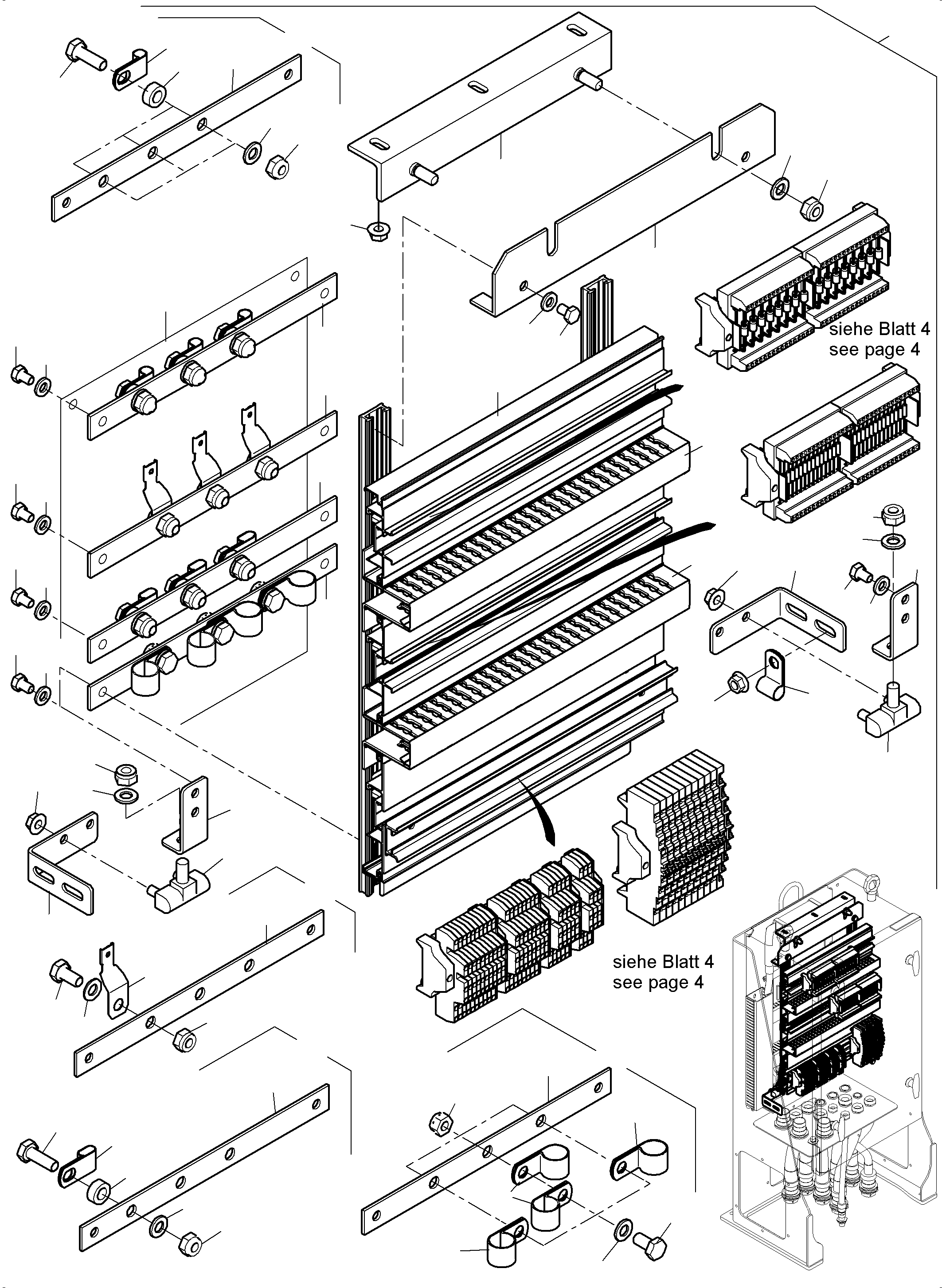

SWITCH CABINET ORT 51 (635-2251) in PC 7000-6E 35 003 11.06.2019. Diagram image and parts list.
