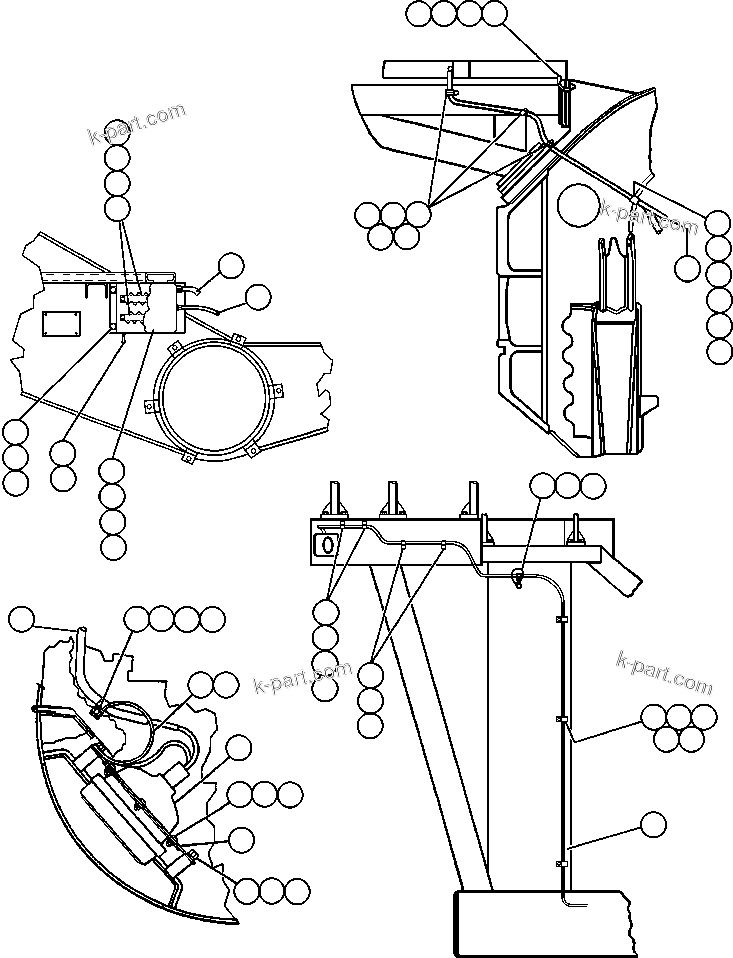

RIGHT DECK ELECTRICAL GROUP - 2 | AFE50-AN 830E S/N A30652-A30658 DIAVIK

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-AN 830E S/N A30652-A30658 DIAVIK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	CH4416	CABLE (24V ALT OUTPUT TO 24V DISCONNECT SWITCH)	1
?	424243	CLAMP	10
?	TG2568	CLAMP	7
?	TC1231	LOCKWASHER - 3/8"	14
?	TC1233	NUT - 3/8" - 16NC	16
?	VH9969	WELD STUD - 3/8" - 16NC X 3/4"	8
?	TR4436	FLAT WASHER - 3/8"	9
?	TW7651	ANGLE	1
?	SP6153	LOCKWASHER - 3/8" (EXT-INT TEETH)	3
?	VN5153	WIRE, GROUND	3
?	EJ5654	HARNESS, RIGHT DECK JUMPER (DECK LIGHTS)	1
?	EJ5651	HARNESS, RIGHT UPRIGHT/DECK	1
?	EB5963	JUNCTION BOX ASSEMBLY - R.H.	1
?	EB5966	BOX - R.H.	1
?	SR8325	SWITCH, TOGGLE	1
?	PB3324	BOOT, TOGGLE SWITCH	1
?	VS8479	BOARD, TERMINAL	2
?	VF2231	MACHINE SCREW - #10 - 24NC X 3/8"	4
?	DC3101	LOCKWASHER - #10	4
?	WA3367	NUT ASSEMBLY	24
?	WB2112	STRIP, CIRCUIT IDENTIFICATION (TB1GA)	1
?	WB2886	STRIP, CIRCUIT IDENTIFICATION (TB1GB)	1
?	VM2951	SET SCREW - #6 - 32NC X 5/16"	2
?	TD1548	CAPSCREW - 1/4" - 20NC X 5/8"	4
?	DC3584	LOCKWASHER - 1/4"	4
?	SP8417	FLAT WASHER - 1/4"	4
?	EJ5657	HARNESS - R.H. FRAME RAIL	1
?	AK8456	FRONT TURN & CLEARANCE LIGHT (SEE FIG 41107)	1	41107
?	DC5004	MACHINE SCREW - #12 - 24NC X 1/2"	3
?	VD2047	LOCKWASHER - #12	3
?	TR8580	NUT - #12 - 24NC	3
?	TY7470	PLATE, MOUNTING	1
?	DF3042	FLAT WASHER - 3/8"	4
?	C1601	CAPSCREW - 3/8" - 16NC X 3/4"	4
?	C0312	LOCKWASHER - 3/8"	4
