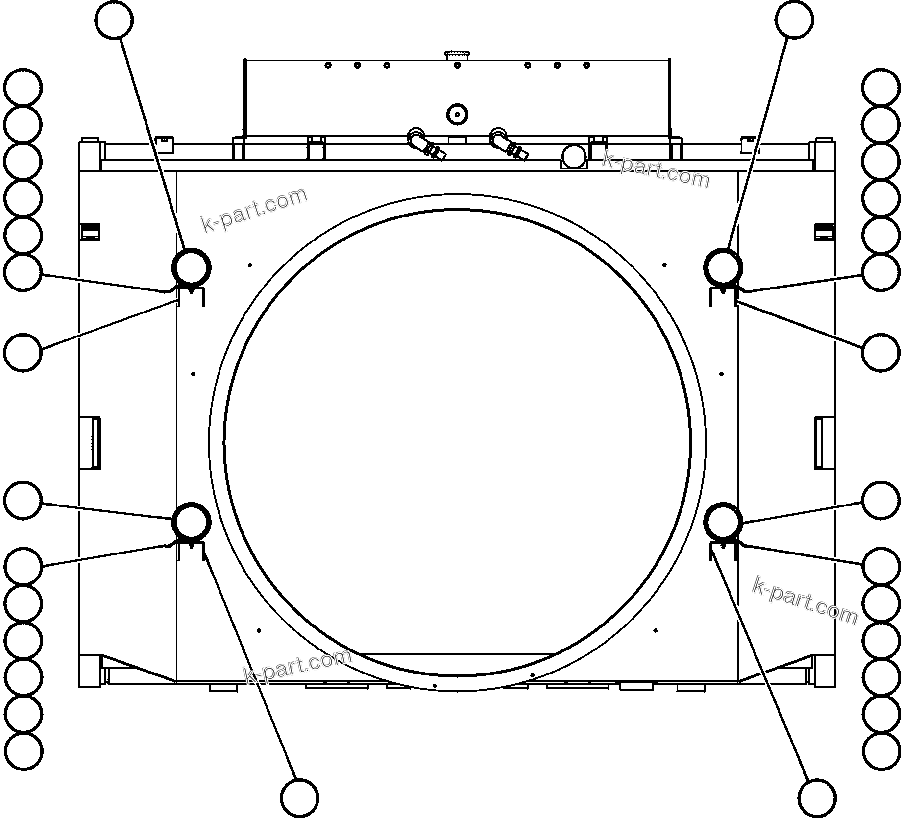

Komatsu parts book diagram for AFE50-AN 830E S/N A30652-A30658 DIAVIK: ENGINE SERVICE LIGHTS INSTALLATION

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	AK7504	SERVICE LIGHT ASSEMBLY (SEE FIG 40869)	4		40869
	?	EH7138	PLATE, BENT	4
	?	EJ8244	HARNESS, ENG SERV LIGHTS JUMPER	4
	?	VY8331	CLAMP - 1/4" I.D.	4
	?	MM0647	STUD, WELD - M10 X 1.50 X 20	4
	?	MM0461	FLAT WASHER - M10	4
	?	MM0471	LOCKWASHER - M10	4
	?	MM0178	NUT - M10 X 1.50	4

Komatsu AFE50-AN 830E S/N A30652-A30658 DIAVIK parts catalog PDF

ENGINE SERVICE LIGHTS INSTALLATION (41697) in AFE50-AN 830E S/N A30652-A30658 DIAVIK. Diagram image and parts list.
