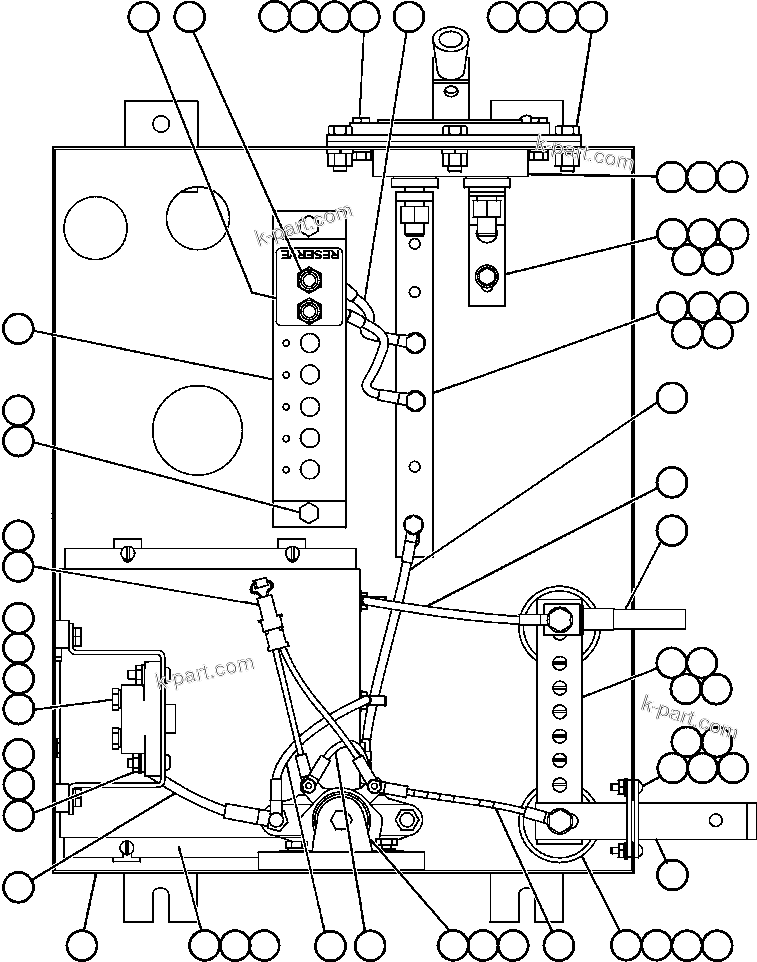

BATTERY DISCONNECT SWITCH BOX (EJ5232) | AFE50-AN 830E S/N A30652-A30658 DIAVIK

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE50-AN 830E S/N A30652-A30658 DIAVIK

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EF0993	PLATE, MOUNTING	1
?	TC1231	LOCKWASHER - 3/8"	10
?	TG5720	CAPSCREW - 3/8" - 16NC X 1"	10
?	TC1233	NUT - 3/8" - 16NC	8
?	TR1306	CAPSCREW - 1/4" - 20NC X 1"	4
?	EC1725	SWITCH, DISCONNECT	1
?	EF0994	GASKET	1
?	SP8417	FLAT WASHER - 1/4"	5
?	TD1549	NUT - 1/4" - 20NC	10
?	DC3584	LOCKWASHER - 1/4"	18
?	TR5445	LOCKWASHER - 1/2"	2
?	EF9013	BAR, BUS	1
?	TD1809	CAPSCREW - 1/4" - 20NC X 3/4"	7
?	TA7409	INSULATOR, STAND-OFF	2
?	EH7292	BAR, BUS	1
?	EG4485	WIRE	1
?	EG4483	WIRE	1
?	CH4306	CABLE	1
?	EC0442	BAR, BUS	1
?	VM1464	MACHINE SCREW - #10 - 24NC X 5/8"	10
?	DC3101	LOCKWASHER - #10	10
?	DF0017	NUT - #10 - 24NC	6
?	TZ0538	SPACER	2
?	PB0429	INSULATOR, STAND-OFF	2
?	EG4484	WIRE	1
?	PB8461	RELAY, POWER	1
?	TD1548	CAPSCREW - 1/4" - 20NC X 5/8"	6
?	EG4487	WIRE	1
?	EG4486	WIRE	1
?	EG4489	HOUSING	1
?	VZ3250	DIODE	1
?	PB6977	EQUALIZER, BATTERY	1
?	EH7295	BOX, BATTERY DISCONNECT SWITCH	1
?	EG4488	WIRE	1
?	VN7156	MACHINE SCREW - #12 - 24NC X 1"	2
?	DF3445	FLAT WASHER - #12	2
?	TR8580	NUT - #12 - 24NC	2
?	ED4418	BRACKET	1
?	PB8460	BREAKER, CIRCUIT	1
?	EC4311	INSULATOR, BUS BAR	2
?	SC5252	MACHINE SCREW - #8 - 32NC X 3/4"	4
?	VM9910	LOCKWASHER - #8	4
?	TF6248	FLAT WASHER - #8	4
?	TV2179	NUT - #8 - 32NC	4
?	ED0950	BAR, BUS	1
?	EC7202	BRACKET	1
?	WB2874	DECAL, RESERVE CLC SYSTEM	1
?	PB6073	BREAKER, CIRCUIT	2
?	ED4408	WIRE	2
?		NOTE: NS = NOT SHOWN	-1
?	SL6447	GROMMET, RUBBER	1
?	TV3555	BUTTON, PLUG - 1 3/8" DIA. HOLE	1
?		(NOT SOLD AS AN ASSEMBLY.	-1
?		ORDER INDIVIDUAL COMPONENT PARTS.)	-1
