AFE59-FF 930E-4 S/N A31624 & A31628 ANTELOPE COAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EK5822	JUNCTION BOX ASSEMBLY - L.H. (SEE INDEX)	1	60962
?	MM0019	CAPSCREW - M6 X 1.00 X 16	4
?	MM0711	FLAT WASHER - M6 (HARDENED)	4
?	WB3093	CLAMP, CUSHIONED - 1"	8
?	MM0178	NUT - M10 X 1.50	26
?	MM0461	FLAT WASHER - M10	27
?	MM0604	CAPSCREW - M10 X 1.50 X 20	1
?	VL9602	CLAMP, VINYL - 2" I.D.	2
?	TF6924	CLAMP, VINYL - 1 3/4" I.D.	16
?	WB3096	CLAMP, CUSHIONED - 1 1/4"	14
?	EK9883	SPACER	3
?	WB3092	CLAMP, CUSHIONED - 7/8"	1
?	WB3097	CLAMP, CUSHIONED - 1/2"	7
?	WB1301	CLAMP, CUSHIONED - 1/4"	2
?	MM0605	CAPSCREW - M10 X 1.50 X 25	4
?	MM0471	LOCKWASHER - M10	4
?	MM0713	FLAT WASHER - M10 (HARDENED)	4
?	EM5636	HARNESS, JUNCTION BOX - L.H.	1
?	XB2163	HARNESS, ENGINE EXTERNAL	1
?	58B-06-00120	RESISTOR - 2,000 OHM, 3W (R18)	1
?	ED3921	RESISTOR - 1,000 OHM (R50)	1
?	XB5500	HARNESS, LEFT FRONT FRAME	1
?	XB5378	HARNESS, LEFT REAR FRAME	1
?	PC2834	DIODE - 4 AMP (D1, D2)	2
?	EM8296	HARNESS, ENGINE/AUX BOX	1

Komatsu AFE59-FF 930E-4 S/N A31624 & A31628 ANTELOPE COAL parts catalog PDF

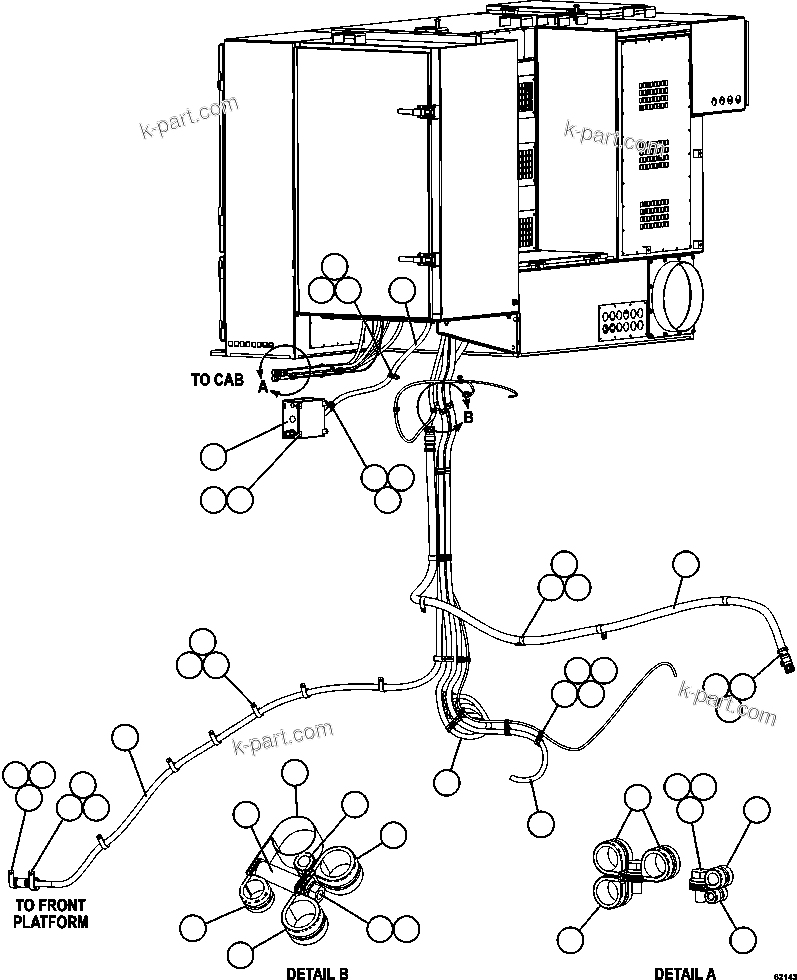

AUXILIARY CONTROL CABINET EXTERNAL WIRING 3/3 (62143) in AFE59-FF 930E-4 S/N A31624 & A31628 ANTELOPE COAL. Diagram image and parts list.
