AFE59-FF 930E-4 S/N A31624 & A31628 ANTELOPE COAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EK4993	DIODE BOARD ASSEMBLY - DB1 (SEE FIG 55613)	1	55613
?	EC8825	NAME PLATE - DB1	2
?	EG8333	RESISTOR - 20 OHM	1
?	SM3124	DIODE	1
?	EG0664	RESISTOR - 270 OHM	1
?	EK4991	RELAY BOARD ASSEMBLY - RB6, RB7, RB8 (SEE FIG 55613)	4	55613
?	EC8824	NAME PLATE - RB6	2
?	WB2280	NAME PLATE - RB7	2
?	WB3237	NAME PLATE - RB9	2
?	WB2733	NAME PLATE - RB8	2
?	MM0027	CAPSCREW - M6 X 1.00 X 25	30
?	MM0459	FLAT WASHER - M6	77
?	MM0469	LOCKWASHER - M6	45
?	MM0176	NUT - M6 X 1.00	58
?	7861-92-5330	SENSOR, ANGLE	1
?	EL7628	NAME PLATE - INCLINOMETER	2
?	TG5720	CAPSCREW - 3/8" - 16NC X 1"	3
?	TR9008	JAM NUT - 3/8" - 16NC	3
?	TC1231	LOCKWASHER - 3/8"	3
?	TR4436	FLAT WASHER - 3/8"	3
?	PC2667	TIMER, AUTO LUBE	1
?	WB2281	NAME PLATE - LUBE TIMER	2
?	PB7276	RELAY - 24V, 50 AMP	3
?	WB2836	NAME PLATE - 12V POWER RELAY	2
?	WB2289	NAME PLATE - CONTROL POWER RELAY	2
?	PB7202	INSULATOR, GLASTIC	2
?	EM8612	ROD, THREADED	2
?	TD1684	NUT - 5/16" - 18NC	2
?	SC4174	LOCKWASHER - 5/16"	2
?	TV0177	FLAT WASHER - 5/16"	4
?	EG2305	BAR, BUS	1
?	MM0584	CAPSCREW - M6 X 1.00 X 30	5
?	EK0731	ROD, THREADED	8
?	TZ7377	NAME, PLATE - 24VDC	1
?	WB2303	NAME PLATE - GB31	1
?	XB5358	RESISTOR - 6800 OHM	2
?	PC2644	TIMER, 2 HOUR DELAY	2
?	WB3521	NAME PLATE - ENGINE SERVICE LIGHT TIMER	2
?	WB3522	NAME PLATE - PUMP MODULE LIGHT TIMER	2
?	WB3731	NAME PLATE - HORN RELAY	2
?	MM0363	CAPSCREW - M6 X 1.00 X 40	2

Komatsu AFE59-FF 930E-4 S/N A31624 & A31628 ANTELOPE COAL parts catalog PDF

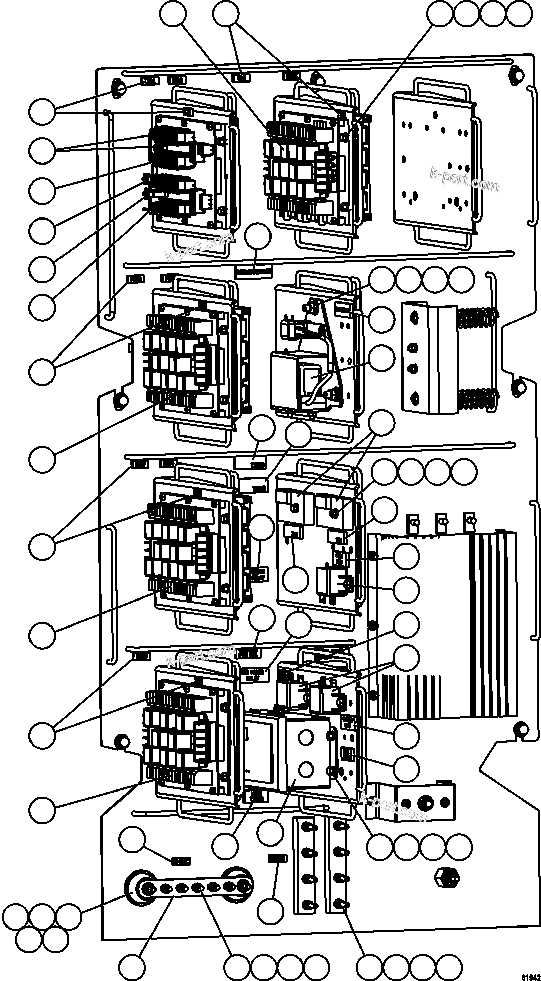

AUXILIARY CONTROL CABINET - LEFT SIDE WALL 1/2 (61942) in AFE59-FF 930E-4 S/N A31624 & A31628 ANTELOPE COAL. Diagram image and parts list.
