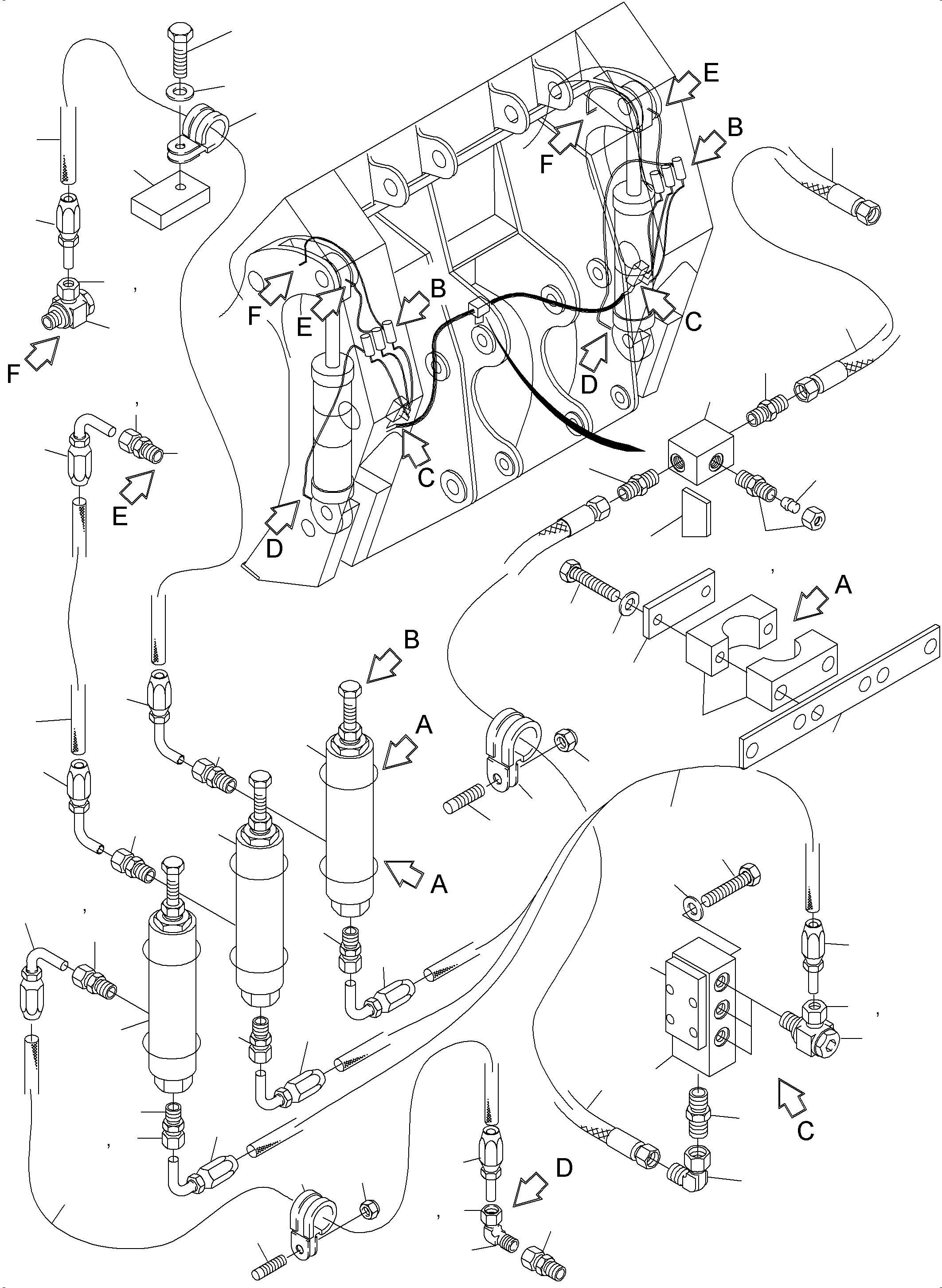

CENTRAL LUBRICATION - BULLCLAM, BR 3430 | PC3000-6E S/N 06262

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options	Reference
01		Metering valve	6	InternBDB: 269 881 40 \| InternKon: 936 360 40 / 1	991-0323a
02	634 775 40	Clamp	12	InternBDB: DM 50,8 M12 Stauffenberg \| InternKon: 936 360 40 / 3
03	308 611 99	Bolt	24	InternBDB: M 12x90 / 931 \| InternKon: 936 360 40 / 5
04	517 604 98	Union	6	InternBDB: GE 12-S /1/2 NPT OMD WN 655 933 40 \| InternKon: 936 360 40 / 28
05	461 282 40	Nipple	14	InternBDB: 11.512-12-06 \| InternKon: 936 360 40 / 13
06	323 256 40	Hose DN 8	-2	InternBDB: FC 310-05 \| InternKon: 936 360 40 / 11
07	517 605 98	Union	6	InternBDB: 12-SR /OMD WN 655 934 40 \| InternKon: 936 360 40 / 29
08	923 648 40	T-Block	1	InternKon: 936 360 40 / 10
09	516 157 98	Socket	2	InternBDB: L 12 /3942 \| InternKon: 936 360 40 / 32
10	654 153 40	Union	6	InternBDB: GE 12-L /1/4 NPT /OMD WN 655 933 40 \| InternKon: 936 360 40 / 27
11	517 941 98	Hose DN 20x1800	2	InternBDB: SHL 350 /DOS 25 /DOS 25 WN 341 951 40 \| InternKon: 936 360 40 / 41
12	907 152 40	Union	4	InternBDB: SDS-L 12 X G 1/4 A E /OMD \| InternKon: 936 360 40 / 25
13	324 601 40	Socket	24	InternBDB: GA 17089-5 \| InternKon: 936 360 40 / 12
14	440 214 40	Nipple	8	InternBDB: 11.032-12-6 \| InternKon: 936 360 40 / 14
15	006 302 98	Clamp 15/15	20	InternBDB: RSGU 1100 15/15 \| InternKon: 936 360 40 / 16
16	502 367 98	Clamp 38/25	4	InternBDB: RSGU 1100 38/25 \| InternKon: 936 360 40 / 19
17	324 346 40	Nipple	2	InternBDB: 11.004-10-06 \| InternKon: 936 360 40 / 15
18	323 945 40	Thread pin	12	InternBDB: M6x15 /32501 \| InternKon: 936 360 40 / 17
19	517 118 98	Lock washer	32	InternBDB: 12 / 655 938 40 \| InternKon: 936 360 40 / 9
20	323 947 40	Thread pin	4	InternBDB: M8x20 /32501 \| InternKon: 936 360 40 / 20
21	334 599 99	Nut	4	InternBDB: M 8 /985 \| InternKon: 936 360 40 / 21
22	517 073 98	Union	2	InternBDB: 10-LR /OMD WN 655 934 40 \| InternKon: 936 360 40 / 26
23	895 507 40	Thread plate	8	InternKon: 936 360 40 / 22
24	374 414 99	Union	5	InternBDB: SDS-S 25 X M33x2 E ISO 08434 \| InternKon: 936 360 40 / 30
25	371 867 99	Seal plug	1	InternBDB: Buz 25-S \| InternKon: 936 360 40 / 40
26	918 206 40	Distribution block	2	InternKon: 936 360 40 / 7
27	516 248 98	Union	2	InternBDB: SWE-S 25 ISO 08434 \| InternKon: 936 360 40 / 31
28	307 727 99	Bolt	8	InternBDB: M6x12 /933 \| InternKon: 936 360 40 / 23
29	308 608 99	Screw	8	InternBDB: M12 x 70 / 931 \| InternKon: 936 360 40 / 8
30	943 317 40	Thread plate	4	InternKon: 936 360 40 / 6
31	507 025 98	Nut	12	InternBDB: M 6 /985 \| InternKon: 936 360 40 / 18
32	634 774 40	Cover plate	12	InternBDB: DP III \| InternKon: 936 360 40 / 4
33	517 120 98	Lock washer	8	InternBDB: S6 WN65593840 \| InternKon: 936 360 40 / 24
34	654 496 40	Protection cap	6	InternBDB: Lincoln 83730 \| InternKon: 936 360 40 / 2
35	371 273 99	Union nut	2	InternBDB: N-L 10 ISO 08434 \| InternKon: 936 360 40 / 33
36	371 274 99	Union nut	10	InternBDB: N-L 12 ISO 08434 \| InternKon: 936 360 40 / 34
37	371 259 99	Union nut	12	InternBDB: N-S 12 ISO 08434 \| InternKon: 936 360 40 / 35
38	371 264 99	Union nut	1	InternBDB: N-S 25 ISO 08434 \| InternKon: 936 360 40 / 36
39	906 346 40	Olive	2	InternBDB: ES-4 S 10 WN 655 939 40 \| InternKon: 936 360 40 / 37
40	906 347 40	Olive	22	InternBDB: ES-4 S 12 WN 655 939 40 \| InternKon: 936 360 40 / 38
41	906 868 40	Olive	1	InternBDB: ES-4 S 25 WN 655 939 40 \| InternKon: 936 360 40 / 39
42	927 962 40	Holding device	1	InternKon: 936 360 40 / 42
43	942 802 40	Thread plate	2	InternKon: 936 360 40 / 43
