PC3000-6E S/N 06262

01 02 03 04 05 06 06 07 07 08 09 10 10 11 11 11 111 12 13 14 14 15 15 16 17 18 19 20 21 22 23 23 24 25 26 27 28 28 29 29 30 31 32 33 33 34 35 36 37 38 39 42 43 44 45 46 47 48 48 49 49 50 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 69 70 70 71 71

#	Part Number	Partname	Quantity	Options	Reference
01	907 650 40	Lube pump station	1	InternBDB: HL-A 07.007 BL.56 Index A 609-29232-1
02		Lube pump	1	InternBDB: 509-32178-1 /769 397 73 \| InternKon: HL-A 07.007 BL.56 / 5	991-0266b
03	794 266 73	Case assy.	1	InternBDB: 509-32544-1 \| InternKon: HL-A 07.007 BL.56 / 1
04	794 267 73	Cover assy.	1	InternBDB: 409-70456-1 \| InternKon: HL-A 07.007 BL.56 / 3
05	696 293 73	Seal ca. 1900 lg.	1	InternKon: HL-A 07.007 BL.56 / 4
06	505 940 99	Assembly rail	-2	InternBDB: 237-13393-1
07	769 894 73	Elbow union	2	InternBDB: WE 20-S 3/4 NPT /223-13620-2 \| InternKon: HL-A 07.007 BL.56 / 7
08	374 418 99	Socket	1	InternBDB: EVGE 20-S G 3/4 C \| InternKon: HL-A 07.007 BL.56 / 8
09	698 303 73	Filter assy.	1	InternBDB: 084 004 \| InternKon: HL-A 07.007 BL.56 / 9
10	372 052 99	Union	2	InternBDB: EVL 20-SC 223-13761-7 \| InternKon: HL-A 07.007 BL.56 / 10
11	372 971 99	Union	1	InternBDB: KOR 20/10-SC \| InternKon: HL-A 07.007 BL.56 / 11
12	372 048 99	Union	1	InternBDB: EVL 10-S \| InternKon: HL-A 07.007 BL.56 / 12
13	770 107 73	Union	1	InternBDB: GE 20-S G 3/4 223-12359-6 \| InternKon: HL-A 07.007 BL.56 / 15
14	372 869 99	Union	1	InternBDB: MAVE 10-S G 1/4 C 223-14268-2 \| InternKon: HL-A 07.007 BL.56 / 14
15	794 268 73	Adapter	2	InternBDB: 910 000-E 1/2 NPTI x G 3/4 \| InternKon: HL-A 07.007 BL.56 / 6
16	698 321 73	Pressure gauge 0-400 bar	1	InternBDB: Ш 63 234-13132-7 \| InternKon: HL-A 07.007 BL.56 / 16
17	371 852 99	Breech block	1	InternBDB: 10-L/S 223-13640-3 \| InternKon: HL-A 07.007 BL.56 / 17
18	770 401 73	Union	1	InternBDB: EGE 20-S G 1/2 223-14187-6 \| InternKon: HL-A 07.007 BL.56 / 13
19	372 981 99	Union	1	InternBDB: KOR 25/20-S \| InternKon: HL-A 07.007 BL.56 / 21
20	371 264 99	Nut	1	InternBDB: 223-12373-7 M 25 S \| InternKon: HL-A 07.007 BL.56 / 23
21	371 235 99	Olive	1	InternBDB: 223-12296-4 D 25 S \| InternKon: HL-A 07.007 BL.56 / 24
22	769 395 73	Grease coupling	1	InternBDB: 226-13690-9/60 6511 620 023 \| InternKon: HL-A 07.007 BL.56 / 22
23	215 219 99	Pipe Ш 20	-2	InternKon: HL-A 07.007 BL.56 / 42
24	768 506 73	Union	1	InternBDB: GE 20-S G 1/2 C 223-12360-6 \| InternKon: HL-A 07.007 BL.56 / 27
25	769 879 73	2/2-Directional solenoid valve	1	InternBDB: 235-13185-1 /500-GS 2-2-1/2-G24 \| InternKon: HL-A 07.007 BL.56 / 25
26	766 876 73	Plug	1	InternBDB: 236-13869-1 \| InternKon: HL-A 07.007 BL.56 / 26
27	768 507 73	Clamp	2	InternBDB: 226-13058-3 \| InternKon: HL-A 07.007 BL.56 / 19
28	768 508 73	Elbow union	2	InternBDB: SWVE 12-L G 3/8 C 223-13669-3 \| InternKon: HL-A 07.007 BL.56 / 31
29	215 424 99	Pipe Ш 12	-2	InternKon: HL-A 07.007 BL.56 / 41
30	372 899 99	Union	1	InternBDB: KOR 15/12-LC \| InternKon: HL-A 07.007 BL.56 / 32
31	208 895 40	Sleeve	1	InternBDB: 980058-E \| InternKon: HL-A 07.007 BL.56 / 33
32	208 896 40	Protection cap	1	InternBDB: 968035-E \| InternKon: HL-A 07.007 BL.56 / 34
33	769 396 73	Clamp	1	InternBDB: 226-13771-7 \| InternKon: HL-A 07.007 BL.56 / 35
34	371 259 99	Nut	1	InternBDB: AS 12 M 12 /223-12373-2 \| InternKon: HL-A 07.007 BL.56 / 36
35	513 285 98	Socket	1	InternBDB: EVGE 10-S G 1/4 C 223-13681-1 \| InternKon: HL-A 07.007 BL.56 / 37
36	769 875 73	2/2-Directional solenoid valve	1	InternBDB: 235-13181-8 \| InternKon: HL-A 07.007 BL.56 / 38
37	318 603 99	Screw	2	InternBDB: M6x16 /912 200-13022-4 \| InternKon: HL-A 07.007 BL.56 / 43
38	490 155 40	Sleeve	1	InternBDB: 980057-E \| InternKon: HL-A 07.007 BL.56 / 39
39	368 235 40	Protection cap	1	InternBDB: 968036-E \| InternKon: HL-A 07.007 BL.56 / 40
42	794 330 73	Junction box assy.	1	InternBDB: E 631 \| InternKon: HL-A 07.007 BL.56 / 20
43	764 658 73	Filter	1	InternBDB: BF8-R 1/4 235-13029-8 \| InternKon: HL-A 07.007 BL.56 / 28
44	764 659 73	Counter nut	1	InternBDB: 207-12525-1 \| InternKon: HL-A 07.007 BL.56 / 29
45	792 046 73	Seal ring	1	InternBDB: 934 033-E 15,0x25,0x2,0 \| InternKon: HL-A 07.007 BL.56 / 47
46	698 316 73	Filter element	1	InternBDB: Linco 69524
47	371 241 99	Olive	1	InternBDB: D 12-US 223-12296-1 \| InternKon: HL-A 07.007 BL.56 / 46
48	794 331 73	Level indicator fig-nos. 63-69	1	InternBDB: 529-36999-5 \| InternKon: HL-A 07.007 BL.56 / 48
49	794 332 73	Preliminary warning - level indicator fig-nos. 63-68,71	1	InternBDB: 529-36999-7 \| InternKon: HL-A 07.007 BL.56 / 49
50	794 333 73	Full message fig-nos. 63-68,70	1	InternBDB: 529-36999-6 \| InternKon: HL-A 07.007 BL.56 / 50
51	794 083 73	Dipstick	1	InternBDB: 409-70376-1 \| InternKon: HL-A 07.007 BL.56 / 18
52	318 053 99	Bolt	2	InternBDB: M4x20
53	770 396 73	Housing, empty	1	InternBDB: 237-13413-9 /75x160x75
54	356 265 40	Corner angle	2	InternBDB: 116 535-04
55	490 372 40	Series terminal PE	5	InternBDB: 237-13318-9/165 113-16
56	356 271 40	Series terminal PE	10	InternBDB: 237-13318-8/115 116-07
57	356 272 40	Cover plate	2	InternBDB: 237-13314-4/118 368-16
58	906 077 40	Cover plate	2	InternBDB: 237-13312-2/199 878-01
59	770 399 73	Socket shell	1	InternBDB: 236-14461-9/HD 10-9P-96 Deutsch
60	896 769 40	Protection cap	1	InternBDB: 236-10022-1 /HDC-16-9
61	770 402 73	Seal	1	InternBDB: 236-14462-8
62	906 695 40	Pin contact	9	InternBDB: 236-14462-5/0460-202-16141
63	794 334 73	Switch - 24 VDC	3	InternBDB: 234-13172-6 \| InternKon: 529-36999-5 / 7
64	794 335 73	Cable union	3	InternBDB: M16x1,5 237-13497-2 \| InternKon: 529-36999-5 / 1
65	794 336 73	Reducing	3	InternBDB: M25a x M16i 237-10161-4 \| InternKon: 529-36999-5 / 2
66	794 337 73	Sleeve	3	InternBDB: G 3/4 i 304-16040-1 \| InternKon: 529-36999-5 / 3
67	794 338 73	Seal ring	3	InternBDB: 35x25x2 934 035-E \| InternKon: 529-36999-5 / 4
68	794 339 73	Socket	3	InternBDB: G 3/4 a x G 1/2 ic 222-12047-8 \| InternKon: 529-36999-5 / 5
69	794 340 73	Pipe 770 mm	1	InternBDB: 409-70527-1 \| InternKon: 529-36999-5 / 6
70	794 341 73	Pipe 140 mm	1	InternBDB: 409-70523-1 \| InternKon: 529-36999-6 / 6
71	794 342 73	Pipe 730 mm	1	InternBDB: 409-70524-1 \| InternKon: 529-36999-7 / 6

Komatsu PC3000-6E S/N 06262 parts catalog PDF

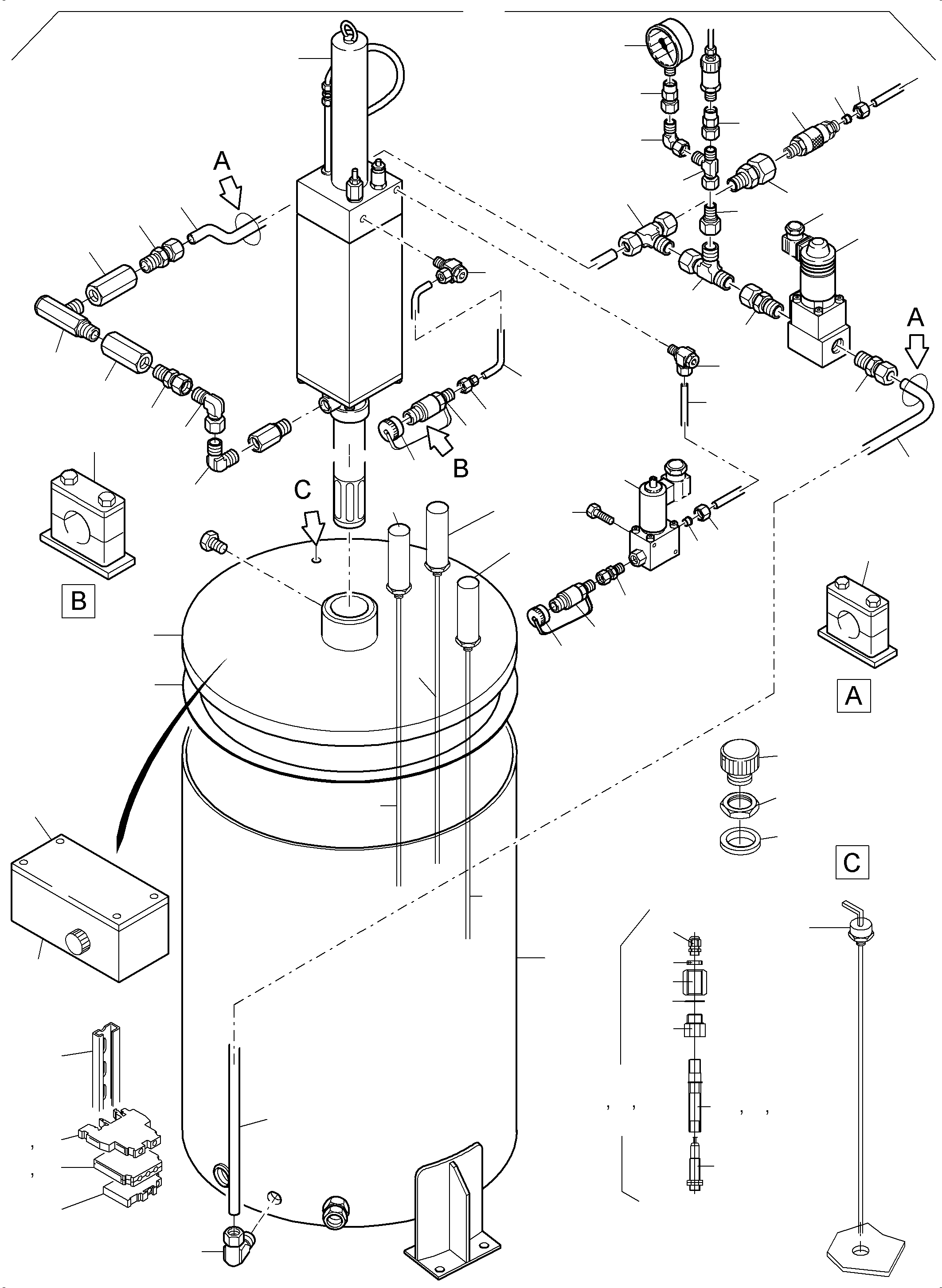

LUBE PUMP STATION, FILLING CONNECTION (991-0548c) in PC3000-6E S/N 06262. Diagram image and parts list.
