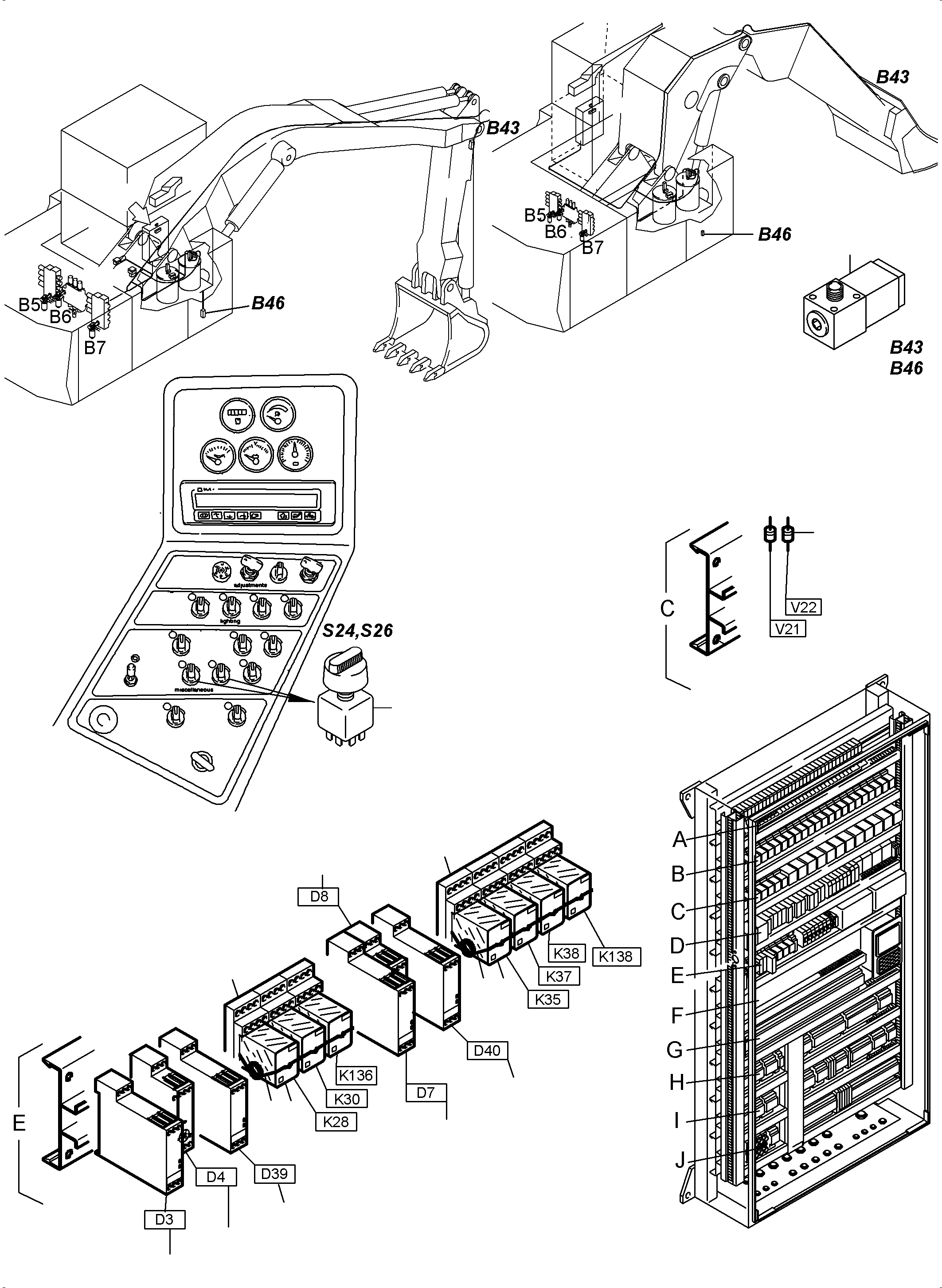

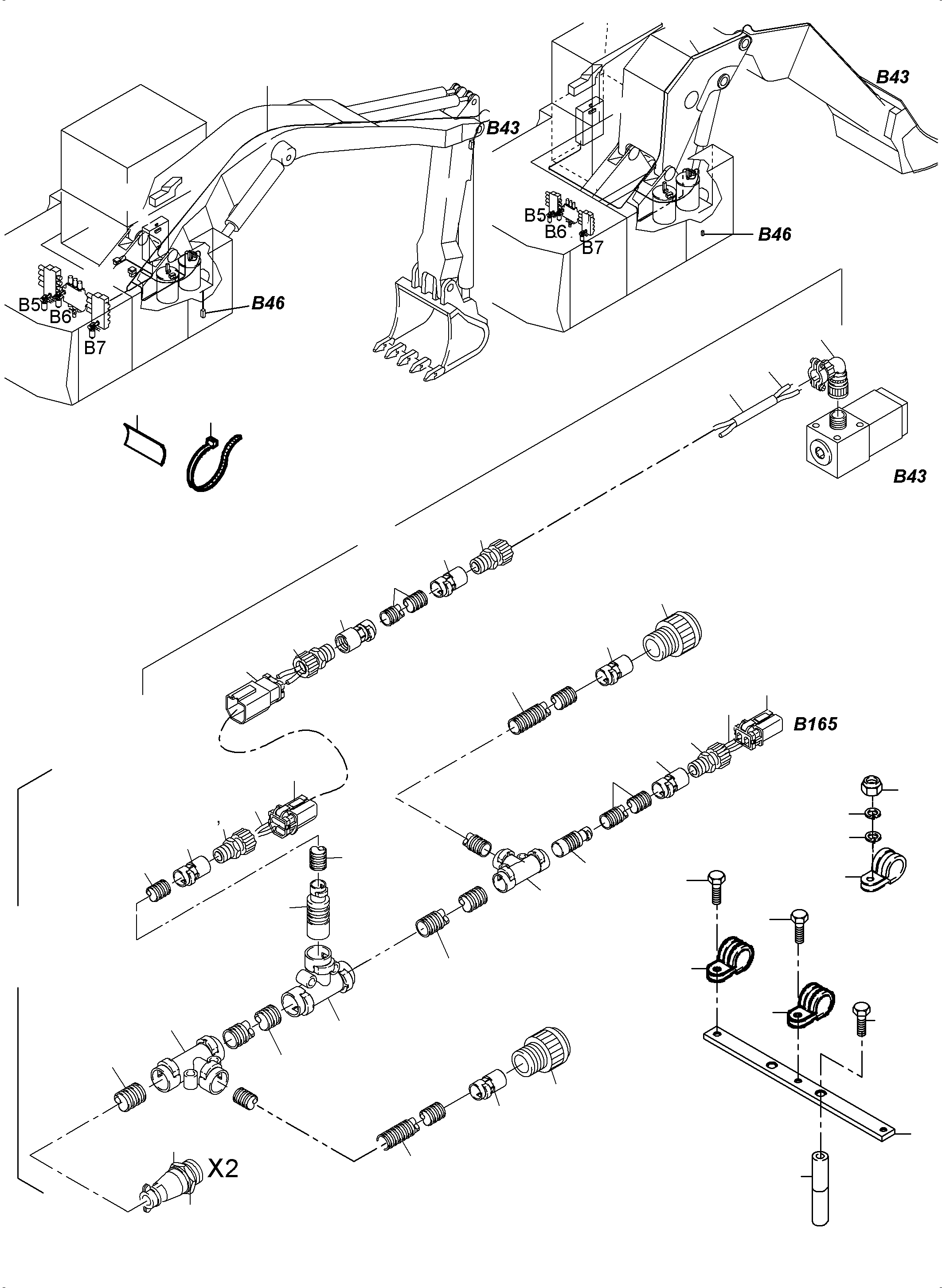

ELECTRICAL PARTS LUBRICATION | PC3000-6E S/N 06262

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	324 400 40	Turn switch	2	InternBDB: Merit 26 10 10 0-1 rf \| InternKon: 898 049 40 / 11
02	592 338 40	Socket	7	InternBDB: F 94.84.1 \| InternKon: 947 342 40 / 8
03	940 020 40	Relay	7	InternBDB: 55.34.9.024.5090 \| InternKon: 947 342 40 / 9
04	414 369 40	Spring retainer	7	InternBDB: F 94.71 \| InternKon: 947 342 40 / 10
06	907 481 40	Time lag relay	2	InternBDB: 82.11.0.240 \| InternKon: 947 342 40 / 74
07	941 208 40	Time lag relay	4	InternBDB: CT-MFS.21 \| InternKon: 947 342 40 / 126
08	906 377 40	Diode	2	InternBDB: RS-Elektronic P 600 B 100V /6A 183-4444 \| InternKon: 898 049 40 / 9
09	341 754 40	Ultimate pressure control	-2	InternBDB: X1T-5180 180 +10 bar
10	948 854 40	Harness - lube arr.	1	InternKon: 948 853 40 / 1
11	906 696 40	Protection cap	2	InternBDB: HDC 14-9 \| InternKon: 948 854 40 / 12
12	896 520 40	End pin	3	InternBDB: B0 3,0x25 \| InternKon: 948 854 40 / 4
13	907 979 40	Fitting	1	InternBDB: BVIVG-U357 NW 17 \| InternKon: 948 854 40 / 24
14	655 629 40	T-distributor DN 17	3	InternBDB: BFTL-17 17 17 GGG \| InternKon: 948 854 40 / 8
15	940 852 40	Plug	6	InternBDB: 16DVI 61103-20 \| InternKon: 948 854 40 / 26
16	655 633 40	Pipe adapter DN 17/12	3	InternBDB: BAVR-17 G 12 T \| InternKon: 948 854 40 / 9
17	655 848 40	Fitting M20/DN17	2	InternBDB: BVIRA-U347 3/8" NW 17 \| InternKon: 948 854 40 / 25
18	907 703 40	Cable union	2	InternBDB: Pflitsch 21650 YNPM 4x3 \| InternKon: 948 854 40 / 3
19	907 692 40	Fitting	2	InternBDB: BVIR - M 162 \| InternKon: 948 854 40 / 2
20	795 128 73	Plug	1	InternBDB: Deutsch HD36-24-23PE-059 0819181206 \| InternKon: 948 854 40 / 1
21	655 650 40	Protecting hose DN 12	-2	InternKon: 948 854 40 / 19
22	655 651 40	Protecting hose DN 17	-2	InternKon: 948 854 40 / 15
23	940 461 40	Insulating tube	-2	InternBDB: Sievert B5x0,6 Pur 70 Shore \| InternKon: 948 854 40 / 27
24	515 213 40	Cable	-2	InternKon: 948 854 40 / 10
25	795 132 73	Plug assy. 2-pole	1	InternBDB: KES 0819212920 \| InternKon: 948 854 40 / 23
26	795 134 73	Plug assy. 3-pole	1	InternBDB: KES 0819213920 \| InternKon: 948 854 40 / 22
27	929 844 40	Harness - boom/stick - backhoe equipment	1
28	256 514 40	Type plate	5	InternKon: 948 854 40 / 5
29	056 292 40	Cable strap	5	InternBDB: TY 23 M \| InternKon: 948 854 40 / 6
30	0443452110	Clip	40	InternKon: 948 853 40 / 2
31	0443451610	Clip	1	InternKon: 948 853 40 / 3
32	0443450810	Clip	1	InternKon: 948 853 40 / 4
33	929 843 40	Harness - boom/stick - bullclam bucket equipment	1
34	307 775 99	Bolt	2	InternBDB: M10x20/933 \| InternKon: 948 853 40 / 9
35	308 587 99	Bolt	2	InternBDB: M10x120/931 \| InternKon: 948 853 40 / 7
36	346 524 40	Elbow plug	1	InternBDB: VG-95234-E-10S-3 \| InternKon: 910 029 40 / 1
37	940 462 40	Insulating tube	-2	InternBDB: Sievert B6x0,6 Pur 70 Shore \| InternKon: 910 029 40 / 2
38	621 548 40	Plug	2	InternBDB: HD 16-9-96S \| InternKon: 948 854 40 / 13
39	795 154 73	Cable socket	12	InternBDB: 0462-201-16141 Deutsch 0819105420 \| InternKon: 948 854 40 / 14
41	510 741 98	Resilent sleeve	4	InternBDB: 13/25x50 WN 341 948 40 \| InternKon: 948 853 40 / 5
42	933 361 40	Retainer	1	InternKon: 948 853 40 / 6
43	507 037 98	Nut	4	InternBDB: M10/985 \| InternKon: 948 853 40 / 10
44	517 122 98	Lock washer	4	InternBDB: 10 WN 655 938 40 \| InternKon: 948 853 40 / 12
45	507 596 98	Washer	4	InternBDB: A11 / 7989 \| InternKon: 948 853 40 / 11
46	795 123 73	Pin	17	InternBDB: Deutsch 0460-202-16141 0819105320 \| InternKon: 948 854 40 / 17
47	795 122 73	Sealing plug	6	InternBDB: 114 017 KES 0819100770 \| InternKon: 948 854 40 / 18
48	795 461 73	Plug assy.	1	InternBDB: KES 0819213820 \| InternKon: 929 844 40 / 2
49	940 629 40	Warmth shrink tube	-2	InternBDB: Bьrklin 91F 2570 \| InternKon: 948 854 40 / 28
