PC3000-6E S/N 06262

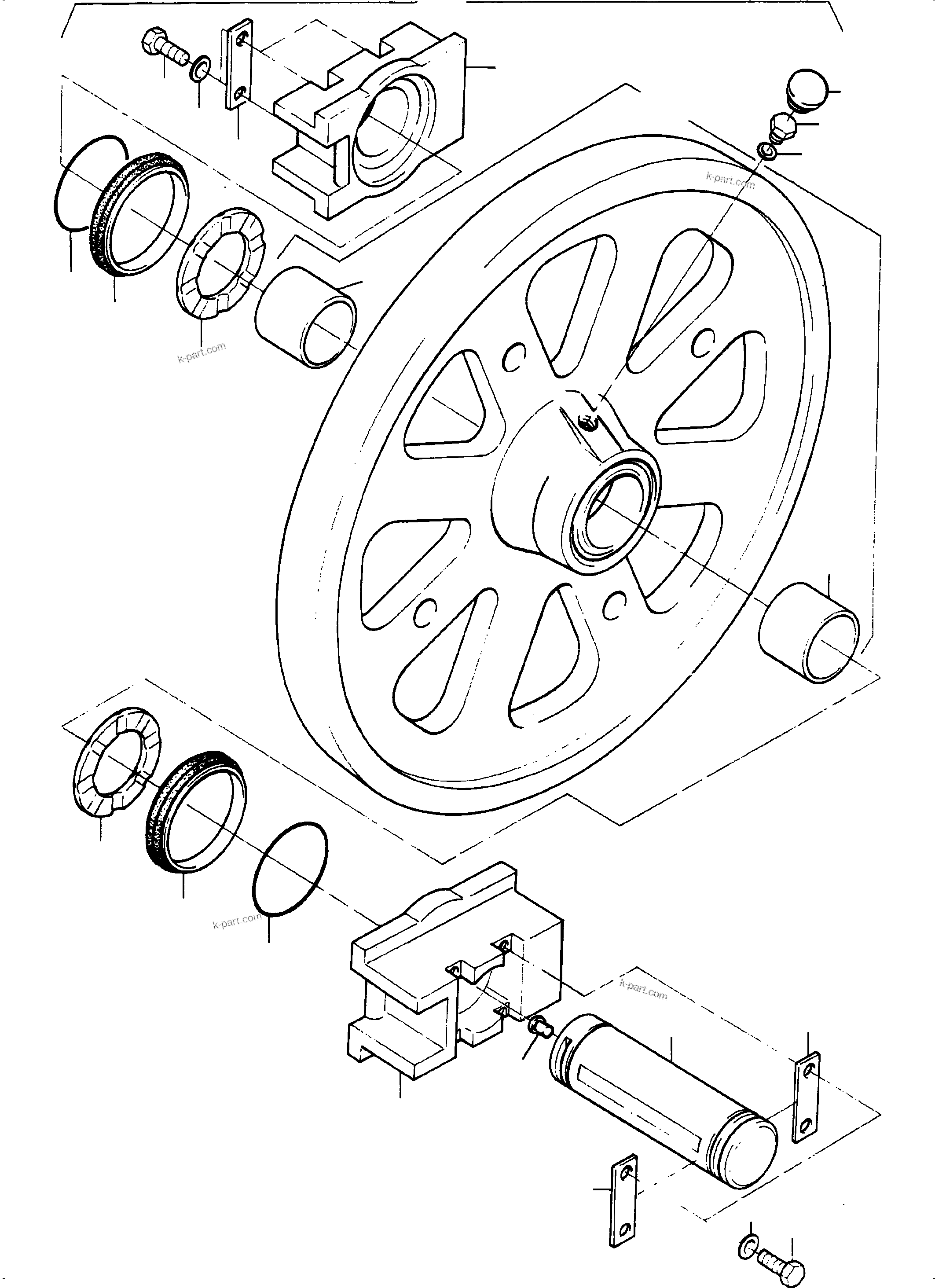

Komatsu parts book diagram for PC3000-6E S/N 06262: IDLER ASSY.

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	429 223 40	Idler assy.	1
	?	429 210 40	Sliding block	2	InternKon: 429 223 40 / 2
	?	429 222 40	Stop washer	2	InternKon: 429 223 40 / 4
	?	804 595 73	Lifetime seal	2	InternBDB: Gцtze 76.90 H-41 \| InternKon: 429 223 40 / 6
	?	349 989 99	Plug	1	InternBDB: AM 26x1,5 / 7604 \| InternKon: 429 223 40 / 10
	?	339 918 99	Seal ring	1	InternBDB: A 26x32 /7603 \| InternKon: 429 223 40 / 11
	?	323 806 40	Plug	1	InternKon: 429 223 40 / 13
	?	429 221 40	Idler with freeze-in bushing	1	InternKon: 429 223 40 / 1
	?	429 220 40	Freeze-in bushing	2	InternBDB: 197/168x117 \| InternKon: 429 221 40 / 2
	?	324 575 40	Plug	1	InternKon: 429 223 40 / 14
	?	429 219 40	Pin	1	InternKon: 429 223 40 / 3
	?	506 597 98	O-ring	2	InternBDB: 160x5,3 N NB 70 /3771 \| InternKon: 429 223 40 / 7
	?	307 612 99	Bolt	8	InternBDB: M16x40 /933 \| InternKon: 429 223 40 / 8
	?	316 211 99	Washer	8	InternBDB: 17 /6916 \| InternKon: 429 223 40 / 9
	?	313 383 40	Axle stirrup	4	InternKon: 429 223 40 / 5

Komatsu PC3000-6E S/N 06262 parts catalog PDF

IDLER ASSY. (585-3115) in PC3000-6E S/N 06262. Diagram image and parts list.
