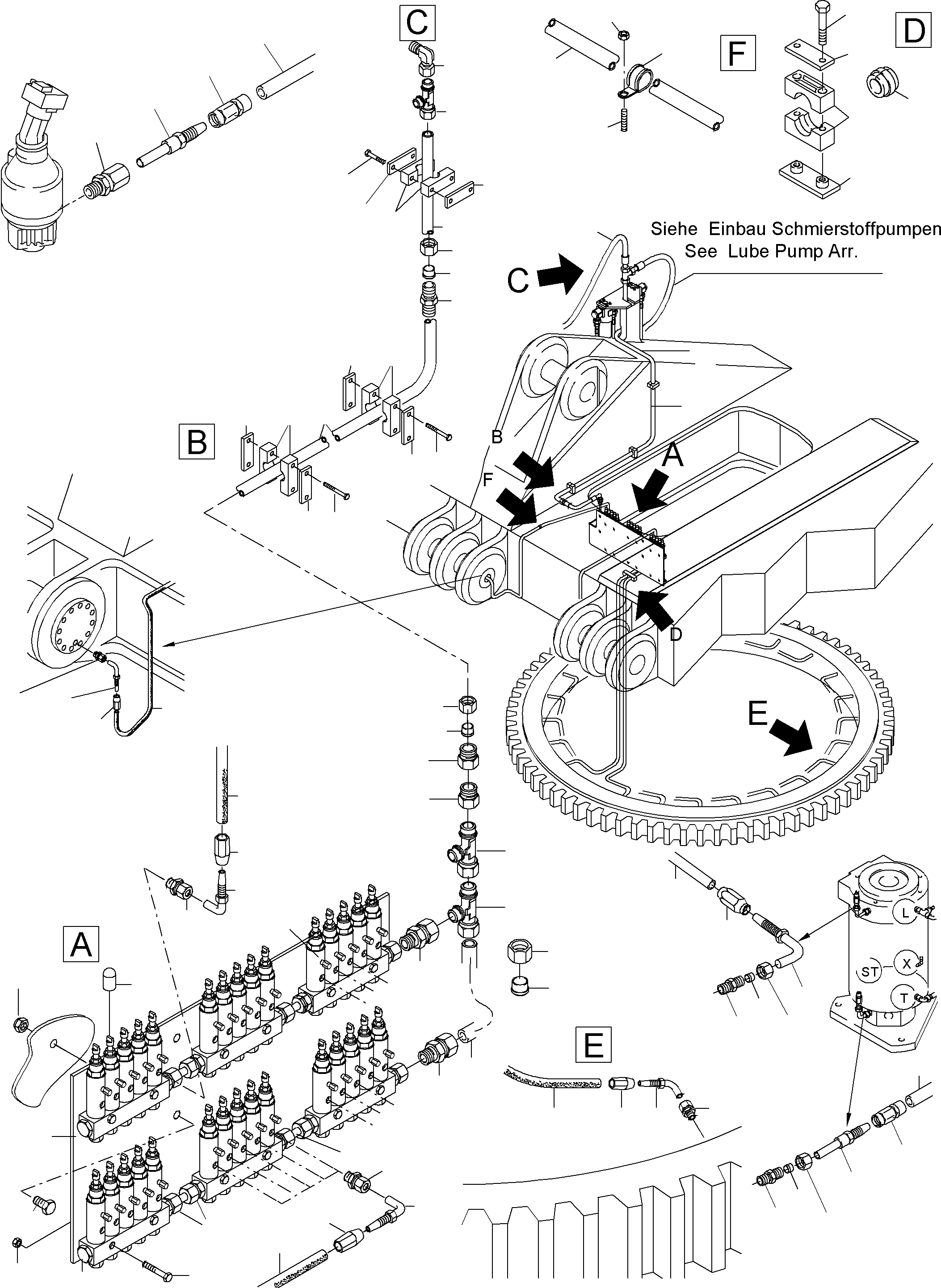

LUBE DISTRIBUTOR SLEW RING | PC4000-6E S/N 08202

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options	Reference
01		Metering valve /28	6	InternBDB: 551 969 40 \| InternKon: 931 457 40 / 1	991-0091
02	516 741 98	Union	2	InternBDB: SWE-S12 ISO 08434 \| InternKon: 931 457 40 / 15
03	931 459 40	Mounting plate	1	InternKon: 931 457 40 / 4
04	371 259 99	Union nut	10	InternBDB: N-S 12 ISO 08434 \| InternKon: 931 457 40 / 14
05	516 839 98	Socket	1	InternBDB: SWBT-S12 ISO 08434 \| InternKon: 931 457 40 / 10
06	515 832 98	Socket	1	InternBDB: GZR 20/12-PS WN 65591040 \| InternKon: 931 457 40 / 12
07	906 984 40	Union	10	InternBDB: GE 12-S 3/8 NPT OMD WN 65593340 \| InternKon: 931 457 40 / 8
08	324 672 40	Plug	2	InternBDB: Linc.-Helios 67044 / 3/8 NPT \| InternKon: 931 457 40 / 11
09	334 599 99	Nut	12	InternBDB: M8 /985 \| InternKon: 931 457 40 / 7
10	308 556 99	Screw	12	InternBDB: M8x50 /931 8.8 \| InternKon: 931 457 40 / 6
11	373 692 99	Union	1	InternBDB: GR 25 /20-PS WN 01087899 \| InternKon: 931 457 40 / 13
12	215 424 99	Pipe Ш 12 Bulk ware, state length required	-2	InternBDB: 12x1,5 /2391 \| InternKon: 931 457 40 / 5
13	515 029 40	Hose connection 90	59	InternBDB: 532-30739-1 \| InternKon: 931 458 40 / 11
14	515 028 40	Collet	60	InternBDB: 432-23031-1 \| InternKon: 931 458 40 / 12
15	502 371 98	Half clamp	4	InternBDB: S-4-E /3015 \| InternKon: 931 458 40 / 21
16	516 422 98	Hose assy. DN 20x4550	1	InternBDB: DOS 25 /DOS 25-45 \| InternKon: 931 458 40 / 10
17	516 834 98	Union	1	InternBDB: T-S 25 ISO 08434 \| InternKon: 931 458 40 / 9
18	006 301 98	Clamp	24	InternBDB: RSGU 1100 /15 \| InternKon: 931 458 40 / 7
19	534 000 99	Half clamp	8	InternBDB: S-2-R-25 /3015 \| InternKon: 931 458 40 / 16
20	534 001 99	Plate	4	InternBDB: S-DP-A-2 / 3015 \| InternKon: 931 458 40 / 17
21	308 579 99	Bolt	8	InternBDB: M10x60 /931 \| InternKon: 931 458 40 / 18
22	307 804 99	Bolt	4	InternBDB: M12x30 /933 \| InternKon: 931 458 40 / 3
23	334 600 99	Nut	4	InternBDB: M 12 /985 \| InternKon: 931 458 40 / 4
24	906 981 40	Union	30	InternBDB: GE 6-PL / 1/8 NPT OMD WN 65593340 \| InternKon: 931 458 40 / 5
25	374 428 99	Socket	28	InternBDB: S 6 E-G 1/4 DIN 3901 \| InternKon: 931 458 40 / 6
26	323 945 40	Tread pin	24	InternBDB: M 6x16 /32501 \| InternKon: 931 458 40 / 8
27	534 002 99	Weld on plate	4	InternBDB: S-AP-A-2 /3015 \| InternKon: 931 458 40 / 15
28	576 160 40	Plastic pipe DN 4 Bulk ware, state length required	-2	InternBDB: 8,4x2,1 504-36033-3 \| InternKon: 931 458 40 / 13
29	931 461 40	Pipe Ш 25	1	InternKon: 931 458 40 / 14
30	507 025 98	Nut	24	InternBDB: M 6 /985 \| InternKon: 931 458 40 / 19
31	654 130 40	Protection cap	30	InternBDB: Lincoln 83272 \| InternKon: 931 457 40 / 3
32	534 009 99	Weld on plate	2	InternBDB: S-AP-A-4 /3015 \| InternKon: 931 458 40 / 20
33	534 008 99	Cover plate	2	InternBDB: S-DP-A-4 /3015 \| InternKon: 931 458 40 / 22
34	502 625 98	Grommet	2	InternBDB: S-4-50,8 /3015 \| InternKon: 931 458 40 / 23
35	308 613 99	Bolt	4	InternBDB: M12x110 /931 \| InternKon: 931 458 40 / 24
36	515 027 40	Hose connection straight	3	InternBDB: 432-23030-1 \| InternKon: 931 458 40 / 25
37	898 511 40	Pipe Ш 25	1	InternKon: 931 458 40 / 26
38	374 443 99	Union	1	InternBDB: S-S 25 ISO 08434 \| InternKon: 931 458 40 / 27
39	906 347 40	Olive	10	InternBDB: ES-4 S12 WN 65593940 \| InternKon: 931 457 40 / 9
40	371 264 99	Union nut	4	InternBDB: N-S 25 ISO 08434 \| InternKon: 931 458 40 / 30
41	906 868 40	Olive	4	InternBDB: ES-4 S25 WN 65593940 \| InternKon: 931 458 40 / 29
42	907 080 40	Olive	58	InternBDB: ES-4 S6 WN 65593940 \| InternKon: 931 458 40 / 31
43	371 271 99	Union nut	58	InternBDB: N-L 6 ISO 08434 \| InternKon: 931 458 40 / 32
44	516 248 98	Union	1	InternBDB: SWE-S 25 ISO 08434 \| InternKon: 931 458 40 / 28
