PC4000-6E S/N 08202

01 01 02 02 03 03 04 05 06 06 07 07 08 09 09 10 11 12 13 14 15 17 18 18 19 20 21 22 23 24 24 25 26 26 26 27 27 28 28 29 29 29 30 31 32 33 33 34 34 35 35 35 36 37 38 39 40 41 42 43 44 45 45 45 46 46 47 48 49 51 51 52 52 52 53 54 55 56 57 57 59 59 60 61 62 63 64 65 67 68 68 69 80 81 82 83 84 85 86 87 88 89 90 91

#	Part Number	Partname	Quantity	Options	Reference
01		Metering valve	4	InternBDB: 269 881 40 \| InternKon: 918 215 40 / 7	991-0323a
02		Metering valve	2	InternBDB: 269 880 40 \| InternKon: 918 215 40 / 1	991-0091
03	374 443 99	Union	2	InternBDB: S-S25ISO08434 \| InternKon: 918 215 40 / 57
04	918 219 40	Pipe assy. Ш 25	1	InternKon: 919 084 40 / 63
05	917 255 88	Union	1	InternBDB: T-S16ISO08434 \| InternKon: 918 215 40 / 49
06	514 937 98	Union	2	InternBDB: Red 25/16-PS \| InternKon: 918 215 40 / 47
07	502 303 98	Socket	4	InternBDB: EVGE 16-S/ 1/2 NPT \| InternKon: 918 215 40 / 44
08	576 270 40	Union	4	InternBDB: GE6-L1/4 NPT
09	517 291 98	Union	8	InternBDB: 6SR/OMD WN65593440 \| InternKon: 918 215 40 / 59
10	634 775 40	Clamp	8	InternBDB: DM 50,8 M 12 Stauffenberg \| InternKon: 918 215 40 / 9
11	308 611 99	Bolt	16	InternBDB: M12x90/DIN00931 \| InternKon: 918 215 40 / 11
12	341 754 40	Ultimate pressure control	1	InternBDB: Delaval Typ X1T-5145 \| InternKon: 918 215 40 / 13
13	308 555 99	Screw	4	InternBDB: M8x45/DIN00931 \| InternKon: 918 215 40 / 4
14	511 773 98	Thread pin	4	InternBDB: PM 10x70 /32500 \| InternKon: 918 215 40 / 15
15	652 383 40	Shackle	2	InternKon: 918 215 40 / 14
17	510 130 98	Thread pin	8	InternBDB: PM10x30/32500 \| InternKon: 918 215 40 / 34
18	942 865 40	Pipe Ш 25	1	InternKon: 919 084 40 / 62
19	502 000 98	Socket	1	InternBDB: EVGE 10-PLR- ED \| InternKon: 918 215 40 / 55
20	513 386 98	Union	1	InternBDB: Red 10/6-PL \| InternKon: 918 215 40 / 53
21	371 861 99	Breech block	1	InternBDB: 6-L \| InternKon: 918 215 40 / 56
22	900 680 40	Pipe assy. Ш 25	1	InternKon: 919 084 40 / 61
23	942 866 40	Pipe assy. Ш 25	1	InternKon: 919 084 40 / 64
24	373 772 99	Union	2	InternBDB: TR 25/12/25 PS \| InternKon: 918 215 40 / 43
25	170 427 40	Cable strap	20	InternBDB: TY 27 M \| InternKon: 918 215 40 / 40
26	516 741 98	Union	4	InternBDB: 12ISO08434-4 \| InternKon: 918 215 40 / 42
27	428 861 40	Pipe assy. Ш 16	2	InternKon: 918 215 40 / 48
28	516 961 98	Union	2	InternBDB: 16ISO08434-4 \| InternKon: 918 215 40 / 46
29	576 160 40	Hose	-2	InternBDB: 504-36033-3 \| InternKon: 918 215 40 / 36
30	516 860 98	Hose assy. DN 20x3400	-2	InternBDB: DOS 25 /DOS 25-45 \| InternKon: 918 215 40 / 60
31	517 597 98	Union	1	InternBDB: 16ISO08434 \| InternKon: 918 215 40 / 45
32	895 109 40	Plate	4	InternKon: 918 215 40 / 33
33	534 000 99	Pair of clamps	9	InternBDB: S-2-R-25 /3015 \| InternKon: 918 215 40 / 17
34	534 001 99	Cover plate	9	InternBDB: S-DP-A-2 /3015 \| InternKon: 918 215 40 / 18
35	323 945 40	Thread pin	24	InternBDB: M6x15 /32501 \| InternKon: 918 215 40 / 30
36	371 502 99	Union	1	InternBDB: KOR 16-S /15 PL \| InternKon: 918 215 40 / 50
37	517 118 98	Wisher	16	InternBDB: 12 WN65593840 \| InternKon: 918 215 40 / 12
38	515 029 40	Hose connection 90	14	InternBDB: 532-30739-1 \| InternKon: 918 215 40 / 38
39	515 027 40	Hose connection	10	InternBDB: 432-23030-1 \| InternKon: 918 215 40 / 37
40	515 883 98	Socket	1	InternBDB: GZR 15/10-PL \| InternKon: 918 215 40 / 51
41	634 774 40	Cover plate	8	InternBDB: DP III /Stauffenberg \| InternKon: 918 215 40 / 10
42	906 981 40	Union	8	InternBDB: CL1/8NPT/OMD WN65593340 \| InternKon: 918 215 40 / 65
43	324 672 40	Plug	2	InternBDB: 3/8 NPT Linco \| InternKon: 918 215 40 / 6
44	307 789 99	Bolt	2	InternBDB: M10x80 /933 \| InternKon: 918 215 40 / 22
45	515 028 40	Collet	24	InternBDB: 432-23031-1 \| InternKon: 918 215 40 / 39
46	516 156 98	Socket	2	InternBDB: L10/DIN3942 \| InternKon: 918 215 40 / 54
47	006 302 98	Clamp	12	InternBDB: RSGU 1100/15/15 \| InternKon: 918 215 40 / 29
48	534 092 98	Clamp	12	InternBDB: 8/15 \| InternKon: 918 215 40 / 28
49	517 598 98	Union	1	InternBDB: 25ISO08434 \| InternKon: 918 215 40 / 58
51	507 025 98	Nut	24	InternBDB: 6 /985 \| InternKon: 918 215 40 / 31
52	507 037 98	Nut	14	InternBDB: M10 /985 \| InternKon: 918 215 40 / 16
53	653 129 40	Hose protection	4	InternKon: 918 215 40 / 32
54	374 471 99	Union	1	InternBDB: 10ISO08434 \| InternKon: 918 215 40 / 52
55	517 121 98	Washer	4	InternBDB: 8 WN65593840 \| InternKon: 918 215 40 / 5
56	534 002 99	Weld-on plate	8	InternBDB: S-AP-A-2 /3015 \| InternKon: 918 215 40 / 19
57	512 273 98	Socket	2	InternBDB: EVGE 12-S /3/8 NPT \| InternKon: 918 215 40 / 41
59	654 130 40	Protection cap with o-ring	8	InternBDB: 83272 Linco \| InternKon: 918 215 40 / 2
60	502 976 98	Pair of clamps	1	InternBDB: S-4-R-50 /3015 \| InternKon: 918 215 40 / 23
61	654 496 40	Protection cap	4	InternBDB: 83730 \| InternKon: 918 215 40 / 8
62	534 008 99	Cover plate	1	InternBDB: S-DP-A-4 /3015 \| InternKon: 918 215 40 / 24
63	308 612 99	Bolt	2	InternBDB: M12x100 /931 \| InternKon: 918 215 40 / 26
64	509 310 98	Locking plate	1	InternBDB: SI 6 \| InternKon: 918 215 40 / 27
65	900 681 40	Plate	1	InternKon: 918 215 40 / 25
67	308 579 99	Bolt	16	InternBDB: M10x60 /931 \| InternKon: 918 215 40 / 20
68	509 308 98	Locking plate	8	InternBDB: SI 4 \| InternKon: 918 215 40 / 21
69	340 465 99	Washer	8	InternBDB: 10,5 /125 \| InternKon: 918 215 40 / 35
80	942 832 40	Thread plate	4	InternBDB: 30x215 \| InternKon: 918 215 40 / 67
81	936 979 40	Thread plate	2	InternBDB: 40x145 \| InternKon: 918 215 40 / 68
82	371 259 99	Union nut	4	InternBDB: N-S 12 ST ZN ISO 08434 \| InternKon: 918 215 40 / 69
83	906 347 40	Olive	4	InternBDB: ES-4 S12 9SMNPB28K WN 65593940 \| InternKon: 918 215 40 / 70
84	371 263 99	Union nut	9	InternBDB: N-S 16 ST ZN ISO 08434 \| InternKon: 918 215 40 / 71
85	907 151 40	Olive	9	InternBDB: ES-4 S16 9SMNPB28K WN 65593940 \| InternKon: 918 215 40 / 72
86	371 258 99	Union nut	5	InternBDB: N-S 10 ST ZN ISO 08434 \| InternKon: 918 215 40 / 73
87	906 346 40	Olive	5	InternBDB: ES-4 S10 9SMNPB28K WN 65593940 \| InternKon: 918 215 40 / 74
88	371 264 99	Union nut	8	InternBDB: N-S 25 ST ZN ISO 08434 \| InternKon: 918 215 40 / 75
89	906 868 40	Olive	8	InternBDB: ES-4 S25 9SMNPB28K WN 65593940 \| InternKon: 918 215 40 / 76
90	371 257 99	Union nut	16	InternBDB: N-S 6 ST ZN ISO 08434 \| InternKon: 918 215 40 / 77
91	907 080 40	Olive	16	InternBDB: ES-4 S 6 9SMNPB28K WN 65593940 \| InternKon: 918 215 40 / 78

Komatsu PC4000-6E S/N 08202 parts catalog PDF

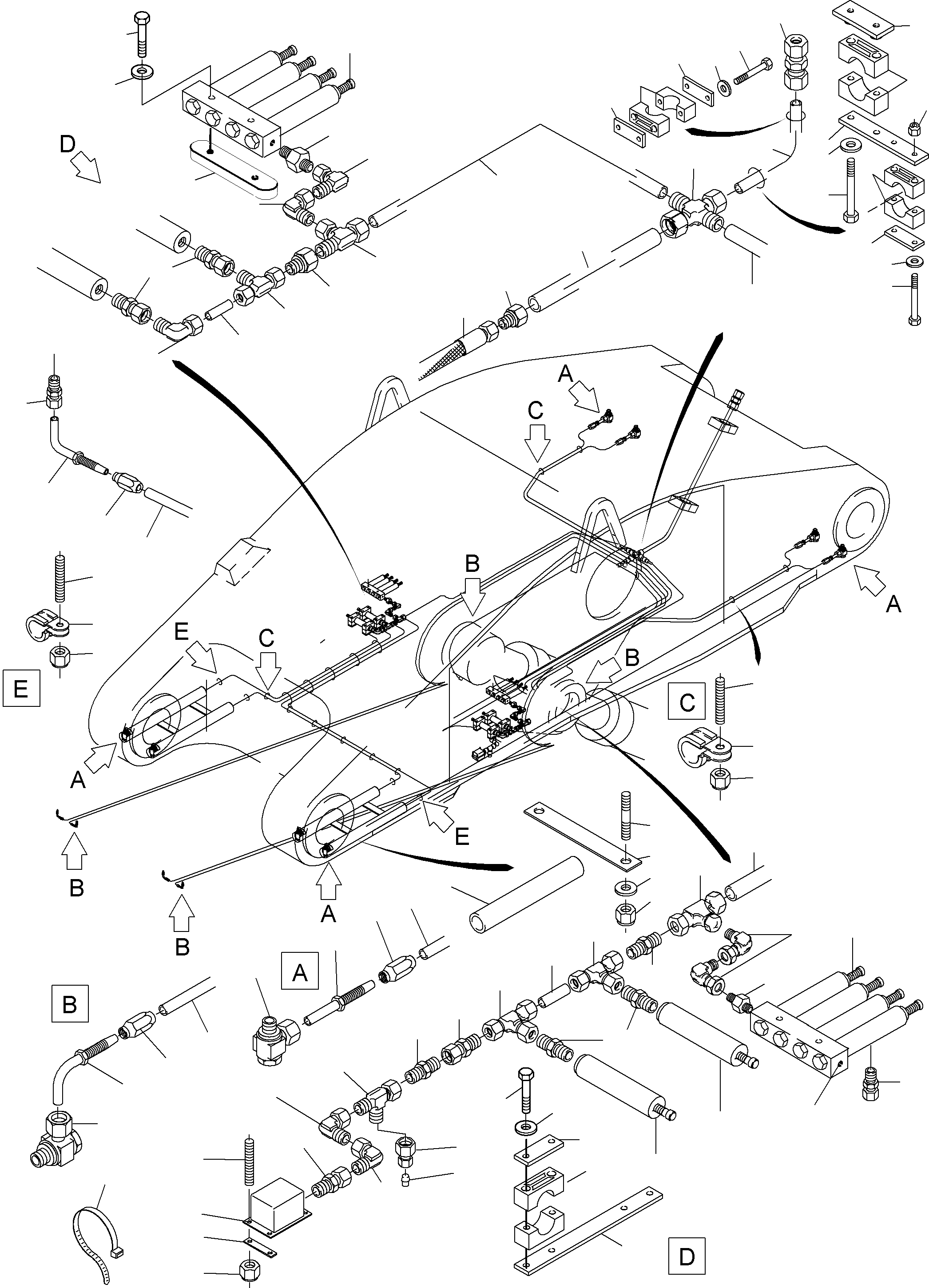

STICK 5.75 M - CENTRAL LUBRICATION (355-2355e) in PC4000-6E S/N 08202. Diagram image and parts list.
