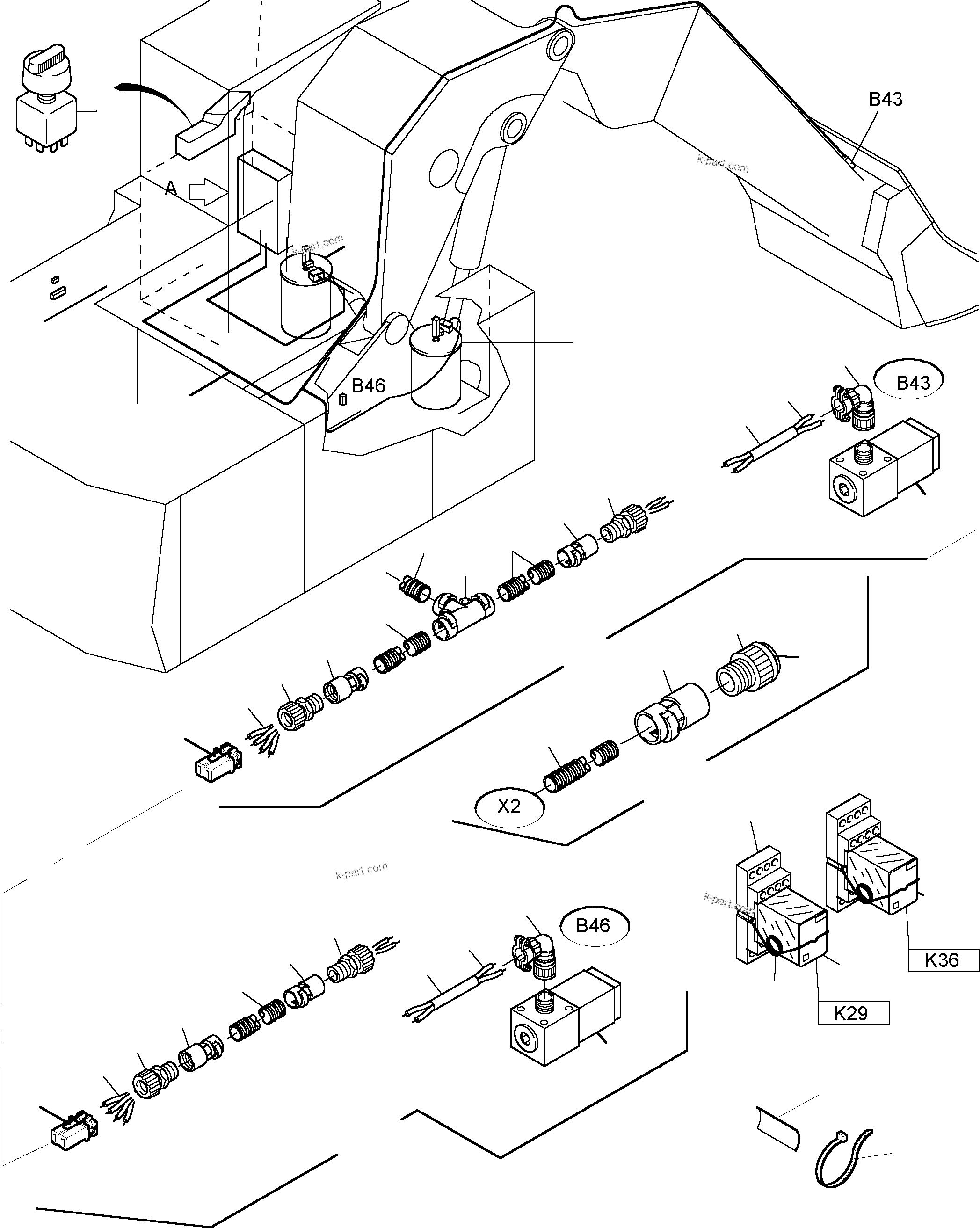

PC4000-6E S/N 08202

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	324 400 40	Turn switch	2	InternBDB: Merit 261 000 \| InternKon: 913 243 40 / 1
?	898 681 40	Relay assy.	2	InternKon: 913 238 40 / 1
?	356 184 40	Relay	2	InternKon: 898 681 40 / 1
?	323 910 40	Spring retainer	2	InternKon: 898 681 40 / 2
?	323 911 40	Socket	2	InternBDB: ZG 78700 \| InternKon: 898 681 40 / 3
?	906 696 40	Protection cap	2	InternBDB: HDC 14-9 Deutsch \| InternKon: 913 248 40 / 3
?	913 240 40	Harness - gear greasing by pinion	1	InternKon: 913 239 40 / 1
?	913 241 40	Harness - lube arr.	1	InternKon: 913 239 40 / 2
?	913 242 40	Harness - ultimate pressure control	1	InternKon: 913 239 40 / 3
?	341 754 40	Ultimate pressure control	2	InternBDB: Typ X1T-5180 180/410 bar \| InternKon: 913 247 40 / 1
?	621 547 40	Socket	2	InternBDB: HD 14-9-96P Deutsch \| InternKon: 913 248 40 / 1
?	896 765 40	Female contact 1-8	18	InternBDB: 0462-201-16141 \| InternKon: 913 248 40 / 2
?	655 848 40	Fitting DN 17	2	InternBDB: PMA BFIL A-U347T 1 3/8-18 \| InternKon: 913 248 40 / 4
?	655 651 40	Cable protection hose DN 17	-2	InternBDB: PMA VCSG 17-B \| InternKon: 913 248 40 / 5
?	915 244 40	Cable - ultimate pressure control B43	1	InternKon: 913 247 40 / 6
?	515 213 40	Cable 1,0	-2	InternKon: 913 248 40 / 7
?	056 070 40	Cable sleeve 1-1,5	20	InternKon: 913 248 40 / 6
?	910 029 40	Plug assy.	2	InternKon: 913 249 40 / 1
?	655 628 40	T-Distributor DN 10	1	InternBDB: PMA BFTL-10 10 10 TTT \| InternKon: 913 249 40 / 3
?	655 805 40	Fitting PG 9	4	InternBDB: PMA BFIL-P 090 T \| InternKon: 913 249 40 / 4
?	655 798 40	Cable union PG 9	4	InternBDB: Pflitsch 150 YNPM 4x3 \| InternKon: 913 249 40 / 5
?	896 520 40	End pin	6	InternBDB: Pflitsch BO 3,0x25 \| InternKon: 913 249 40 / 6
?	655 649 40	Cable protection hose DN 10	-2	InternBDB: PMA VCST-10 B \| InternKon: 913 249 40 / 9
?	346 524 40	Plug	2	InternBDB: VG-95234-E-10SL-3 \| InternKon: 910 029 40 / 1
?	455 757 99	Insulating tube B7x0,7	-2	InternBDB: B7x0,7 /40621 \| InternKon: 910 029 40 / 2
?	891 031 40	Plug assy.	1	InternKon: 913 249 40 / 2
?	891 039 40	Plug assy.	1	InternKon: 915 244 40 / 2
?	635 043 40	Name plate	6	InternBDB: BS5 55476 \| InternKon: 915 244 40 / 6
?	056 292 40	Cable strap	6	InternBDB: TY 23 M \| InternKon: 915 244 40 / 7
