PC4000-6 S/N 08195

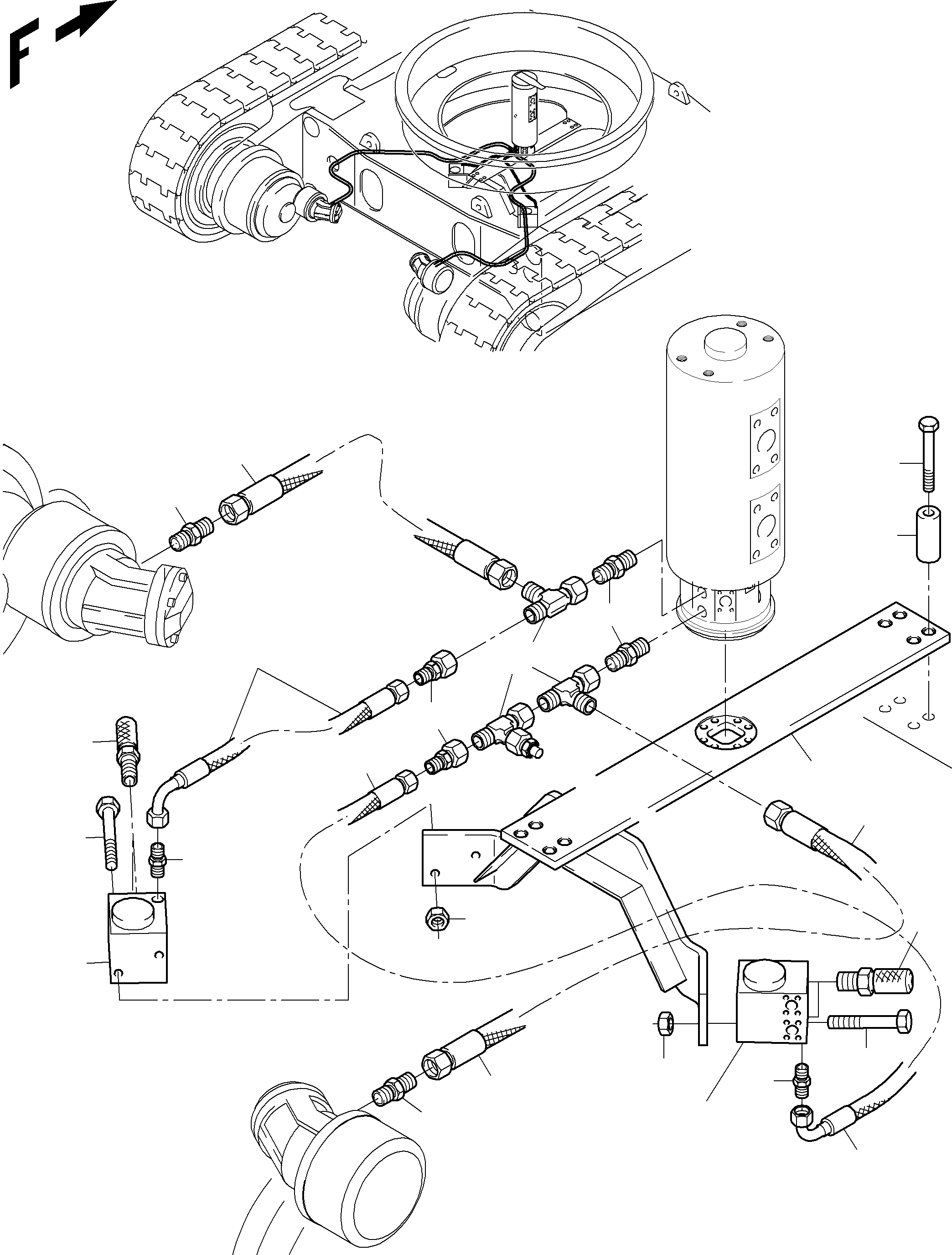

Komatsu parts book diagram for PC4000-6 S/N 08195: DRIVE MOTOR, BRAKE VALVE - LEAKAGE LINES

01 02 03 03 03 04 04 04 05 06 06 07 07 08 08 09 1 1 1 10 11 11 12 12 13 14 14

	#	Part Number	Partname	Quantity	Options	Reference
	01	510 732 98	Resilient sleeve	8	InternBDB: 21/40x60 \| InternKon: 938 750 40 / 4
	02	502 155 98	Bolt	8	InternBDB: M20x145 /931 10.9 \| InternKon: 938 750 40 / 5
	03	374 431 99	Socket	2	InternBDB: SDS -L28XM33x2 -Typ E ISO 08434 \| InternKon: 938 750 40 / 6
	04	516 633 98	Hose assy. DN 25x3995	2	InternBDB: DOL 28 / DOL 28 \| InternKon: 938 750 40 / 18
	05	904 294 40	Crosshead	1	InternKon: 904 295 40 / 1
	06		Travelling gear brake valve	2	InternBDB: 358 617 40 \| InternKon: 904 295 40 / 7	090-0392
	07	501 337 98	Bolt	4	InternBDB: M20x270 /931 10.9 \| InternKon: 904 295 40 / 8
	08	504 662 98	Nut	4	InternBDB: M 20 /934 \| InternKon: 904 295 40 / 9
	09	516 177 98	Socket	3	InternBDB: SWRT-L 28 / ISO 08434 \| InternKon: 904 295 40 / 19
	10	634 304 40	Union	2	InternBDB: RED 28/10-PL / OMD \| InternKon: 904 295 40 / 20
	11	515 812 98	Test union	4	InternBDB: G1 / 4-PC / 655 914 40 \| InternKon: 904 295 40 / 21
	12	374 420 99	Socket	2	InternBDB: SDS-L10XM14x1,5 Typ E ISO 08434 \| InternKon: 904 295 40 / 22
	13	514 599 98	Hose assy. DN 8x1130	1	InternBDB: DOL 10 /DOL 10-90 \| InternKon: 904 295 40 / 31
	14	640 491 40	Hose assy. DN 8x1350	1	InternBDB: 120 DOL 10 /DOL 10-90 \| InternKon: 904 295 40 / 32

Komatsu PC4000-6 S/N 08195 parts catalog PDF

DRIVE MOTOR, BRAKE VALVE - LEAKAGE LINES (355-3175d) in PC4000-6 S/N 08195. Diagram image and parts list.
